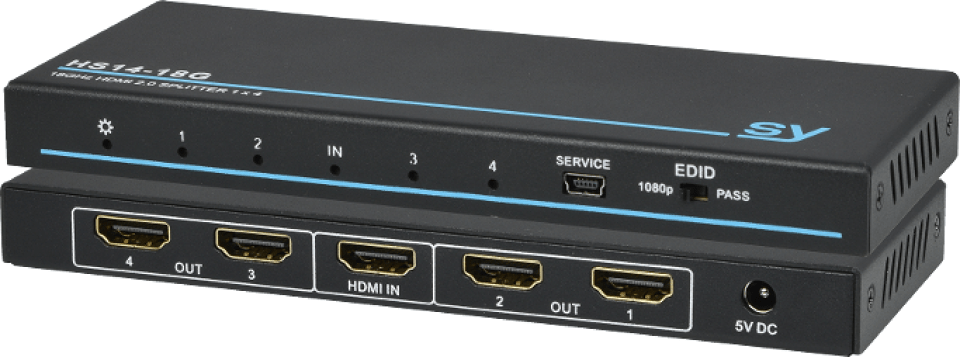

SY-HS14-18G S Y Electronics 1×4 HDMI 2.0 Distribution Spliiter Amplifier

£178.00 inc VAT

The HS14-18G 1 HDMI input to 4 HDMI Displays can support a resolution up to 4K @50/60Hz HDMI 2.0 signals with compliance to HDCP 2.2. this 1 to 4 HDMI splitter supports 3D at 1080p @60Hz as well as audio formats including LPCM 7.1 Dolby TrueHD and DSTS-HD Master Audio with smart EDID control.

Data Sheet HS14 18G

User Manual

Description

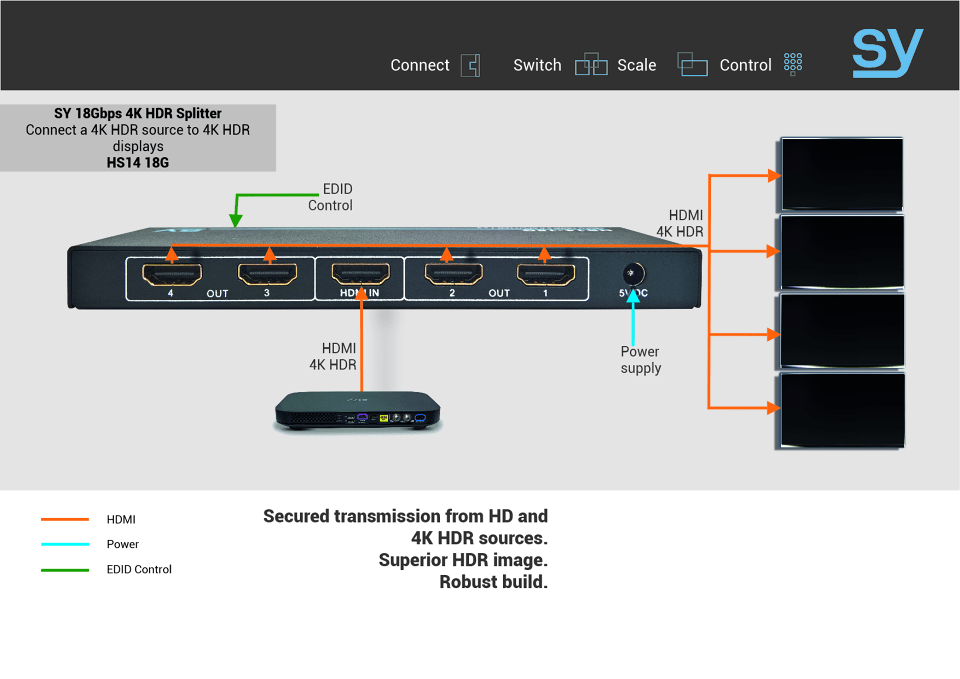

The SY-HS14-18G is a 1 x 4 HDMI Distribution Amplifier.

This range of 18GHz splitters offers a solution to distribute HDMI signals to 4 display devices. These splitters can support up to 4K @50/60Hz HDMI 2.0 signals with compliance to HDCP 2.2. They are ideal for a variety of situations from digital signage, residential, conference rooms and education establishments.

Features

 Split a single HDMI input to 4 outputs
 Supports all resolutions up to HDMI 2.0 (18GHz) (4K @60Hz with 12-bit YCbCr 4:4:4)
 Supports 3D at 1080p @60Hz and Compliant with HDCP 2.2
 Supports audio formats including LPCM 7.1CH, Dolby TrueHD, and DTS-HD Master Audio
 Smart EDID control

Input: 1 HDMI 1.4
Signal Level: TMDS 2.9V to 3.3V
Input Impedance Differential: 100ohm
Video: Output 4 HDMI
Signal Level: TMDS 2.9V to 3.3V
Output Impedance Differential: 100ohm
Max data rate: 10.2Gbit/s
Max Resolution: 4K x 2K, 1080P 3D@60Hz
Max Pixel Clock: 340MHz
Gain: 0dB
HDCP: Compliant with HDCP
EDID: Built-in EDID management
Temperature: -10 to +40C
Reference Humidity: 10% to 90%
Power: DC 5V 1A
Power Consumption: 3.6W (Max)
Dimension: W150 x H11 x D70
Weight: 0.12kg.
