SY-HDBT-EC S Y Electronics HDBaseT 4K HDMI 70m Extender

£329.00 inc VAT

S Y Electronics SY-HDBT-EC broadcasts a single HDMI signal via cat 5e/ cat6/ cat 6a cable up to 70m @ 1080p or 40m @ 4K with PoC. IR pass-through allows control of any IR device from either the transmitter or the receiver location.

User Manual

SKU: SY-HDBT-EC Categories: , , , , , , , , , , Tags: , , , , , ,

Description

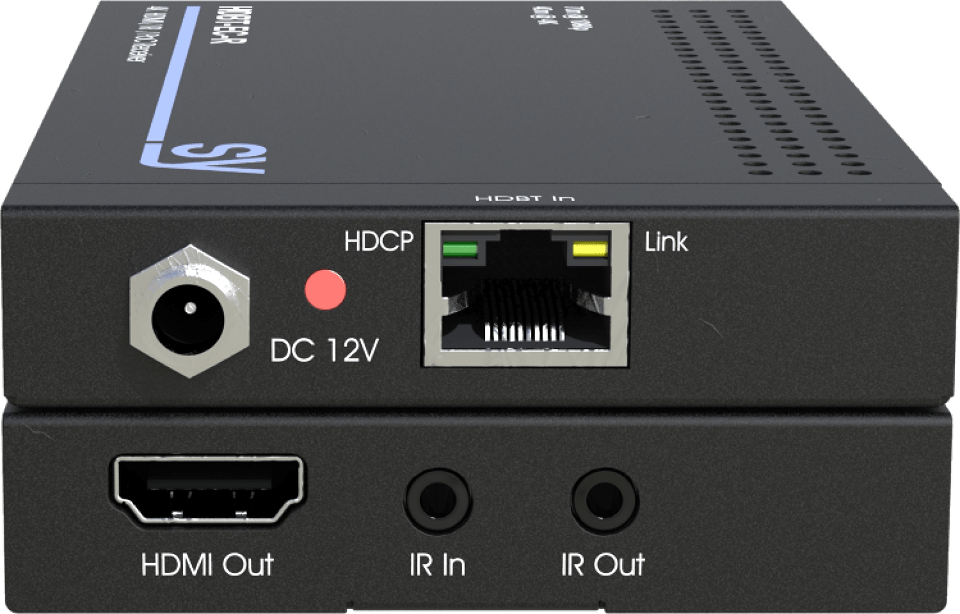

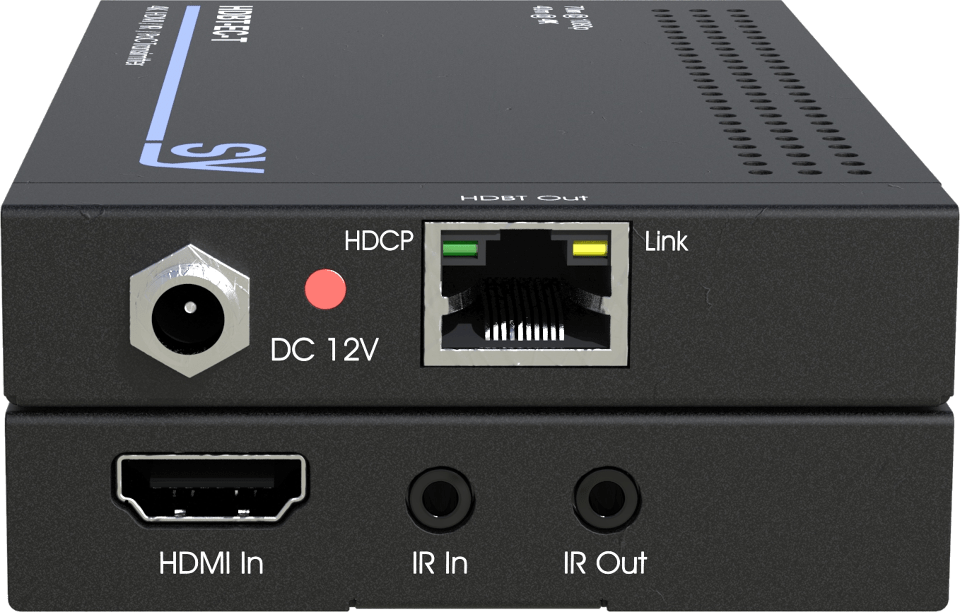

The new S Y Electronics SY-HDBT-EC Extender Set consists of a transmitter and receiver pair that can broadcast 4Kx2K HDMI up to 40m or 1080p up to 70m.

The SY-HDBT-EC supports bi-directional IR pass-through – wide carrier frequency 28-60KHz, supports bi-directional PoC for simplified wiring – PSU at Transmitter or Receive and it is only 16mm thick.





Features

SY-HDBT-ec Features

  • Supports HDMI1.4, HDCP2.2 & CEC
  • Maximum transmission distance is up to 70m for 1080p or 40m for 4Kx2K
  • Supports bi-directional IR pass-through – wide carrier frequency 28-60KHz
  • Supports bi-directional PoC for simplified wiring – PSU at Transmitter or Receiver
  • Only 16mm thick

Specifications

SY-HDBT-EC Specification

  • HDMI Resolutions: VESA and SMPTE 480p to 2160p (4K UHD) with 3D. (All resolutions to: 4096x2160p @60Hz 4:2:0 8bit, 3840x2160p @30Hz 4:4:4 8bit) All PC resolutions to 1920×1200
  • HDMI Standard: HDMI 1.4
  • HDCP Standard: HDCP 1.4 & HDCP 2.2
  • HDMI Bandwidth:  HDBaseT – 10.2Gbps
  • Transmission Distance: Up to 70 metres @ 1080p or 40m @ 4K2K 60Hz 4:2:0 (30Hz 4:4:4) With Power over Cable (PoC)
  • IR Control:  28-60kHz carrier frequency for any control protocol
  • Power Supply:  12V DC @ 1A
  • Power Consumption: SY-HDBT-EC Set: 9 W max
  • Operating Temperature: 0 – 45 °C non condensing
  • Dimensions: (W x H x D) 120 x 16 x 74 mm Weight 240 g
