SY-HDBT-14S is a 4K HDBaseT splitter that allows one HDMI input to be split into 4 HDBT outputs with one local HDMI output. It an handle uncompressed 4K (max) HDMI, IR, and RS232 signals to be transmitted over a single CAT5e/6 cable. It supports transmission of 4k signal up to 40m or 1080p signal up to 70m. The SY-HDBT-14S is simultaneously handle of bi-directional IR control, RS232 control, EDID management and PoC.

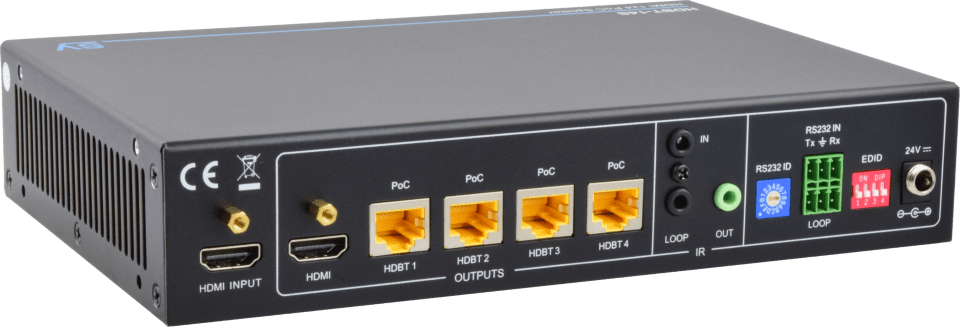

The SY-HDBT-14S is an HDBT Splitter accepts 1 HDMI input and distributes to up to 4 HDBT outputs, plus 1 HDMI local output. The HDMI output socket can be used to monitor local devices or cascade with additional splitter.
The SY-HDBT-14S can handle uncompressed 4K (max) HDMI, IR, and RS232 signals to be transmitted over a single CAT5e/6 cable. It supports transmission of 4k signal up to 40m or 1080p signal up to 70m. The SY-HDBT-14S is simultaneously handle of bi-directional IR control, RS232 control, EDID management and PoC. If required, the HDMI local output can cascade the HDMI signal up to 4 times using additional SY-HDBT-14S units. SY-HDBT-70PR receivers are recommended to utilize the full function of the HDBT outputs of this device.
