SY-HDBT-131EC-Set S Y Electronics HDBaseT 1×3 HDMI Splitter Set

The SY Electronics SY-HDBT-131EC-Set 4K to HDBaseT 1×3 splitter and extender set and capable of transmitting up to 70m @ 1080p or 40m @ 4K. The SY-HDBT-131EC-Set has a single HDMI input, 3 x HDBaseT outputs and an additional local HDMI output with the ability to de-embed the audio on a balanced analogue output. It comes bundled with 3 EC receivers, PoC and bi-directional IR.

If you need help, please call us on 01372 450 794

Data Sheet

Manual

SKU: SY-HDBT-131EC-Set Categories: Air Traffic Control, Audio Visual, Broadcast, By Manufacturer, Digital Signage, Distribution & Amplifiers, Government and Medical, HDBaseT, HDBT, HDMI, HDMI, HDMI, HDMI, HDMI Matrix, HDMI Splitter, HDMI Switch, Matrix Switchers, S Y Electronics, Switchers Tags: 4K, De-embedder, EDID, hdbaset, HDBaseT Splitter, HDMI matrix, IR, RS232 Control

Description

Description

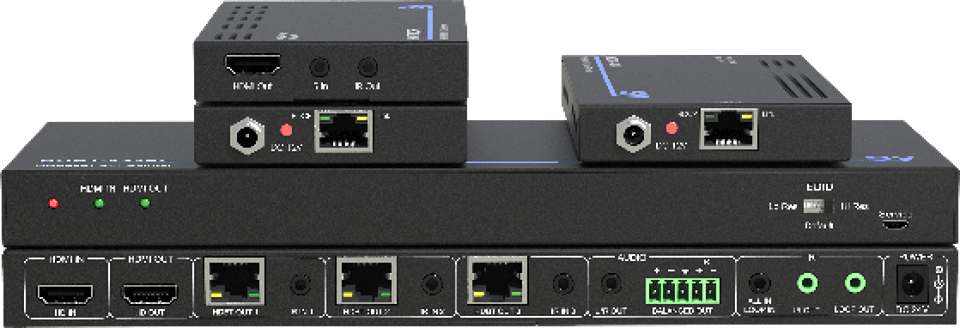

The SY-HDBT-131EC-Set is a cost-effective 4K to HDBaseT splitter and extender set, capable of transmitting up to 70m @ 1080p or 40m @ 4K. The 131EC has a single HDMI input, 3 x HDBaseT outputs, and an additional local HDMI output, with the ability to de-embed the audio on a balanced analogue output. It comes supplied with 3 EC receivers, PoC and bi-directional IR.

A cost-effective distribution platform
Connect and extend transmission range to 70m @ 1080p or 40m @4k UHD. Kit includes all receivers and accessories for quick, time-saving connection. Receivers powered by 131EC.
EDID management facility
Ensure accuracy and superior display refresh speeds with EDID controls.
De-embed audio
Use Phoenix connectors or 3.5mm to de-embed analogue audio in balanced or single.
IR control
IR in either direction between the transmitter and receiver.
SY’s legendary build quality and reliability

Video Input
Input Connector: 1 x Female HDMI Type A
HDMI Standard: Supports 4K@60 4:2:0 & HDCP2.2 and is backward compatible with all previous standards.

Video Output

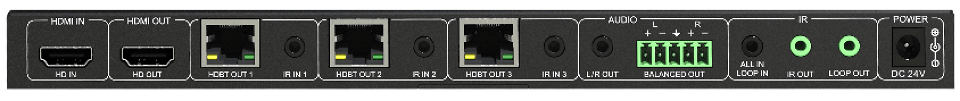

Output Connectors: 1 x Female HDMI Type A 3 x Female RJ45 (with LED indicators)
HDMI Standard: Supports 4K@60 4:2:0 & HDCP1.4/2.2 and is backward compatible with all previous standards.

Video General
Video Signal: HDMI
Transmission Distance (cat6a): 1080P@60Hz ≤70m, 4K2K@30Hz ≤40m
Resolution: VESA and SMPTE 480p to 2160p (4K UHD) with 3D. (All resolutions to: 4096x2160p @60Hz 4:2:0 8bit, 3840x2160p @30Hz 4:4:4 8bit) All PC resolutions to 1920×1200

EDID Management: In-built EDID data and manual EDID management
Gain: 0 dB
Bandwidth:10.2Gbit/s

Audio General

Output Signal: Stereo audio in both balanced and unbalanced modes
Frequency Response: 20Hz ~ 20KHz
Output Connector: 1 x L&R (3.5mm stereo jack), 1 x L+/L- & R+/R- Balanced stereo out (5 way screw terminal)

Controls

Panel Control: Three position EDID mode switch
IR Control: 4 x IR IN, 1 x IR OUT (wideband carrier 28-60KHz)
IR Control Connectors: 1 x 3.5mm jack sockets

General

Power Supply: 24V DC 2.71A
Power Consumption: 14.4W with one receiver
Temperature: 0 ~ +45℃
Reference Humidity: 10 ~ 90%
Dimension (W*H*D): 260 mm x 21.0mm x 100.0 mm
Net weight: 450 g
