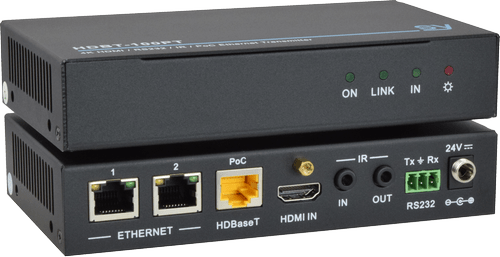

SY-HDBT-100-SET S Y Electronics HDBT 100m Extender with RS232 IR Ethernet and PoC

HDMI HDBT 100m Extender Transmitter and Receiver with RS232, IR, Ethernet and PoC. Will be phased out. Please see SY-HDBT-100-SLIM-SET

Description

The SY-HDBT-100-SET is an HDBaseT extender transmitter and receiver set for HDMI, IR, RS232 & Ethernet at 100m transmission distance.

The SY-HDBT-100-SET is an HDBT extender transmitter and receiver set for HDMI, IR, RS232 & Ethernet at 100m transmission distance. The set includes transmitter (SY-HDBT-100-T) and receiver (SY-HDBT-100-R), supports HDMI 1.4 and is HDCP compliant.

Integrated HDBT technology
Support HDMI 1.4, 3D & 4K x 2K
100m transmission for HDMI, IR, RS232, Ethernet and PoC
Bi-directional IR & RS232 pass through
2 individual LAN connections
Compatible with CAT5e/6/7 cable

Input (SY-HDBT-100-T) : 1 HDMI, 1 RS232, 2 Ethernet, 1 IR In + Out
Output (SY-HDBT-100-T) : HDBT
Input (SY-HDBT-100-R) : HDBT
Output (SY-HDBT-100-R ): 1 HDMI,1 RS232, 2 Ethernet, 1 IR In + Out
Transmission Mode : HDBT
Resolution : 1080p@60Hz@48 b/pixels/3D/4Kx2K
Gain : 0dB ~ 10dB@100MHz
Transmission Distance : Max distance 100M @1080P
Differential Phase Error: ±10° @ 135MHz 100M
Bandwidth : 10.2Gbps
Return Lost : -30dB@5KHz
HDMI Standard Support : HDMI1.4 and HDCP
Min./Max. Level: 0.3V ~ 1.45Vp-p; 75Ω
Power Supply : 5V DC; 6.5W
Temperature : -20 ~ +60C
Humidity : 10% ~ 90%
Chassis Dimension : W77 x H30 x D134mm
Weight : 0.5Kg

WARRANTY
2 year return to base parts and labour. 3rd year available with online registration.
