SY-Apollo-41U SY 4-port Multi-viewer USB & HDMI KVM Switch

£795.00 inc VAT

SY Electronics SY-Apollo-41U 4-port 4K USB & HDMI Mulit-viewer KVM switch with a wide range Scaler to 4K60 4:4:4. The Roaming Mouse functionality offers a convenient and versatile means of control. When in Multu-view, any connected HDMI source can be controlled via attached mouse and keyboard. It features 5x total USB ports – 3x USB 3.0 ports for HD/Camera connection. 2x dedicated HID USB ports permit connection of keyboard/mouse, Multi-View mode – Any of the 4 available inputs can be selected to display in Single, Dual, Triple or Quad view, with various options of window size and PiP where any two inputs can be used to create a customised picture in picture, which includes window size and position. It also has VKA (Video Keep Alive) function to maintain video output when there is no signal as well as Full Audio Control with mute function and control of output volume. Audio can be de-embedded via Toslink or Analogue L/R RCA jacks. Any of the available inputs’ audio can be independently selected at any time.

Description

SY Electronics SY-Apollo-41 is a seamless 4 to 1 KVM Multi-viewer with a total of 5x HDMI inputs, 1x HDMI output, performs wide range scaling up to 4K 60Hz 4:4:4. The keyboard Hotkey and Roaming mouse facility allows for any of the connected HDMI sources to be controlled via any of the 2x HID ports. Capable of displaying in Single, Dual, Triple, Quad Multi-view or various configurable PIP modes. An audio de-embed option is available as optical Toslink or L+R analogue output from any of the HDMI inputs, in addition to this, breakaway audio allows selection of audio from any connected HDMI source.  The Apollo 41U is a complete KVM Switcher/ Multi-viewer which is approriate for a host of residential and corporate environments. Its applications span commercial, control rooms, medical, military facilities and more, providing a robust and reliable Seamless KVM Switching interface with customisable Multi-viewing capabilities.

Seamless 4:1 Switcher – Seamlessly switch between 4x HDMI 2.0 inputs, to 1x HDMI 2.0 output, capable of resolutions up to 4K60 4:4:4 60Hz 18G.

Roaming Mouse  – Roaming mouse offers a convenient and versatile means of control. When in Multu-view, any connected HDMI source can be controlled via attached mouse and keyboard.

5x total USB ports – 3x USB 3.0 ports for HD/Camera connection. 2x dedicated HID USB ports permit connection of keyboard/mouse.

Multi-View mode – Any of the 4 available inputs can be selected to display in Single, Dual, Triple or Quad view, with various options of window size.

PiP – Any two inputs can be used to create a customised picture in picture, which includes window size and position.

Wide Range Scaling – Full Up/Down 4K 18G Scaling with complete control over both resolution and refresh rate, ensuring an optimal image based on the display’s capabilities.

Full Audio Control – Mute function and control of output volume. Audio can be de-embedded via Toslink or Analogue L/R RCA jacks. Any of the available inputs’ audio can be independently selected at any time.

10x Presets – Up to 10x pre-set scenes can be saved and recalled.

Full Hotkey Control – Use both Keyboard and mouse as a means of controlling any connected source, or to select between Multi-view modes.

VKA – The Video Keep Alive function can maintain a video output when there is no signal. When there is no active input signal, the display can be configured to show a blue or black image, ensuring that the screens remain active until a new signal is detected.

IT Content Setting – The IT Content (ITC) setting tells the display to use its own video quality processing algorithms, instead of the Intel graphics driver when movies are played in full-screen mode to ensure the best video quality.

HDCP Control – Support and management of HDCP ensures compatibility. Convert from HDCP 2.2 down to HDCP 1.4, or simply employ cascade mode.

Auto or Manual Switching – In Single mode, the auto-switch feature will automatically select the newly connected source. When currently selected source is lost the next available active input will be automatically selected. Manual switching can be carried out from the front panel, IR or RS232.

HDR – Supports HDR, HDR10, HDR10+, HLG and Dolby Vision.

  • 4×1 Seamless KVM Switcher + multi-viewer
  • Wide range Scaler to 4K60 4:4:4
  • Roaming mouse
  • Single, Dual, Triple, Quad display modes
  • Customisable PiP (Picture in Picture) mode
  • Breakaway audio (can be sourced from any input) + De-embed Audio
  • 3x USB-A 3.0 peripheral ports
  • 2x USB-A HID (keyboard & mouse) ports
  • Keyboard + mouse Hotkey operation
  • Up to 10x pre-set scenes can saved and recalled
  • Test Pattern Generator (TPG)
  • Video Keep Alive (VKA)
  • Extensive EDID control
  • HDCP management

PART NUMBER: SY-Apollo 41U

HDMI VERSION
Inputs: HDMI 2.0 (18Gbps) – HDR, HDR10, HDR10+, HLG and Dolby Vision Formats supported
Output: HDMI 2.0 (18Gbps) – HDR, HDR10, HDR10+, HLG and Dolby Vision Formats supported

HDCP COMPLIANCE
Input HDCP: Accepts all versions up to HDCP 2.2
Output HDCP: Fully controlled – Pass through, 1.4, 2.2, Cascade mode

RESOLUTIONS / FORMATS
Input resolutions:
All HDMI and PC resolutions up to 4K2K 60Hz 4:4:4

Colour Space
Pass through of RGB, YCbCr 4:4:4, 4:2:2, 4:2:0

Colour Depth
8, 10, 12 bits

SCALER
  Up and Down-Scaling (Resolution and Refresh Rate)
  Allows any Resolution between 1080 and 4K@60Hz 4:4:4 and any Frame Rate

  Audio Formats Supported:
  2.0/2.1/5.1/7.1 channel LPCM, Dolby, AC3, DTS

  De-embedded Audio out:
  Digital Toslink and Analogue (L/R)

  USB Quad Switching
  4x USB-B Host ports
2x USB-A ports for HID (Keyboard, Mouse)
3x USB-A ports for peripheral devices, USB Cameras, Audio, Video and USB 2.0 Mass storage

  CONTROL
  IR In
Universal, 25-60 KHz carrier frequency

  RS232 Control
Any baud rate to maximum of 115200

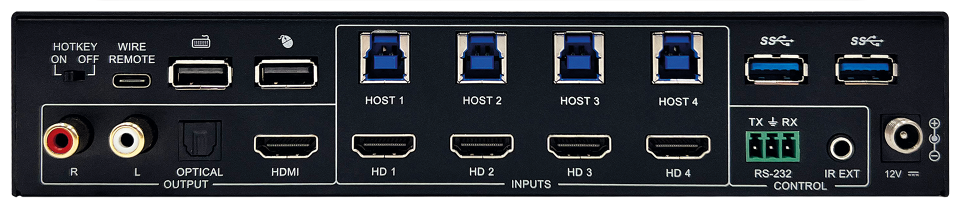

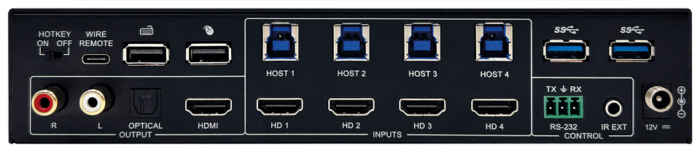

CONNECTORS
  4x HDMI Inputs
1x HDMI Output
4x USB-B Host Ports
2x USB-A HID ports
3x USB-A Peripheral ports
1x Toslink Optical output port
1x Pair RCA Analogue Audio Output Jacks
1x 3.5mm TRS IR Input
1x Phoenix Screw Terminal port for RS232 control
1x IR Eye on front panel
1x 12V DC Power input (2.1mm barrel jack)

POWER
Power Consumption:
10W
Power Supply:
12V 1.0A DC – (2.1mm barrel jack)

ENVIRONMENTAL
Operating Temperature Range:
0 ~ +40˚C (32 ~ 104F)
Operating Humidity Range:
20 ~ 90% RH (Non-condensing)

PHYSICAL
DIMENSIONS (WDH) Each unit:

220 x 100 x 45mm
WEIGHT (net) Each unit:
780g

1x SY-Apollo-41U
1x 12V 1A Power Supply
1x User manual
