SV4X16 Adder SmartView X-Pro 4×16 PS2 & VGA Matrix Switch

Adder SV4X16 SmartView X-Pro KVM switch allows four users to control sixteen PS2 & VGA computers and has a built in KVM over CATx extender transmitters to control switch up to 200m away. It features an advanced OSD where up to 16 different passwords and user profiles can be stored. The SmartView X PRO can be set to automatically scan all ports or all active ports at a user definable rate. The switch also allows automatic mouse conversion where PS/2, IntelliMouse and RS232 type mice are all supported between switch and CPUs. Controlling mouse/trackball is PS/2 type.

Please note that each of the RJ45 extender ports mirror a local port and requires an optional receiver unit to be purchased.

Manual

SKU: SV2X8 Categories: 16-Port PS2 & VGA KVM Switch, 4 Consoles, Adder KVM Switch, Adder Matrix KVM Switch, Adder Technology, Desktop, KVM Matrix, KVM Switches, PS/2 & VGA KVM Switch, Rackmountable Tags: CAT 5, OSD, Plug and Play, ps2, usb, vga

Description

Description

The SV4X16 SmartView X PRO (4 users to 16 computers) is engineered for multiple users in server rooms and high density PC environments. A robust and reliable solution, the SV4X16 SmartView XPro with integrated extenders is engineered to allow users to control connected computers remotely from a clean environment. ADDER’s advanced on screen display system offers multiple user support, channel selection and password protection features.

The Adder SV4X16 SmartViiew X Pro is expandable: where the size of your installation is beyond the scope of a single SmartView X PRO, additional units can be cascaded. This will allow you to use multiple units to provide a video-switching network.

The SV4X16 SmartView X PRO can be set to automatically scan all ports or all active ports at a user definable rate.

Features

Optional redundant power supply
Advanced On Screen Display
Flash upgradable firmnware
Front panel keys for selecting users and channels manually
Front panel display
Selection methods: convenient switching using On Screen Display menu, selectable keyboard hot-key, 3 button mouse, front panel key or RS232 serial control.
Hot connection of devices
On the fly configuration
Auto-scan
Automatic mouse conversion
OSD menu

Specifications

SV2X4: 2 x Simultaneous local keyboard, mouse and monitor ports and 1 RJ45 extender port to 4 CPUs.
SV2X8: 2 x Simultaneous keyboard, mouse and monitor ports and 1 RJ45 extender port to 8 CPUs.
SV4X16: 4 x Simultaneous keyboard, mouse and monitor ports and 2 RJ45 extender port to 16 CPUs.

Please note that each of the RJ45 extender ports mirror a local port and requires an optional receiver unit to be purchased, see accessories.

All models can be cascaded to support over 500 computers from one On Screen Display menu.

CPU Connectors

SV2X4 Model:
4 x 15 way HDD Female for CPU video.
4 x 6 way mini DIN Female for CPU keyboard.
4 x 6 way mini DIN Female for CPU mouse.

SV2X8 Model:
8 x 15 way HDD Female for CPU video.
8 x 6 way mini DIN Female for CPU keyboard.
8 x 6 way mini DIN Female for CPU mouse.

SV4X16 Model:
16 x 15 way HDD Female for CPU video.
16 x 6 way mini DIN Female for CPU keyboard.
16 x 6 way mini DIN Female for CPU mouse.

Console connectors

SV2X4 and SV2X8 have:
2 x 6 way mini DIN female connectors for controlling keyboards.
2 x 6 way mini DIN female connectors for controlling mice.
2 x 15 way HD D Female for controlling monitors.
1 x RJ45 port for remote user.
2 x 5V DC 2A power inlets for external PSU.
1 x D9 way Female for Flash upgrade, RS232 control, expansion and remote connectivity accessories.

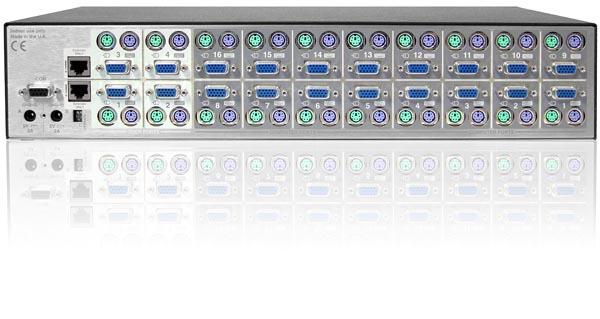

SV4X16 has:
4 x 6 way mini DIN female connectors for controlling keyboards.
4 x 6 way mini DIN female connectors for controlling mice.
4 x 15 way HD D Female for controlling monitors.
2 x RJ45 port for remote user.
2 x 5V DC 2A power inlets for external PSU.
1 x D9 way Female for Flash upgrade, RS232 control, expansion and remote connectivity accessories.

Physical

8 and 4 Port – All metal case (WxDxH) 482x205x45 mm
16 Port – All metal case (WxDxH) 482x205x90 mm
Power – 5V DC, 2A.
EMC – 89/336/EEC CE marked.
LVD – 73/23/EEC.

Rack options

RMK1 19″ 1U rack mount kit included with SV2X4 and SV2X8
RMK2 19″ 2U rack mount kit included with SV4X16

Accessories

X-KVM/R X-Series ADDERLink KVM receiver for use with X PRO built in transmitter allowing user to control switch from up to 200m.
ALSRX ADDERLink Silver KVM receiver unit for use with X PRO built in transmitter allowing user to control switch from up to 200m.
Includes built in KVM switch to allow user to switch KVM control from desktop PC to remote Xpro.

Upgrade cable

CAB-9M/9F-2M PC to ADDERView Matrix MP upgrade cable

CPU to SmartView XPro cables
VKKVM-0.5M 0.5m “3-in-1” cable for PS/2
VKVM-1M 1m “3-in-1” cable for PS/2
VKVM-2M 2m “3-in-1” cable for PS/2
VKVM-5M 5m “3-in-1” cable for PS/2
VKVM-10M 10m “3-in-1” cable for PS/2
CCUSB 2m “3-in-1” cable for USB
CCUSB-5M 5m “3-in-1” cable for USB
CCUSB-10M 10m “3-in-1” cable for USB
CCSUN 2m “3-in-1” cable for SUN
CCSUN-5M 5m “3-in-1” cable for SUN
CCSUN-10M 10m “3-in-1” cable for USB

More Information

Built in KVM over CATx extender transmitters to control switch up to 200m away

Power supply

Optional redundant power supply

Advanced on screen display

Up to 16 different passwords and user profiles can be stored on the SmartView X PRO

Flash upgradeable firmware

Upgradeable as new drivers are released, free upgrades can be downloaded from the ADDER website.

Front panel keys

Used for selecting users and channels manually. Also used for selecting auto-scan.

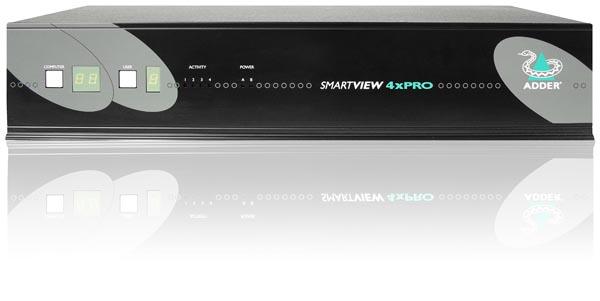

Front panel display

7 Segment display (red) shows the currently selected CPU. 7 Segment display (green) shows the currently selected user.

Indicators show keyboard and mouse activity.

Selection methods

Convenient switching using On Screen Display menu, selectable keyboard hot-key, 3 button mouse, front panel key or RS232 serial control.

Hot connection of devices

The SmartView can be connected to many running PCs without reboot by using the keyboard and mouse reset feature.

On the fly configuration

The SmartView X PRO can be configured using the OSD menu.

Hot-key

User definable hot-key commands can be used for quick channel selection.

Expandable

Where the size of your installation is beyond the scope of a single SmartView X PRO, additional units can be cascaded. This will allow you to use multiple units to provide a video-switching network.

Auto-scan

The SmartView X PRO can be set to automatically scan all ports or all active ports at a user definable rate.

Automatic mouse conversion

PS/2, IntelliMouse and RS232 type mice are all supported between switch and CPUs. Controlling mouse/trackball is PS/2 type.

OSD menu

Mouse control of OSD menu.
Name search facility in OSD menu.
Users may select exclusive or shared computer access.
Keyboard and mouse reset features for each user port.
Optional CPU reminder banner may be transparent and moved around the screen.
Upload and download of OSD configurations to a PC file or Excel spreadsheet.
Cascaded units do not need to be configured.
