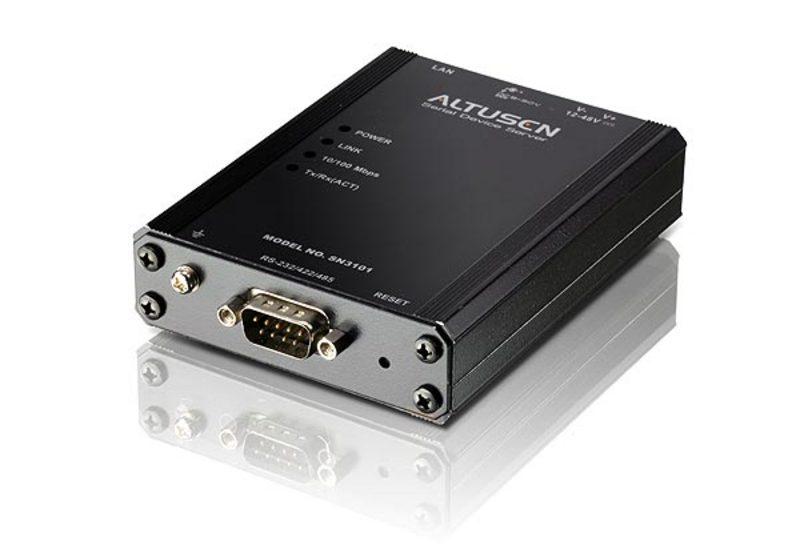

SN3101 Aten Single Port Serial Console Server

£229.00 inc VAT

The Aten Altusen SN3101 Single port Serial Console Server switch supports RS-232, RS-422 and RS-485 data transfers and provides over IP access for industrial serial devices with wide range of versatile serial operation modes – Console Management, Real COM, TCP Server, TCP Client, UDP, Modbus, Serial Tunnel and Virtual Modem. The switch offers high security via 128-bit SSL encryption for serial data transmission, Virtual Terminal support (VT320, VT52, VT100, VT220), SNMP MIB II and RS-232 MIB for network management, SMTP and SNMP trap event notification and and hoice of power input: AC-DC adapter or DC direct.

Data Sheet

Manual

SKU: SN3101 Categories: , , , , , , , , , , Tags: ,

Description

The SN3101 3-in-1 Serial Device Server supports RS-232, RS-422 and RS-485 data transfers, as well as providing Ethernet connectivity for a wide variety of serial devices used in commercial applications. These include industrial control,data acquisition, access control, environment monitoring,banking, telecoms, remote site management, etc. This total serial data transfer system transforms the capability of legacy serial devices, and allows them to take advantage of the speed and reliability of today’s modern communication techniques.

Features

SN3101 Features:

  • Provides over IP access for industrial serial devices.
  • Software selectable RS-232/422/485 3-in-1 serial port
  • Built-in 15KV ESD serial port protection
  • Max. baud rate: 460 Kbps
  • Wide range of versatile serial operation modes – Console Management, Real COM, TCP Server, TCP Client, UDP, Modbus, Serial Tunnel and Virtual Modem
  • High security via 128-bit SSL encryption for serial data transmission
  • Redundancy support via multiple simultaneous Real COM, TCP Server, and TCP Client connections
  • 64 Kbyte port buffer prevents data loss when the network is down
  • Real COM driver for Windows 2000/XP/2003/Vista
  • Real TTY driver for Linux, Fixed TTY driver for Unix*
  • Modbus Ethernet-to-Serial support
  • Modem emulation enables existing modem-based applications to make connections over IP networks
  • Virtual Terminal support (VT320, VT52, VT100, VT220)
  • System configuration via Web Console (HTTP/HTTPS), Telnet/SSH Console and Windows utility
  • Backup/restore and firmware upgrading via Web Console(HTTP/HTTPS) and Windows utility
  • Easy-to-use Windows utility (2000/XP/2003/Vista) for auto discovery, multiple device setting and monitoring
  • Centralized external authentication support for RADIUS, LDAP(S), MS Active Directory
  • SNMP MIB II and RS-232 MIB for network management
  • SMTP and SNMP trap event notification
  • Choice of power input: AC-DC adapter or DC direct* Fixed TTY Driver Supports 1) Sco Unix, Sco OpenServer; 2) Unix Ware 7, SVR 5; 3) Unix Ware 2.1, SVR 4.2; 4) QNX 4.25, QNX 6; 5) FreeBSD; 6) Solaris 10; 7) AIX 5.x; 8) HP-UX 11i

Specifications

Connectors
Serial 1 x DB-9 Male (Black)
Network 1 x RJ-45 (Black)
Power 1 x 2-pin Terminal Block (Green)
1 x DC Jack (Black)
Switches
Reset 1 x Semi-recessed Pushbutton
LEDs
Power 1 (Green)
Link 1 (Green)
10/100 Mbps 1 (Orange/Green)
TxRx (ACT) 1 (Green)
Power Input
Power Adapter 100-240V AC; 50/60 Hz
Power Line Protection 4KV burst (EFT), EN61000-4-4 2KV surge, EN61000-4-4
Power Consumption 9V, 2.7W
Interfaces
Serial RS-232/422/485; Software selectable
460Kbps
TxD, RxD, RTS, CTS, DTR, DSR, DCD, GND
Tx+, Tx-, Rx+, Rx-, RTS+, RTS-, CTS+, CTS-, GND
Data+, Data-, GND
15 KV ESD Protection for the serial port
None, Even, Odd, Mark, Space
5, 6, 7, 8
1, 1.5, 2
None, XON/XOFF, RTS/CTS
Network 10/100BaseTX; Autosensing
1.5 KV Magnetic Isolation
ARP, DHCP, DNS, HTTP, HTTPS, ICMP, IP, TCP, UDP, NTP, PPP, RADIUS, Telnet, SNMP, SNMP Trap, SMTP, SSH
Regulatory Approval FCC Class A, CE Class A, RoHS
Environmental
Operating Temperature 0 – 60°C
Storage Temperature -20 – 85°C
Humidity 0 ~ 95% RH, Non-condensing
Physical Properties
Housing Metal
Weight 0.22 kg
Dimensions (L x W x H) 10.69 x 7.90 x 2.44 cm

Package Contents

  • 1 x SN3101 Serial Device Server
  • 1x Power Adapter
  • 1x DC Terminal Connector
  • 1x Mounting Kit
  • 1x User Instructions
  • 1x Software CD
