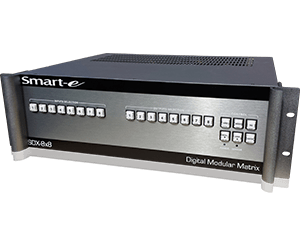

SDX-8×8 Smart-e Digital Solutions is 19″ rack mounting modular matrix chassis with a range of input and output blades. PC resolution is up to 1920x 1200 @60Hz. It is HDCP @ HDMI 1.4 compliant and features enhanced EDID management with Deep Colour (12 & 12 bit) support. The matrix has front panel button control, TC/IP and Dual port RS232. It features fast and high definition switching.
On the SDX-8×8 each input blade has a total of 8 input or 8 output connectors, each blade slot can take either a digital or analogue blade. This approach provides exceptional flexibility, enabling the installer/user to choose the appropriate input/output blades for their system requirement. Product lifespan is optimised as it can be re-deployed for an alternative purpose, simply by changing the input/output blades. Likewise, maintenance burden is reduced with the ability to readily swap-out and exchange blades.
The SDX-8×8 chassis has full matrix switching capablilities, allowing any blade input to any blade output. Analogue inputs will be digitzed and scaled to 720p or 1080p automatically. (controllable)
EDID read/write and HDCP is fully supported to ensure stable source-display connectivity.
The SDX-8×8 can be controlled in various ways, including IR, RS232, TCP/IP and front panel control. On the front panel of the matrix, each input and each output has it’s own button allowing for simple and quick switching with backlit buttons for accuracy.
The chassis is supplied complete with an AC100-240v 50/60Hz adaptive power supply built in with a standard IEC socket.
The SDX-8×8 is designed in 3RU 19-inch rack mountable form factor for installation to equipment racks or credenzas.
