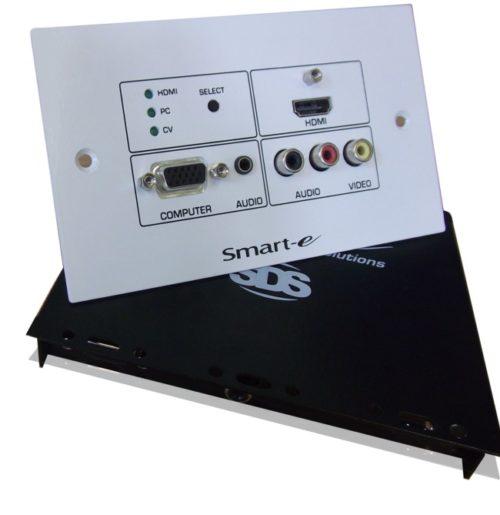

Smart-e SDS-1005 30m wall plate transmitter and receiver pair for HDMI, RGBHV, Audio, USB, RS232, Ethenet and Composite Video providing inline power to 30m. It supports HDMI up to 1.65 Gbps. HDCP/EDID/DDC transparent link, HDMI resolution up to 1080p @60Hz and RGBHV up to UXGA. It is plug & play providing stereo audio and stores RS232 codes for input selection. SDS-1001 is both DVI and DisplayPort compatible.
Suitable for a wide variety of applications, especially projector installation.
The SDS-1005 uses standard 3 x CAT 6-8 STP/FTP cable which is flexible, narrow in diameter and low cost. The cables can fit into small trunking and can be terminated easily with standard RJ45 connectors.
The SDS-1005 transmits HDMI signals up to 1080p @60Hz, computer resolutions up to UXGA (1600×1200), stereo audio and has USB V1.1 connectivity. Selection of the signal type can be via the Auto sense feature, RS232 or button control on the wall plate. The receiver unit can be programmed with RS232 command strings to tell the display device which signal type has beenchosen.
