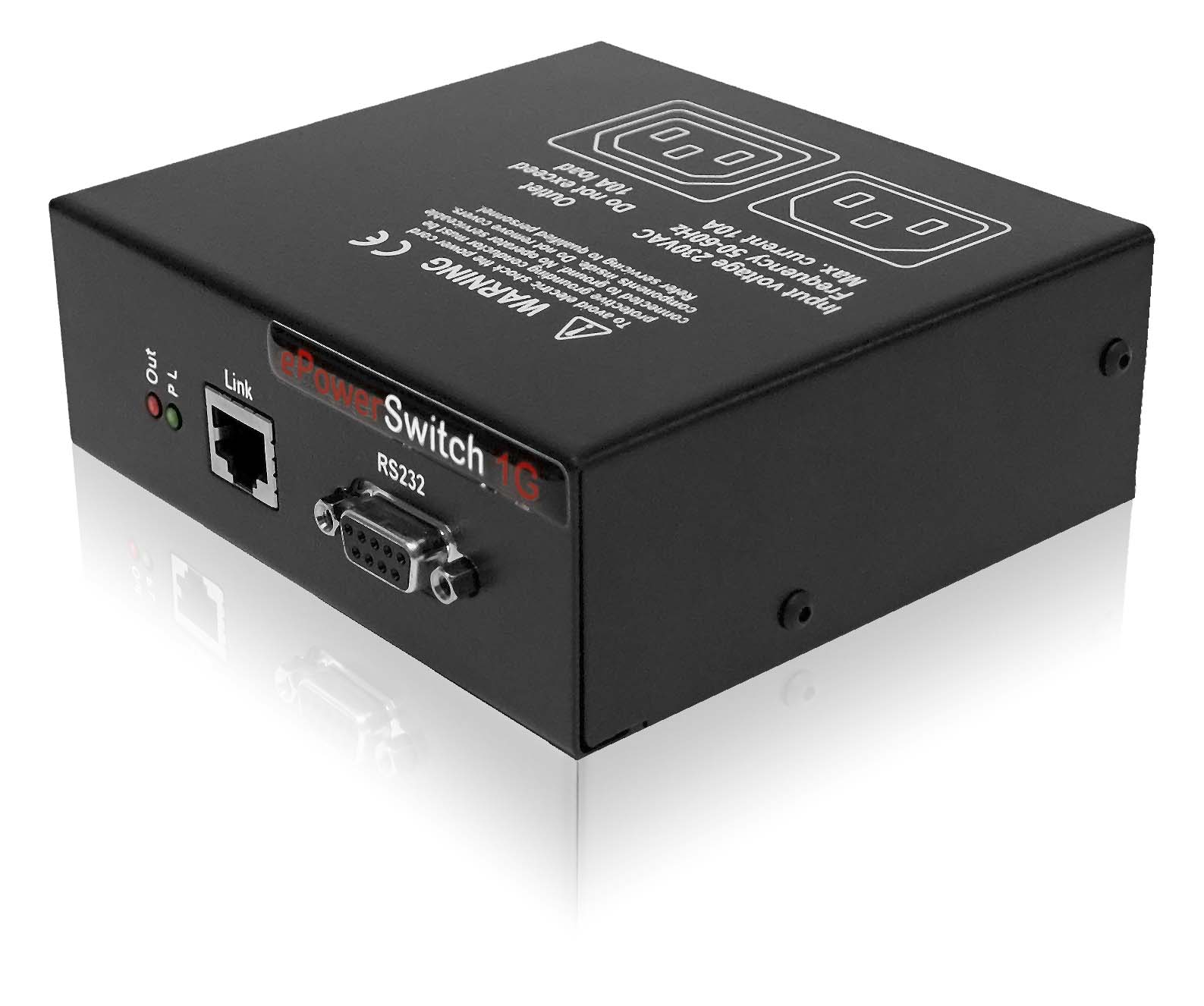

PSU-1GUARD Adder ePower Switch 1 Guard

Adder ePower PSU-1GUARD enables the remote power control of one device over the Internet, Intranet, or locally through a serial RS232 connection. It features two password levels plus various administrator/user rights and security masks give IP security and the restart delay can be chosen between 5 and 60 seconds between off/on for activity at all power outlets.

Data Sheet

Manual

Description

Adder PSU-1GUARD  provides one switchable output making it ideal for rebooting a server or router. In addition, the PSU-1GUARD switch can supervise the connected IP device and automatically reboot in the case of lock-up

  • Two password levels plus various administrator/user rights and security masks give IP security
  • Configuration functions are performed using ePS-Finder, a convenient tool for discovering, configuring and setting the IP address of ePowerSwitch devices on your network
  • Restart delay can be chosen between 5 and 60 seconds between off/on for activity at all power outlets
  • Supervision of an IP device with automatic reboot function
  • Front panel LEDs provide quick status checks
  • Network standards: IEEE 802.3, 10BASE-T
  • Network protocols: TCP/IP, HTTP
  • Network connection: RJ-45 for UTP CAT5
  • Max. network cable length : 100 m (not included)
  • Serial connection: RS-232, SUB-D 9 female
  • Nominal input voltage: 230 V/50Hz
  • Input power socket: IEC-320
  • Output voltage: 230 V/50Hz
  • Output power socket: IEC-320
  • Maximum total current: 10A
  • LED’s: 1 for Power and network traffic
  • 1 for the socket status
  • Operating temperature: 0°C to + 40°C
  • Operating humidity: 10% to 80%
  • Dimensions: 185 x 103 x 43 mm
  • Weight: 0,8 kg
  • Approvals: CE, EN55022 & EN55024, RoHS
  • Guarantee: 2 years repair or replace
