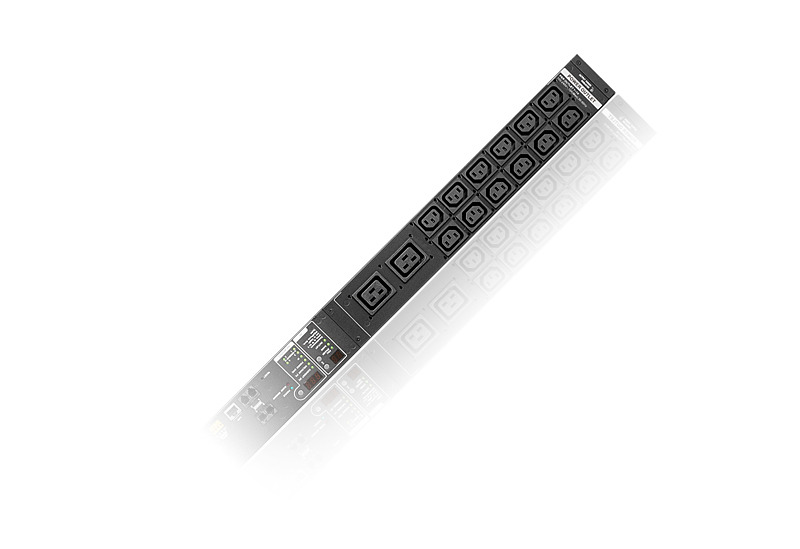

PE7328G Aten 0U 28 Outlets 32A Intelligent eco PDU

Aten PE7328G NRGence 0U 28 Outlets Intelligent eco PDU provide a secure, centralized, intelligent, power management (power on, off, cycle) of data center IT equipment (servers, storage systems, KVM switches, network devices, serial data devices, etc.), as well as the ability to monitor the center’s health environment via sensors. The PDU offers remote power control combined with real-time power measurement — allowing you to control and monitor the power status of devices attached to the PDUs, either at the PDU device, bank, or outlet level, depending on the model, from practically any location via a TCP/IP connection. Input connection is 1 x IEC 60309 and outlet types are:

24 x IEC320 C13 + 4 x IEC320 C19
Bank1-1 : Outlet 1 – 14 ; 12 x C13 + 2 x C19
Bank1-2 : Outlet 15 – 22 ; 7 x C13 + 1 x C19

Data Sheet

SKU: PE7328G Categories: Aten, Energy Intelligence Rack PDU, Intelligent PDU, Outlet-Metered PDU, PDU, Power Distribution Units PDU, Special Offers, Special Promotions Tags: Power Over IP, Remote Power Management

Description

Description

As part of its NRGence line, ATEN has developed a new generation of green energy power distribution units (eco PDUs) to effectively increase the efficiency of data center power usage. The NRGence PE7328G eco PDUs are intelligent PDUs that contain 28 AC outlets and are available in various IEC socket configurations.

PE7328G NRGence eco PDUs provide secure, centralized, intelligent, power management (power on, off, cycle) of data center IT equipment (servers, storage systems, KVM switches, network devices, serial data devices, etc.), as well as the ability to monitor the center’s health environment via sensors.

PE7328G NRGence eco PDUs offer remote power control combined with real-time power measurement — allowing you to control and monitor the power status of devices attached to the PDUs, either at the PDU device, bank, or outlet level, depending on the model, from practically any location via a TCP/IP connection.

PE7328G NRGence eco PDU supports any 3rd party V3 SNMP Manager Software and NRGence eco Sensors (eco PDU Manager Software). eco Sensors provides you with an easy method for managing multiple devices, offering an intuitive and user-friendly Graphical User Interface that allows you to configure a PDU device and monitor power status of the equipment connected to it.

With its advanced security features and ease of operation, the PE7328G eco PDU is the most convenient, most reliable, and most cost effective way to remotely manage power access for multiple computer installations and allocate power resources in the most efficient way possible.

Connections

Support 10/100Mbit Ethernet Interface
Support TCP/IP, UDP, HTTP, HTTPS, SSL, DHCP, SMTP, NTP, DNS, Auto Sense, Ping, SNMP V1,V2&V3
Support 2-level account/password security, IP/MAC filter, 128 bit SSL, RADIOUS
Support : eco Sensors, Browser ( IE, Firefox, Chrome, Safari )
Metering
PDU and outlet level power metering and monitoring
Environment monitoring — supports external temperature/temperature & humidity sensors for rack temperature and humidity monitoring
Current, voltage, power, power dissipation, temperature, and humidity metering and threshold level setting
Support door sensor

Outlet Switch Control

Always On

Function	PE7328G
Electrical
Nominal Input Voltage	100 – 240 VAC
Maximum Input Current	30A Max ; 24A (UL de-rated) 32A Max
Input Frequency	50-60 Hz
Input Connection	IEC 60309 32A
Input Power	7360 VA(Max)
Outlet Type	Total : 24 x IEC320 C13 + 4 x IEC320 C19 Bank1-1 : Outlet 1 – 14 ; 12 x C13 + 2 x C19 Bank1-2 : Outlet 15 – 22 ; 7 x C13 + 1 x C19
Nominal Output Voltage	100 – 240 VAC
Maximum Output Current (Outlet)	C13 : 10A (Max) C19 : 16A (Max) , TUV De-rated 15A(Max)
Maximum Output Current (Bank)	16A(Max)
Maximum Output Current (Total)	32A(Max)
Breakers	2 x 16A UL489 Breaker
Metering	Per Outlet Level Current, Voltage, VA, PF, KWh Monitoring
Outlet Switch	None
Environment Sensor Port	4
Metering Accuracy	Voltage Range: 100VAC ~ 250VAC +/-1% Power Range: 100W ~ 5000W +/- 2% Current Range: 0.1A~1A +/- 0.1A, 1A~20A +/-1%
Mechanical
Dimension (H x W x D)	135.9 x 6.6 x 4.4 cm
Weight	4.1 kg
Power Cord Length	1.6 m
Environmental
Temperature (Operating / Storage)	0 – 40°C / -20 – 60°C
Humidity (Operating & Storage)	0 – 80% RH, Non-Condensing
Compliance
EMC Verification	CE, Others by Request
Safety Verification	TUV-CB, CE-LVD, Others by Request
