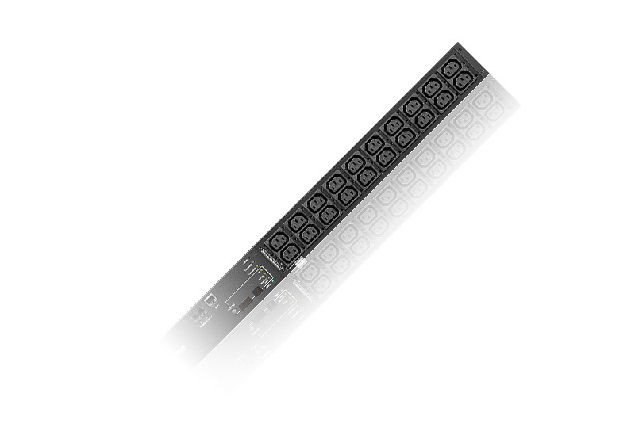

PE5340SG Aten 0U 32A 40 Outlets eco PDU

The Aten NRGence PE5340SG 0U 40 AC outlets  is an intelligent PDUs that contains  in IEC configuration and provides secure, centralized, intelligent, power management of data center IT equipment (servers, storage systems, KVM switches, network devices, serial data devices, etc.), as well as the ability to monitor the center’s health environment via sensors. It features 1 x IEC 60309 IEC 32A input x 40 x IEC320 C13 outlets.

Data Sheet

Manual

SKU: PE5340SG Categories: , , , , , , ,

Description

As part of its NRGence line, ATEN has developed a new generation of green energy power distribution units (PDUs) to effectively increase the efficiency of data center power usage.
The NRGence PE5340SG is an intelligent PDUs that contains 40 AC outlets and is available in IEC input configuration. The PE5340SG provides secure, centralized, intelligent, power management of data center IT equipment (servers, storage systems, KVM switches, network devices, serial data devices, etc.), as well as the ability to monitor the center’s health environment via sensors *.
NRGence PE5340SG eco PDU offers remote power control combined with real-time power measurement – allowing you to control and monitor the power status of devices attached to the PDUs, either at the PDU device or bank level, from practically any location via a TCP/IP connection **.

The eco PE5340SG PDU also offers comprehensive power analysis reports providing precise measurements of current,voltage, power and watt-hour in a real-time display.

Installation and operation is fast and easy: plugging cables into their appropriate ports and user-friendly browserbased configuration and management is all that is entailed. Since the eco PDU firmware is upgradeable over the Net, you can stay current with the latest functionality improvements simply by downloading updates from our website as they become available.

NRGence eco PDUs support any 3rd party V1, V2, V3 SNMP Manager Software and NRGence eco Sensors (eco PDU Manager Software). Eco Sensors provides you with an easy method for managing multiple devices, offering an intuitive and user-friendly Graphical User Interface that allows you to configure a PDU device and monitor power status of the equipment connected to it.

Note:
* Sensors are optional accessories. A sensor-enabled installation is required to generate a more complete energyefficient data and chart. Higher sensor installation density is helpful to generate more accurate data.
**eco PDUs are primarily designed for access via Intranet; extra network security protection is suggested for Internet
access usage.

  • Connections
  • Support 10/100Mbit Ethernet Interface
  • Support TCP/IP, UDP, HTTP, HTTPS, SSL, DHCP, SMTP, NTP,DNS, Auto Sense, Ping, SNMP V1,V2&V3
  • Support 2-level account/password security, IP/MAC ¬filter, 128 bit SSL, RADIUS
  • Support : eco Sensors, Browser ( IE, Firefox, Chrome, Safari )
  • Metering
  • Bank level power metering and monitoring
  • Environment Monitoring : support external temperature/temperature & humidity sensors for rack temperature and humidity monitoring
  • Current, voltage, power, power dissipation, temperature, and humidity metering and threshold level setting
  • Outlet Switch Control
  • Always On
Function PE5340sG
Electrical
Nominal Input Voltage 100 – 240 VAC
Maximum Input Current 32A Max
Input Frequency 50-60 Hz
Input Connection IEC 60309 32A
Input Power 7360 VA(Max)
Outlet Type Total : 40 x IEC320 C13
Bank1 : Outlet 1 – 20 ; 20 x C13
Bank2 : Outlet 21 – 40 ; 20 x C13
Nominal Output Voltage 100 – 240 VAC
Maximum Output Current (Outlet) C13 : 10A (Max)
Maximum Output Current (Bank) 16A(Max), TUV De-rated 15A(Max)
Maximum Output Current (Total) 32A(Max) , TUV De-rated 30A(Max)
Breakers 2 x 16A UL489 breaker
Metering Per Bank level Current, Voltage, VA , PF and KWh Monitoring
Outlet Switch None
Environment Sensor Port 2
Metering Accuracy Voltage Range: 100VAC ~ 250VAC +/-1%
Power Range: 100W ~ 5000W +/- 2%
Current Range: 0.1A~1A +/- 0.1A, 1A~20A +/-1%
Mechanical
Dimension (H x W x D) 135.9 x 6.6 x 4.4 cm
Weight 4.58 kg
Power Cord Length 1.6 m
Environmental
Temperature (Operating / Storage) 0 –40°C / -20 – 60°C
Humidity (Operating & Storage) 0 – 80% RH, Non-Condensing
Compliance
EMC Verification CE, Others by Request
Safety Verification CE-LVD,TUV-CB, Others by Request
  • 1x PE5340s eco PDU
  • 1x Mounting Kit
  • 1x CD ROM (Manual, eco Sensors Software)
  • 1x User Instructions
