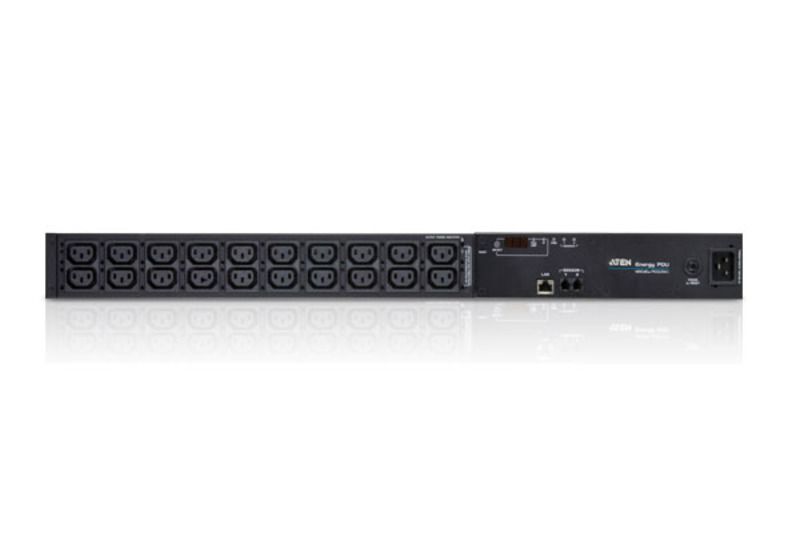

PE5220SG Aten 0U 16A eco PDU

Description

As part of its NRGence line, ATEN has developed a new generation of green energy power distribution units (PDUs) to effectively increase the efficiency of data center power usage. The NRGence PE5220SG eco PDU is an intelligent PDU that contains 20 AC outlets and is available in IEC socket configuration. It provides the ability to monitor the center’s health environment via sensors*.

NRGence PE5220SG eco PDU offers real-time power measurement – allowing you to monitor the power status of devices attached to the PDUs, either at the PDU device or Bank level, from practically any location via a TCP/IP connection.

It also offers comprehensive power analysis reports – providing precise measurements of current, voltage, power and watt-hour in a real-time display.

NRGence PE5220SG eco PDU supports any 3rd party v1, v2 & v3 SNMP Manager Software and ATEN eco Sensors (eco PDU Manager Software). eco Sensors provides you with an easy method for managing multiple devices, offering an intuitive and user-friendly Graphical User Interface that allows you to configure a PDU device and monitor power status of the equipment connected to it.

With its advanced security features and ease of operation, the PE5220SG eco PDU is the most convenient, most reliable,and most cost effective way to remotely monitor power status for multiple computer installations and allocate power resources in the most efficient way possible.

* Note:
1. Sensors are optional accessories. A sensor-enabled installation is required to generate a more complete energy efficient data and chart. Higher sensor installation density is helpful to generate more accurate data.
2. eco PDUs are primarily designed for access via Intranet; extra network security protection is suggested for Internet access usage.

Connections
Support 10/100Mbit Ethernet Interface
Support TCP/IP, UDP, HTTP, HTTPS, SSL, DHCP, SMTP, NTP,DNS, Auto Sense, Ping, SNMP V1,V2&V3
Support 2-level account/password security, IP/MAC filter, 128 bit SSL, RADIUS
Support : eco Sensors, Browser ( IE, Firefox, Chrome, Safari )
Metering
Bank level power metering and monitoring
Environment Monitoring : support external temperature/temperature & humidity sensors for rack temperature and humidity monitoring
Current, voltage, power, power dissipation, temperature, and humidity metering and threshold level setting
Outlet Switch Control
Always On

Function	PE5220sG
Electrical
Nominal Input Voltage	100 – 240 VAC
Maximum Input Current	16A Max
Input Frequency	50-60 Hz
Input Connection	1 x IEC60320 C20
Input Power	3680 VA(Max)
Outlet Type	Total : 20 x IEC320 C13
Nominal Output Voltage	100 – 240 VAC
Maximum Output Current (Outlet)	C13 : 10A (Max)
Maximum Output Current (Bank)	16A(Max)
Maximum Output Current (Total)	16A(Max)
Breakers	1 x 16A Non-Fuse breaker
Metering	Per Bank level Current, Voltage, VA , PF and KWh Monitoring
Outlet Switch	None
Environment Sensor Port	2
Metering Accuracy	Voltage Range: 100VAC ~ 250VAC +/-2% Power Range: 100W ~ 5000W +/- 3% Current Range: 0.1A~1A +/- 0.1A, 1A~20A +/-2%
Mechanical
Dimension (H x W x D)	69.1 x 6.6 x 4.4 cm
Weight	2.1 kg
Power Cord Length	3 m
Environmental
Operating Temperature	0 –50°C UL 60950 ( EN 60950 de-rated 0°C 30°C )
Storage Temperature	-20 –60°C
Humidity (Operating & Storage)	0 – 80% RH, Non-Condensing
Compliance
EMC Verifi cation	CE, Others by Request
Safety Verifi cation	TUV-CB, CE-LVD, Others by Request
