MU-88 SmartAVI 8X8 Transparent USB 2.0 Matrix Switch

£3,484.40 inc VAT

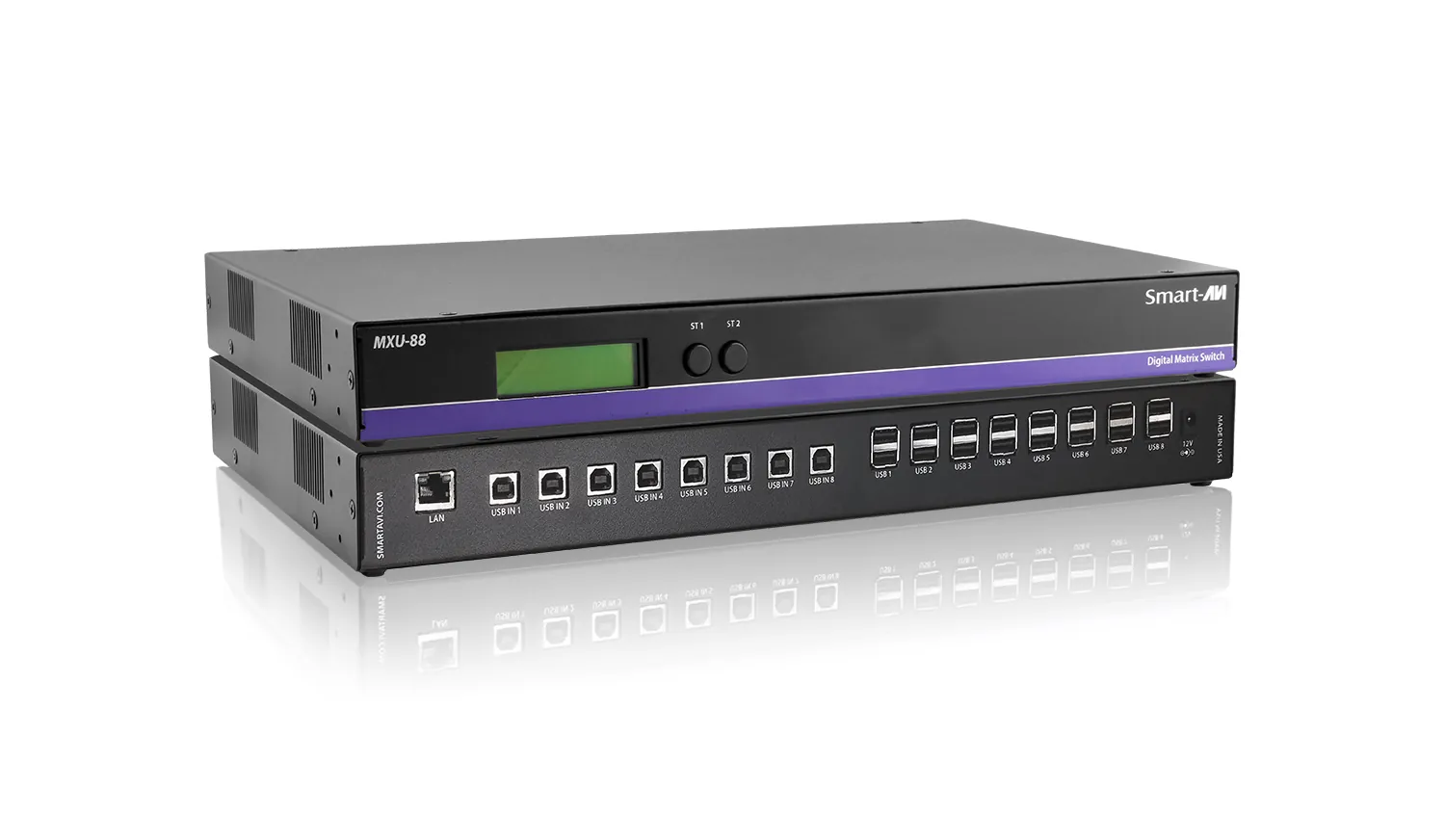

The MU-88 is an 8X8 transparent USB 2.0 matrix switch. It allows up to eight users access and control of any eight connected computers or transparent USB 2.0 peripheral devices.

How to control the MU-88

The MU-88 SmartAVI is easy to install and control; it is plug-and-play, meaning the unit is ready to use right out of its packaging. Simply plug your desired USB devices and peripherals into the MU-88, and power on the unit to begin. The MU-88 is simple to control via:

Front Panel Buttons which allow users to switch between connected systems and peripherals easily.

Web-based Control Console which allows easy and comprehensive management of connected devices over the Internet

Brochure

Manual

Description

The MU-88 SmartAVI The MU-88 is an 8×8 transparent USB 2.0 matrix switch: it allows up to eight users to control & share any eight remote computers from USB 2.0 equipped workstations. Perfect for control rooms and multi-user supervising stations, the MU-88 excels at expediting workflow by offering control of remote systems via USB peripherals like keyboards, mice, and more.

Controlling the MU-88 is easy thanks to SmartAVI’s simple-yet-robust design. Our two-button front panel control interface allows users to switch between connected systems and devices at the press of a button. Furthermore, MU-88 features a web-based control interface that offers comprehensive command of connected peripherals via the Internet.

The MU-88 makes it easy for multiple users to manage and switch between many USB equipped devices at once, without the inconvenience of having to repeatedly get up from their workstations. For centralized control of transparent USB 2.0 technology, look no further than the MU-88 matrix switch powered by SmartAVI.

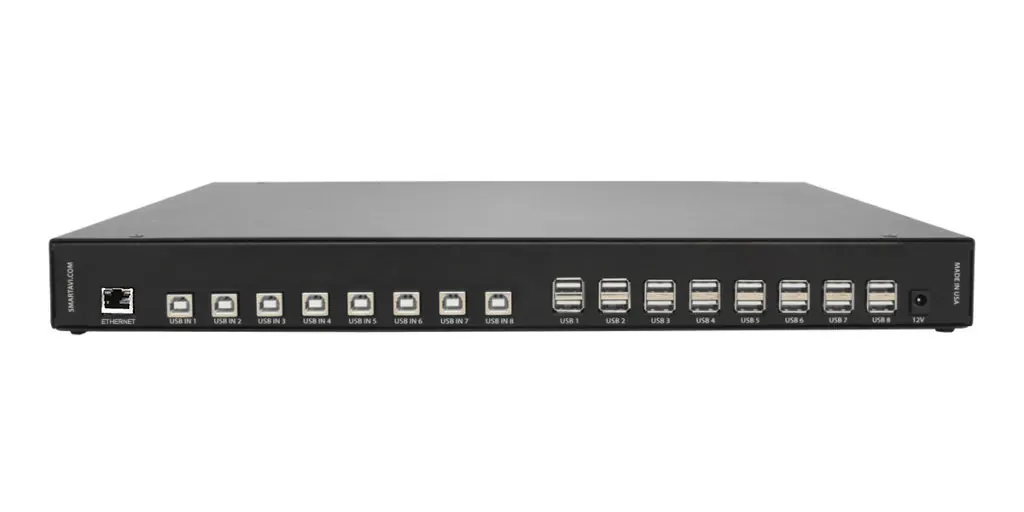

  • (8) USB 2.0 Type B inputs
  • (8) Dual USB 2.0 Type A outputs
  • Supports DVI-D with adaptors
  • Supports USB 2.0 keyboard-mouse control (NO EMULATION)
  • Supports transparent USB 2.0 peripheral devices (external hard-drives, smart-card readers, scanners, printers, etc…)
  • Simple two-button front panel control with LCD status display
  • Full web-based control console over Ethernet
  • Control Sun, Mac, or PC computers from one workstation

USB
Signal Type USB 2.0, 1.1, and 1.0
Input (8) USB Type B Female (No Emulation)
Output (16) USB Type A Female
CONTROL
Front Panel Front panel buttons
Ethernet (TCP/IP) via RJ-45
OTHER
Power Supply Internal 100-240 VAC/12 DC, 2A
Max. Consumption 100 W
Dimensions 17.06″ W x 2.0″ H x 10.4″ D
Weight 8.8 lbs
Operating Temp. 32 to 122°F (0 to 50 °C )
Storage Temp. -4 to 149 °F (-20 to 65 °C )
Humidity Up to 85% RH (non-condensing)

Includes:

  • (1) MU-88: 8X8 Transparent USB 2.0 Matrix Switch
  • (1) PS12VDC5A power supply
  • (1) Quick Start & Installation Guide
