£795.00 inc VAT
The KH1508AI Aten 8 port CAT5 over IP KVM switch supports multiplatform and up to 50m high quality signal. It features Panel Array Mode that allows the user to monitor in real time 8 servers at once.
The KH1508Ai Cat 5 High-Density KVM over IP Switch switches offers 8 computer port configurations in a 1U-high housing for convenient rack mounting. They allow local and remote operators to monitor and access the entire enterprise data center over the Internet using a web-based browser.
The KH1508Ai features RJ-45 connectors and Cat 5e/6 cable to link to the computers and supports multiplatform. This ensures that high quality signals can travel over long distance – up to 50m* without the need for KVM extenders. Utilizing KVM Adapter Cables for the final linkup, the KH1508Ai permits any combination of PCs, Macs, Sun computers, and serial devices to coexist on the installation.
In addition to TCP/IP connectivity, the KH1508Ai provides console ports for a locally attached USB or PS/2 console and a Net.
The Laptop USB console (LUC) – allowing access and control from the data center as well as over these switches have been designed with unique and powerful features for that enable administrators to manage their entire server room and data center devices easily and conveniently from just about anywhere in the world.
A special Message Board feature – which like an internet chat program – lets any number of remotely logged in users exchange information and communicate with each other or to cooperatively manage the installation. A Panel Array Mode™ allows real-time monitoring of up to 8 servers at once. Other features that contribute to the switches’ powerful capabilities include: Mouse DynaSync™, and Adapter ID.
With ALTUSEN KVM over IP Switch switches, IT administrators can manage their server rooms and data centers from practically anywhere – minimizing travel costs and MTTR (Mean Time to Repair) – and ensuring the highest availability of data center services possible.
* With KVM Adapter Cable KA7000 series

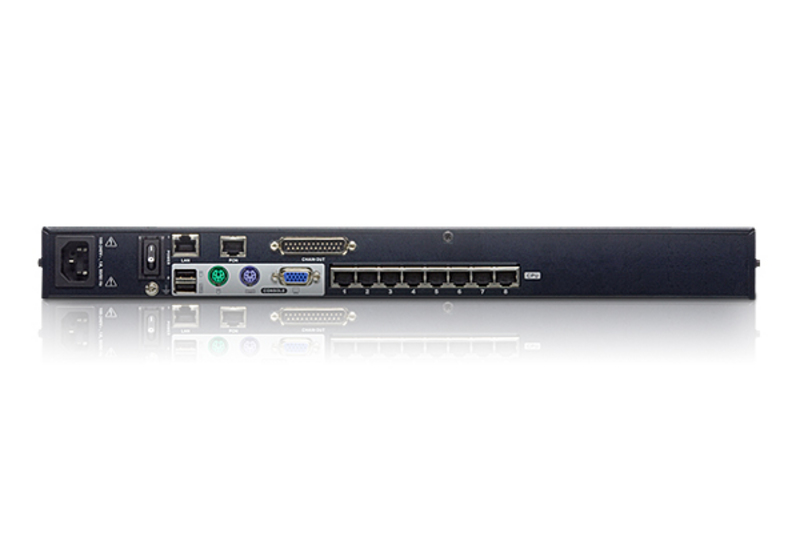

| Computer Connections |
Direct | 8 | |
| Maximum | 128 (via daisy chain) | ||
| Port Selection | OSD; Hotkey; Pushbutton | ||
| Connectors | Console Port | Keyboard | 1 x 6-pin Mini-DIN Female (Purple) 1 x USB Type A Female (White) |
| Video | 1 x HDB-15 Female (Blue) | ||
| Mouse | 1 x 6-pin Mini-DIN Female (Green) 1 x USB Type A Female (White) |
||
| KVM Port | 8 x RJ-45 Female | ||
| Daisy Chain Ports | 1 x DB-25 Male (Black) | ||
| Power | 1 x 3-prong AC socket | ||
| LAN | 1 x RJ-45 Female | ||
| F/W Upgrade | 1 x RJ-11 Female (Black) | ||
| PON | 1 X RJ-45 Female | ||
| Laptop USB Console (LUC) Port |
1 x USB Mini Type B Female (Black) | ||

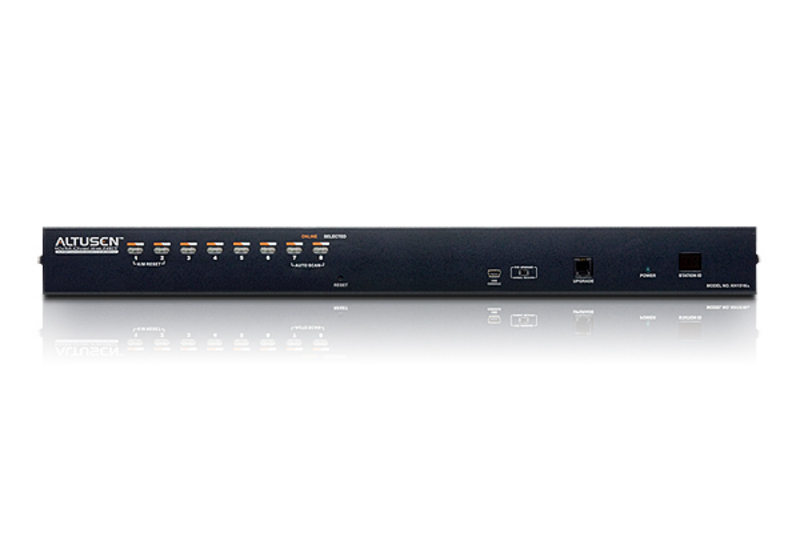

| Switches | Reset | 1 x Semi-recessed Pushbutton | |
| Power | 1 x Rocker | ||
| Port Selection | 8 x Pushbutton | ||
| LEDs | On Line | 8 (Green) | |
| Selected | 8 (Orange) | ||
| Power | 1 (Blue) | ||
| Station ID | 1 x 2-digit 7-segment (Orange) | ||
| Link | 1 (Orange) | ||
| 10 / 100Mbps | 1 (Orange / Green) | ||
| Emulation | Keyboard / Mouse | PS/2; USB | |
| Video | Local | 1600 x 1200 @ 60 Hz (40m) ; 1280 x 1024 @ 75 Hz (50 m with KA7xx Adapter Cable) |
|
| Remote | 1600 x 1200 @ 60Hz | ||
| Scan Interval | 1–255 secs | ||
| I/P Rating | 100–240 VAC; 50/60 Hz; 1A | ||
| Power Consumption | 120V/12.5W; 230V/12.7W | ||
| Environment | Operating Temp. | 0 – 40°C | |
| Storage Temp. | -20 – 60°C | ||
| Humidity | 0–80% RH; Non-condensing | ||
| Physical Properties |
Housing | Metal | |
| Weight | 2.71 kg | ||
| Dimensions (L x W x H) |
43.72×16.36×4.40cm | ||
