KD-E10 AV Access Docking Station for 2 PCs & 2 Monitors

£159.00 inc VAT

The AV Access KD-E10:

● Designed for 2 PCs & 2 Monitors: Designed with a USB-C (MST) input port for a laptop and a combined HDMI + DisplayPort + USB-B input port for a desktop computer. Seamlessly switch between your work laptop and gaming PC while viewing two screens simultaneously.
● Versatile 11-in-1 Docking Station: Easily switch between two computers with a docking station that offers an array of ports, including 3x USB 3.0, 2x USB 2.0, 1x USB-C, SDXC card slot, 3.5mm headset jack, and two HDMI outputs. Perfect for building a powerful workstation at home or in the office.
● 4K UHD and High Refresh Rates: HDMI 2.0 and DisplayPort 1.4a (USB-C) compliant, it supports stunning visuals with up to 4K@60Hz 4:4:4 resolution. Additionally, supports high refresh rates like 1080P@240Hz/165Hz, as well as 2560 x 1440@144Hz, providing a smooth experience for gaming and high-speed applications.
● Full-Featured USB-C Port: With the 20Gbp/s USB-C port, you can input 4K ultra HD videos and transfer data up to 5Gbp/s, and provides up to 100W charging with an additional power adapter. The built-in LAN port ensures reliable internet access for your laptop.
● Super Fast Switching: With automatic PC wake-up and EDID emulation, switch between your PCs in just 2-3 seconds. Simply press the front control button for a seamless transition, minimizing disruption to your workflow.
● Important Notes: MacOS doesn’t support USB-C MST (multi-stream transport), so two duplicate contents will be displayed. The power adapter for the KVM switch is included in the package. When charging your laptop, please additionally use your laptop’s original adapter.

Connection Diagram

Manual

Description

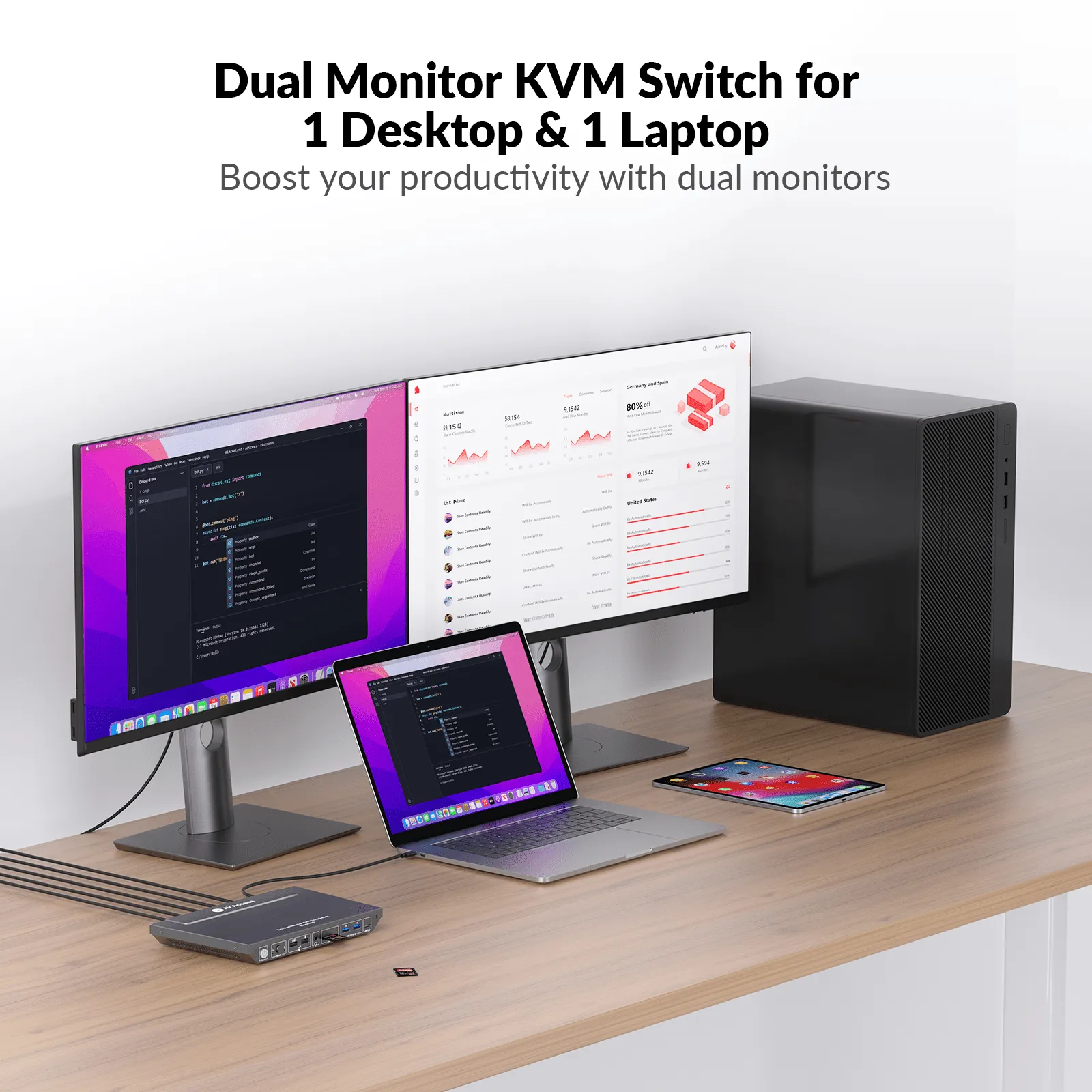

2 PCs & 2 Monitors, Switch Effortlessly

Easily manage two PCs with support for two monitors. The USB-C (MST) input port for laptops and a combined HDMI + DisplayPort + USB-B input port for desktop computers allow you to switch between your work laptop and gaming PC while using two screens at the same time. Perfect for boosting productivity and multitasking.

11-in-1 Docking Station for Ultimate Connectivity

Connect up to 11 devices with this powerful docking station. It allows you to hook up peripherals like a mouse, keyboard, webcam, speaker, and more. Ideal for creating a versatile and efficient workstation at home or in the office, keeping all your devices connected and ready.

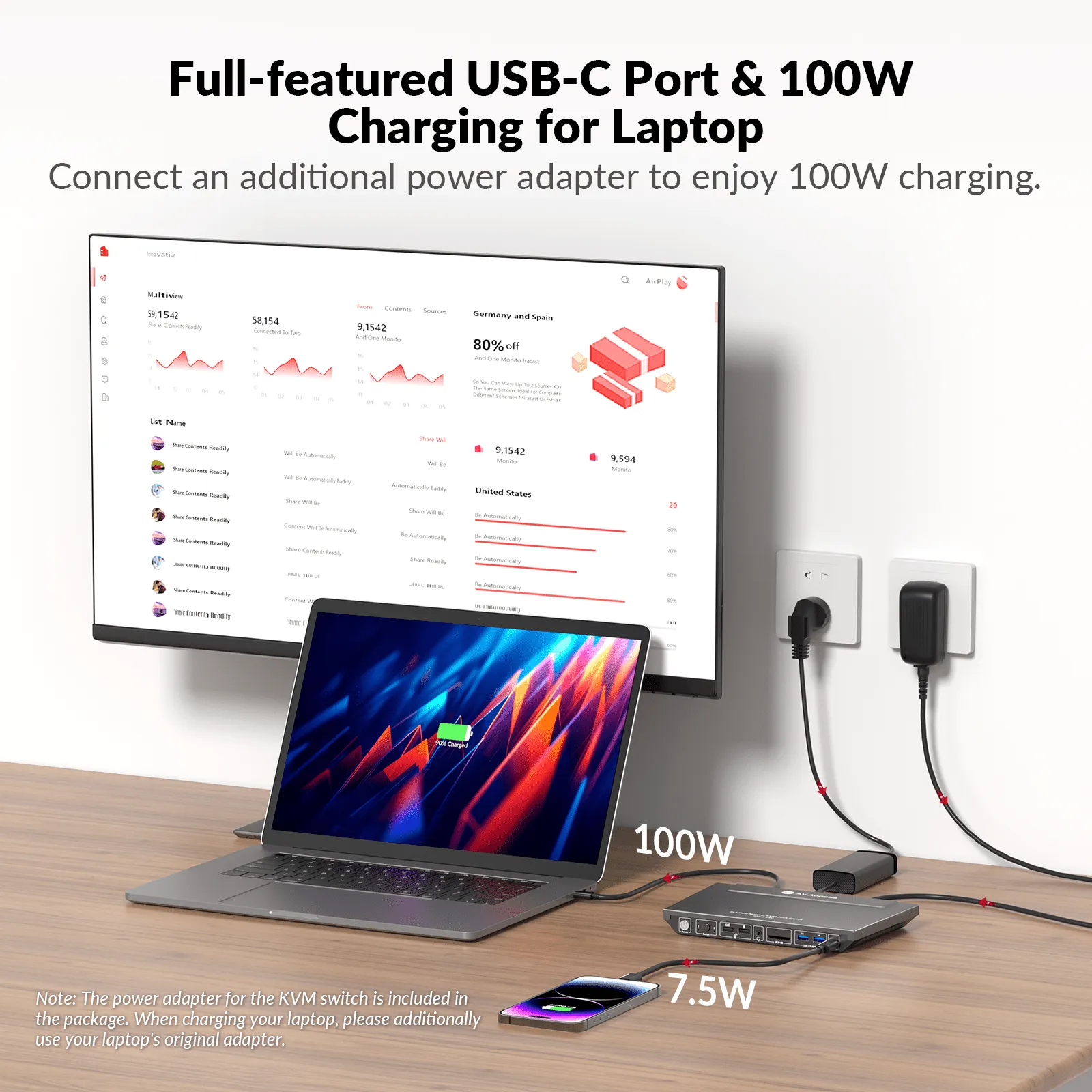

Full-Featured USB-C Port

The 20Gbps USB-C port supports 4K ultra HD video input and data transfer speeds up to 5Gbps, while providing up to 100W charging with an additional power adapter. This means you can charge your laptop, transfer data, and display high-quality video all at once. Plus, the built-in LAN port ensures a reliable internet connection.

Important Notes:

The power adapter for the KVM switch is included in the package. When charging your laptop, please additionally use your laptop’s original adapter

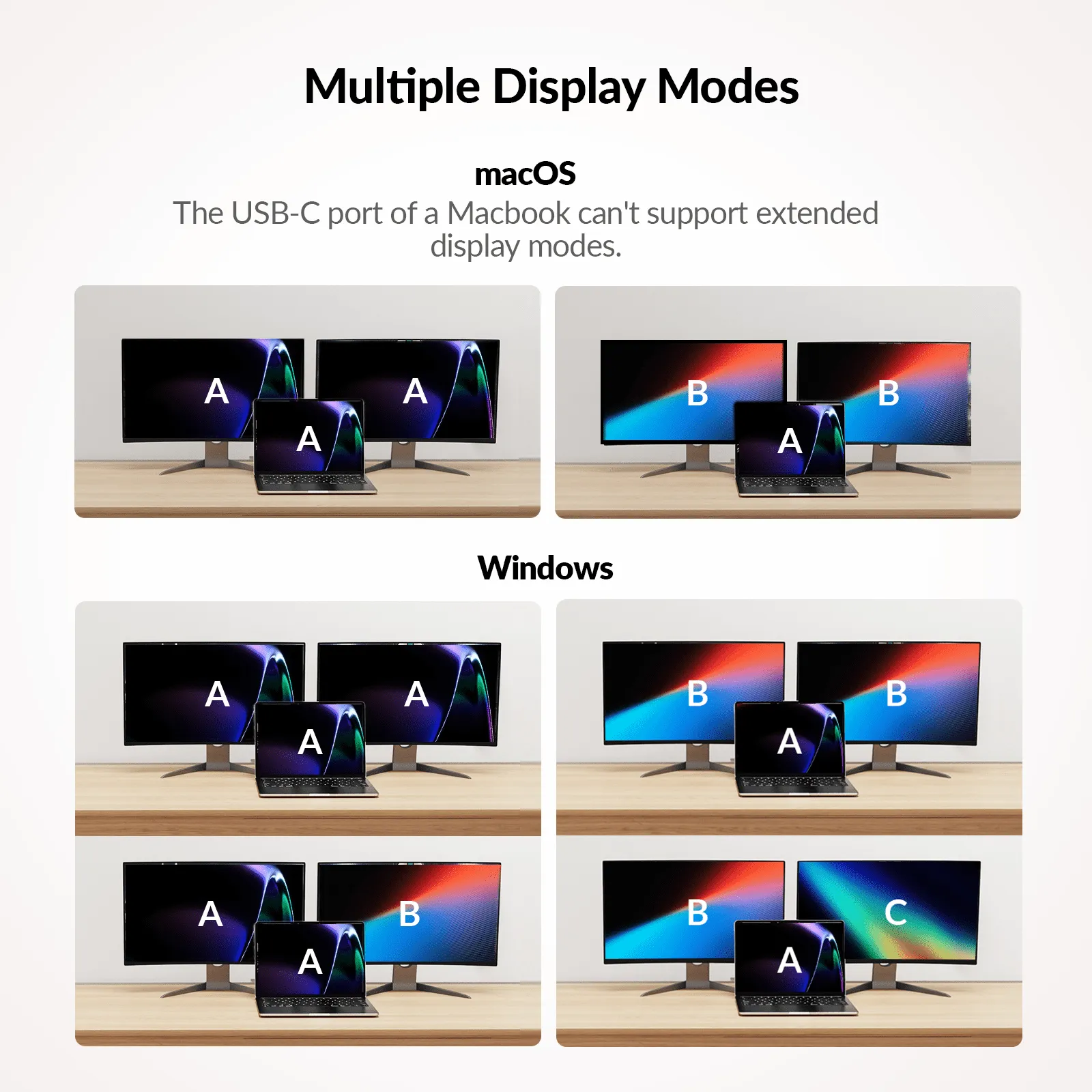

Multiple Display Modes for Multitasking

Whether using a Windows laptop or Macbook, you can make full use of your laptop and monitor screens for multitasking.

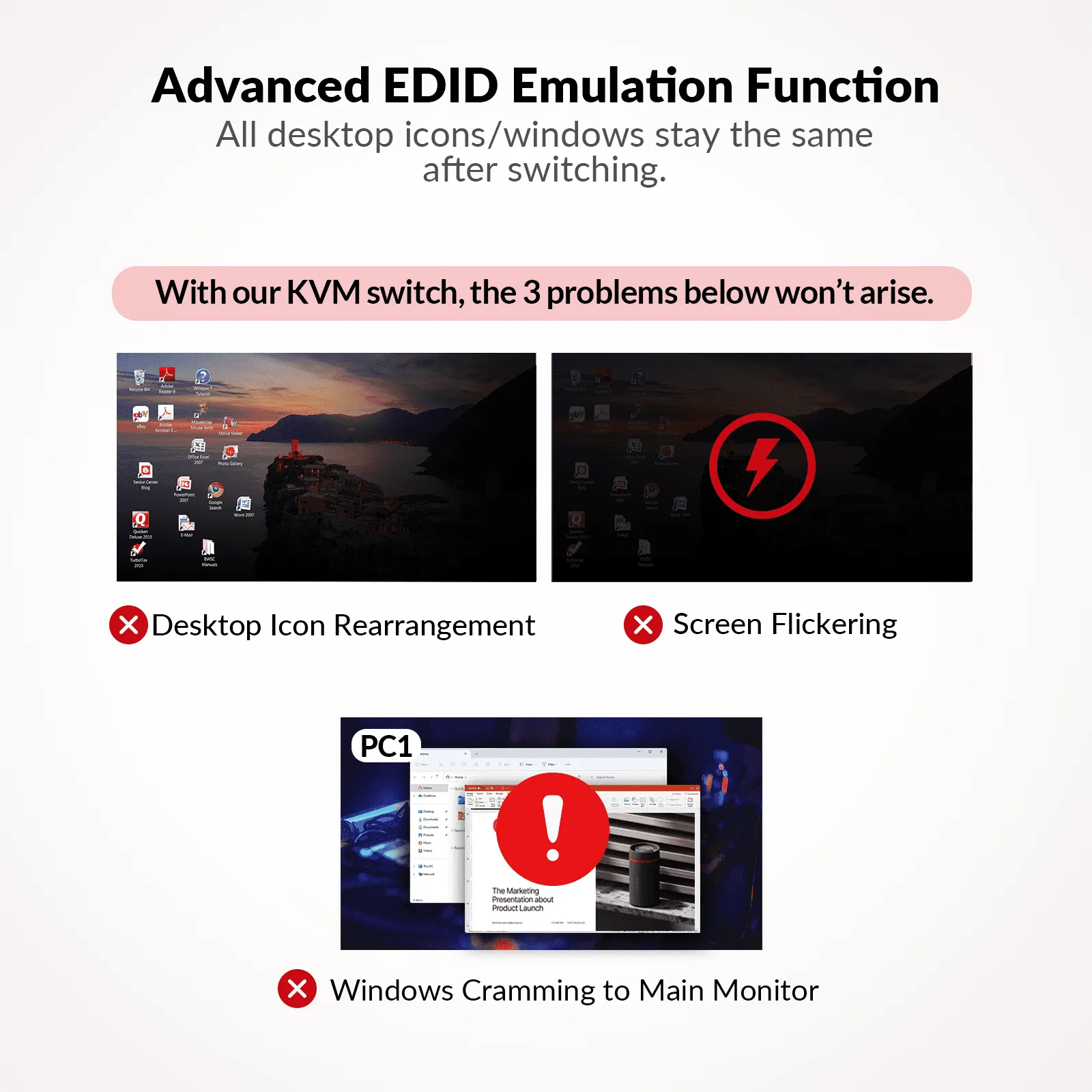

Seamless Switching with EDID Emulation

Experience smooth transitions without screen flickering or desktop icon rearrangement. Built-in EDID emulation ensures stable communication between your PCs and monitors, allowing smooth switching between different sources in just 2-3 seconds.

4K UHD and High Refresh Rates

Enjoy stunning visuals with support for up to 4K@60Hz 4:4:4 resolution. The HDMI 2.0 and DisplayPort 1.4a (USB-C) compatibility also allows for high refresh rates, including 1080P@240Hz/165Hz and 2560 x 1440@144Hz, making it perfect for gaming and high-speed applications.

Fast Switching Methods

Switch between PCs in 2-3 seconds via the front panel button, ensuring smooth and efficient transitions for your workflow.

Automatic PC Wake-Up

Instantly wake up your PCs with a simple KVM switch panel button press. This feature minimizes downtime and keeps your workflow uninterrupted, allowing you to get started immediately.

Typical Applications

This versatile KVM docking station is designed to enhance both your home office and gaming setup. Here’s how it can transform your experience:

AV-Access-KD-E10-KVM-switch-docking-station-home-work

Home Office

This 11-in-1 docking station supports dual monitors, letting you switch effortlessly between your laptop and desktop PC while viewing two screens. Its versatile ports and high-speed data transfer make it ideal for a clutter-free, efficient workspace.

AV-Access-KD-E10-KVM-switch-docking-station-gaming

Gaming

Enjoy stunning 4K visuals with refresh rates like 1080P@240Hz and 1440P@144Hz. Quick switching ensures seamless transitions, while ultra-low latency and crystal-clear audio and video elevate your gaming experience.

Technical
Input Laptop: USB-C USB-C supports: 100W Charging (DP 2.0), USB 3.0 (up to 5Gbps), and up to 4K@60Hz (DP MST) two video transmission

Desktop: DP + HDMI + USB-B

DP port supports DP 1.4a, up to 4K@60Hz 4:4:4 8bit and 4K@60Hz 4:2:0 8bit;

HDMI port supports HDMI 2.0b, up to 4K@60Hz 4:4:4 8bit and 4K@60Hz 4:2:0 8bit;

USB-B port supports USB 3.0 (up to 5Gb/s).

HDCP: All inputs support HDCP 2.2

Output HDMI 2.0b, up to 4K@60Hz 4:4:4 8bit and HDCP 2.2
Peripheral and Expansion USB-C x1: Up to 5Gb/s, 1.5A power output.USB-A x5:

· Three USB 3.0 ports, up to 5Gb/s, and two of them supports 1A power output, and the other one supports 1.5A power output

· Two USB 2.0 ports, up to 480Mb/s

SDXC card: Up to 104MB/s, maximum support 2TB.

LAN: RJ-45 connector, support for 1Gb Ethernet performance (For USB-C Laptop only)

Input/Output Resolution Supported SMPTE: 1280x720P1,2,3,4,5,6,7,8, 1920x1080I6,8, 1920x1080P1,2,3,4,5,6,7,8,9,10,11,12, 2560×10809, 3840×10809, 3840×21602,3,5,6,8, 4096×21602,3,5,6,8

VESA:

800×6008, 1024×7688, 1280×7688, 1280×8008, 1280×9608, 1280×10248, 1360×7688, 1366×7688, 1400×10508, 1440×9008, 1600×9008, 1600×12008, 1680×10508, 1920×12008, 2560×14401,2,3,4,5,6,7,8,9

1 = at 23.98 Hz, 2 = at 24 Hz, 3 = at 25 Hz, 4 = at 29.97 Hz, 5 = at 30 Hz, 6 = at 50 Hz, 7 = at 59.94 Hz, 8 = at 60 Hz, 9 = 120Hz, 10 = 144Hz, 11 = 165Hz, 12 = 240Hz

Audio Format Supported DP 1.4a/HDMI In/Out: Fully supports audio formats in DP 1.2a/HDMI 2.0 specification, including PCM 2.0/5.1/7.1, Dolby TrueHD, Dolby Atmos, DTS-HD Master Audio, and DTS:XUSB-C In: Fully supports multiple channel audio formats, including PCM 2.0/5.1/7.1, Dolby TrueHD, Dolby Atmos, DTS-HD Master Audio and DTS:X

Headphone: Stereo

General
Operating Temperature 0°C to + 45°C (32 to + 113 °F)
Storage Temperature -20 to +70°C (-4 to + 158 °F)
Humidity 20% to 90%, non-condensing
Power Consumption 33.12W (Max)
Device Dimensions(W x H x D) 230mm x 25mm x 142.6mm/ 9.06’’ x 0.98’’ x 5.61’’
Product Weight 0.78kg/1.72lbs
  • 1x KVM Switch Docking Station
  • 1x Power Adapter (DC 12V 3A)
  • 1x USB 3.2 Gen 2 Type-C to Type-C Cable (L = 1m)
  • 1x USB 3.0 Type-B to Type-A Cable (L = 1.5m)
  • 1x HDMI 2.0 Cable
  • 1x DP 1.2a Cable
  • 1x User Manual
        • 1x KVM Switch Docking Station
        • 1x Power Adapter (DC 12V 3A)
        • 1x USB 3.2 Gen 2 Type-C to Type-C Cable (L = 1m)
        • 1x USB 3.0 Type-B to Type-A Cable (L = 1.5m)
        • 1x HDMI 2.0 Cable
        • 1x DP 1.2a Cable
        • 1x User Manual

        Choose the Model That’s Right for You

        Check this chart and see if there is another model that fits your needs better.

        SKU/Parameters AV Access 4KSW21 DK Dual Monitor KVM Switch with Docking Station Front Panel NEW iDock C20 5 AV Access 4KSW31C DM 3x1 4K Dual Monitor HDMI USB C KVM Switch Rear Panel iDock D23 3 8KSW21DP DM 4KSW21 DM 2 AV Access 8KSW21 KVM 8K HDMI Switch with KVM Front Panel 1 removebg preview AV Access 4KSW41C KVM USB C HDMI Switch Back Panel Pic 1 removebg preview
        iDock C10 iDock C20 iDock B30 iDock D23 8KSW21DP-DM 4KSW21-DM 8KSW21-KVM 4KSW41C-KVM
        Desk Setup For 1 Desktop, 1 Laptop For 2 Laptops For 2 Desktops, 1 Laptop For 2 Desktops For 2 Desktops For 2 Desktops For 2 Desktops For 3 Desktops, 1 Laptop
        Number of Monitor 2 2 2 3 2 2 1 1
        Video Input 1x HDMI, 1x DP, 1x USB-C 2x USB-C 4x HDMI, 1x USB-C 6x DP 4x DP 4x HDMI 2x HDMI 3x HDMI, 1x USB-C
        Video Output 2x HDMI 2x HDMI 2x HDMI 3x DP 2x DP 2x HDMI 1x HDMI 1x HDMI
        Resolutions 4K@60Hz 4:4:4 4K@60Hz 4:4:4 4K@60Hz 4:4:4 8K@60HZ 8K@60HZ 4K@60Hz 4:4:4 10K@120Hz 4:2:0 (with DSC) 4K@60Hz 4:4:4
        USB Peripheral 3x USB3.0, 2X USB 2.0, 1X USB-C, 1X SD Card Reader 2x USB 3.0, 4x USB 2.0, 1x USB-C, 1x SD Card Reader 3x USB 3.0, 1x USB 2.0, 1x USB 1.1 3x USB 3.0, 1x USB 2.0, 1x USB 1.1, 1x USB-C, 1x SD Card Reader 3x USB 3.0, 1x USB 2.0, 1x USB 1.1 3x USB 3.0, 1x USB 1.1 4x USB 3.0, 1x USB 1.1 2x USB 3.0, 1x USB 2.0, 1x USB 1.1
        Audio Port 1x 3.5mm Combo, 1x Toslink Out 1x 3.5mm Combo 1x Mic In, 1x Line Out 1x 3.5mm Combo 1x Mic In, 1x Line Out 1x Mic In, 1x Line Out 1x 3.5mm Combo 1x Mic In, 1x Line Out
        LAN Port ✔️ ✔️ ✔️ ✔️ ➖ ➖ ➖ ➖
        EDID Emulation ✔️ ✔️ ✔️ ➖ ➖ ✔️ ✔️ ✔️
        HDCP Support HDCP 2.2 HDCP 2.2 HDCP 2.2 HDCP 2.3 HDCP 2.3 HDCP 2.2 HDCP 2.3 HDCP 2.2
        Switching Method Panel Button Panel Button, Wired Remote Button (not included) Panel Button, Keyboard Hotkey, IR Remote Panel Button, Keyboard Hotkey, Wired Remote Button (not included) Panel Button, Keyboard Hotkey, IR Remote Panel Button, Keyboard Hotkey Panel Button, Keyboard Hotkey Panel Button, Keyboard Hotkey, IR Remot
