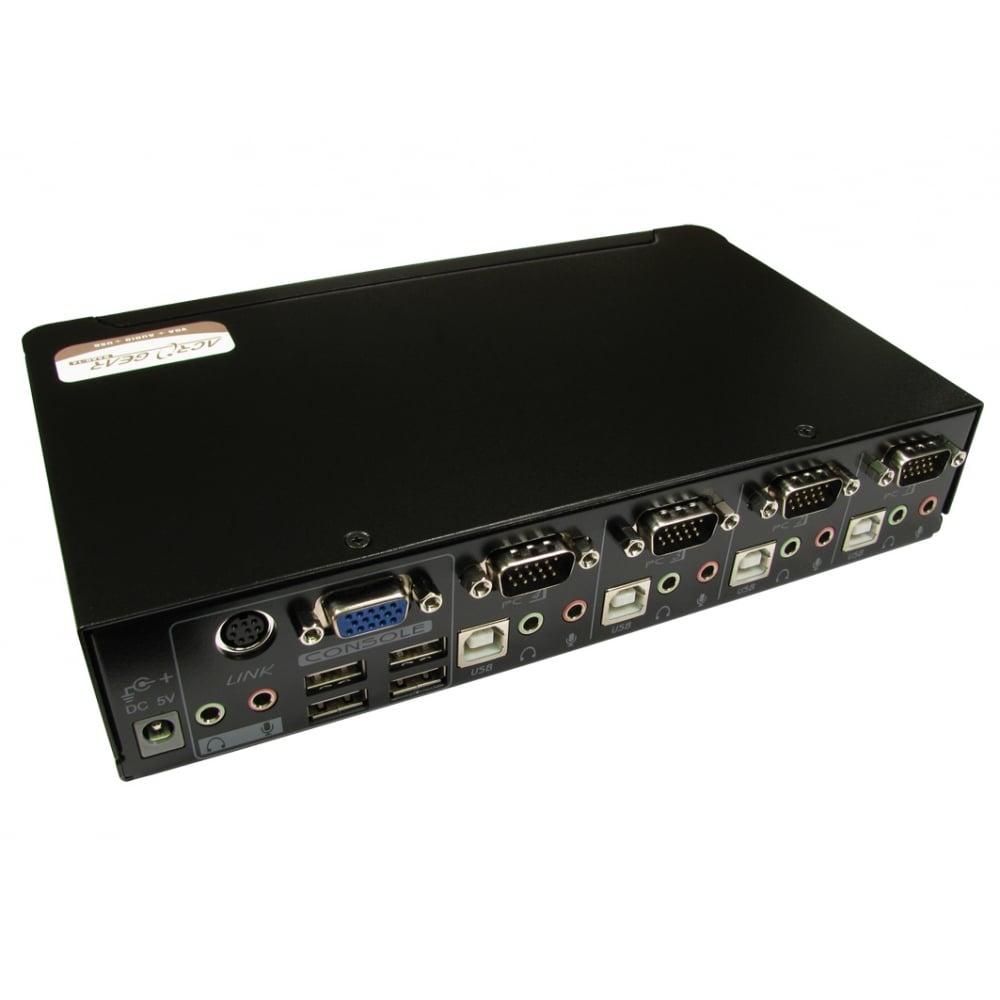

KAAG-114 Rextron 4-Port USB & VGA KVM Switch

Out of stock

Rextron KAAG-114 is a 4-port USB & VGA KVM Switch with 2-port Peripheral Sharer and Audio support features a unique tracking system to enable the USB devices to operate independently. Its USB 2.0 peripheral sharing eliminates the expense of duplicate devices and the switching between computers can be done using hotkeys or front panel push buttons.

Description

The Rextron KAAG-114 KVM CPU Switch switch allows users access 4 compatible computers from one USB keyboard, USB mouse and VGA/SVGA monitor.

Switching between computers on the KAAG-114 is as easy as pressing the push button or entering hot-key commands from your keyboard. There is no interface card or software to install and it is independent of the computer operating system.

Comes with audio ports to share sound from 4 computers.

Features
Specifications

KAAG-114 Features:

● Support Audio function
● Support USB console
● 4 computers share up to 4 different USB peripherals ( KB + MS + USB 2.0 Devices)
● Unique Tracking System enable the USB devices to operate independently
● USB 2.0 peripheral sharing eliminates the expense of duplicate devices
● Front panel push buttons for easy computer selection
● No drivers needed for keyboard and mouse operation
● Support keyboard and mouse plug-n-play
● Buzzer sound for computer switching confirmation
● Hotkey functions allow easily computer access
● Activate Auto Scan by front buttons pressing
● Support Windows and Mac host systems
● No software required

		KAAG-114
Console Port		1
Computer Port		4
Front panel push button		4
Automatic scan Interval		3, 8, 15, 30 Seconds
Cable Length (Max)		3M (10ft) for USB
Computer ON-LINE LED		4
Computer Selected LED		4
Hot Plug-and-Play		Yes
Console Interface	USB Port	4 (KB+MS+Extra USB 2.0)
	KB	USB
	MS	USB
	Monitor	VGA
	Audio Jack	1 Set
Computer Interface	KB	USB
	MS
	Monitor	VGA
	Audio Jack	4 Set
Hotkey		Yes
OSD		No
Resolution		UXGA(1600 x 1200), WUXGA(1920 x 1200)
DDC2B		Yes
H x W x D (mm)		44 x 220 x 130
