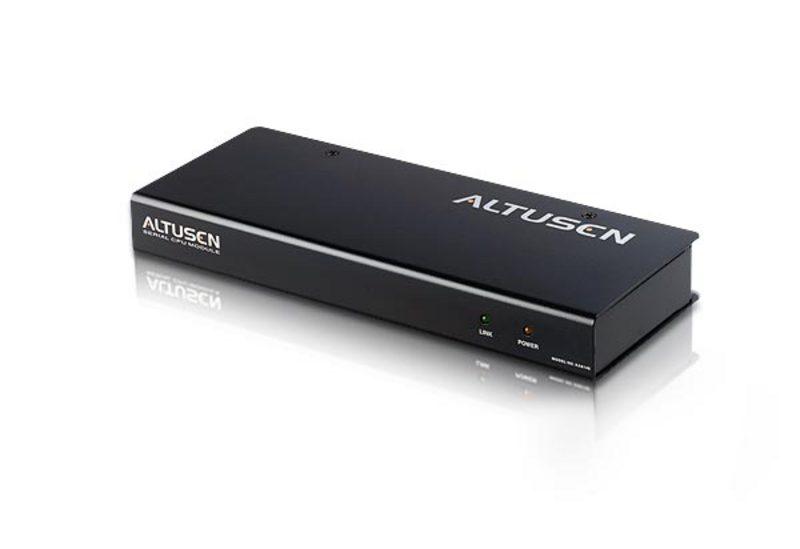

KA9140 Aten Serial KVM Adapter

£275.00 inc VAT

The Altusen KA9140 serial CPU adapter connects KVM cable to the serial ports of the server. It is hot pluggable – add or remove computers without having to power down the switch with Auto Signal Compensation (ASC), no DIP switch setting needed for the different distances and supports VT-100. It offers superior video quality – supports resolution of up to 1024 x 768; DDC2B.

Data Sheet

SKU: KA9140 Categories: , , , Tags: , ,

Description

The Altusen KA9140 serial CPU adapters connect KVM cables to the serial ports of the servers. Those KA9140 adapter is light and in small form factor, fits perfectly into most of the rack-mount or desktop servers.

Features

  • Auto Signal Compensation (ASC), no DIP switch setting needed for the different distances.
  • Hot pluggable – add or remove computers without having to power down the switch.
  • Support VT-100.
  • Lifetime firmware upgrades.
  • Superior video quality – supports resolution of up to 1024 x 768; DDC2B.
  • Built in ASIC for greater reliability and compatibility.
  • CPU module designed with automatic conversion to allow for flexible interface combinations (PS/2, USB) to control all computer types (Serial).

Specifications

Connectors
Console Ports 1 x RJ-45 Female
1 x Min Din Female
1 x HDB-15 Female
1 x Earphone-Jack-4 Female
Computer 1 x DB-9 Female
LEDs
Power 1 (Orange)
Link 1 (Green)
Switches 1 x 2 way slide switch
Power Consumption DC 5V 1.5W
Environmental
Operating Temperature 0-50˚C
Storage Temperature -20-60˚C
Humidity 0-80% RH, NC
Physical Properties
Housing Metal
Weight 0.50 kg
Dimensions (L x W x H) 20.00 x 8.15 x 2.50 cm

Package Contents

  • 1x KA9140
  • 1x Power Adapter
  • 1x Rack Mount Kit
  • 1x Firmware Upgrade Cable
  • 4x Foot Pads
  • 1x User Instructions
  • 1x Registration Card
