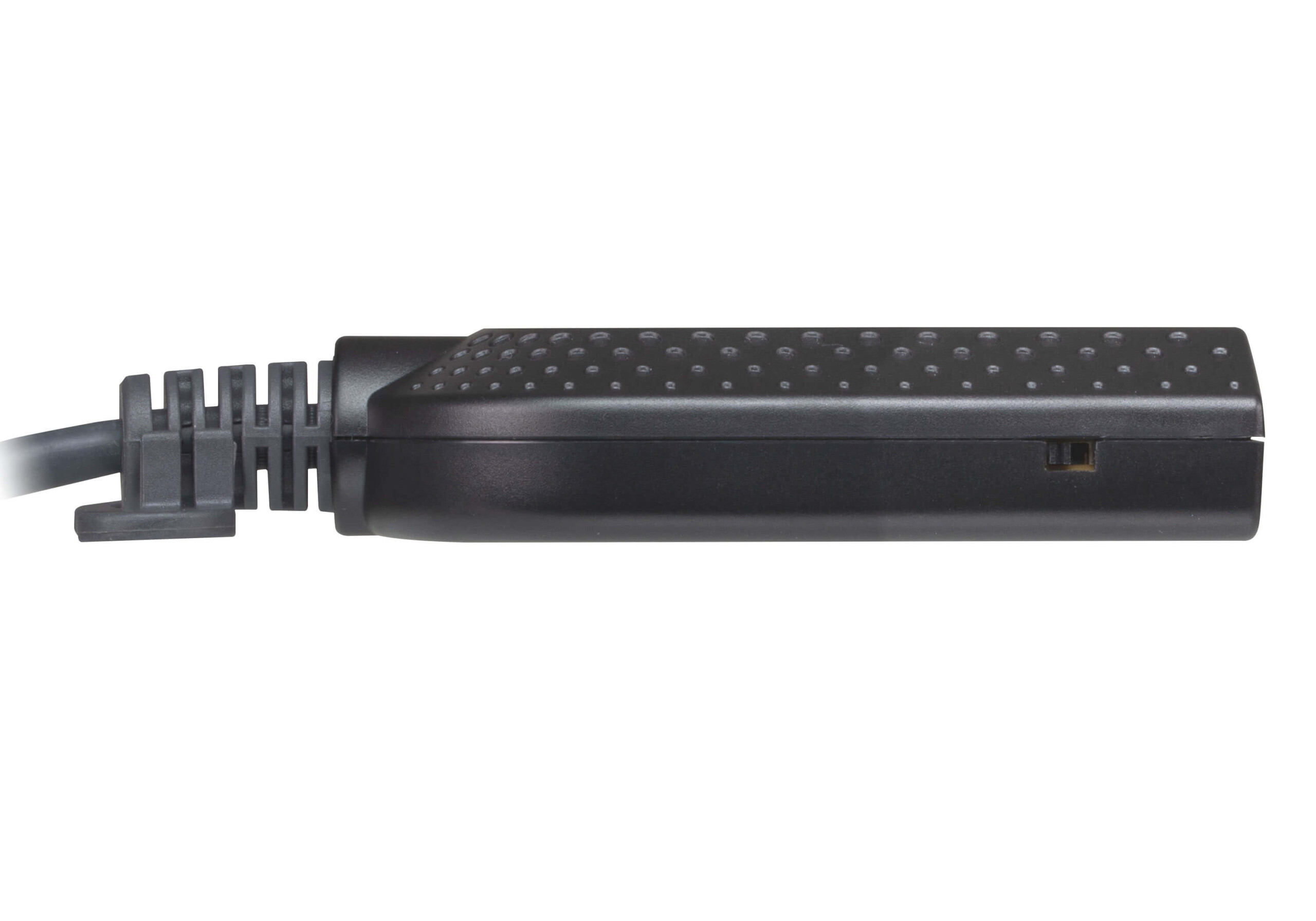

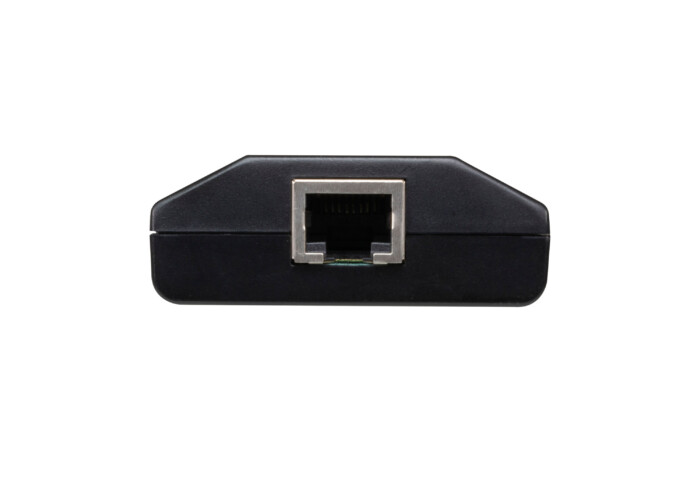

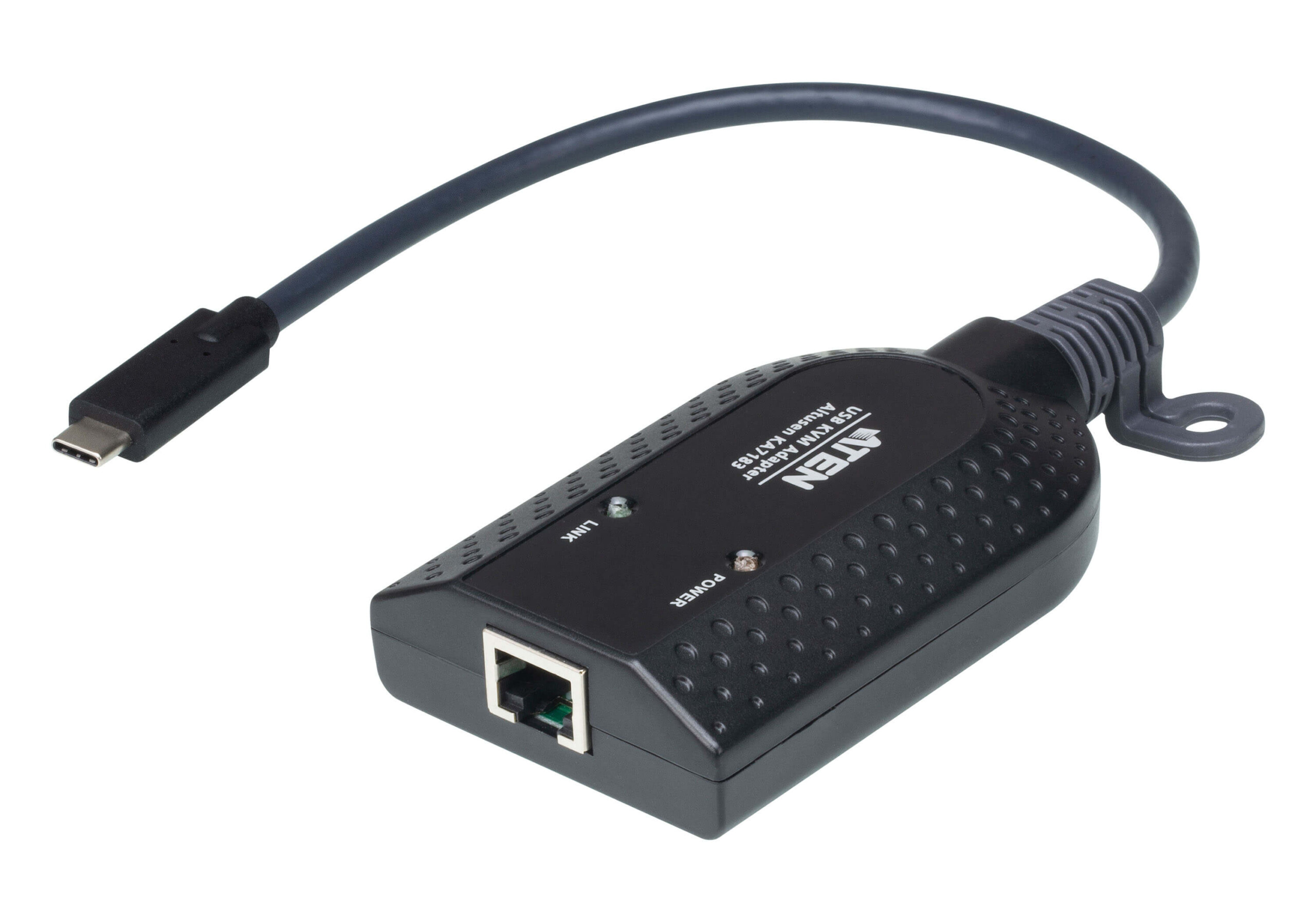

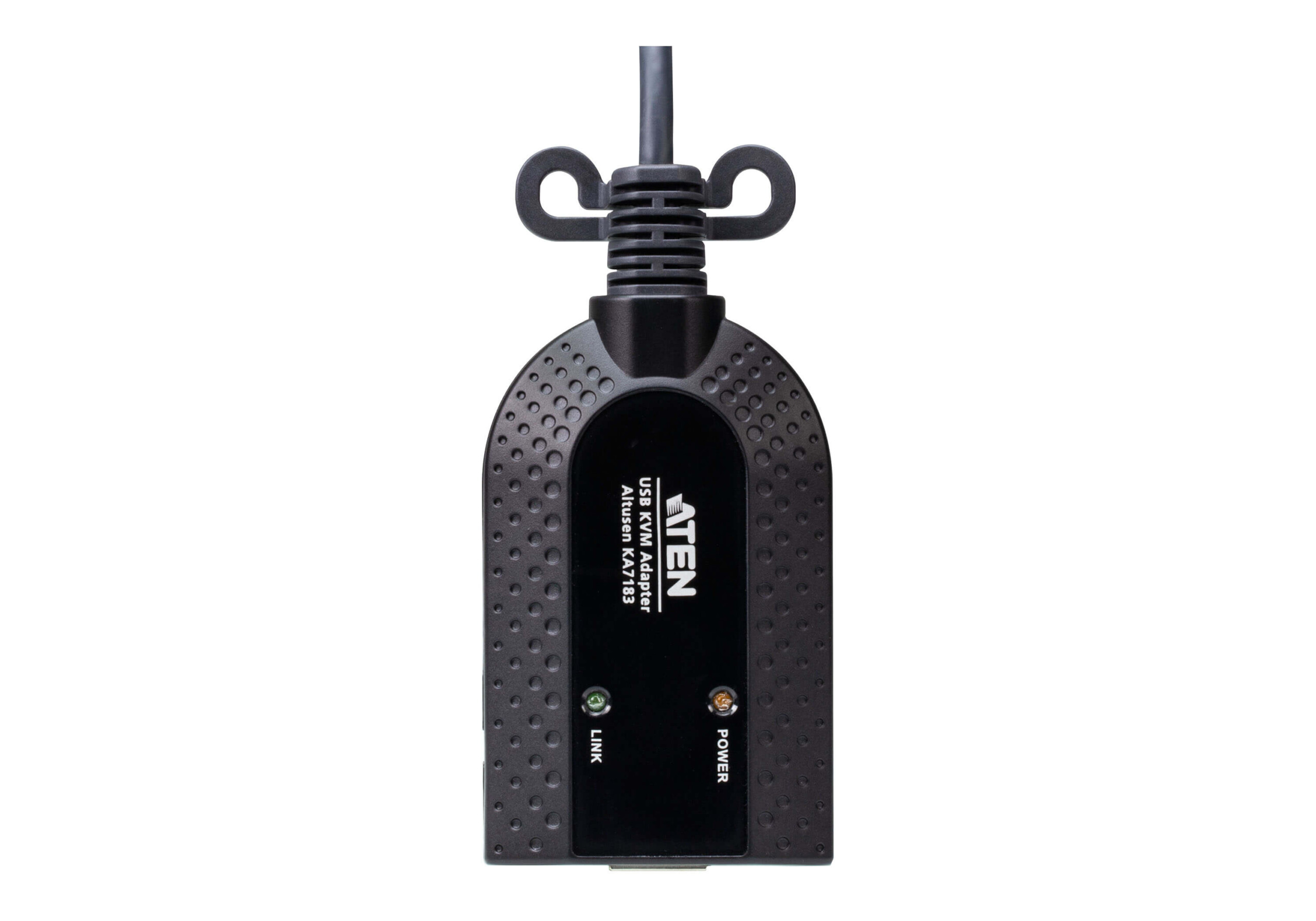

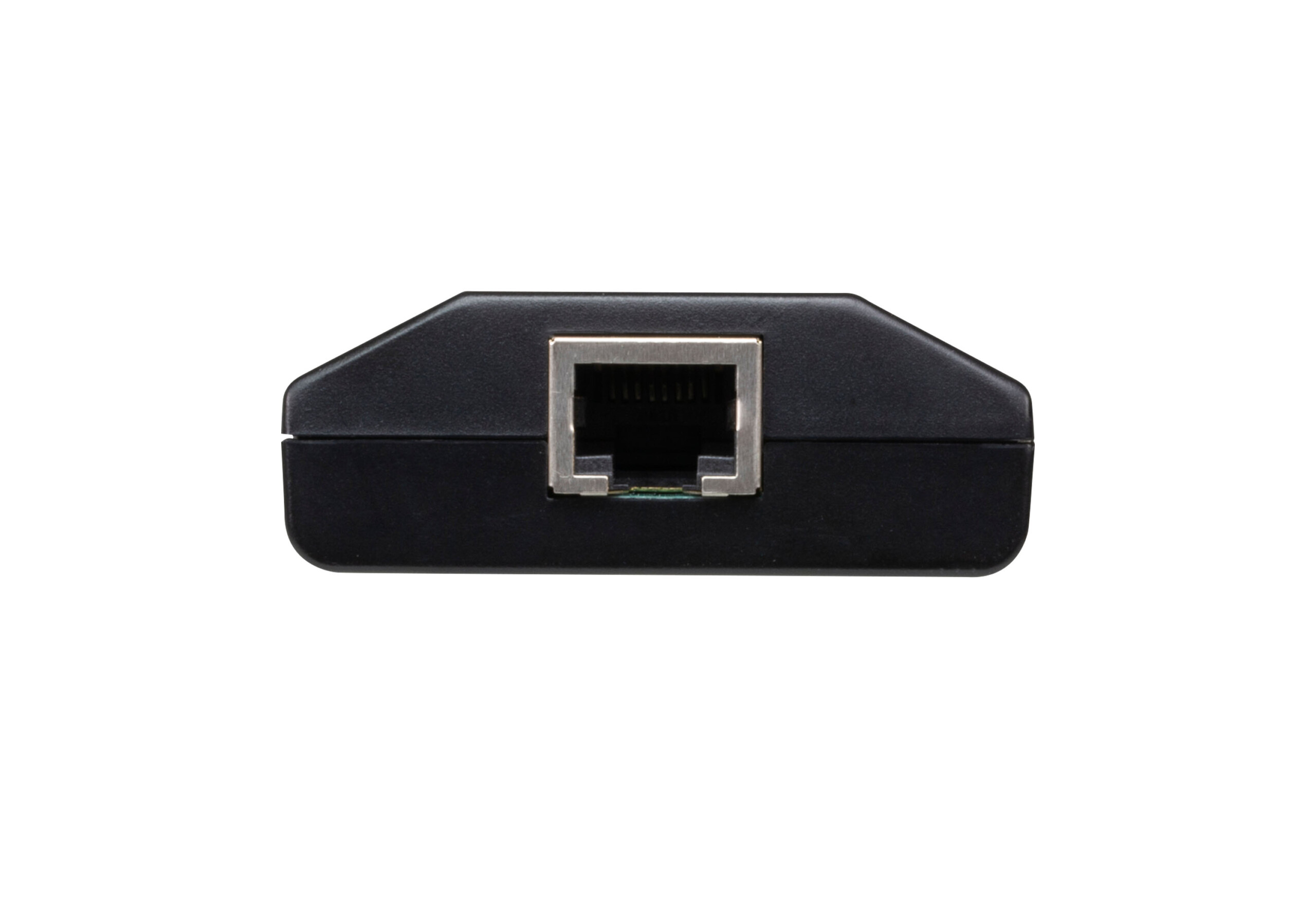

KA7183 Aten USB-C Virtual Media KVM Adapter

£285.00 inc VAT

Aten KA7183

  • Connects any Cat 5 KVM switch to a target computer via a single USB-C
  • Superior video quality – supports Full HD resolution of up to 1920 x 1200
  • Auto Signal Compensation (ASC) – no DIP switch setting needed for different distances
  • Keyboard and mouse emulation – keeps the server functioning smoothly when it’s disconnected from the switch’s KVM port or is relocated to a different KVM port

Data Sheet

SKU: KA7183 Categories: , , , Tags: ,

Description

The KA7183 KVM Adapter empowers any Cat 5 KVM switch* to connect to and manage a USB-C compatible target computer. Via just a single USB-C plug, it is able to connect a target computer while fulfilling keyboard, video, mouse, and virtual media or smart card / CAC reader functions.

Advanced features provided by KA7183 include superior signal compensation and delay skew technologies for greatly enhanced video quality, as well as its user-friendly, compact and lightweight design.

Features

  • Connects any Cat 5 KVM switch to a target computer via a single USB-C*
  • Superior video quality – supports Full HD resolution of up to 1920 x 1200**
  • Auto Signal Compensation (ASC) – no DIP switch setting needed for different distances
  • Keyboard and mouse emulation – keeps the server functioning smoothly when it’s disconnected from the switch’s KVM port or is relocated to a different KVM port
  • Virtual media support***
  • Smart card / CAC reader support***
  • Built-in ASIC for greater stability and compatibility
  • Supports hot-plugging
  • Compact size
  • Upgradeable firmware*Please refer to the KVM Adapter Cable Compatibility List (https://www.aten.com/global/en/products/kvmtool/kacablecompatibility/) for details.
    **This maximum resolution may vary depending on the transmission distance.
    ***For more details, please refer to the product pages of the connecting KVM switches.

Specifications

Connectors
Link 1 x RJ-45 Female
Computer 1 x USB Type C Male
LEDs
Link 1 (Green)
Power 1 (Orange)
Power Consumption DC5V:2.61W:12BTU
Environmental
Operating Temperature 0-50°C
Storage Temperature -20–60°C
Physical Properties
Housing Plastic
Weight 0.07 kg ( 0.15 lb )
Dimensions (L x W x H) 9.10 x 5.60 x 2.12 cm
(3.58 x 2.2 x 0.83 in.)
Note For some of rack mount products, please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format.

Package Contents

  • 1x KA7183 USB-C Virtual Media KVM Adapter
  • 1x USB holder kit
  • 1x user instructions
