iDock C20 KVM Switch Docking Station USB-C w/ USB 3.0, 4K Dual Monitor

Name: iDock C20 KVM Switch Docking Station USB-C w/ USB 3.0, 4K Dual Monitor
SKU: iDock C20
Price: 265.00 GBP
Availability: InStock

£265.00 inc VAT

The AV Access iDock C20:

Dual-Laptop Docking & Dual Monitors: Connect 2 laptops and enjoy dual 4K@60Hz displays for efficient multitasking (Mac OS doesn’t support extended dual screens).

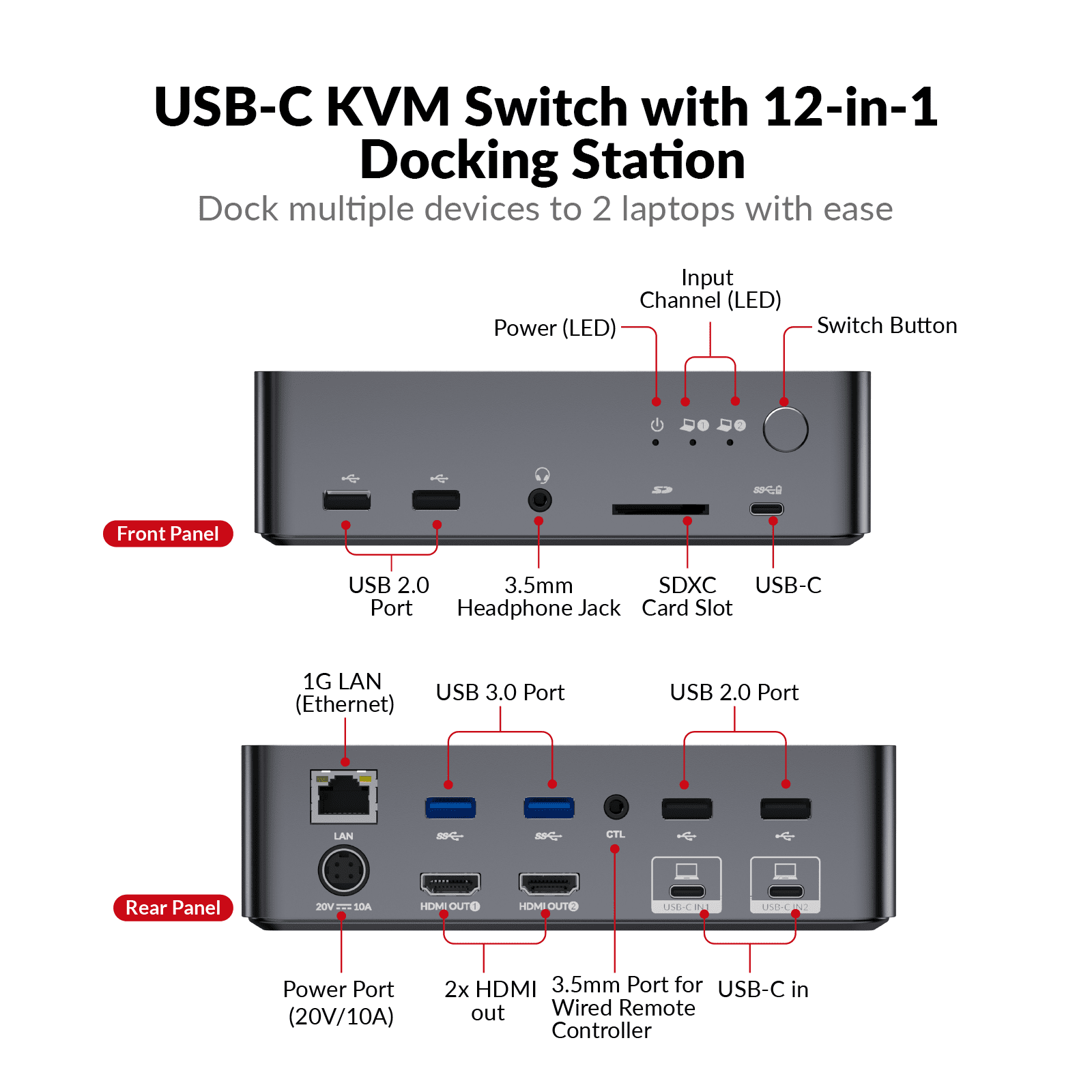

● 12-in-1 Docking Station: Expand your workspace with multiple ports, including HDMI, USB, Ethernet, SD card slot and more.
● 1G LAN Port: Ensure stable and fast wired network for both laptops, no matter which laptop you switch to.
● Dual Full-Featured USB-C: Each laptop connects with one cable for dual 4K@60Hz videos, 5Gbps data transfer, 60W charging, and shared LAN access-simplifying your setup.
● EDID Emulation: Prevents screen flickering and icon rearrangement when switching devices.
● Gaming-Ready Performance: Supports 2560×1440@144Hz and 1080P@240Hz/165Hz for ultra-smooth, high-performance gaming.
● Super Fast Switching: Avg. 2-3 seconds to switch everything between your PC sources via panel button or wired remote controller (not included).

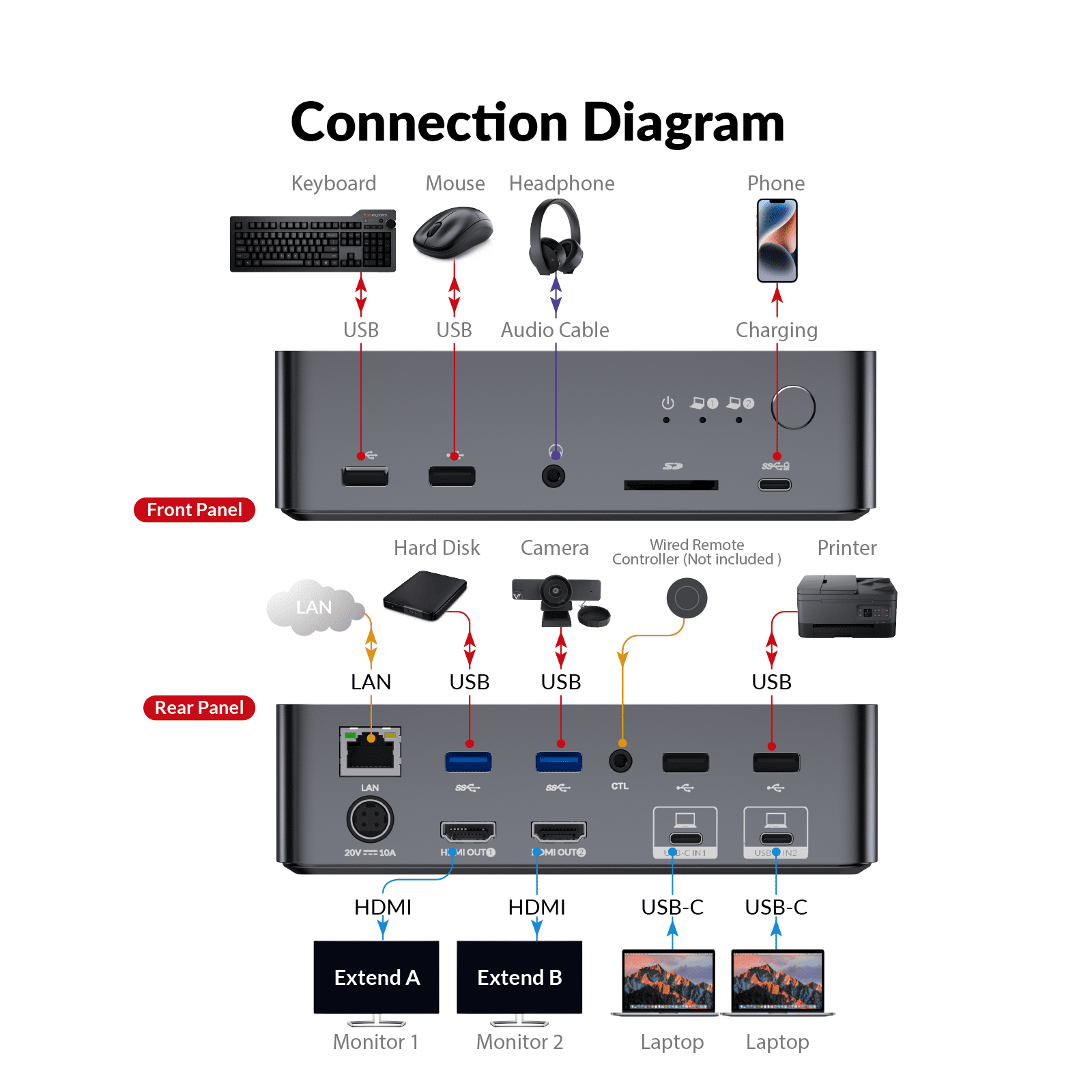

Connection Diagram

Manual

SKU: iDock C20 Categories: 1 Console KVM Switch, 2-Port KVM Switch, AV Access, Banking Sector, Broadcast, Defence, Desktop, DisplayPort KVM Switches, Government and Medical, KVM Switch & Dock, KVM Switch with Audio, KVM Switch with Peripheral Sharer USB 2.0 Hub, KVM Switches, MultiScreen KVM Switch, Smart-AVI, SmartAVI KVM Switches Tags: iDock, multi-screen, usb

Description

Description

Two Laptops, Two Screens, One Solution

Work Smarter, Switch Faster

Seamless Multitasking, Instant Switching

Switch, Charge, Empower

Unlock the full potential of your workspace with iDock C20 — the ultimate 12-in-1 docking solution for effortless laptop management and dual-display efficiency.

AV Access iDock C20 USB C KVM Switch Docking Station 1

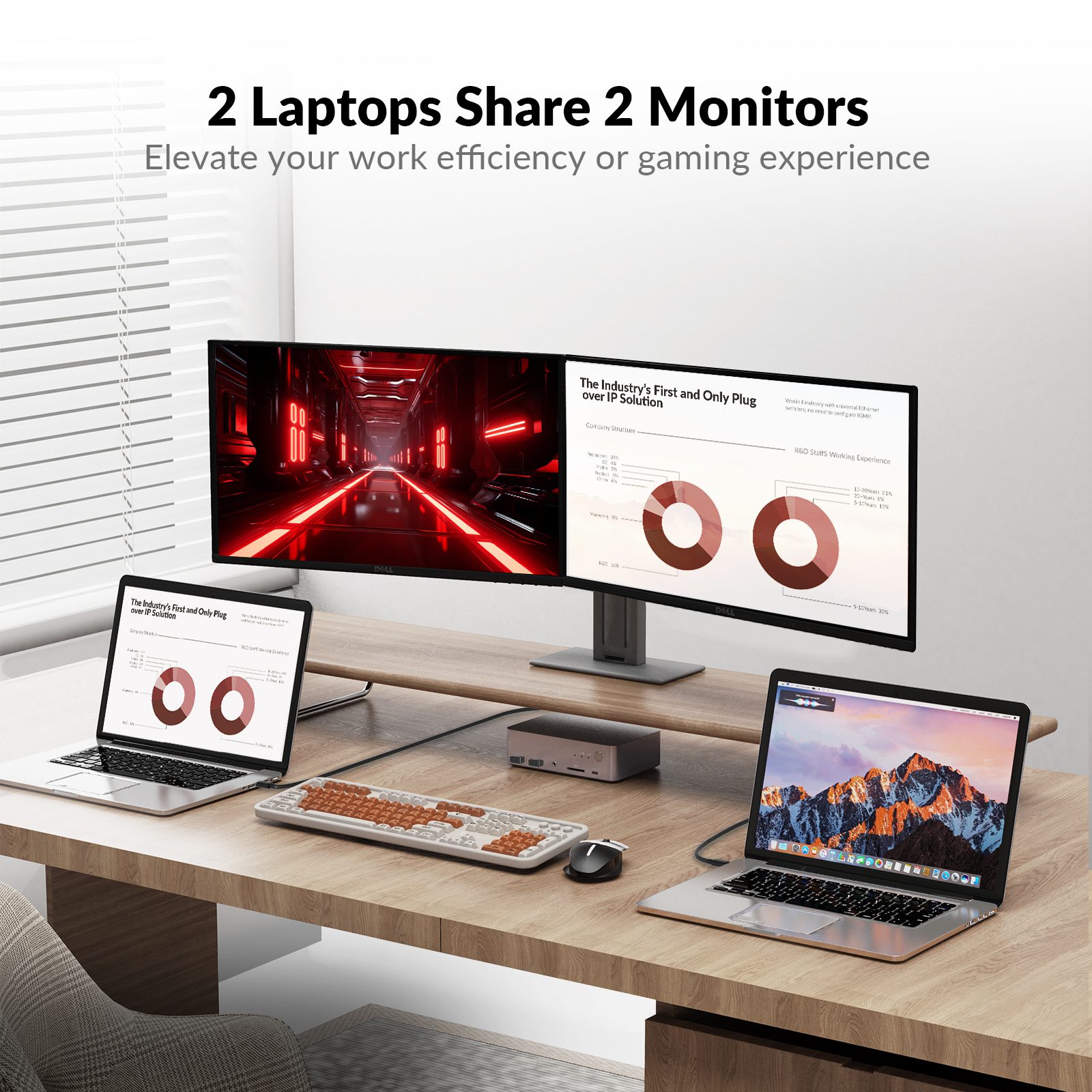

Dual Screens, Double Productivity

Enjoy more screen space to tackle tasks with ease. Compare files side by side or dedicate each screen to a specific task. Get more done, faster, and more efficiently.

Unlock Seamless Multi-Device Connectivity

Effortlessly connect two laptops with a 12-in-1 docking station. Enjoy dual screens, multiple ports, and quick switching for a smoother, more productive workflow.

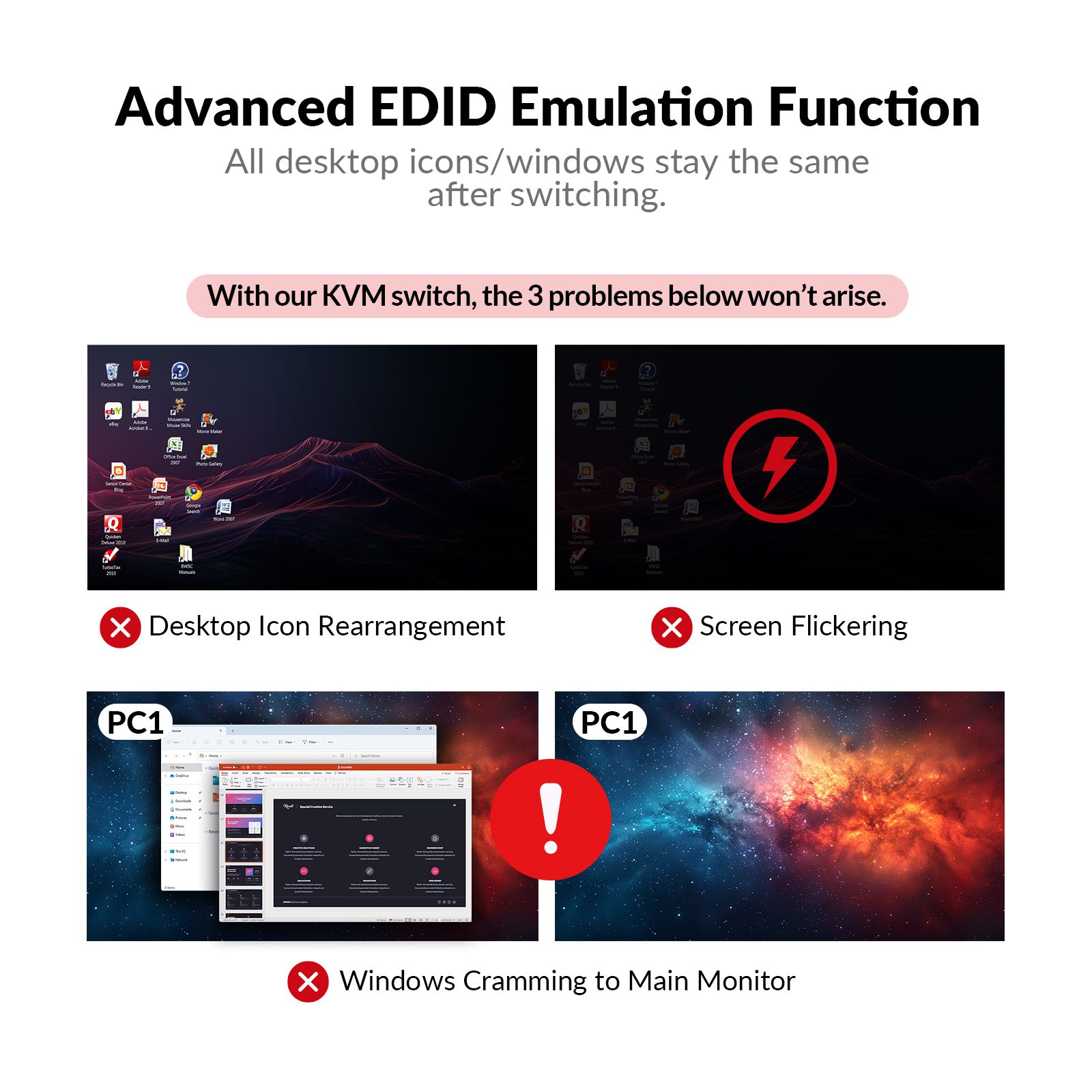

Streamline Your Workflow, No Interruptions

Say goodbye to screen flickering and desktop rearrangement

With EDID emulation, your monitor stays continuously connected to both PCs, ensuring a smooth switch between devices with your desktop exactly as you left it.

AV Access iDock C20 USB-C KVM Switch for 2 Laptops _ Advanced EDID Emulation

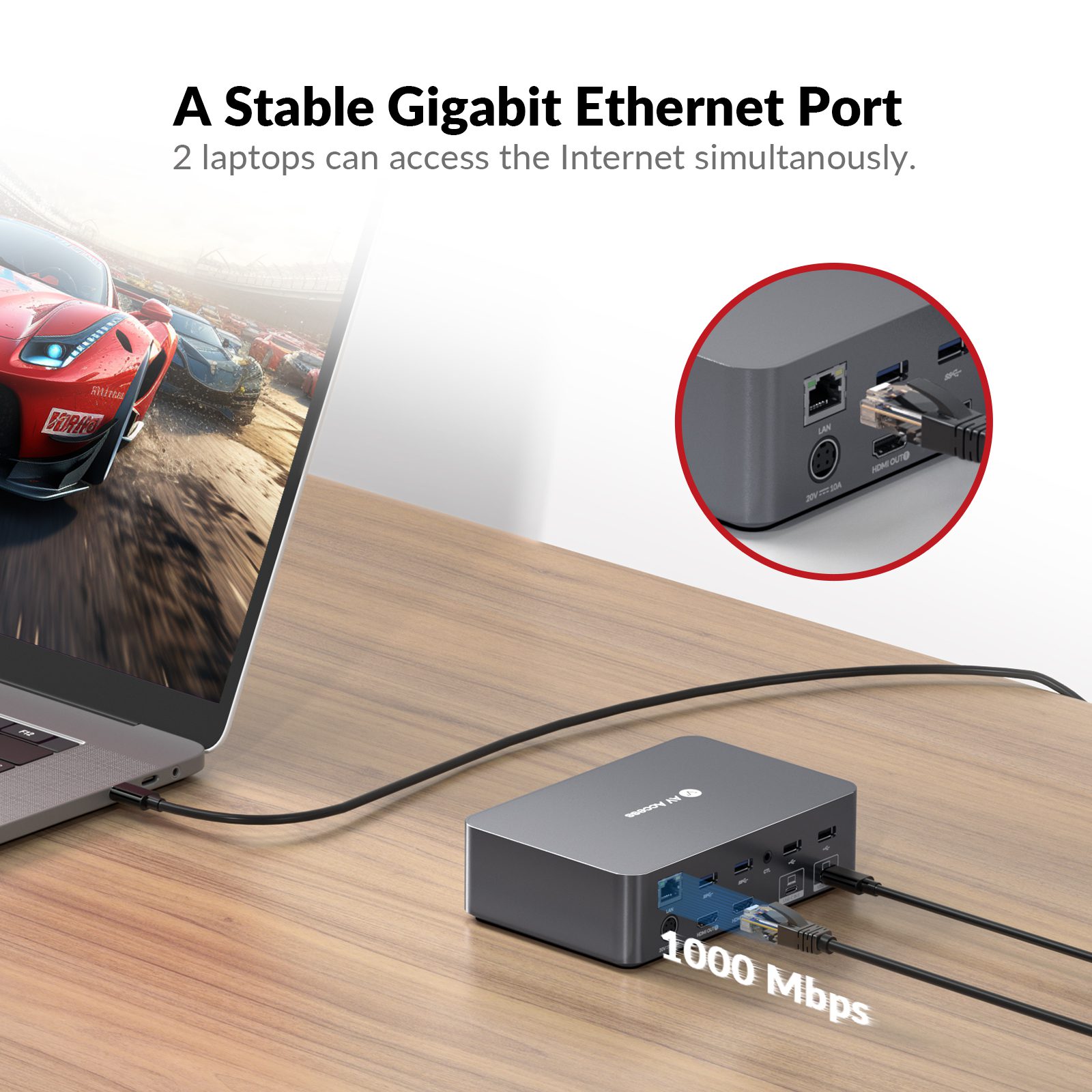

Gigabit LAN, Uninterrupted Connectivity

iDock C20 features a Gigabit LAN port, providing your laptops with fast, stable internet. Switch seamlessly between devices without any connection drop!

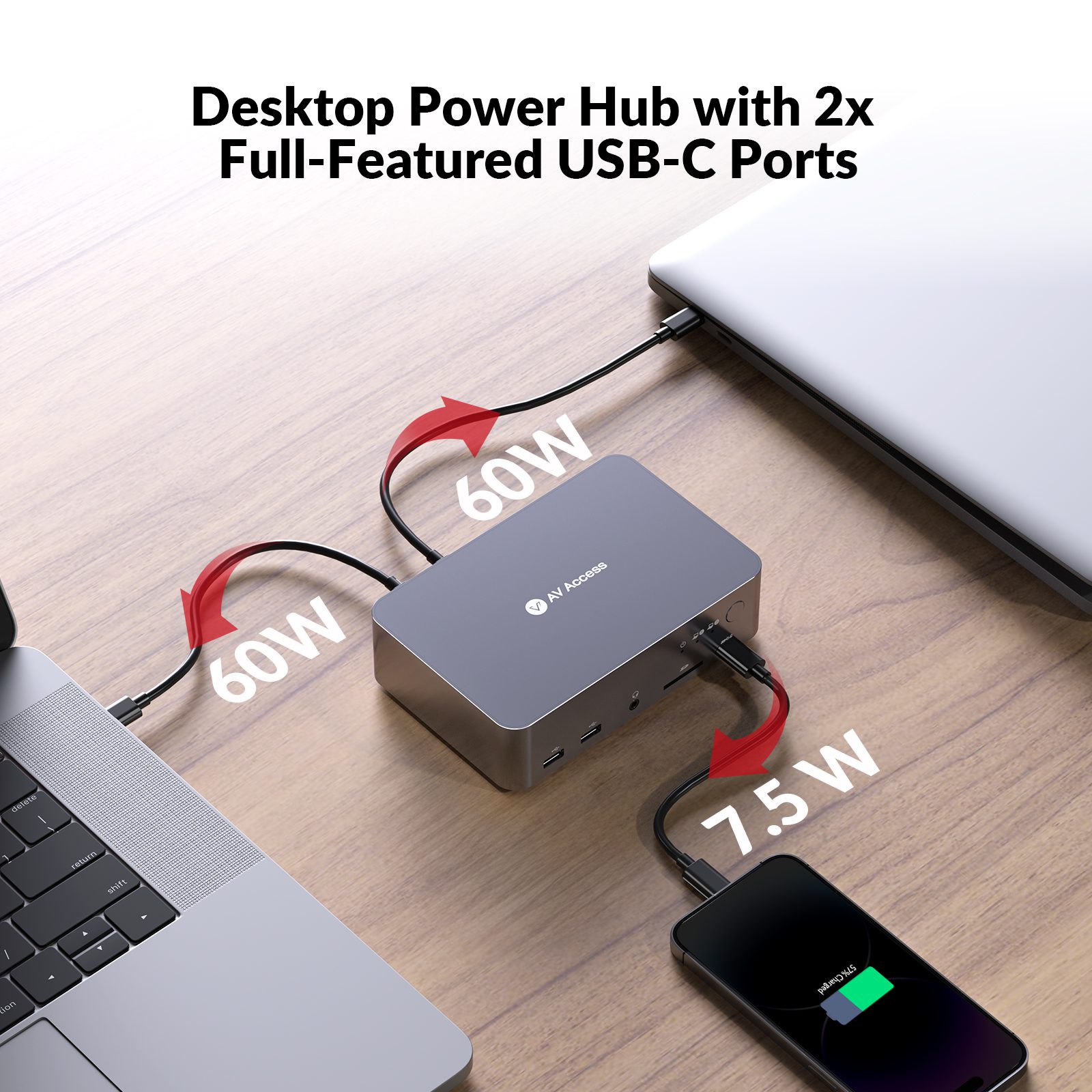

Dual USB-C Ports for Ultimate Performance

With dual 20Gbps USB-C ports, iDock C20 delivers dual 4K UHD videos, data transfer up to 5Gbps, and simultaneous charging (up to 60W per laptop).

Wake up Your Sleeping PC Effortlessly

Your PC may fall into sleep mode because it stands by for a long time or you just close it lid. Don’t worry, with iDock C20 you can just wake it up in one tap or one click.

Empower Professionals from All Walks of Life

Whether you are a hybrid worker, an IT professional, a game streamer, a graphic designer, video editor, or any other professional creator, iDock C20 makes a minimal but powerful desk setup possible for you.

AV Access idock c10 for deisgners editor gamer and coder

Technical
Input	USB-C supports USB 3.2 Gen 2×1 standard, up to 20Gb/s, with support for: 60W Charging, USB 3.0 (up to 5Gb/s), and Dual 4K@60Hz video (MST)
Output	Two HDMI 2.0 outputs with HDCP 2.2
Resolution Support	USB-C: Up to two 4K@60Hz outputs
Audio Support	HDMI: Fully supports audio formats in HDMI 2.0 specification, including PCM 2.0/5.1/7.1, Dolby TrueHD, Dolby Atmos, DTS-HD Master Audio, and DTS:X Headset: Stereo
Peripheral and Expansion	USB-C x1: Up to 5Gb/s, 1.5A power output.USB-A x6: · Two USB 3.0 ports, up to 5Gb/s, and 1A power output · Four USB 2.0 ports, up to 480Mb/s SDXC card slot: Up to 104MB/s, maximum support 2TB. LAN: RJ-45 connector, support for 1Gb Ethernet performance
Control	Button switch, extended button control

General
Operating Temperature	0°C ~ 45°C (32°F to 113°F)
Storage Temperature	-20°C ~ 70°C (-4°F to 158°F)
Humidity	10% to 90%, non-condensing
ESD Protection	Human-body Model:±8kV (Air-gap discharge)/±4kV (Contact discharge)
Power Supply	DC 20V/10A
Power Consumption	TBD
Dimensions (W x H x D)	168mm x 47.4mm x 110mm/6.61” x 1.87” x 4.33”
Product Weight	0.67kg/1.48lbs

1x iDock C20 USB-C KVM Switch
1x Power Adapter (20V 10A)
2x USB-C to USB-C Cable (1m/3.2ft)
1x User Manual

Watch Unboxing & Setup Video

What to do if the USB-C KVM switch doesn’t work?

Please check if the POWER LED is lighted on the front panel.
Please make sure to use the 20V/10A power supply provided in the package. An unsuitable or insufficient power supply may damage the product.

What to do if the KVM switch doesn’t show/output dual 4K videos simultaneously?

Please make sure to use the USB-C to USB-C cable provided in the package.
Please make sure to use the USB-C laptop that supports DP alt mode and DP MST mode.
The latest Mac computer with an ARM processor can only support DP SST mode, so two duplicate contents will be displayed.
Please use a laptop with a Windows operating system with a discrete graphics card. The Intel integrated graphics performance may be insufficient, resulting in unstable or flickering videos.
For laptops using GeForce RTX 20 series and above graphics cards, we recommend setting up two 4K@60Hz resolutions.
For laptops using GeForce GTX10 series graphics cards, we recommend setting up two 1080P@60Hz resolutions.
For laptops using the integrated graphics card, please do not set the resolution of both monitors to exceed 1080P@60hz.
If one of the two monitors displays a higher resolution and the other only displays a resolution of 800×600 or below, please adjust the resolution of the monitor with a higher resolution downward to 1080P@60Hz. At this time, the other monitor can choose a larger resolution.

What to do if wireless mouse and keyboard are not responsive?

USB-IF has confirmed that USB 3.0 will interfere with the 2.4G dongle receivers used by wireless mouse and keyboards. You can check whether a USB 3.0 device is connected next to the wireless dongle accessory. Please connect the USB 3.0 to an interface far away from the wireless dongle, for example, connect wireless dongle and USB 3.0 devices to both sides of the device.

What to do if the video on screen is flickering or unstable?

Please make sure to use the correct cable. Please use HDMI 2.0 and above cables for HDMI.
For USB-C, please use the built-in cable or a USB-IF-certified cable that supports a USB 3.2 Gen 2 cable with the 10Gb/s data rate.

Choose the Model That’s Right for You

Check this chart and see if there is another model that fits your needs better.

SKU/Parameters
SKU/Parameters	iDock C10	iDock C20	iDock B30	iDock D23	8KSW21DP-DM	4KSW21-DM	8KSW21-KVM	4KSW41C-KVM
Desk Setup	For 1 Desktop, 1 Laptop	For 2 Laptops	For 2 Desktops, 1 Laptop	For 2 Desktops	For 2 Desktops	For 2 Desktops	For 2 Desktops	For 3 Desktops, 1 Laptop
Number of Monitor	2	2	2	3	2	2	1	1
Video Input	1x HDMI, 1x DP, 1x USB-C	2x USB-C	4x HDMI, 1x USB-C	6x DP	4x DP	4x HDMI	2x HDMI	3x HDMI, 1x USB-C
Video Output	2x HDMI	2x HDMI	2x HDMI	3x DP	2x DP	2x HDMI	1x HDMI	1x HDMI
Resolutions	4K@60Hz 4:4:4	4K@60Hz 4:4:4	4K@60Hz 4:4:4	8K@60HZ	8K@60HZ	4K@60Hz 4:4:4	10K@120Hz 4:2:0 (with DSC)	4K@60Hz 4:4:4
USB Peripheral	3x USB3.0, 2X USB 2.0, 1X USB-C, 1X SD Card Reader	2x USB 3.0, 4x USB 2.0, 1x USB-C, 1x SD Card Reader	3x USB 3.0, 1x USB 2.0, 1x USB 1.1	3x USB 3.0, 1x USB 2.0, 1x USB 1.1, 1x USB-C, 1x SD Card Reader	3x USB 3.0, 1x USB 2.0, 1x USB 1.1	3x USB 3.0, 1x USB 1.1	4x USB 3.0, 1x USB 1.1	2x USB 3.0, 1x USB 2.0, 1x USB 1.1
Audio Port	1x 3.5mm Combo, 1x Toslink Out	1x 3.5mm Combo	1x Mic In, 1x Line Out	1x 3.5mm Combo	1x Mic In, 1x Line Out	1x Mic In, 1x Line Out	1x 3.5mm Combo	1x Mic In, 1x Line Out
LAN Port
EDID Emulation
HDCP Support	HDCP 2.2	HDCP 2.2	HDCP 2.2	HDCP 2.3	HDCP 2.3	HDCP 2.2	HDCP 2.3	HDCP 2.2
Switching Method	Panel Button	Panel Button, Wired Remote Button (not included)	Panel Button, Keyboard Hotkey, IR Remote	Panel Button, Keyboard Hotkey, Wired Remote Button (not included)	Panel Button, Keyboard Hotkey, IR Remote	Panel Button, Keyboard Hotkey	Panel Button, Keyboard Hotkey	Panel Button, Keyboard Hotkey, IR Remot
