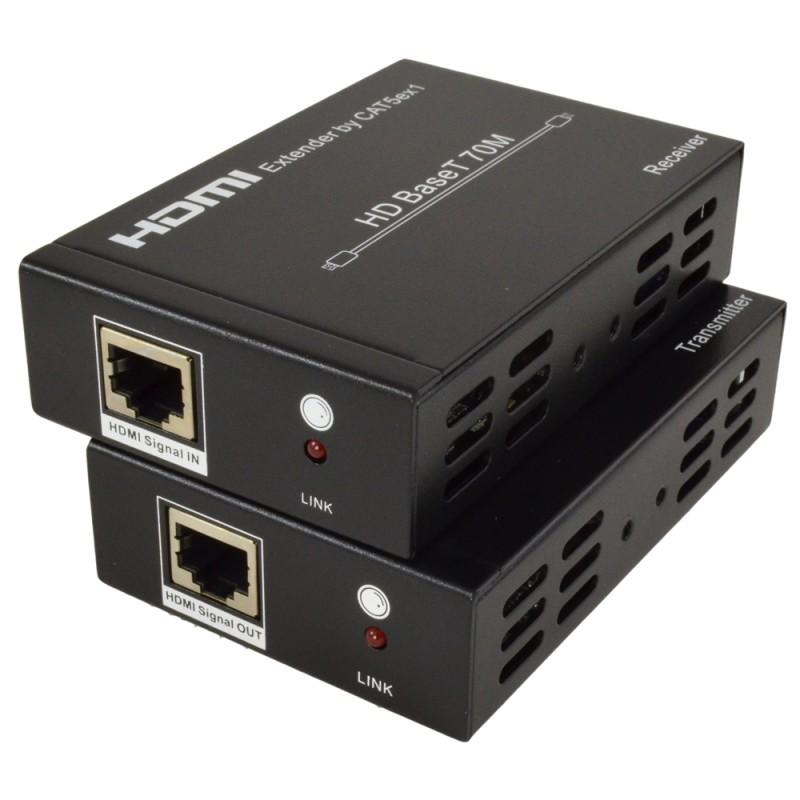

The HDMI-EX70 HDMI HDBaseT over CAT5/6 up to 70 extender with 2 way IR control at each end can transmit 4K over 40m or 1080p over 70m. The extender carries a full HD 1080p HDMI signal plus lossless audio including Dolby trueHD, Dolby Digital Plus and DTS-HD master audio.Only one power supply is required which can be placed at either end – the opposite end receives power via the CAT5/6 cable.
This HDMI-EX70 HDMI Extender allows you to extend a 1080p HDMI signal up to 70m or a 4k HDMI signal up to 40m using only a single UTP cable. Eliminates unreliable expensive lengthy HDMI cables and replaces them with standard Cat5e/Cat6 UTP cable.

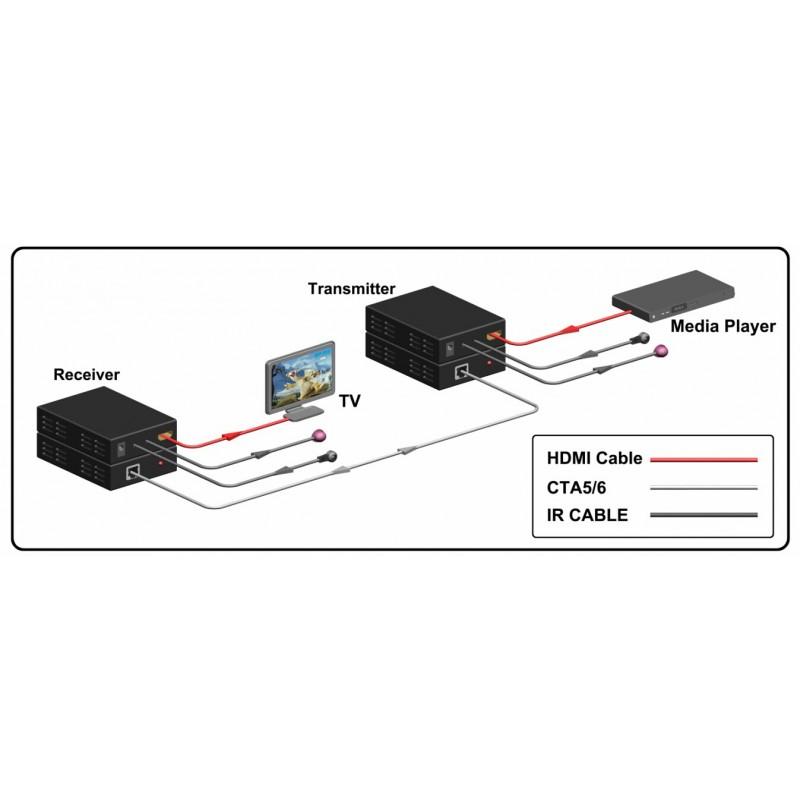

Connect sources such as DVD or Blu-Ray to the transmitter of the HDMI-EX70 using HDMI cable of up to 5m in length then connect display equipment such as a TV or projector to the receiver using standard HDMI cable of up to 5m in length. A single CAT5e or CAT6 cable is then used to connect the transmitter to the receiver.

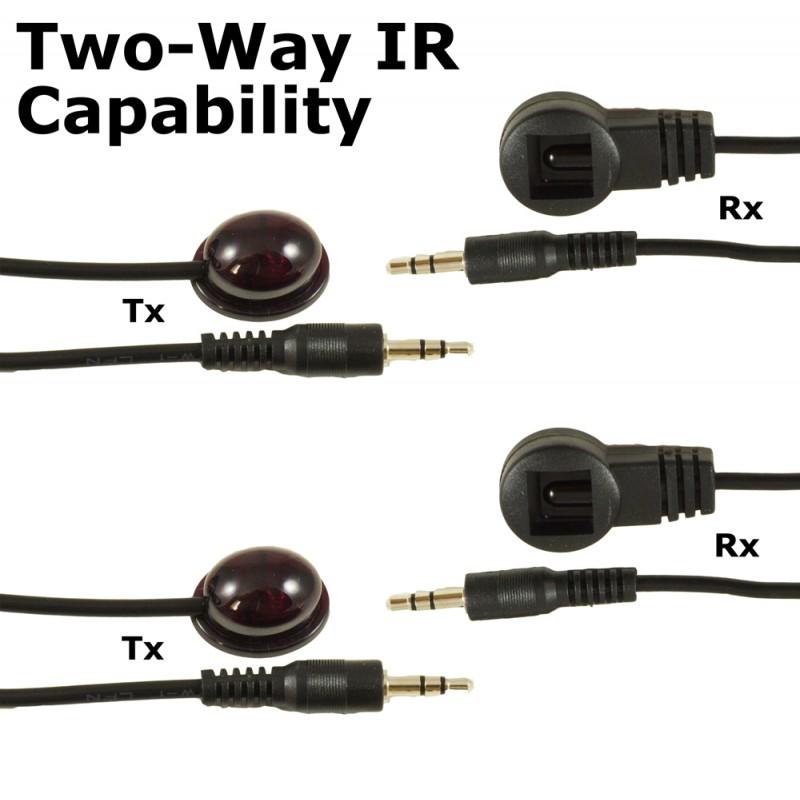

The HDMI-EX70 HDMI Extender also carries two-way IR signals allowing you to control source equipment from a remote display or to control remote equipment from the source. The extender carries a full HD 1080p HDMI signal plus lossless audio including Dolby trueHD, Dolby Digital Plus and DTS-HD master audio.Each device carries full size HDMI sockets, an RJ45 socket and 3.5mm jack sockets for the infra-red transmitters and receivers. Only one power supply is required which can be placed at either end – the opposite end receives power via the CAT5/6 cable.
