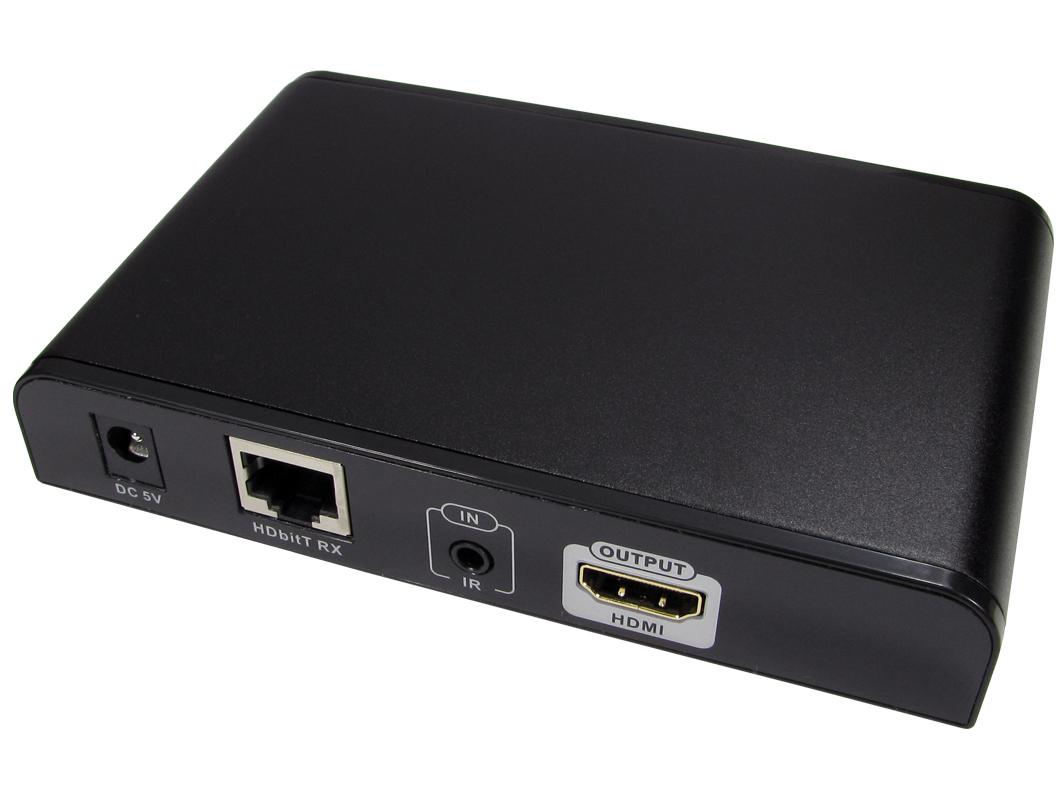

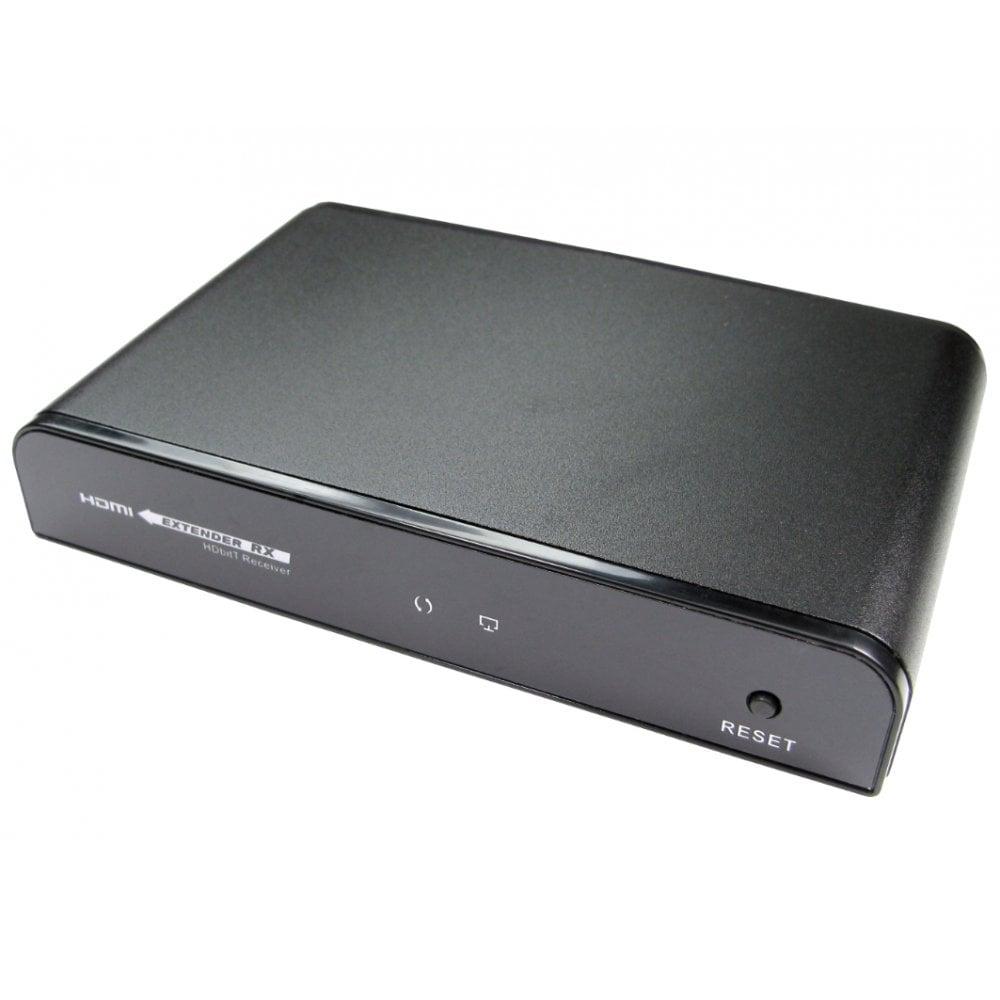

The NewLink HD-EX345-120-RX (Receiver Only) HDMI over a single CAT5/CAT6 receiver is an add-on to the HD-EX345-120 extender to allow point-to-point using one transmitter and one receiver, or one-to-many by using one transmitter to many receivers. One-to-many will require an unmanaged gigabit networking hub and multiple receivers as shown in the diagram.
This is an additional remote unit for the HD-EX345-120 extender kit.
The HDMI Extender allows you to transmit a HDMI signal over Ethernet using the HDBitT transmission protocol. You can transmit a HDMI signal all around your house or office using a single Cat5e/Cat6 cable.
The Plug and Play design is very easy to use simply connect both units to the HDMI devices, connect the I/R adapters and plug them into the extenders.
The extender can transmit 1080p(60Hz) up to 120 Metres(using Cat6 cable).
Multiple receivers can can used with single sender, making it possible to extend one source to multiple displays using our HD-EX345-120-RX with our HD-EX345-120.

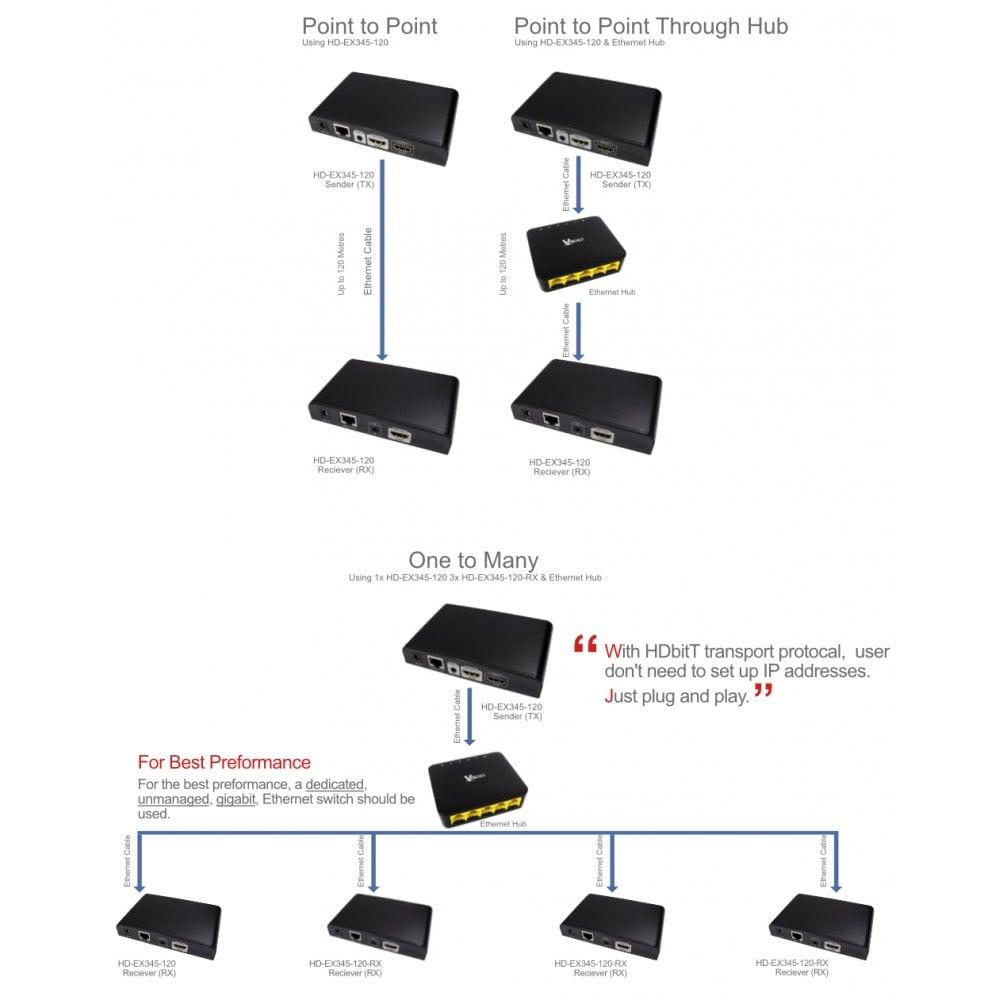

There are three ways which these can be used, Point to Point which uses one sender and one receiver link by a single networking cable. Point to Point through a networking hub or switch. One to Many, which uses one sender, an unmanaged, gigabit networking hub and multiple receivers. Please refer to the diagram.
