DNV102 2 Port Rextron PS2 and DVI KVM Switch

£95.58 inc VAT

Rextron DNV102 2-Port PS2 and DVI KVM switch.

SKU: DNV102 Categories: , , , , , , , , , , , , ,

Description

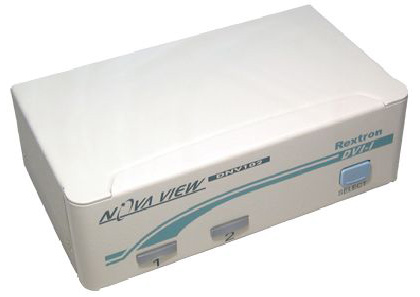

The Rextron DNV102 will allow two computers to be controlled from one keyboard, one mouse and one DVI monitor. Switching between computers can be done by pressing the button on the front of the switch or by entering a hot-key command from your keyboard, no interface card or software is required, the switch is independent of operating systems, and allows the attached computers to run different applications.

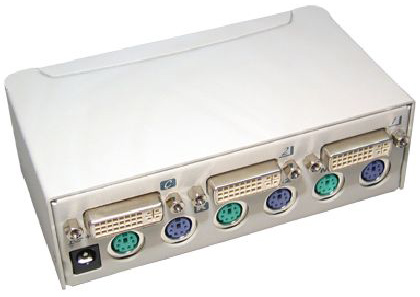

The connections on the back are DVI-I connectors to allow the use of DVI-I or DVI-D cables but the output is DVI-D only.

  • Cascade configuration expands system capability
  • Auto scan automatically selects computers sequentially
  • Supports Microsoft IntelliMouse (Pro), IntelliTrackball
  • Hot-key functions allow easy computer access
  • Built-in buzzer for hot-key command confirmation
  • Keyboard states automatically saved and restored when switching computers
  • Operating system independent, transparent to all applications
  • True plug and play system configuration
  • Keyboard and mouse can be hot plugged at any time
  • DVI-D interface
  • DDC2B compatible
  • Supports resolution up to 1920 x 1200
  • Power-free operation

Warranty

1 Year

  • Computer Port : 2
  • Cascade control : Up to 4
  • Front Panel button control : 1
  • Hot plug and play : Yes
  • Hot-key control : Yes
  • Automatic scan interval : 3, 8, 15, 30 seconds
  • Cable Length (Max) : 30 Mtr at Console, 30 Mtr at PC
  • Monitor Type : DVI-D
  • Supports up to 1920 x 1200 resolution
  • Computer keyboard connector : PS/2
  • Mouse : PS/2
  • Monitor : DVI-D Female
  • H x W x D (mm) : 40 x 124 x 70
  • Weight : 420g
  • Power Supply Optional : DC 9V, 500 mA

Contents

  • DVI KVM
  • User manual
  • Rubber feet
