Flexible 30 port KVM Matrix

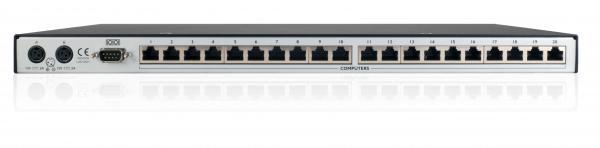

AdderView DDX30 is a flexible 30 port KVM Matrix which can be re-configured to match your exact requirements. In addition to 7 fixed users ports, there are 23 flexi-ports that can be configured as computer inputs or user outputs. Once the ports are configured, simply connect your Computer Access Modules and User stations.

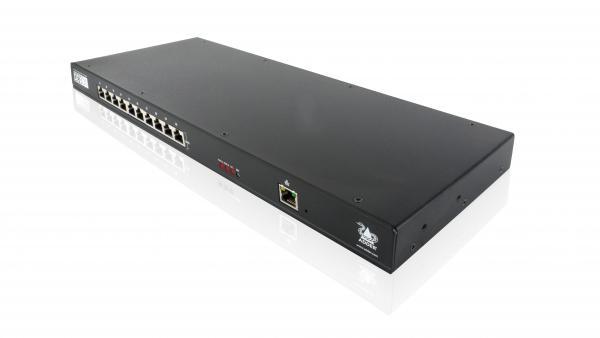

High density KVM Matrix
The DDX range features ‘zero U’ computer access modules and a high density 1U KVM Matrix switch, ideal for installation in heavily populated server racks for small and medium sized applications.
Lossless HD video support
The DDX30 delivers lossless HD video at resolutions of up to 1920×1200 @60Hz providing a real-time, ‘at the PC’ experience. Frame rate matching makes this product ideal for applications using non standard refresh rates.
Optimal USB technology
DDX30 emulates a fully featured keyboard & mouse to all computers, maintaining fast switching speeds and instant USB interaction. DX30 emulates a fully featured keyboard & mouse to all computers, maintaining fast switching speeds and instant USB interaction.
Multi-view on-screen thumbnail display for computer selection
The unique multi-view OSD provides users with a live preview of permitted computers direct on their screen. Users can highlight their selection using a mouse cursor. Once highlighted, the user has the ability to choose from 4 different connection modes.
Access permissions
Each user station can be granted different access permissions on a per computer basis. Once computer access is permitted, administrators can select which levels of control will be available, allowing users to choose between View only, Shared, Exclusive or Private connection modes.
Exclusive and private connection modes
The DDX30 enables users to work safely and securely with a choice of connection modes. In Exclusive mode, users have full KVM control while being able to share video content with other colleagues. By connecting in Private mode, users can work in privacy.
Multi-head video support
DDX30 transmitters (CAMs) & receivers (USRs) can be grouped to form ‘Computers’ and ‘Consoles’ that support dual-head & quad-head connectivity. For example, DDX30 can be used to build a 5 users x 10 computer dual-head matrix.
‘Zero U’ Computer Access Modules (CAMs)
Powered by USB, the digital computer access modules sit in-line and are ideal for racks with limited available space. Modules are available in DVI and DisplayPort options.
Secure web control interface
System administrators can securely access the DDX30 management tools to configure system settings, set access privileges and control video connections. The interface is secured using HTTPS & administrators must login each time they connect. An API enables switch control from a 3rd party control system.
