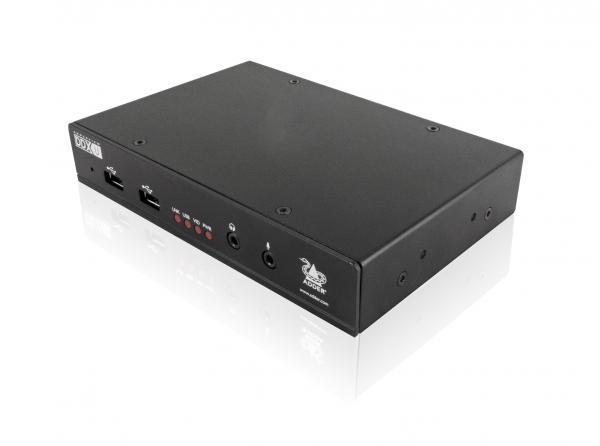

Adder DDX-USR DVI, USB and audio digital over CATx User Station /KVM extender supports resolution up to 1920 x 1200 at 60Hz including 1080p. It can be used as a KVM extender when used with DDX-CAM-DP & DDX-CAM-DVI. However, when you introduce a DDX switch between them, suddenly you have the basis of an expandable switching matrix. Just add further DDX-CAM and DDX-USR modules for each new computer system and user. It uses a single CATx cable up to 50m.
This high performance DDX-USR KVM User Station /extender enables you to locate your critical computing hardware in a secure and temperature controlled environment away from the user workstation whilst maintaining the original user desktop experience.
Unlike many other digital KVM solutions, the DDX-USR delivers every pixel of every video frame to ensure perfect digital video all the time. Resolutions up to 1920 x 1200 at 60Hz are supported, including 1080p. Uncompressed video technology ensures ultra-low latency and a perfect “at-the-computer” experience
All computers with DVI or DisplayPort video, and USB
The system supports resolutions to a maximum of 1920 x 1200 @ 60Hz
Supports USB2.0 devices (low, full speed) HID devices only
All known operating systems
DVI-D or DisplayPort, USB type A

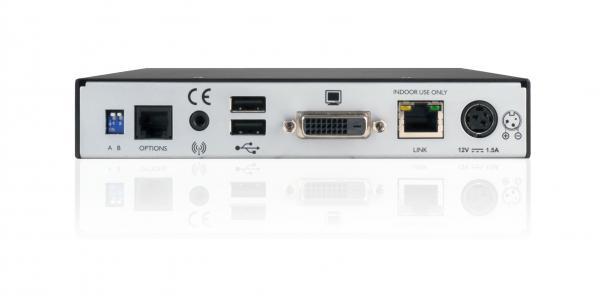

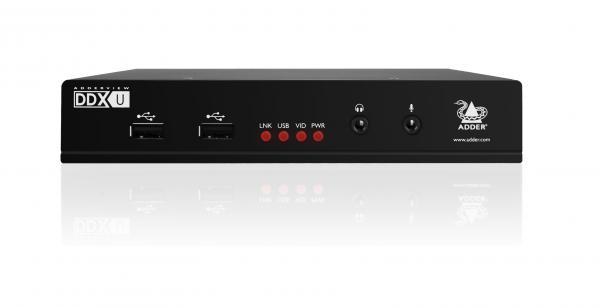

DVI-D or DisplayPort, USB type A x 4, 6p6c options port, 3 x 3.5mm jack sockets for headphone out, microphone in and line out
Compact case, robust metal construction. 170mm/6.65” (w), 31mm/1.22” (h), 120mm/4.8” (d), 0.6kg/1.3lbs
Locking 3-pin DC jack, 100-240VAC 50/60Hz, 0.7A, input to power adapter, 12VDC 18W output from power adapter
USB powered (Max 500mA @ 5V)
0 to 40ºC / 32 to 104ºF
CE, FCC
DDX-CAM-DVI-XX: DDX computer access module – DVI
DDX-CAM-DP-XX: DDX computer access module – DisplayPort
DDX-USR-XX: DDX user station (RX unit)
XX = Mains Lead Country Code:
UK = United Kingdom
US = United States
EURO = Europe
JP = Japan
RMK8: 19” rack mount bracket (two units per 1U rack slot)
Important extension distance details
Recommended cables are SFTP:
Daetwyler 7702 Flexible patch cable
Daetwyler 7120 Bulk cable
Unlike many other digital KVM solutions, the DDX delivers every pixel of every video frame to ensure perfect digital video all the time. Resolutions up to 1920 x 1200 at 60Hz are supported, including 1080p. Uncompressed video technology ensures ultra-low latency and a perfect “at-the-computer” experience
The DDX-CAM and DDX-USR modules provide an easy solution to extending a single computer and its peripherals. However, when you introduce a DDX switch between them, suddenly you have the basis of an expandable switching matrix. Just add further DDX-CAM and DDX-USR modules for each new computer system and user. This superb flexibility safeguards your investment and provides a pain-free progression path. Please see the DDX30 datasheet for further details
Enables connection of any USB human interface device (HID) from mice and keyboards through to touch screens
DDX uses widely available CAT6 cable to connect the user console (up to 50m) and computer dongles (up to 10m) to the central switch
Video, USB2.0 HID only and analog audio all pass along a single CAT cable which can be up to 50 meters in length. The achievable distance is dependent on the monitor resolution and the number of connection breaks for patch panels and wall plates
The compact DDX-CAM Computer Access Module (CAM) derives all its power from a single USB connection and takes “Zero U” space in your rack. Available in DVI and DisplayPort versions to match your computer
The extender has an intelligent EDID management to allow the true characteristics of the monitor to be passed back to the computer
The AdderLink DDX-USR extender is delivered in a zero config state so you can plug the units in and start working with them straight away. There is no need for drivers or software to be installed
CD audio quality (stereo channel 16 bit sampled at 48kHz) is available to transfer audio from transmitter to receiver for line out and headphones with microphone input available
