CX-DV180-SET S Y Electronics DVI-D 180m CATx Extender

£816.00 inc VAT

The S Y Electronics CX-DV180-SET is DVI-D and HDMI Cat5e/6 180m Transmitter and Receiver pair with USB RS233 and 2 way Audio. It features state of the art chipset, supports EDID and resolution of 1080p up to 36-bit colour depth.

SKU: SY-CX-DV180-SET Categories: , , , , , , , , , , , , ,

Description

The SY CX-DVI180-SET transmitter and receiver set allows transfer of DVI-D and HDMI digital video over a single CAT5e/6 cable up to 180m at 1080P.

Features

  • State of the art chipset
  • DVI 1.0 compliant, HDCP 1.1 compliant
  • 1080p up to 36-bit colour depth
  • 150m over CAT5e, 180m over CAT6
  • Analogue audio in both directions
  • Supports EDID
  • Bi-directional RS232
  • USB for keyboard & mouse/touchscreen devices

Specifications

Transmitter
DVI-D Input
USB Mini-USB  to keyboard/mouse
Audio 1 x Line-In and 1 x Line-Out
System Port 1 x RJ-45 Female Gigabit
RS-232
Power  12V 1Amp

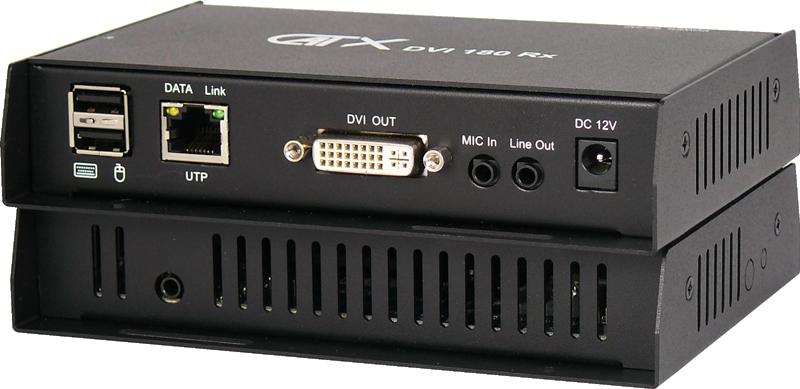

Receiver
DVI-D Output
PC 2 x USB-A
1 x Line-Out and 1 x Mic-In
Power  12V 1Amp
System Port 1 x RJ-45 Female Gigabit
RS-232
General
Resolution 1920 x 1200@60Hz (or 1080p)
Inter-connect Cable CAT 6 / 7 (CAT5e is not recommend)
Environment  Operation Temperature  0 ~ 70°C
Storage Temperature  -20 ~ 85°C
Humidity  0 ~ 80% Non-condensing
Physical Properties  Material Metal with standard 100 x 100 VESA mount support
Weight 453 g 468 g
Dimension (L x W x H) 153 x 110 x 32 mm 153 x 110 x 32 mm

WARRANTY
2 year return to base parts and labour. 3rd year available with online registration.
