CX-0W-AVP-2X8 S Y Electronics CATx 2×8 300m VGA and Audio Matrix with Ethernet Control

The CatX AVP Matrix 2×8 transmitter routes two VGA video sources over Cat5e/6 cable, in any combination, to a maximum of eight displays. Designed for ease of installation, this unit will broadcast VGA video and audio over Cat6 UTP cable at 720p/1080i.

This product connects direct to the two VGA sources, there is no local VGA output on this device.

A built-in web interface facilitates the routing of the input and output settings and also provides diagnostic information.

The Ethernet interface only allows access from authenticated users (one administrator and many operators) and is securely protected against malicious attacks.

These units use a state of the art chip set thus ensuring compatibility and reliability.

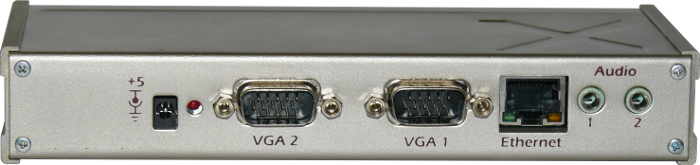

• Video in : 2x HD15 VGA male

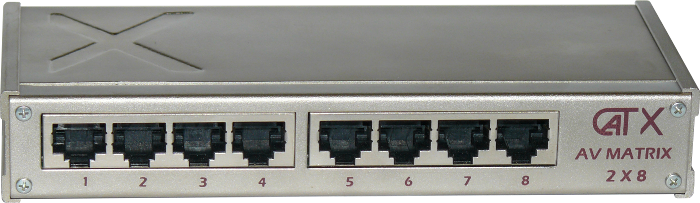

• Cat output : 8x RJ45 (for CatX AVP receivers and repeaters only)
• Audio connectors : 2x 3.5mm analogue stereo audio
• Ethernet : 1x RJ45 Ethernet for 100BaseT or 100BaseTX
• Video levels : RGB: 0.7V into 75R, HV: TTL compatible
• Video format : VGA – UXGA compatible; 1080p compatible, RGBHV, RGSB, YUV, Y/C, and CVBS formats supported. Separate or composite HV; Horizontal 15-135kHz; Vertical 25-150Hz
• Max distance : 300m (depending on CatX receiver type)
• Dimensions    160mm [W] x 70mm [D] x 28mm [H]
• Net Weight    390g
• Gross Weight    650g

Warranty

2 years parts and labour.
