CX-0S-AVP-T2 S Y Electronics 2-Way 300m CATx VGA and Audio Splitter

The CX-0S-AVP-T2 2-way Splitter / transmitter broadcasts a sharp high quality videos at distances of up to 300m (600m span), using low cost Cat5e UTP cable.

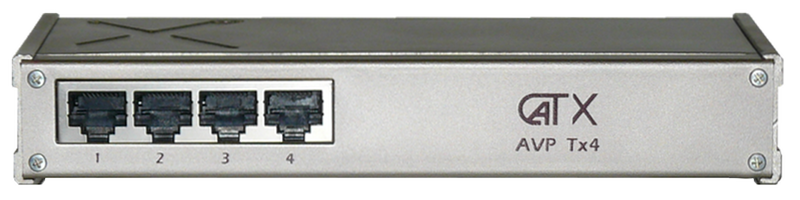

These VGA Cat5e extenders are very low power and of highest build quality. The maximum high resolution of 2048 x 1536 makes the CatX AVP Tx4 the best quality units in this category.

CX-0S-AVP-T2 2-way Splitter / transmitter has two modes of operation: VP mode (Video+Power) and AV mode (Audio+Video). In VP mode, the transmitters can directly power CatX Mini VP receiver units on the selected outputs, up to 150m. This further reduces cost and simplifies installation at the receiver end.

Both these transmitters provide a sharp high quality video at up to 300m, using low cost Cat5 cabling and consume less than 0.25W per output. These VGA Cat5e extenders can also cascade to increase the number of outputs available, providing maximum configuration flexibility. The units also provide local VGA and audio outputs. An optional 1U rack mount kit can accommodate up to two CatX AVP Tx4 or Tx8 transmitters. Alternatively, the units can be secured using optional wall or DIN rail mounting brackets.

CX-0S-AVP-T2 2-way Splitter / transmitter will store the EDID which can be read by the graphics card, allowing full use of the display device features.  This helps make installation with CatX extenders an easy and trouble free process. The CX-0S-AVP-T2 2-way Splitter / transmitter has the facility to download and store the EDID information via DDC when any EDID enabled display device is connected directly to the local VGA output of the transmitter. The transmitter also has a default EDID configuration, which is suitable for many installations. However, this function can also be used to store a different EDID by connecting the transmitter directly to any display device.

• Dual mode operation : AV (audio & video – where power is provided by the supplied PSU), or VP (video & power – where power is taken directly from the VGA source)

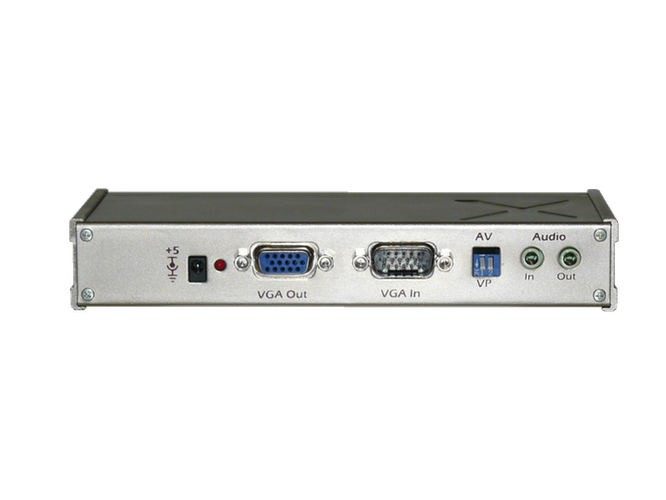

• Inputs : 1x HD15 VGA (male), 1x 3.5mm stereo audio jack socket, 1x 1.3mm DC jack (0.4W @ 5V – optional)
• Outputs : 2 x RJ45 Cat5e UTP, 3.5mm stereo audio jack
• Video levels : RGB: 0.7V into 75R, HV: TTL compatible
• Video format : VGA – UXGA compatible; 1080p compatible, RGBHV, RGSB, YUV, Y/C, and CVBS formats supported. Separate or composite HV; Horizontal 15-135kHz; Vertical 25-150Hz
• Distance vs resolution : distances of cables runs are fully dependant on the Rx (receiver) being used – please refer to the receiver features for distance.

Warranty

2 years parts and labour.
