CatX Mini CX-0M-DV232-SET units provide a unique solution for transmitting a sharp high quality VGA video and RS232 up to 150m using low cost cat5 cabling.
CatX Mini DV232 units provide a unique solution for transmitting a sharp high quality VGA video and RS232 up to 150m using low cost cat5 cabling. The CatX Mini DV232 Tx can transmit VGA video and audio up to 300m when used with CatXQ DV232 Rx2.
The CatX Mini DV232, being only slightly larger than a VGA connector, can fit directly to the VGA source. CatX Mini DV232 Tx consumes less than 0.25W, taking its power directly from DDC2B compliant VGA source.
The CatX Mini DV232 transmitter unit connects to CatX Mini DV232 Rx or any other atX DV232 receiver, using standard low cost UTP networking cable. The CatX Mini DV232 Rx unit is the same size as the CatX Mini DV232 Tx and is powered from a local 5VDC power supply. Continuous adjustability ensures perfect picture at any distance up to 150m.
All CatX DV232 units are compatible with all CatX Mini DV232 and CatX DV232 transmitters / receivers. Considered as the smallest VGA cat5 extender system in the market, the small size of the CatX Mini DV232 units ensures discrete connection to the VGA source and output display; perfect for installations with limited space.

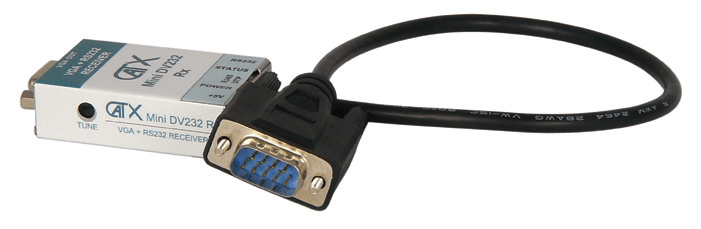

The CatX Mini DV232 transmitter has an attached RS232 cable that connects directly to an RS232 port on the video source equipment. The CatX Mini DV232 receiver similarly has an attached RS232 cable for connection to the display device (or any other device requiring RS232 control)
WARRANTY
2 year return to base parts and labour. 3rd year available with online registration
