CS84 Aten 4 Port Ps/2 VGA KVM Switch Bundle

£155.00 inc VAT

The Aten CS84A 4 Port PS2 & VGA KVM switch bundle with superior video quality- up to 1920 x 1440; DDC2B, keyboard and mouse emulation for error free booting, Auto Scan function to monitor computer operation and supports Microsoft IntelliMouse, Logitech MouseMan, FirstMouse and IBM Scrollpoint Mouse.

Data Sheet

Manual

SKU: CS84A Categories: , , , , , , , , , , Tags: , ,

Description

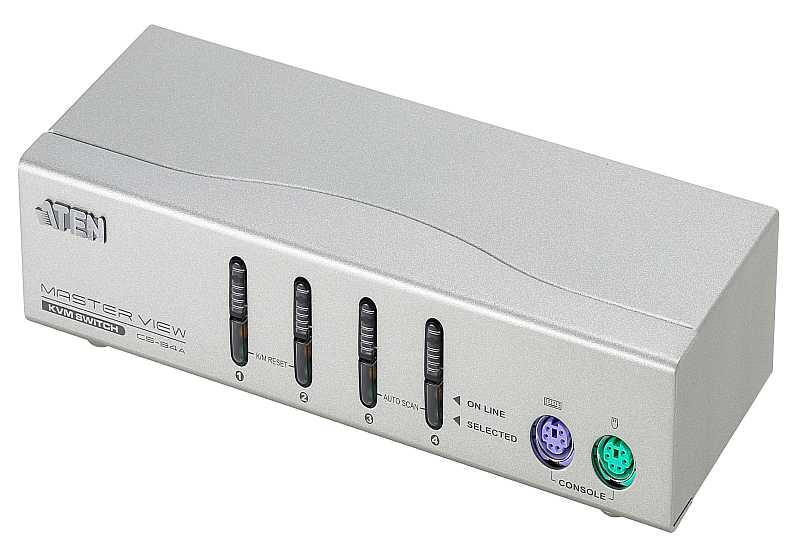

CS84A is a KVM Switch with built-in PS/2 on each of the front and rear panels. It can control 4 servers via a single console and allows users to switch between computers via the buttons on the front panel of the switch or the hotkey configuration on the keyboard. It is the simplest and most convenient most convenient solution for multi-computer management.

Features

CS84A Features:

  • One PS/2 console controls 4 computers.
  • Computer selection via front panel pushbuttons and hotkeys.
  • Superior video quality- up to 1920 x 1440; DDC2B.
  • Supports Microsoft IntelliMouse, Logitech MouseMan, FirstMouse and IBM Scrollpoint Mouse.
  • Compact, Sturdy, Durable Metal Housing.
  • Keyboard and mouse emulation for error free booting.
  • Auto Scan function to monitor computer operation.
  • Non-powered.
  • OS Support:Windows 2000, Windows XP, Windows Vista, LINUX, Mac and FreeBSD

Specifications

4-Port PS/2 KVM Switch

Computer Connections 4
Port Selection Hotkey, Pushbutton
Connectors
Console Ports 1 x 6-pin Mini-DIN Female (Purple)
1 x HDB-15 Female (Blue)
1 x 6-pin Mini-DIN Female (Green)
KVM Ports 4 x 6-pin Mini-DIN Female (Purple)
4 x HDB-15 Male (Blue)
4 x 6-pin Mini-DIN Female (Green)
Power 1 x DC Jack (Black)
Switches
Ports 4 x Pushbutton
LEDs
Online 4 (Orange)
Selected 4 (Green)
Emulation
Keyboard / Mouse PS/2
Video 1920 x 1440; DDC2B
Scan Interval 5 Seconds
Power Consumption DC9V, 1.17W
Environmental
Operating Temperature 0°~50°C
Storage Temperature -20°~60°C
Humidity 0~80% RH, Non-condensing
Physical Properties
Housing Metal
Weight 0.78 kg ( 1.72 lb )
Dimensions (L x W x H) 21.00 x 8.80 x 5.55 cm
(8.27 x 3.46 x 2.19 in.)

Package Contents

  • 1x KVM Switch
  • 4x PS/2 & VGA KVM Cables
  • 1x User Instructions
