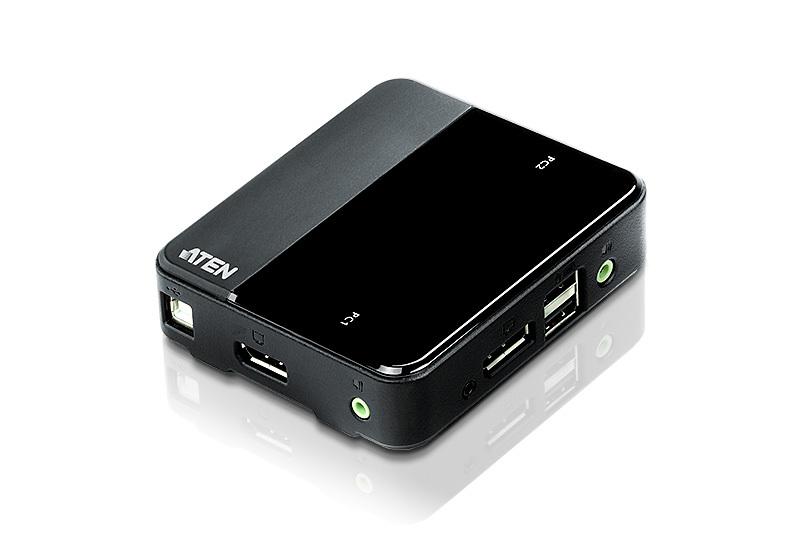

CS782DP Aten 2-Port USB DisplayPort 4K UHD KVM Switch

£189.00 inc VAT

Aten CS782DP 2-port USB & DisplayPort KVM switch with superior video quality of up to 4K UHD 3840 x 2160 @ 60Hz and fully DisplayPort 1,2 compliant. It features power on detection: if either of the computers is powered off, the CS782DP will automatically switch to the other computer. The CS782Dp is audio-enabled with full bass response that provides a rich experience for 2.1 channel surround sound systems. Multimedia keyboards and wireless keyboards are supported.

Data Sheet

Manual

Description

With the ever-growing demand for higher video quality and the evolution of DisplayPort technology, 4K-enabled computers and displays are now widely adopted in visually-intensive and commercial applications. Offering up to 4K UHD resolution, the ATEN CS782DP is at home amongst these demanding scenarios and technological advancements.
The ATEN CS782DP 2-Port USB DisplayPort KVM Switch features 4K UHD video resolution and allows users to access two 4K-enabled computers from a single USB keyboard, USB mouse, and DisplayPort video console.

Doing so with ease, the CS782DP provides three convenient switching methods – using a remote port selector, mouse, or hotkeys for flexible access to any computer connected to the installation. The product even provides premium audio support for a complete multimedia solution. To round off the entire experience, the streamlined, space-saving design of CS782DP also makes it ideal for any working environment.

With its rich feature set, the CS782DP is designed to surpass all requirements in graphic design, animation, and video-editing applications.

One DisplayPort video console controls two USB computers
Fully DisplayPort 1.2 Compliant
Computer selection via remote port selector, hotkeys, and USB mouse*
Superior video quality – up to 4K UHD (3840 × 2160@60Hz)
Multiplatform support – Windows, Mac, Sun, Linux
HDCP Compliant
Supports MST (Multi-Stream Transport)**, enabling multiple monitors to be used via a single DisplayPort connector
Supports DisplayPort Dual Mode (DP++)*** for directly outputting single-link HDMI and or DVI signals via an externally powered DisplayPort-to-HDMI/DVI DP++ adapter
Compatible with widescreen LCD monitors
Power on detection – if either of the computers is powered off, the CS782DP will automatically switch to the other computer
Audio-enabled – full bass response provides a rich experience for 2.1 channel surround sound systems
Supports HD Audio**** through DisplayPort playback
Independent switching of the KVM and Audio focus**** allows convenient multi-tasking
Supports multimedia keyboards
Supports wireless keyboards and mice
Console mouse port emulation/bypass feature supports most mouse drivers and multifunction mice
Mac/Sun keyboard support and emulation*****
USB 2.0 mouse port can be used for USB hub and USB peripheral sharing******
Bus-Powered
Firmware upgradable

Note:
* Mouse port switching is only supported under mouse emulation mode and by USB 3-key wheel mice.
** MST (Multi-Stream Transport) requires either monitors that are capable of DisplayPort 1.2 daisy chaining, or use of an externally powered DisplayPort MST Hub. The PC source must be DisplayPort 1.2 compliant. DP++ (DP Dual Mode) requires use of an externally powered DP++ adapter. Graphics source must be DP++ compliant.
*** DisplayPort Dual Mode (DP++) requires the use of a powered DP++ adapter. The graphics source must be DP++ compliant.
**** HD audio through DisplayPort cannot be switched independently.
***** a. PC keyboard combinations emulate Mac/Sun keyboards. b. Mac/Sun keyboards work only with their own computers.
****** This feature may require an extra power adapter to be connected to the USB hub and that the CS782DP’s Mouse Emulation Mode be disabled.

Computer Connections 2
Port Selection Hotkey, Mouse, Remote Port Selector
Connectors
Console Ports 2 x USB Type A Female (Black)
1 x DisplayPort  Female (Black)
1 x 3.5mm Audio Jack Female (Green)

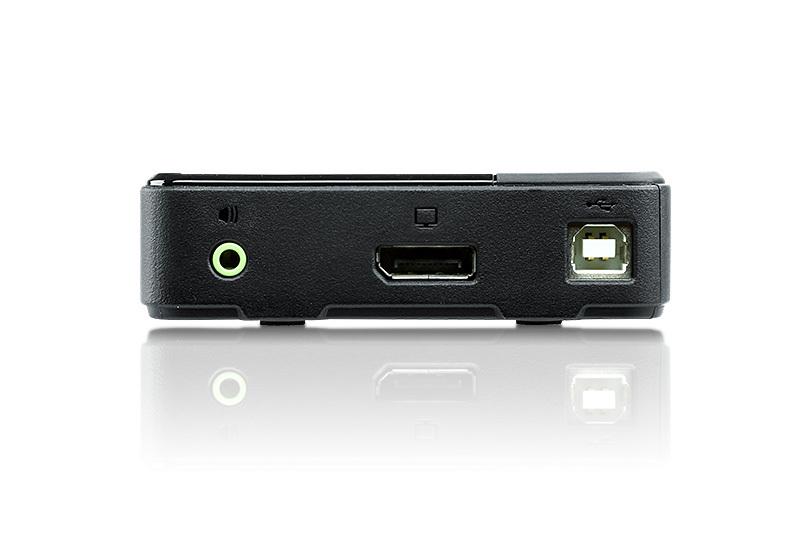

KVM Ports 2 x USB Type B Female (White)
2 x DisplayPort Female (Black)
2 x 3.5mm Audio Jack Female (Green)
Remote Port Selector 1 x Mini Stereo Jack
Cable Length
KVM 2 x 1.8 m USB Cable
2 x 1.8 m Audio Cable
2 x 1.5 m DisplayPort Cable
Remote Port Selector 1.8 m
LEDs
KVM 2 (White)
Emulation
Keyboard / Mouse USB
Video 4K UHD (3840 x 2160 @ 60Hz)
Scan Interval 3, 5, 10, 20 seconds (Default: 5 seconds)
Power Consumption DC 5V, 4W
Environmental
Operating Temperature 0 – 50°C
Storage Temperature –20 – 60°C
Humidity 0 – 80% RH, Non-condensing
Physical Properties
Housing Plastic
Weight 0.12 kg
Dimensions (L x W x H) 9.37 x 9.30 x 2.68 cm
  • 1x CS782DP 2-Port USB DisplayPort KVM Switch
  • 2x DisplayPort Cables
  • 2x USB Cables
  • 2x Audio Cables
  • 1x Remote Port Selector
  • 1x User Instructions
