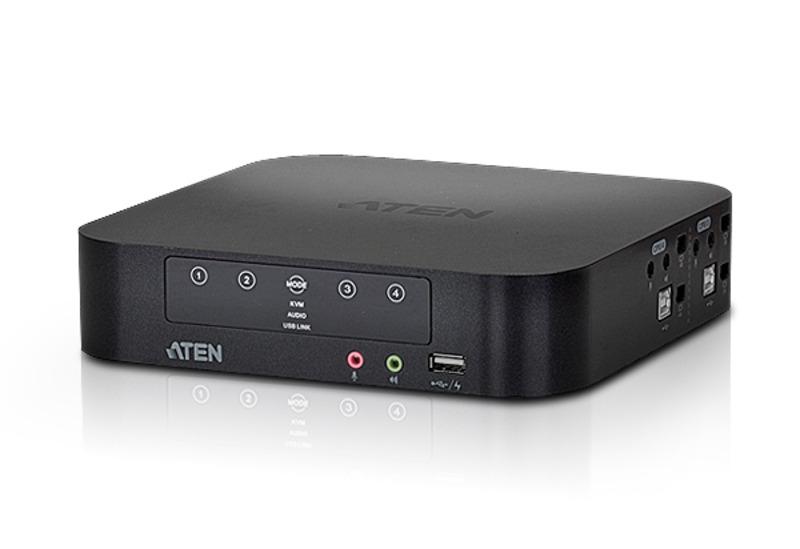

CS1944 Aten 4-Port USB 2.0 Mini Dual View DisplayPort KVMP Switch Bundle

Aten CS1944 4-port USB 2.0 Dual View Mini DisplayPort KVMP™ Switch allows access to 4 computers from a single USB keyboard and USB mouse with dual displays. The KVM switches amazing functionality combines a Dual view 4-port Mini DisplayPort switch, with a 2-port USB 2.0 hub, and front panel USB quick charge port for mobile devices. It features independent switching for USB peripherals, audio, and KVM focus, keyboard and Mouse support emulation and bypass, Power on Detection, Mac keyboard support and emulation, Multilingual keyboard mapping – Supports English, Japanese, and French keyboards and Multiplatform support – Windows, Linux and Mac. Absolete, Please See Replacement



Data Sheet

Manual

SKU: CS1944 Categories: , , , , , , , , , , , , , , , , , Tags: , , , ,

Description

The CS1944 4-port USB 2.0 Dual View Mini DisplayPort KVMP™ Switch allows access to 4 computers from a single USB keyboard and USB mouse with dual displays. The KVM switches amazing functionality combines a Dual view 4-port Mini DisplayPort switch, with a 2-port USB 2.0 hub, and front panel USB quick charge port for mobile devices.

The CS1944 further improves on previous KVM designs with the latest Mini-DisplayPort and Mini-TOSLINK connectors. It also provides the capability of digital video & audio with reliable Ultra high resolution, vivid picture quality, surround sound with SPDIF connections.

The CS1944 is ideal for multimedia applications, and offers the ultimate in space-saving, streamlined KVM technology for the desktop.

  • One dual-view USB console independently and simultaneously controls four Mini DisplayPort computers and two USB devices
  • USB quick charge mode (front panel USB port)
  • Mini DisplayPort 1.1a & HDCP compatible
  • Full bass response provides a rich experience for digital surround sound systems via Mini-TOSLINK
  • Superior video quality – enables up to 2560 x 1600 resolution and 3D displays up to 1920×1080 resolution at 120Hz
  • Nvidia 3D Vision Ready
  • 2-port USB 2.0 hub built in, fully compliant with USB 2.0 specifications

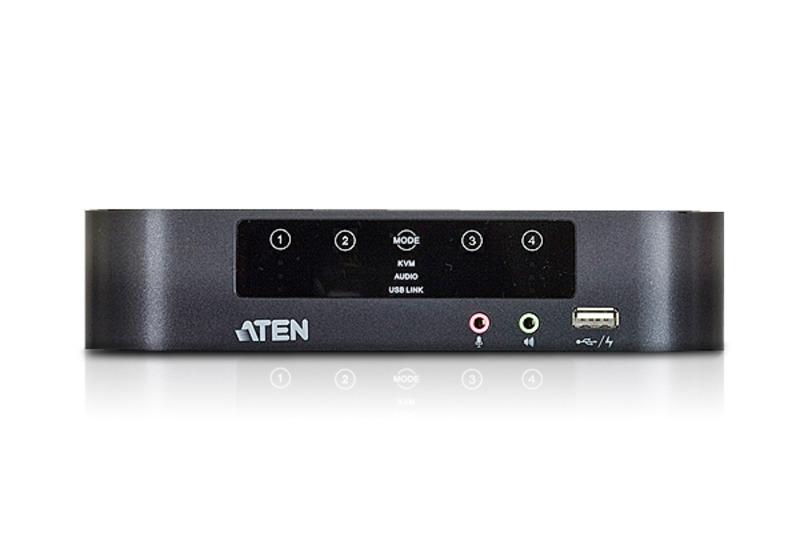

  • Computer selection via front touch panel /hotkeys/ mouse*
  • Independent switching for USB peripherals, audio, and KVM focus
  • Keyboard and Mouse support emulation and bypass
  • Power on Detection
  • Mac keyboard support and emulation**
  • Multilingual keyboard mapping – Supports English, Japanese, and French keyboards
  • Multiplatform support – Windows, Linux and Mac* Mouse port switching is only workable under mouse emulation mode. For 3-key USB wheel mouse only.
    **PC keyboard combinations emulate Mac keyboards.
    **Mac keyboards only work with their own computers.

Computer Connections 4
Port Selection Touch Panel, Hotkey, Mouse

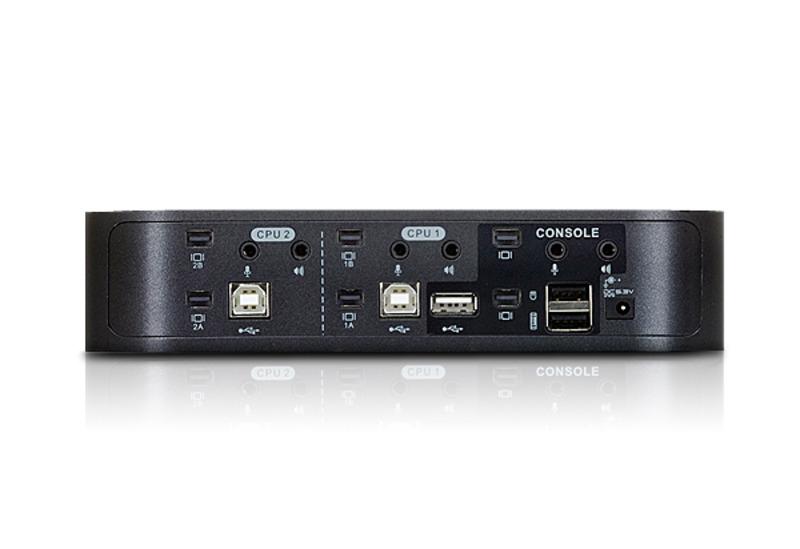

Connectors
Console Ports 2 x USB Type A Female (Black, rear panel)
2 x Mini DisplayPort Female (Black)
2 x Mini TOSLINK Jack Female (Black)
1 x 3.5mm Audio Jack Female (Green)
1 x 3.5mm Audio Jack Female (Pink)
KVM Ports 4 x USB Type B Female (White)
8 x Mini DisplayPort Female (Black)
4 x Mini TOSLINK Jack Female (Black)
USB Hub 2 x USB Type A Female (White; 1 x Front panel, 1 x Rear panel)
Power 1 x DC Jack
Switches
Selected 4 x Point Touch Panel
LEDs
KVM 4 (Orange)
Audio 4 (Green)
USB 4 (Green)
Emulation
Keyboard / Mouse USB
Video DP: 2560 x 1600 resolution @ 60Hz, or 3D Display 1920 x 1080 resolution @ 120Hz
Scan Interval 1 – 99 seconds (Default: 5 seconds)
Power Consumption DC5.3V:3.9W:52BTU
Environmental
Operating Temperature 0 – 50°C
Storage Temperature –20 – 60°C
Humidity 0 – 80% RH, Non-condensing
Physical Properties
Housing Plastic
Weight 0.61 kg ( 1.34 lb )
Dimensions (L x W x H) 19.70 x 19.70 x 4.47 cm
(7.76 x 7.76 x 1.76 in.)
Note For some of rack mount products, please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format.
  • 1x CS1944 4-port USB 2.0 Dual View Mini DisplayPort KVMP™ Switch
  • 4x Mini DisplayPort Cable (1m/3.3ft)
  • 4x Mini DisplayPort Cable (2m/6.6ft)
  • 4x USB Cable (USB-A to USB-B; 1.8m/6ft)
  • 4x Audio Cable (1.8m/6ft)
  • 1x Power Adapter
  • 1x User Instructions
