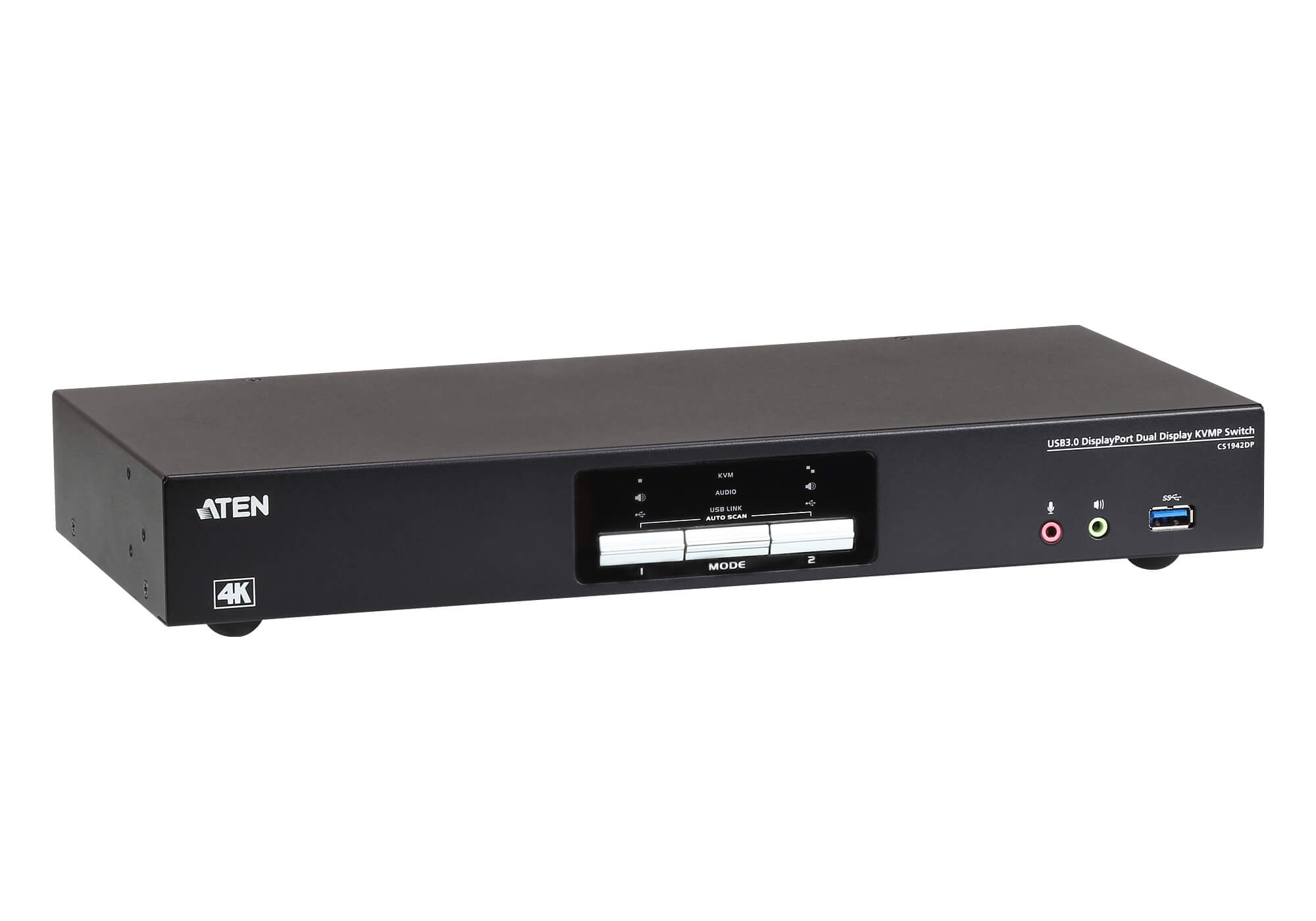

CS1942DP Aten 2-Port USB 3.0 4K Dual View DisplayPort KVMP Switch Bundle

£459.00 inc VAT

Aten CS1942DP 2 port Dual View DisplayPort KVMP is capable of a 4K (4096 x 2160 /3840 x2160 @60Hz) resolution. Incorporating dual display capability, you are allowed to enjoy a wider screen and easily switch between two or four DisplayPort systems. In addition, featuring a built-in USB 3.1 Gen 1 hub, the CS1942DP delivers unprecedented data transfer rates up to 5 Gbps, allowing you to maximize multimedia operations. Computer Selection via front panel, hotkeys, mouse, and RS-232 commands, 2- Port USB 3.1 Gen 1 hub with SuperSpeed 5 Gbps data transfer rates.  It supports MST (Multi-Stream Transport) and Console keyboard emulation / bypass feature



Data Sheet

Manual

CS1942 RS232 Commands



SKU: CS1942DP Categories: , , , , , , , , , , , , , , , , Tags: , , , , , ,

Description

The ATEN CS1942DP desktop KVM switch helps organize your desktop. Especially when managing a multimedia workstation at a large organization, CS1942DP provides you with instant access to two or four computers, all through a single USB keyboard, USB mouse and two DisplayPort monitors.

Advanced video support provides a better-defined DisplayPort connection with video resolutions up to 4K (4096 x 2160 / 3840 x 2160 @ 60 Hz). Incorporating dual display capability, you are allowed to enjoy a wider screen and easily switch between two or four DisplayPort systems. In addition, featuring a built-in USB 3.1 Gen 1 hub, the CS1942DP delivers unprecedented data transfer rates up to 5 Gbps, allowing you to maximize multimedia operations.

Engineered to meet the ever-increasing demand for dual display, ultra-fast data transmission rates, and lossless 4K video resolution, the CS1942DP is specifically designed for where multitasking is needed such as design, financial trading, and video post production.

  • One USB keyboard and mouse controls two DisplayPort computers and share two USB peripherals
  • Supports Quad Display by connecting two Dual Display KVM switches
  • Supports superior video quality – Up to 4K (4096 x 2160 / 3840 x 2160 @ 60 Hz)
  • Computer Selection via front panel, hotkeys, mouse, and RS-232 commands
  • 2- Port USB 3.1 Gen 1 hub with SuperSpeed 5 Gbps data transfer rates
  • Supports DisplayPort Dual-Mode technology (DP++)*
  • Supports MST (Multi-Stream Transport)
  • Supports Console keyboard emulation / bypass feature
  • Supports Console mouse emulation / bypass feature
  • Independent switching of KVM, USB, and Audio
  • Multilingual keyboard mapping – supports English, French, Japanese, and German keyboards
  • HDCP Compliant
  • Supports HD audio**
  • Power on detection
  • Firmware upgradableNote:
    *DisplayPort Dual–Mode technology (DP++) does not require an active adapter for most single display setups. Active DisplayPort adapters are recommended if you are unsure of the video source’s DP++ compatibility.
    **HD audio through DisplayPort cannot be switched independently
Computer Connections 2
Port Selection Hotkey, Pushbutton, Mouse, RS-232 Commands
Video 4096 x 2160 @ 60Hz
Connectors

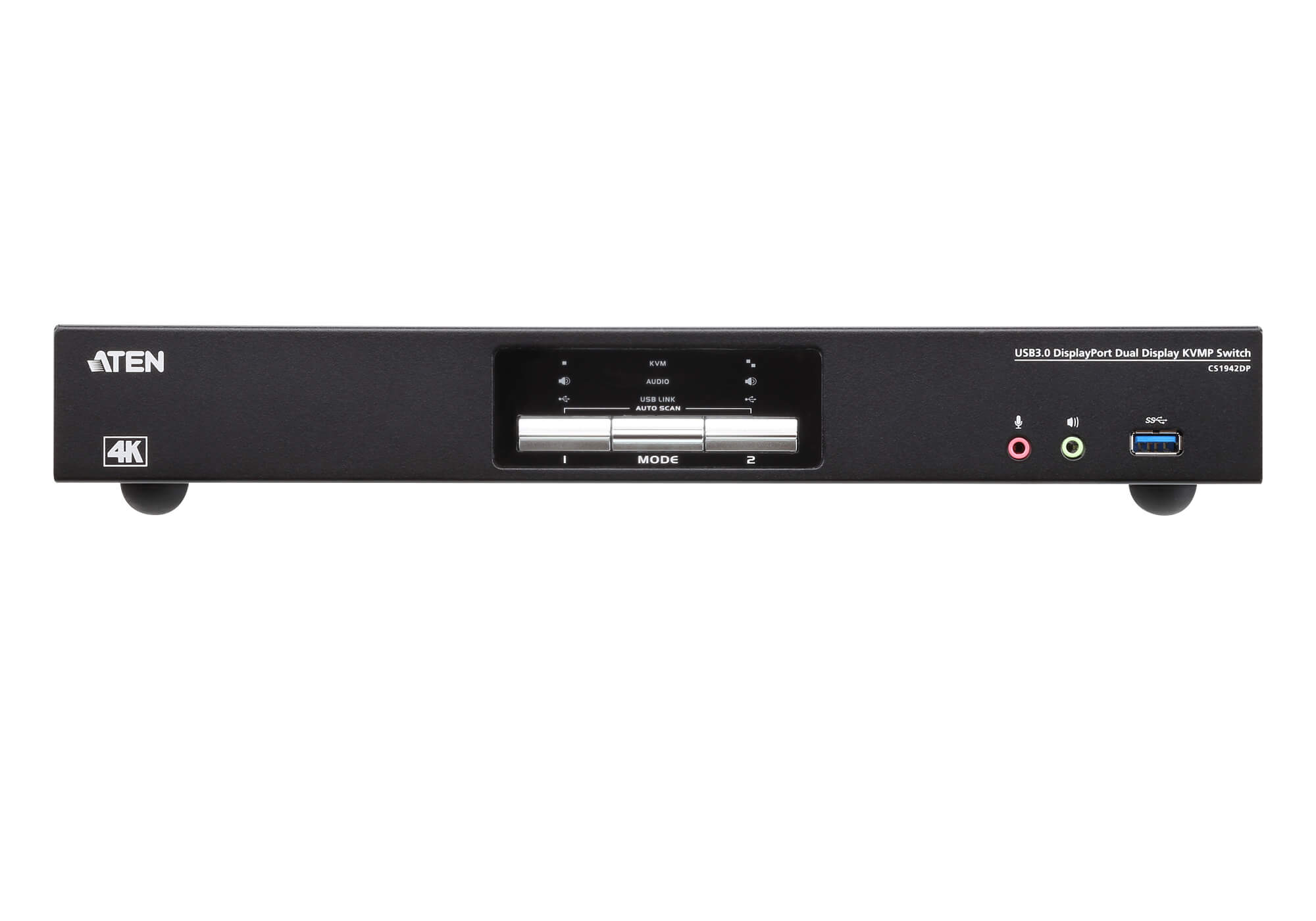

Console Ports 2 x USB Type A Female
2 x DisplayPort Female (Black)
2 x 3.5mm Audio Jack Female (Green; 1 x front, 1 x rear)
2 x 3.5mm Audio Jack Female (Pink; 1 x front, 1 x rear)

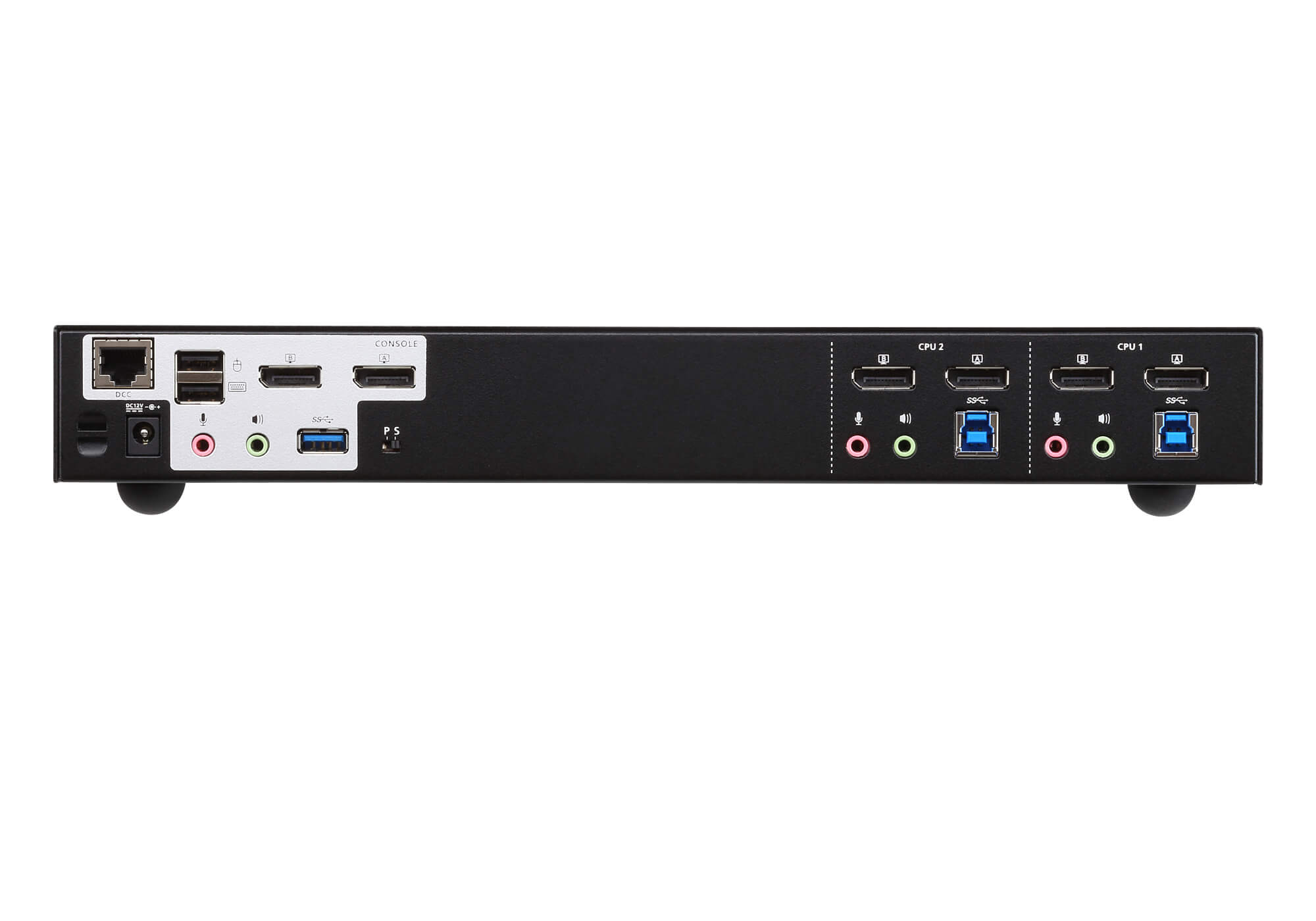

KVM (Computer) Ports 2 x USB3.1 Gen1 Type B Female (Blue)
4 x DisplayPort Female (Black)
2 x 3.5mm Audio Jack Female (Green)
2 x 3.5mm Audio Jack Female (Pink)
Daisy Chain Ports 1 x RJ-45 Female
Power 1 x DC Jack
USB Hub 2 x USB3.1 Gen1 Type A Female (Blue; 1 x front; 1 x rear)
Switches
Selected 3 x Pushbutton
Station Selection 1 x Slide Switch
Emulation
Keyboard / Mouse USB
Scan Interval 1-99 seconds (default: 5 seconds)
Power Consumption DC12V:3.48W:73BTU
Environmental
Operating Temperature 0–50°C
Storage Temperature -20–60°C
Humidity 0-80% RH, Non-condensing
Physical Properties
Housing Metal
Weight 1.54 kg ( 3.39 lb )
Dimensions (L x W x H) 33.50 x 15.66 x 4.40 cm
(13.19 x 6.17 x 1.73 in.)
Note For some of rack mount products, please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format.

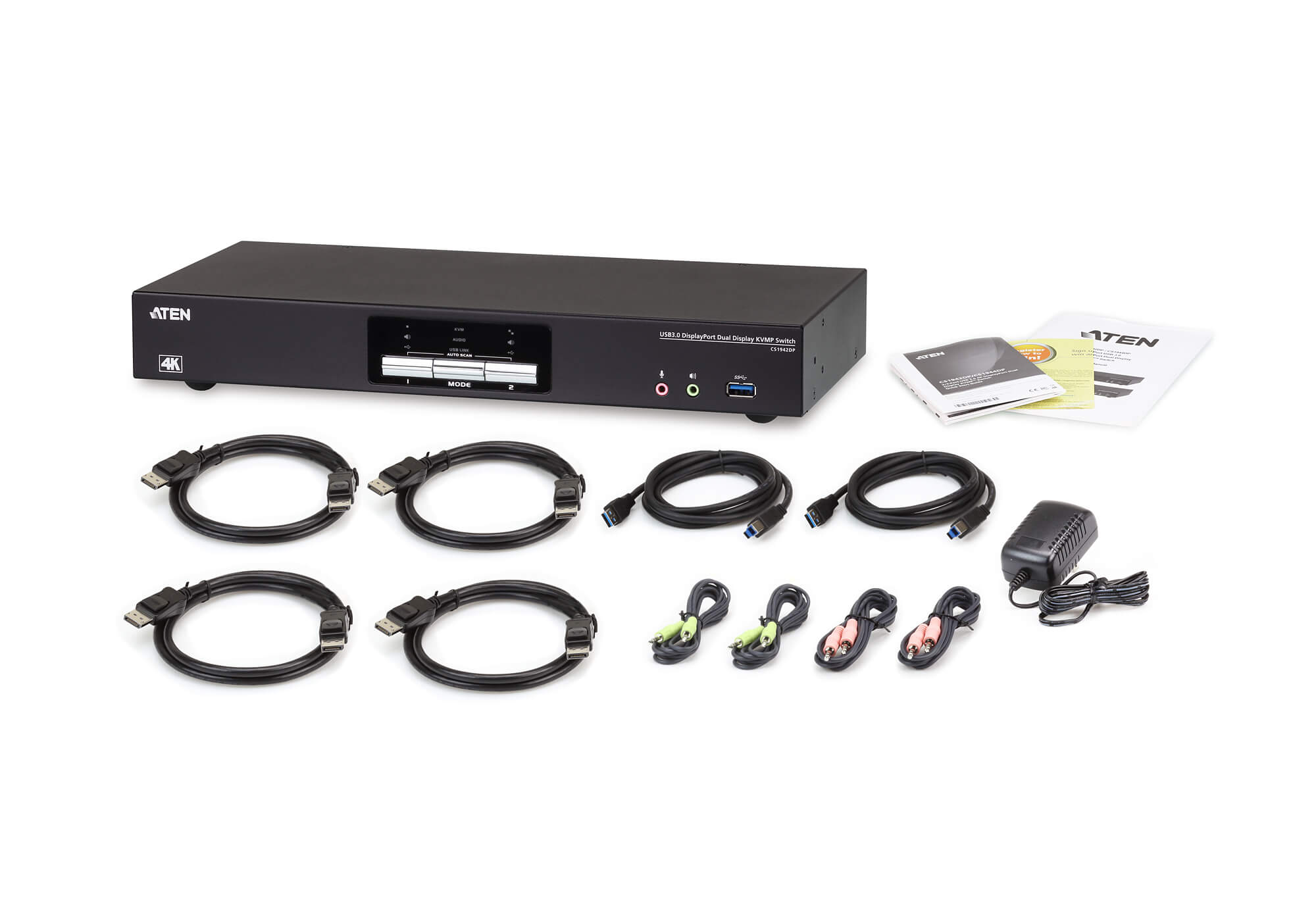

  • 1x 2-Port USB 3.0 4K DisplayPort Dual Display KVMP™ Switch
  • 4x DisplayPort 1.2 Cables
  • 2x USB 3.0 Cables
  • 4x Audio Cables
  • 1x Power Adapter
  • 1x User Instructions
