CS1942ATC Aten 2-Port USB 3.0 4K Dual DisplayPort KVMP

£999.00 inc VAT

The ATEN CS1942ATC 2-Port USB 3.0 4K DisplayPort Dual Display KVMP™ Switch for ATC is tailor-made for Air Traffic Control scenarios. It supports 2Kx2K resolution, making it perfect for radar monitoring, and also enables constant monitoring of flight information and mission-critical processes. Incorporating dual display capability, users can enjoy a wider screen and easy switch between the two DisplayPort systems. The Zero-Second Switch function ensures nearly real-time switching without any black screens, providing air traffic controllers instant access to two USB / DisplayPort-interfaced dual display ATC computers for crucial operations. Port switching is flexible via pushbuttons, hotkeys, mouse, RS-232 commands, or an optional accessory the remote port selector.
With two lockable DC jacks for power redundancy, the CS1942ATC ensures uninterrupted operation and constant availability for mission-critical applications. It aims to greatly minimize or eliminate the risk of downtime. Patented ATEN technology – Video DynaSync™, and EDID expert™, combined with DisplayPort 1.2 and video resolutions up to 4K @ 60 Hz, it delivers optimized display resolution with exceptional detail and clarity in all conditions.
The CS1942ATC creates a safer environment and enhanced operational efficiency for Air traffic Control Towers, Approach Control Rooms, and Area Control Centers, specifically tailored the air traffic control industry.

Data Sheet

Manual

Description

The ATEN CS1942ATC 2-Port USB 3.0 4K DisplayPort Dual Display KVMP™ Switch for ATC is tailor-made for Air Traffic Control scenarios. It supports 2Kx2K resolution, making it perfect for radar monitoring, and also enables constant monitoring of flight information and mission-critical processes. Incorporating dual display capability, users can enjoy a wider screen and easy switch between the two DisplayPort systems.

The Zero-Second Switch function ensures nearly real-time switching without any black screens, providing air traffic controllers instant access to two USB / DisplayPort-interfaced dual display ATC computers for crucial operations. Port switching is flexible via pushbuttons, hotkeys, mouse, RS-232 commands, or an optional accessory the remote port selector.

With two lockable DC jacks for power redundancy, the CS1942ATC ensures uninterrupted operation and constant availability for mission-critical applications. It aims to greatly minimize or eliminate the risk of downtime. Patented ATEN technology – Video DynaSync™, and EDID expert™, combined with DisplayPort 1.2 and video resolutions up to 4K @ 60 Hz, it delivers optimized display resolution with exceptional detail and clarity in all conditions.

The CS1942ATC creates a safer environment and enhanced operational efficiency for Air traffic Control Towers, Approach Control Rooms, and Area Control Centers, specifically tailored the air traffic control industry.

  • One USB / DisplayPort console controls 2 DisplayPort computers and shares 2 USB peripherals
  • Supports 2048 x 2048 @ 60 Hz screen resolutions dedicated for radar monitoring; maximum resolution up to 4096 x 2160 @ 60 Hz
  • Zero-Second Switch – provides continuous video stream and real-time switching
  • Supports power failover – 2 DC jacks for power redundancy to ensure constant availability for mission-critical applications
  • Computer Selection via front panel pushbuttons, hotkeys, mouse, RS-232 commands, and remote port selector
  • Video DynaSync™ – exclusive ATEN technology eliminates boot-up display problems and optimizes resolutions when switching between ports
  • EDID Expert™ – smooth power- up, high-quality display and use of the best video resolution across different screens
  • Supports serial port switching for legacy devices
  • Built-in 2-port USB 3.1 Gen 1 hub with SuperSpeed 5 Gbps data transfer rates
  • DisplayPort 1.2, and HDCP compliant
  • Supports HD audio*
  • Console mouse port emulation / bypass feature supports most mouse drivers and multifunction mice
  • Console keyboard emulation / bypass feature supports most multimedia keyboards
  • Multilingual keyboard mapping – supports English, French, Japanese, and German keyboards
  • Power on detection
  • Auto scan
  • Firmware upgradableNote: HD audio through DisplayPort cannot be switched independently
Computer Connections 2
Port Selection Hotkeys, Pushbutton, Mouse, RS232 commands, Remote Port Selector

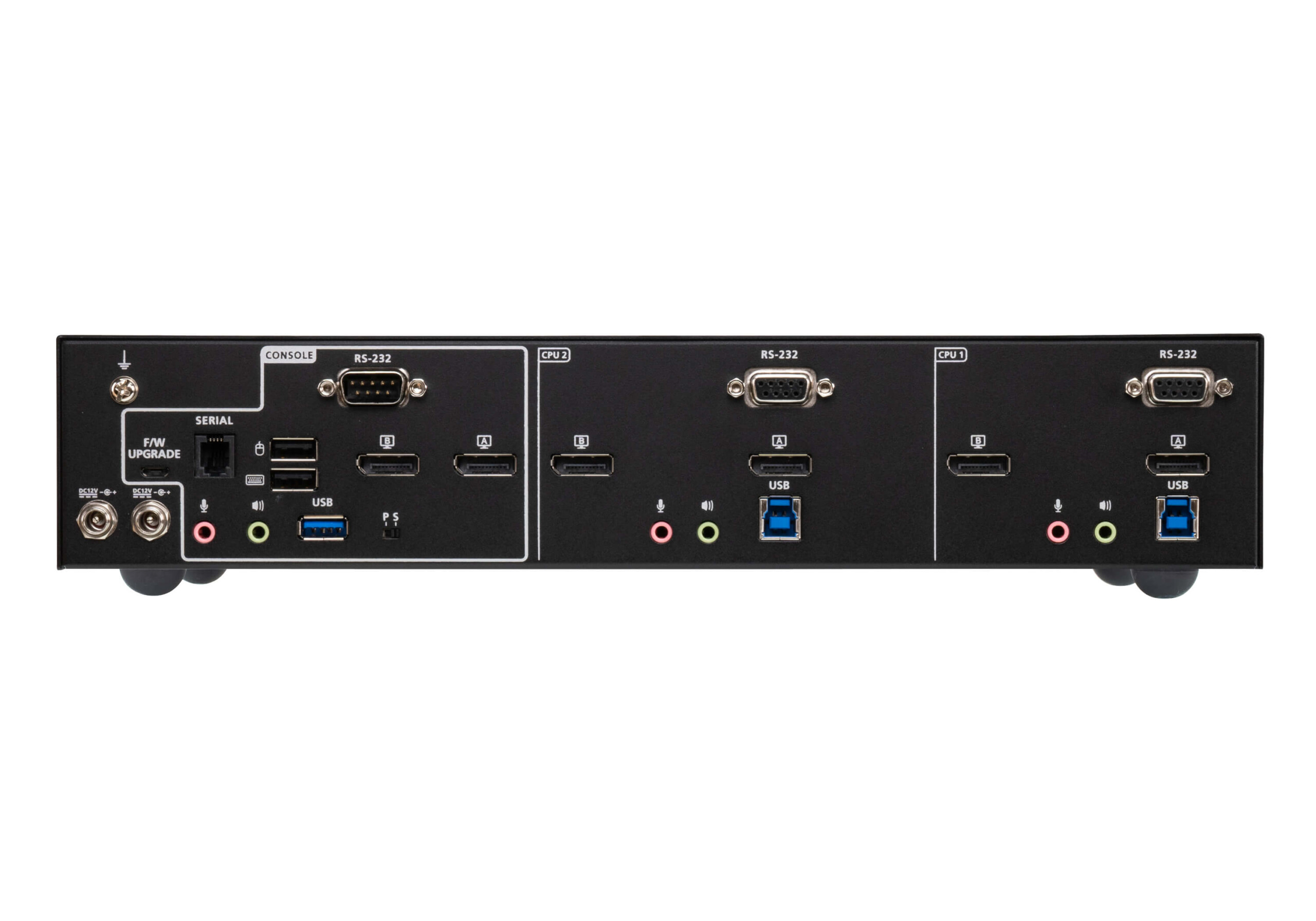

Connectors
Console Ports 2 x USB Type A Female (Black)
2 x DisplayPort Female (Black)
2 x 3.5mm Stereo Jack Female (Green; 1 x front, 1 x rear)
2 x 3.5mm Stereo Jack Female (Pink; 1 x front, 1 x rear)
1 x DB-9 Male
KVM (Computer) Ports 2 x USB3.1 Gen1 Type B Female (Blue)
4 x DisplayPort Female (Black)
2 x 3.5mm Audio Jack Female (Green)
2 x 3.5mm Audio Jack Female (Pink)
2 x DB-9 Female
Power 2 x DC Jack
USB Hub 2 x USB3.1 Gen1 Type A Female (Blue; 1 x front panel; 1 x rear panel)
Remote Port Selector 1 x RJ-11 Female
Firmware Upgrade 1 x micro USB Female
Switches
Selected 3 x Pushbutton
LEDs
USB Link 2 (Green)
Audio 2 (Green)
KVM 2 (Orange)
Emulation
Keyboard / Mouse USB
Video Up to 4096 x 2160 @ 60Hz
Power Consumption DC12V:17.8W:148BTU/h

Note:
● The measurement in Watts indicates the typical power consumption of the device with no external loading.
● The measurement in BTU/h indicates the power consumption of the device when it is fully loaded.

Environmental
Operating Temperature 0-50°C
Storage Temperature -20-60°C
Humidity 0-80% RH, Non-condensing
Physical Properties
Housing Metal
Weight 1.88 kg ( 4.14 lb )
Dimensions (L x W x H) 33.50 x 16.10 x 6.55 cm
(13.19 x 6.34 x 2.58 in.)
Note For some of rack mount products, please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format.

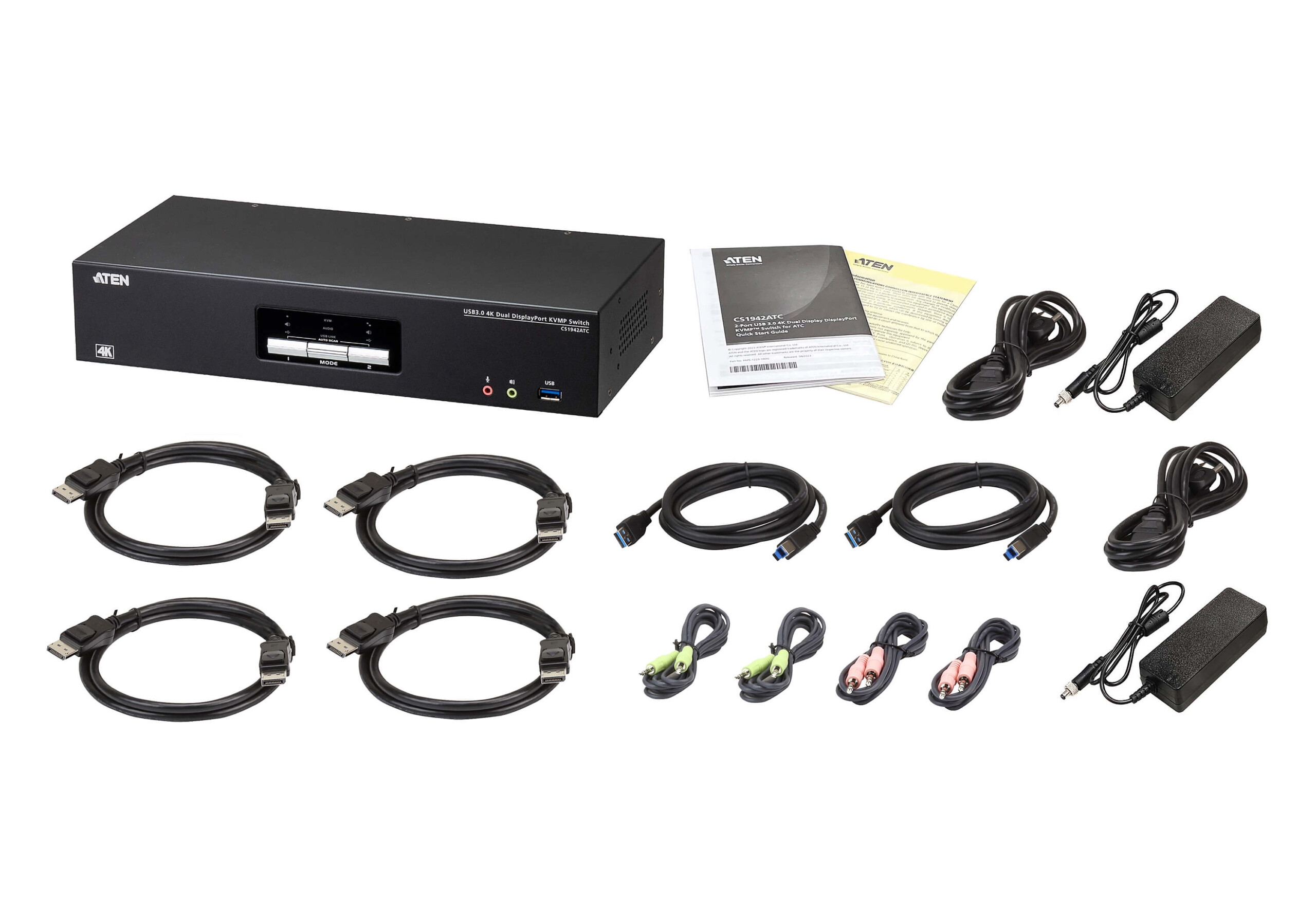

  • 1x CS1942ATC 2-Port USB 3.0 4K Dual DisplayPort KVMP™ Switch for ATC
  • 4x DisplayPort 1.2 cables
  • 2x USB 3.1 Type-A to Type-B cables
  • 2x microphone cables
  • 2x speaker cables
  • 2x power adapters and power cords
  • 1x user instructions
