CS1822 Aten 2-Port USB 3.0 4K HDMI KVMP Switch New

£359.00 inc VAT

Aten NEW CS1822 2-port USB 3.0 4K HDMI KVMP switch allows you to use one USB keyboard/mouse and one HDMI monitor control four computers and share two USB peripherals. It offers superior video quality – 4K UHD (3840 x 2160 @ 60Hz) and 4K DCI (4096 x 2160 @ 60Hz),  Video DynaSync™ – an exclusive ATEN technology that eliminates boot-up display problems and optimizes the resolution when switching among different sources with built-in 2-Port USB 3.1 Gen 1 hub with SuperSpeed 5 Gbps data transfer rates. as well as Audio Mixer Modes that mixes up to two audio sources as audio output. The CS1822 comes with ATEN default EDID mode for  smooth power-up and high-quality display and resolution optimization to eliminate compatibility issue. The switch offers independent switching of KVM, USB peripheral, and stereo audio focus2 and is HDMI 2.0 compliant and HDCP 2.2 compliant and it also supports HD Audio2.

Data Sheet

Manual



SKU: CS1822 Categories: , , , , , , , , , , , , , , , Tags: , , , , ,

Description

The ATEN CS1822 KVMP™ Switch offers effortless management of two HDMI interface computers from a single USB keyboard, mouse and HDMI monitor. Supporting the most superior video quality up to 4K DCI (4096 x 2160 @ 60Hz), the CS1822 optimizes user experience of multitasking.

With patented ATEN technology – Video DynaSync™, users can enjoy better display resolution and faster switching between systems. What’s more, the default EDID mode is available for smooth power-up, high-quality display and eliminates monitor compatibility issue.

In addition, the CS1822 features Audio Mixer Mode which mixes audio sources from any two connected computers as audio output, benefiting users to be notified without missing any system alert even the KVM focus is set on other computers. With a built-in USB 3.1 Gen 1 hub, the CS1822 delivers data transfer rates up to 5 Gbps, allowing you to accelerate multimedia operations and share USB peripherals with ease.

Integrating these outstanding functionalities, the CS1822 provides a great advantage for those doing CGI work, graphic design, video post production, etc. to operate multiple tasks smoothly.

CS1822 Features:

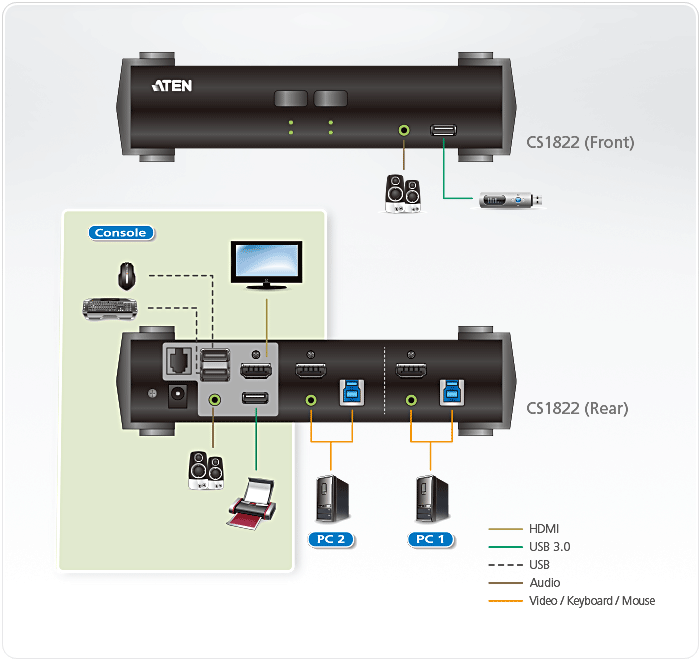

  • One USB keyboard/mouse and one HDMI monitor control two computers and share two USB peripherals
  • Supports superior video quality – 4K UHD (3840 x 2160 @ 60Hz) and 4K DCI (4096 x 2160 @ 60Hz)
  • Video DynaSync™ – an exclusive ATEN technology that eliminates boot-up display problems and optimizes the resolution when switching among different sources
  • Built-in 2-Port USB 3.1 Gen 1 hub with SuperSpeed 5 Gbps data transfer rates
  • Audio Mixer Modes – mixes up to two audio sources as audio output
  • Computer selection via pushbuttons, hotkeys, mouse1, and RS-232 commands
  • ATEN default EDID mode – smooth power-up, high-quality display and resolution optimization to eliminate compatibility issue
  • Independent switching of KVM, USB peripheral, and stereo audio focus2
  • HDMI 2.0 compliant; HDCP 2.2 compliant
  • Supports HD Audio2
  • Power on detection
  • Firmware upgradableNote:
    1. Mouse port switching is only supported under mouse emulation mode and by USB 3-key wheel mice.
    2. HD audio through HDMI channel cannot be switched independently



Computer Connections 2
Port Selection Hotkey, Pushbutton, Mouse, RS-232 Commands

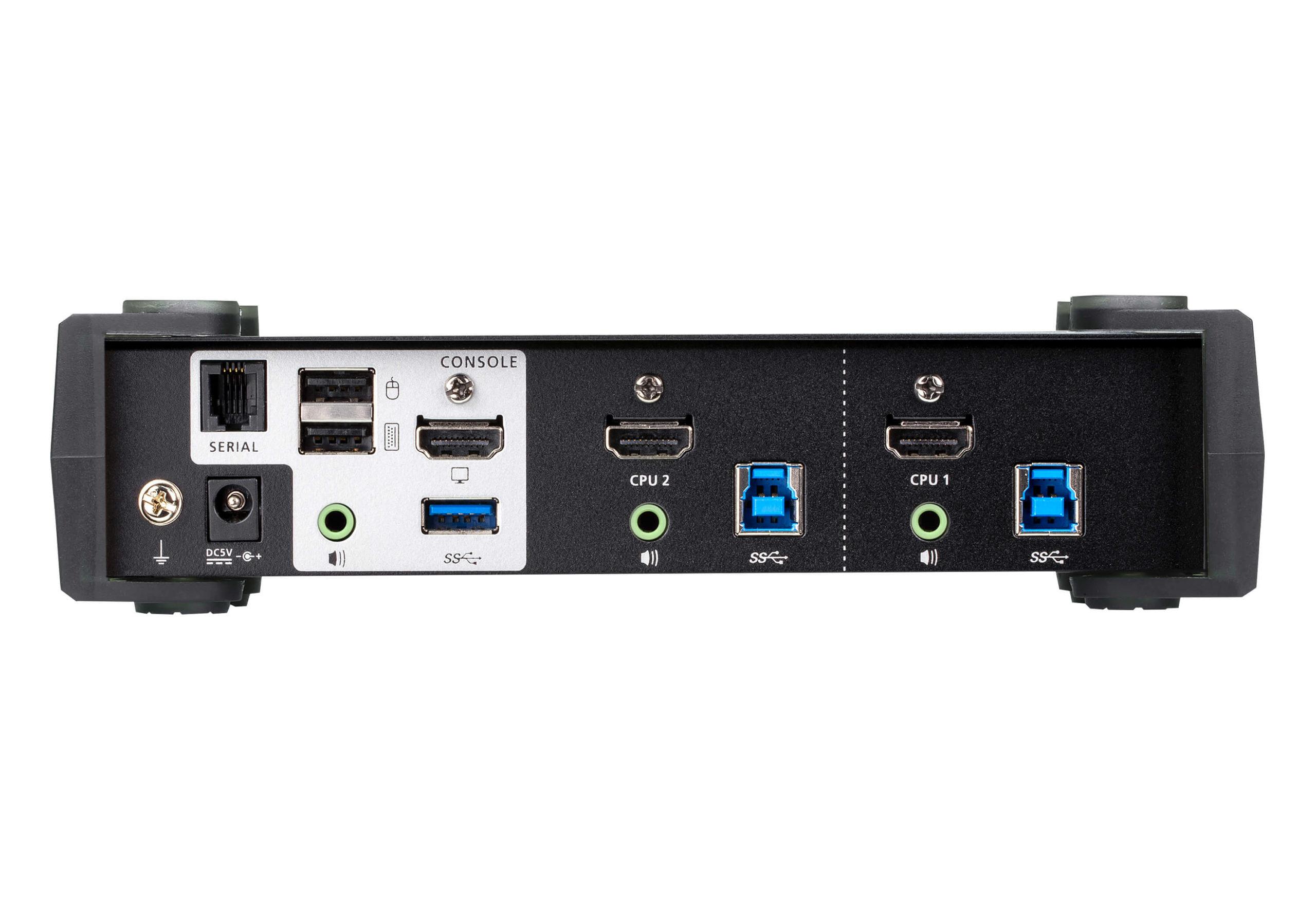

Connectors
Console Ports 2 x USB Type A Female
1 x HDMI Female (Black)
2 x 3.5mm Audio Jack Female (Green; 1 x front, 1 x rear)
KVM (Computer) Ports 2 x USB3.1 Gen1 Type B Female (Blue)
2 x HDMI Female (Black)
2 x 3.5mm Audio Jack Female (Green)
Serial 1 x RJ-11 Female
Power 1 x DC Jack
USB Hub 2 x USB3.1 Gen1 Type A Female (Blue; 1 x front; 1 x rear)
Switches
Selected 2 x Pushbutton
LEDs
On Line /Selected 2 (Orange)
USB Link 2 (Green)
Audio 2 (Green)
Emulation
Keyboard / Mouse USB
Video 4096 x 2160 @ 60Hz
Scan Interval 1-99 Seconds (Default: 5 sec.)
Power Consumption DC5V:1.78W:50.97BTU
Environmental
Operating Temperature 0-40°C
Storage Temperature -20-60°C
Humidity 0-80% RH, Non-condensing
Physical Properties
Housing Metal, Plastic
Weight 0.74 kg ( 1.63 lb )
Dimensions (L x W x H) 21.00 x 8.80 x 5.55 cm
(8.27 x 3.46 x 2.19 in.)
Note For some of rack mount products, please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format.
  • 1x CS1822 2-Port USB 3.0 4K HDMI KVMP™ Switch
  • 2x HDMI 2.0 Cables
  • 2x USB 3.0 Cables
  • 2x Audio Cables
  • 1x Power Adapter
  • 1x User Instructions
