CS1792 Aten 2-Port USB 2.0 HDMI KVM Switch with Audio Bundle

£229.00 inc VAT

Aten CS1792 2 port USB & HDMI KVMP switch with DynaSync technology that ensures HDMI resolution is always optimised. The switch comes with the necessary KVM cables to connect 2 computers.

Datasheet

Manual









SKU: CS1792 Categories: , , , , , , , , , , , , , , , Tags: , , , ,

Description

The Aten CS1792 provides seamless HDMI signal switching between 2 PCs or other HDMI-enabled devices, such as gaming consoles, and allows users to share USB peripherals from a single console.

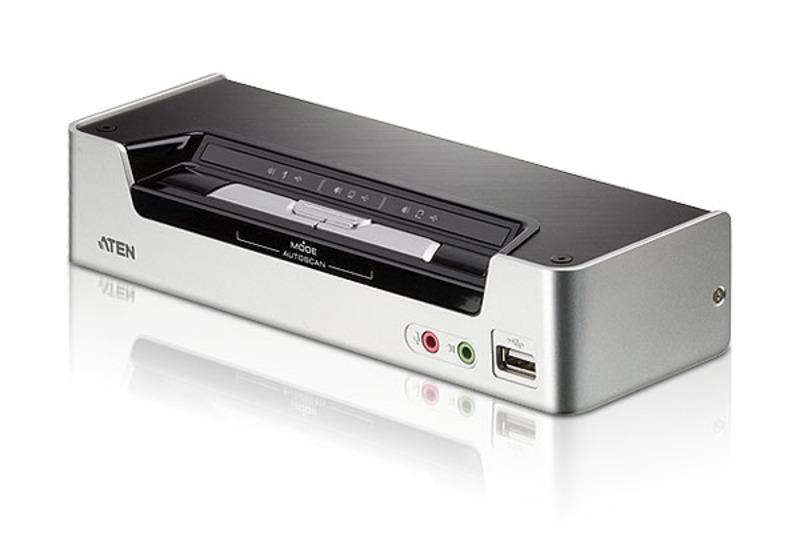

With its unique design and innovative features, the CubiQ™ CS1792 USB 2.0 HDMI KVMP™ Switch provides both style and functionality for today’s multimedia SOHO environment. Combining a 2-port switch with a 2-port USB 2.0 hub, the CS1792 provides seamless HDMI signal switching between 2 PCs or other HDMI-enabled devices, such as gaming consoles, and allows users to share USB peripherals from a single console.

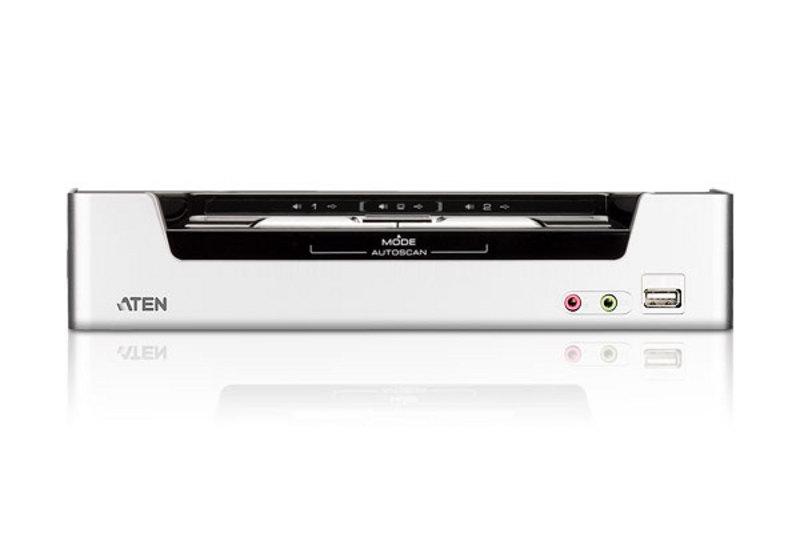

The CS1792 provides enhanced independent switching via front panel pushbuttons and keyboard hotkeys, and features Video DynaSync™ technology to ensure that HDMI display resolution is always optimized. With integrated digital audio, the CS1792 also allows users to experience high-definition sound, such as Dolby True HD and DTS HD Master Audio.
Ideal for multimedia applications in the home or office, the CubiQ™ CS1792 offers the ultimate in space-saving, streamlined KVM technology for the desktop.

  • 2-port HDMI USB 2.0 KVMP™ Switch
  • One USB console controls two HDMI-interface computers and two additional USB devices
  • 2-port USB 2.0 hub built in; fully compliant with the USB 2.0 specification
  • Independent switching of KVM, USB peripheral, and audio focus via front panel pushbuttons and hotkeys
  • HDMI digital monitor support – fully compliant with HDMI; also HDCP compliant
  • Dolby True HD and DTS HD Master Audio support
  • Superior video quality – supports 480i, 480p, 720p, 1080i, and 1080p(HDTV)/1920 x 1200(DVI)
  • Power on detection – If one of the computers is powered off, the CS1792 will automatically switch to the next powered-on computer
  • Supports widescreen resolutions
  • Multiplatform support – Windows, Linux,and Mac
  • Console mouse port emulation/bypass feature supports most mouse driver and multifunction mice
  • Video DynaSync™ – stores the console monitor’s EDID (Extended Display Identification Data) to optimize display resolution
  • Complete keyboard emulation for error-free booting
  • Mac keyboard support and emulation*
  • Auto Scan Mode for monitoring all computers and HDMI devices
  • Firmware Upgradable* 1. PC keyboard combinations emulate Mac Keyboards
    2. Mac keyboards only work with their own computers

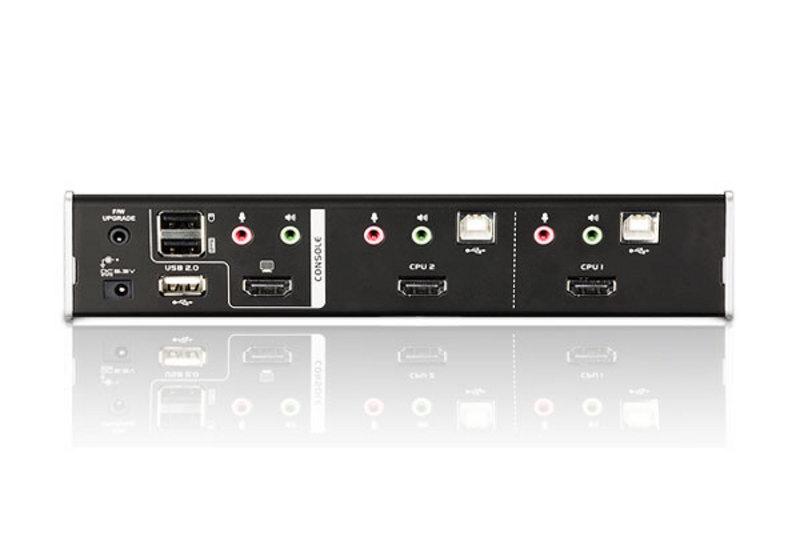

Computer Connections 2
Port Selection Front Panel Pushbuttons; Hotkeys
Connectors Console
Ports		 Keyboard 1 x USB Type A Female
(Black; rear panel)
Video 1 x HDMI Type A Female (Black)
Mouse 1 x USB Type A Female
(Black; rear panel)
Speaker 2 x Mini Stereo Jack Female (Green; 1 x front, 1 x rear)
Mic. 2 x Mini Stereo Jack Female
(Pink; 1 x front, 1 x rear)
KVM
Ports		 Keyboard / Mouse 2 x USB Type B Female (White)
Video 2 x HDMI Type A Female (Black)
Speaker 2 x Mini Stereo Jack Female (Green)
Mic. 2 x Mini Stereo Jack Female (Pink)
F/W Upgrade 1 x 4-conductor 3.5mm Jack (Black)
Power 1 x DC Jack
USB 2.0 Hub 2 x USB Type A Female
(White; 1 x front panel; 1 x rear panel)
Switches Selected 3 x Pushbutton
LEDs Audio 3 (Green)
KVM 3 (Orange)
USB 3 (Green)
Emulation Keyboard/Mouse USB
Video 1080p (HDTV) / 1920 x 1200 (DVI)
Scan Interval 1-99 secs. (Default: 5 secs)
Power Consumption DC 5.3 V, 3.2 W
Environment Operating Temp. 0-50°C
Storage Temp. -20-60°C
Humidity 0-80% RH, Non-condensing
Physical Properties Housing Metal, Plastic
Weight 0.42 kg
Dimensions
(L x W x H)		 20.63×7.24×4.56cm

  • 1x CS1792 USB 2.0 HDMI KVMP™ Switch
  • 2x Custom HDMI KVM Cable Sets
  • 1x Firmware Upgrade Cable
  • 1x Power Adapter
  • 1x User Instructions
