CS1782A Aten 2-Port USB Audio & DVI Dual Link KVMP Switch

£209.00 inc VAT

CS1782A  USB and DVI 2-port KVMP switch with 120Hz 3D display support with 2-port built-in USB 2.0 hub fully compliant with USB 2.0 specifications. It features Independent switching of KVM, USB, and Audio focus, Full bass response for high quality 7.1 channel surround sound systems, HDCP Compatible and superior video quality: 1920 x 1200 @ 60Hz (Single Link); 2560 x 1600 @ 60Hz (Dual Link).

Data Sheet

Manual

SKU: CS1782A Categories: , , ,

Description

The CS1782A USB DVI Dual Link KVMP™ Switch charts a revolutionary direction in KVM switch functionality. It combines the capabilities of a 2-port KVM switch with a 2-Port USB hub, while providing a DVI monitor interface and audio support. Moreover it carries advanced features, such as nVidia 3D Vision ready 120Hz 3D display support, gaming keyboard compatibility and port selection/switching using a mouse, aimed at giving you flexibility, convenience and enjoyment.

Features

  • 2-port DVI KVMP Switch with USB 2.0 and 7.1 Surround Sound Audio
  • One USB console controls two computers and two additional USB devices
  • 2-port built in USB 2.0 hub fully compliant with the USB 2.0 specification
  • Full bass response for high quality 7.1 channel surround sound systems

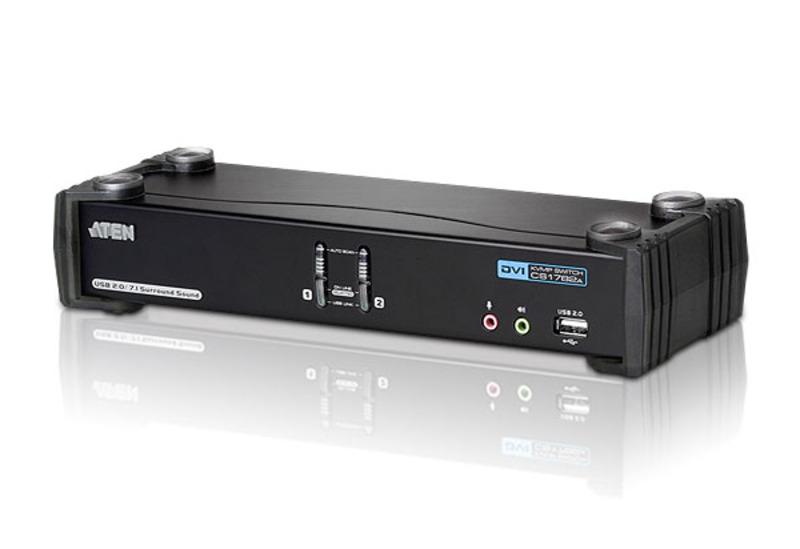

  • Computer selection via font panel pushbuttons, hotkeys, and mouse NEW!
  • Multiplatform support – Windows, Linux, Mac, and Sun*
  • Independent switching of KVM, USB, and Audio focus
  • DVI digital and analog monitor support – fully compliant with the DVI specifications
  • Superior video quality: 1920 x 1200 @ 60Hz (Single Link); 2560 x 1600 @ 60Hz (Dual Link)
  • nVidia 3D Vision Ready: Works with 120Hz LCD monitors and active shutter glasses to create a 3D environment with maximum resolution of up to 1920 x 1080
  • HDCP compatible
  • Support widescreen resolutions
  • Video DynaSync™ – Exclusive ATEN technology that eliminates boot-up display problems and optimizes resolution when switching between ports
  • Power on detection – if one of the computers is powered off, the switch will automatically switch to the next powered-on computer NEW!
  • Console mouse port emulation/bypass feature that supports most mouse drivers and multifunction mice
  • Console keyboard emulation/bypass feature that supports most gaming / multimedia keyboards NEW!
  • Complete keyboard emulation for error-free booting
  • Mac/Sun keyboard support and emulation*
  • Multilingual keyboard mapping – supports English, Japanese, and French keyboards
  • Auto Scan Mode for monitoring all computers
  • Firmware upgradable* PC keyboard combinations emulate Mac/Sun keyboards
    Mac/Sun keyboard work only with their own

Specifications

Computer Connections 2
Port Selection Hotkey, Pushbutton, Mouse

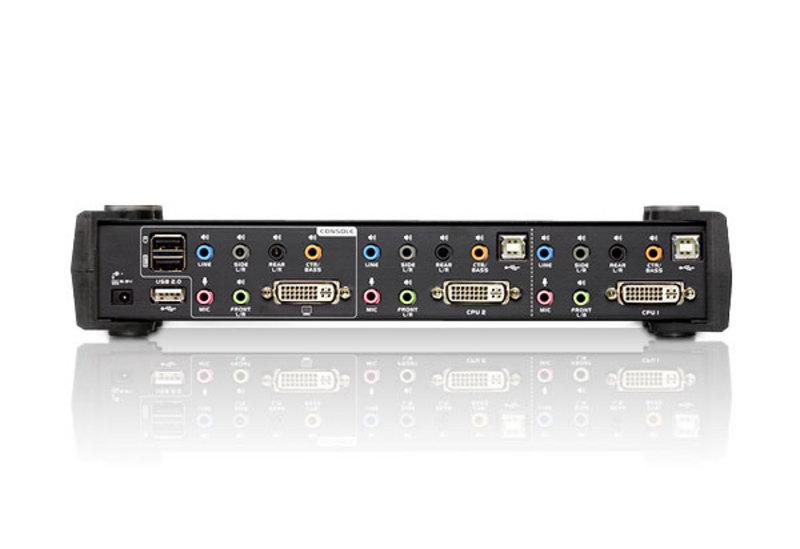

Connectors
Console Ports 2 x USB Type A Female (Black; rear panel)
1 x DVI-I Female (White)
1 x USB Type A Female (Black; rear panel)
2 x Mini Stereo Jack Female (Green;
1 x front panel, 1 x rear panel)
1 x Mini Stereo Jack Female (Blue)
1 x Mini Stereo Jack Female (Gray)
1 x Mini Stereo Jack Female (Black)
1 x Mini Stereo Jack Female (Orange)
2 x Mini Stereo Jack Female (Pink; 1 x front panel, 1 x rear panel)
KVM Ports 2 x USB Type B Female (White)
2 x DVI-I Female (White)
2 x Mini Stereo Jack Female (Green)
2 x Mini Stereo Jack Female (Blue)
2 x Mini Stereo Jack Female (Gray)
2 x Mini Stereo Jack Female (Black)
2 x Mini Stereo Jack Female (Orange)
2 x Mini Stereo Jack Female (Pink)
Power 1 x DC Jack
USB Hub 2 x USB Type A Female (White; 1 x front panel, 1 x rear panel)
Switches
Power Selected 2 x Pushbutton
LEDs
USB Link 2 (Green)
On Line /Selected 2 (Orange)
Emulation
Keyboard / Mouse USB
Video DVI Dual Link: 2560 x 1600; DVI Single Link: 1920 x 1200
Scan Interval 1–99 Seconds (Default: 5 secs)
Power Consumption DC 5.3V, 9 W
Environmental
Operating Temperature 0 -50°C
Storage Temperature -20-60°C
Humidity 0–80% RH, Non-condensing
Physical Properties
Housing Metal
Weight 0.90 kg ( 1.98 lb )
Dimensions (L x W x H) 27.00 x 8.80 x 5.55 cm
(10.63 x 3.46 x 2.19 in.)
  • * The specification and pictures are subject to change without notice.
  • * All trademarks and logos are the properties of their respective holders.

Package Contents

  • 1x CS1782A USB DVI Dual Link KVMP™ Switch
  • 2x Custom DVI-D KVM Cables sets
  • 2x Custom 7.1 Channel Surround Sound Cable Sets
  • 1x Power Adapter
  • 1x User Instructions
