CS1762A Aten 2-Port USB 2.0 DVI KVMP Switch Bundle

£179.00 inc VAT

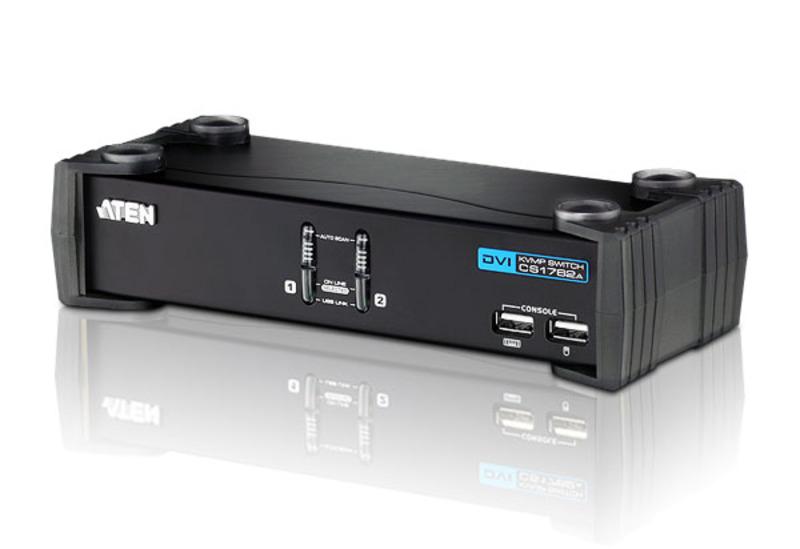

Aten CS1762A is a 2-port USB & DVI KVMP switch with superior video resolution of 1920 x 1200 and power on detection functionality. It is supplied as a bundle with all the necessary USB & DVI cables to connect two computers.

Data Sheet

Manual



SKU: CS1762A Categories: , , , , , , , , , , , , , , Tags: , , , ,

Description

The CubiQ™ CS1762A USB 2.0 DVI KVMP™ Switch charts a revolutionary new direction in KVM (Keyboard, Video, Mouse) switch functionality by combining a 2 port KVM switch with a 2 port USB 2.0 hub at the same time as it provides an interface for a digital monitor (DVI).

The CubiQ™ CS1762A USB 2.0 DVI KVMP™ Switch charts a revolutionary new direction in KVM (Keyboard, Video, Mouse) switch functionality by combining a 2 port KVM switch with a 2 port USB 2.0 hub at the same time as it provides an interface for a digital monitor (DVI).

In addition, the CS1762A comes with ATEN’s new Video DynaSync™ technology, which optimizes display resolution, and power on detection, which means if one computer is powered off, the CS1762A will automatically switch to the next powered-on computer.
As a KVM switch, it allows users to access two computers from a single USB keyboard, USB mouse, and monitor console. As a USB 2.0 hub, it permits each computer to access any peripherals connected to the hub on a ‘one computer at a time’ basis.

  • One USB console controls two DVI computers and two additional USB 2.0 devices
  • 2-port USB 2.0 hub built in
  • Fully compliant with the USB 2.0 specification
  • Computer selection via front panel pushbuttons, hotkeys, and mouse
  • Audio enabled – full bass response provides a rich experience for 2.1 channel surround sound systems
  • Multiplatform support – Windows, Linux, Mac, and Sun
  • Supports widescreen resolutions
  • Superior video quality – 1920 x 1200
  • Independent switching of KVM, USB, and Audio focus
  • DVI digital and analog monitor support – fully compliant with the DVI specifi cations
  • HDCP compatible
  • Video DynaSync™ – exclusive ATEN technology optimizes display resolution and eliminates boot-up display problems
  • Power on detection – if one computer is powered off, the switch will automatically switch to the next powered-on computer
  • Console mouse port emulation/bypass feature supports most mouse drivers and multifunction mice
  • Complete keyboard emulation for error-free booting
  • Mac/Sun keyboard support and emulation*
  • Multilingual keyboard mapping – supports English, Japanese, and French keyboards
  • Auto Scan Mode for monitoring all computers
  • Firmware upgradable* 1. PC keyboard combinations emulate Mac/Sun keyboards
    2. Mac/Sun keyboards only work with their own computer
Computer Connections 2

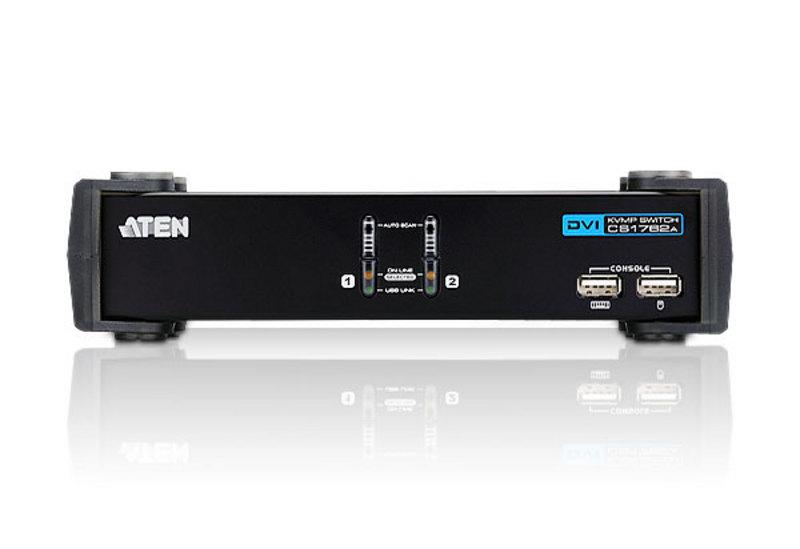

Port Selection Front Panel Pushbuttons;
Hotkey, Mouse

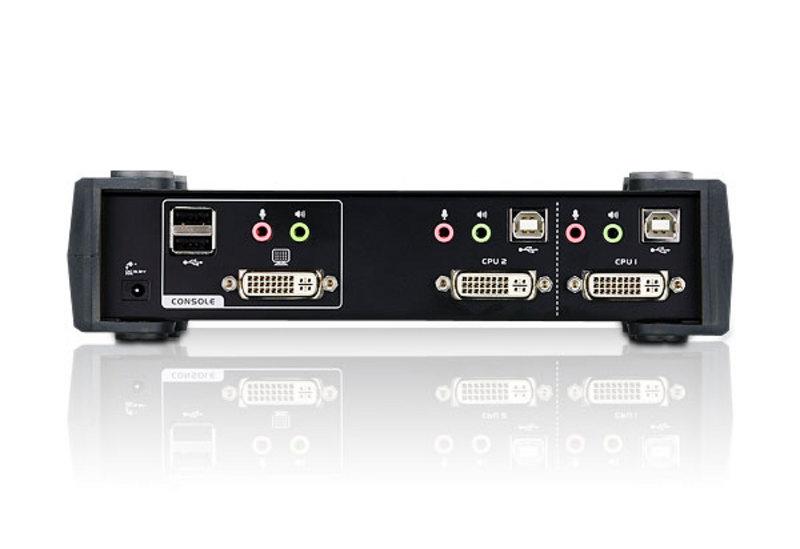

Connectors Console Ports Keyboard 1 x USB Type A Female
(White; front panel)
Video 1 x DVI-I Female (White)
Mouse 1 x USB Type A Female
(white; front panel)
Speakers 1 x Mini Stereo Jack Female
(Green; rear panel)
Mic. 1 x Mini Stereo Jack Female
(Pink; rear panel)
KVM Ports Keyboard / Mouse 2 x USB Type B Female (White)
Video 2 x DVI-I Female (White)
Speakers 2 x Mini Stereo Jack Female (Green)
Mic. 2 x Mini Stereo Jack Female (Pink)
Power 1 x DC Jack
USB Hub 2 x USB Type A Female
(Black, rear panel)
Switches Selected 2 x Pushbutton
LEDs On Line / Selected 2 (Orange)
USB Link 2 (Green)
Emulation Keyboard/Mouse USB
Video 1920 x 1200
Scan Interval 1–99 secs. (5 secs. default)
Power Consumption DC5.3V, 9.0W
Environment Operating Temp. 0 – 50°C
Storage Temp. -20 – 60°C
Humidity 0-80% RH, Non-condensing
Physical Properties Housing Metal
Weight 0.73 kg
Dimensions ( L x W x H ) 21.00×8.80×5.55cm

  • 1x CS1762A USB 2.0 DVI KVMP™ Switch
  • 2x Custom KVM Cable Sets (DVI-D)
  • 1x Power Adapter
  • 1x User Instructions
