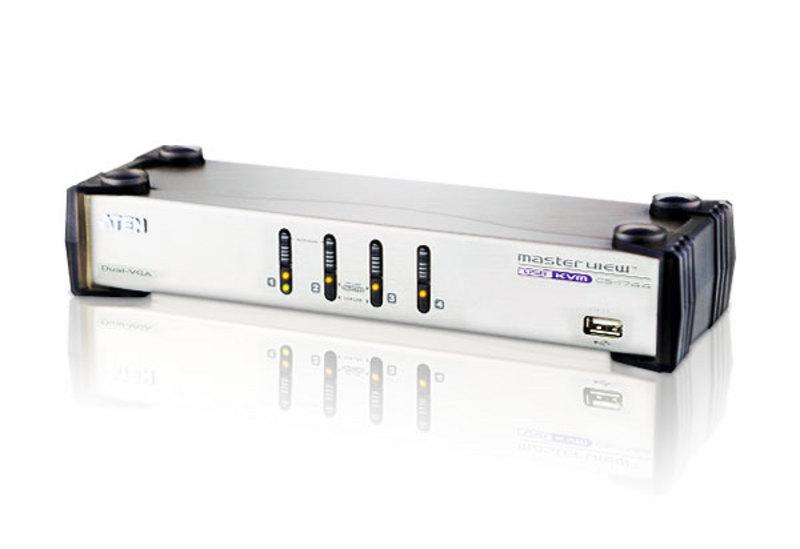

CS1744 Aten 4-Port USB Dual View VGA KVMP Switch with Audio Bundle

£219.00 inc VAT



Aten CS1744 4 port USB & VGA Dual Display KVM switch with peripheral sharer and audio. It is supplied as a bundle including all KVM cables required to connect four computers.

Datasheet

Manual



Description

CS1744 4 Port KVM Switch integrates functions of video signal dual output and USB KVM switches. It allows a computer with dual-screen support to pair with four VGA/SVGA/Multisync displays via a USB keyboard and mouse. Furthermore, CS1744 provides 2 USB ports, allowing each server to share any USB peripheral device that is connected to this HUB.

CS1744 KVM Switch integrates functions of video signal dual output and USB KVM switches. It allows a computer with dual-screen support to pair with two VGA/SVGA/Multisync displays via a USB keyboard and mouse. Furthermore, CS1744 provides 1 USB port on each of the front and rear panels, allowing each server to share any USB peripheral device that is connected to this HUB.

Computer Connections 4
Port Selection Hotkeys, Pushbutton
USB Port/ Audio Port Selection Hotkey

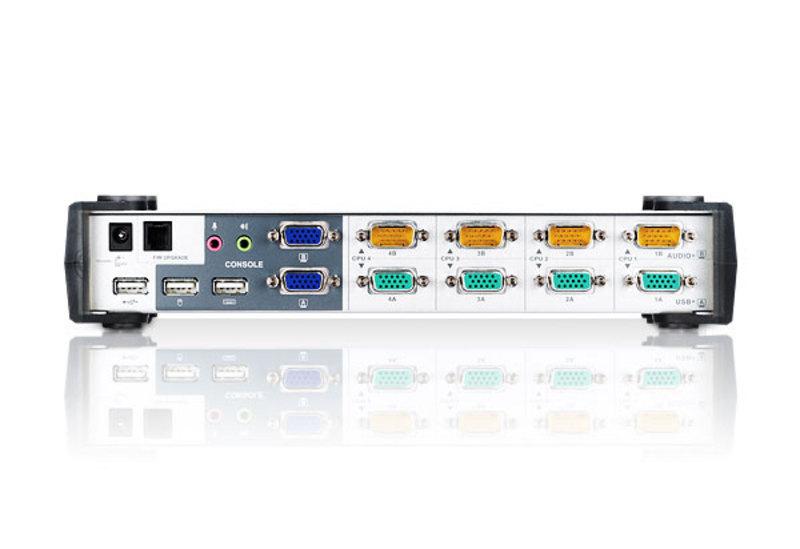

Connectors Console Ports Keyboard 1 x USB Type A Female (White)
Video 2 x HDB-15 Female (Blue)
Mouse 1 x USB Type A Female (White)
Speaker 1 x Mini Stereo Jack Female (Green)
Microphone 1 x Mini Stereo Jack Female (Pink)
KVM Ports Speaker/Microphone 4 x SPHD-15 Male (Yellow)
Video1
Keyboard/Mouse 4 x SPHD-15 Female (Green)
Video2
USB Hub 2 x USB Type A Female (White)
F/W upgrade 1 x RJ11 Female (Black)
Power 1 x DC Jack (Black)
Switches Port 4 x Pushbutton
LEDs On Line / Selected 4 (Orange)
USB Link 4 (Green)
Emulation Keyboard/Mouse USB
Video 2048 x 1536; DDC2B
Scan Interval 1~99 seconds
Power Consumption DC5V, 1.35W
Environment Operating Temp. 0~50°C
Storage Temp. -20~60°C
Humidity 0~80% RH, Non-condensing
Physical Properties Housing Metal
Weight 1.03 kg
Dimensions ( L x W x H ) 27.00×8.80×5.55cm
  • 1x 4-Port USB Dual-View KVMP™ Switch
  • 4x KVM Cables (Audio/Video)
  • 4x KVM Cables (USB/Video)
  • 1x Firmware Upgrade Cable
  • 1x User Instructions
