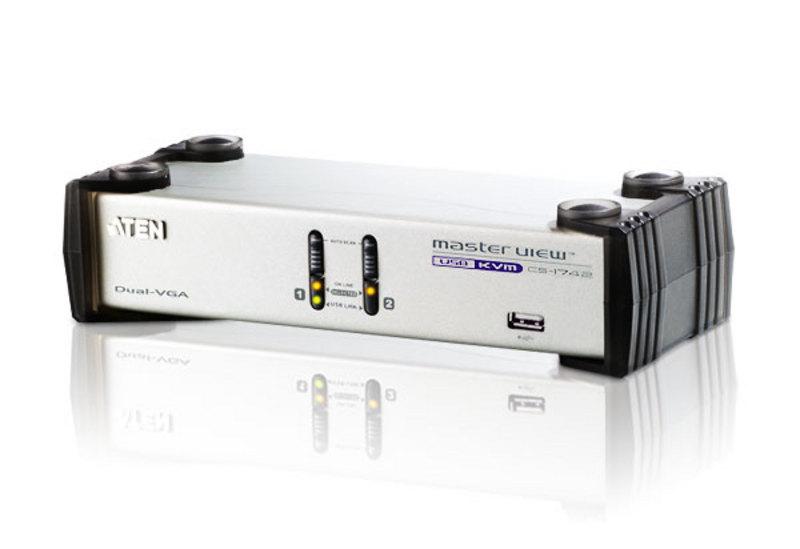

CS1742 Aten 2-Port USB Dual View VGA KVMP Switch with Audio Bundle

£159.00 inc VAT

The Aten CS1742 2 port USB & Dual Display VGA KVM switch with peripheral sharer and audio. It is supplied all necessary cables to connect 2 computers.

Datasheet

Manual



Description

CS1742 2 Port KVM Switch integrates functions of video signal dual output and USB KVM switches. It allows a computer with dual-screen support to pair with two VGA/SVGA/Multisync displays via a USB keyboard and mouse. Furthermore, CS1742 provides 2 USB ports, allowing each server to share any USB peripheral device that is connected to this HUB.

Computer Connections 2
Port Selection Hotkeys, Pushbutton
USB Port/ Audio Port Selection Hotkey

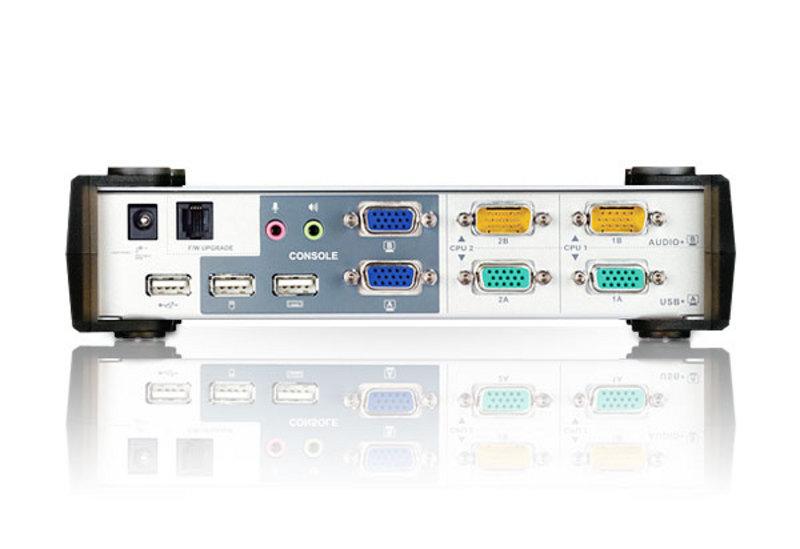

Connectors Console Ports Keyboard 1 x USB Type A Female (White)
Video 2 x HDB-15 Female (Blue)
Mouse 1 x USB Type A Female (White)
Speaker 1 x Mini Stereo Jack Female (Green)
Microphone 1 x Mini Stereo Jack Female (Pink)
KVM Ports Speaker/Microphone 2 x SPHD-15 Male (Yellow)
Video1
Keyboard/Mouse 2 x SPHD-15 Female (Green)
Video2
USB Hub 2 x USB Type A Female (White)
F/W upgrade 1 x RJ11 Female (Black)
Power 1 x DC Jack (Black)
Switches Port 2 x Pushbutton
LEDs On Line / Selected 2 (Orange)
USB Link 2 (Green)
Emulation Keyboard/Mouse USB
Video 2048 x 1536; DDC2B
Scan Interval 1~99 seconds
Power Consumption DC5V, 1.25W
Environment Operating Temp. 0~50°C
Storage Temp. -20~60°C
Humidity 0~80% RH, Non-condensing
Physical Properties Housing Metal
Weight 0.82 kg
Dimensions ( L x W x H ) 21.00×8.80×5.55cm
  • 1x 2-Port USB Dual-View KVMP™ Switch
  • 2x KVM Cables (Audio/Video)
  • 2x KVM Cables (USB/Video)
  • 1x Firmware Upgrade Cable
  • 1x User Instructions
