CS1642A Aten 2-Port USB Dual View DVI KVMP Switch Bundle

£339.00 inc VAT

Aten CS1642A 2 port USB & Dual View DVI KVM switch that supports Quad-View functionality with two Dual View KVM Switches connected. It is supplied with all necessary KVM cables to connect 2 computers.

Data Sheet

Manual

Description

The CS1642A 2-Port USB DVI Dual View KVMP™ Switch is a multi-application device that integrates a 2-port KVM switch with 2-port USB hub. The newest version now supports Quad-View functionality with two Dual View KVM Switches connected.
The new CS1642A features multi-view capabilities, which allow two switches to be daisy chained for a dual, triple, or quadview display across multi-monitor installations. The CS1642A supports advanced nVidia 3D Vision ready 120Hz 3D displaying,allowing you to manage various 3D visual effects. It allows you to manipulate all connected computers from a single console to save resources and work space. It enables each computer to access connected peripherals on a one-computer-at-a-time basis, making it ideal for users who need delicate visual effects and multi-tasking on several computers. The CS1642A is perfect for graphic designers, banking and financial consultants, gamers and medical professionals-demanding a high quality switch that provides stunning color, clarity and functionality.

  • One dual-screen USB console controls two/four dual-screen computers and two additional USB devices
  • Multi-View Display – Easily connect two CS1642A/1644A’s units for a second dual-screen setup controlled through a single connection
  • Superior video quality – 2560 x 1600 at 60Hz (DVI Dual link); and 3D displays up to 1920 x 1200 at 120Hz (DVI Single link)
  • Supports widescreen resolutions
  • Independent switching of KVM, USB, and Audio focus
  • DVI digital and analog monitor support – fully compliant with DVI specifi cations; and HDCP compliant
  • Multiplatform support – Windows 2000/XP/Vista, Linux *, Mac, Sun,and FreeBSD
  • Sun/Mac keyboard support and emulation **
  • Video DynaSync, exclusive ATEN technology, to eliminate boot-up display problems and optimizes resolution when switching between ports* Supports Linux Kernel 2.6 and higher. The CS1642A has a builtin USB 2.0 hub, so will not support PCs or OS that do not support USB 2.0.
    ** PC keyboard combinations emulate Mac keyboards.
    ** Mac keyboards only work with their own computers.
Computer Connections 2
Port Selection Mouse, Pushbuttons; Hotkeys

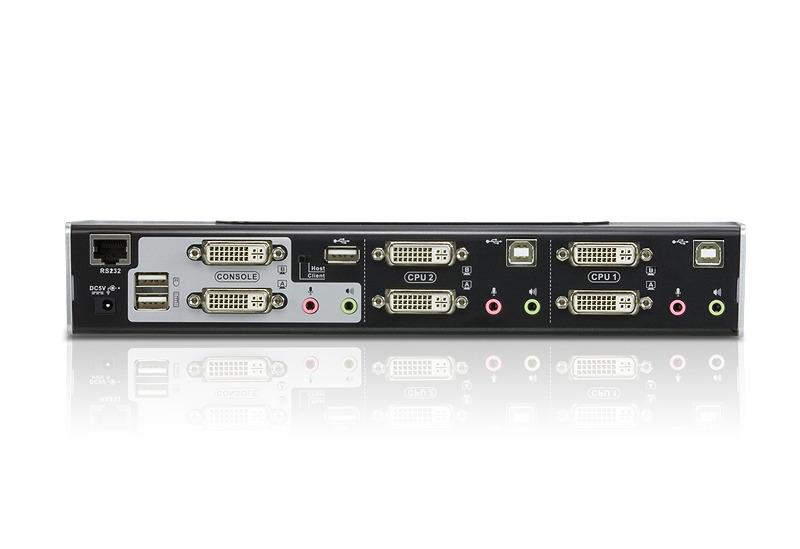

Connectors Console Ports Keyboard 1 x USB Type A Female (White, rear panel)
Video 2 x DVI-I Female (White)
Mouse 1 x USB Type A Female
(White, rear panel)
Speakers 1 x Mini Stereo Jack Female (Green)
Microphone 1 x Mini Stereo Jack Female (Pink)
KVM Ports Keyboard / Mouse 2 x USB Type B Female (white)
Video 4 x DVI-I Female (white)
Speaker 2 x Mini Stereo Jack Female (Green)
Microphone 2 x Mini Stereo Jack Female (Pink)
DCC port 1 x RJ-45 female connector (Rear panel)
Power 1 x DC Jack

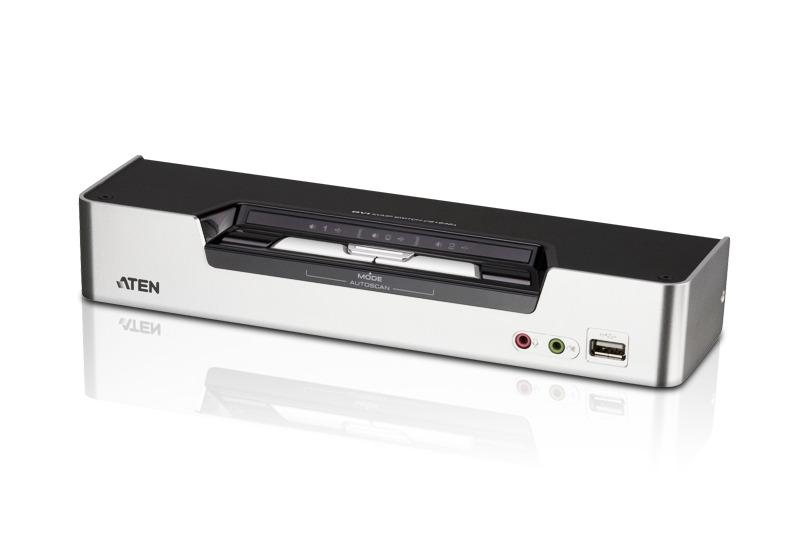

USB 2.0 Hub 2 x USB Type A F (Black; 1 x front panel; 1 x rear panel)
Switches Selected 3 x Pushbutton
DCC Mode 1 x Slide switch
Emulation Keyboard/Mouse USB
Video DVI Dual Link: 2560 x 1600 at 60Hz; 1920 x 1200 at 120Hz (3D Display)
Scan Interval 1-99 secs. (5 secs. default)
Power Consumption DC 5.3 V, 10.6 W
Environment Operating Temp. 0–50°C
Storage Temp. -20–60°C
Humidity 0-80% RH, Non-condensing
Physical Properties Housing Plastic + Metal
Weight 0.56 kg
Dimensions
(L x W x H)
26.23×7.68×4.40cm

CS1642A Diagram

  • 1x CS1642A 2-Port USB DVI Dual View KVMP™ Switch
  • 4x Custom DVI-D Dual Link Cable Sets
  • 1x Power Adapter
  • 1x User Instructions
