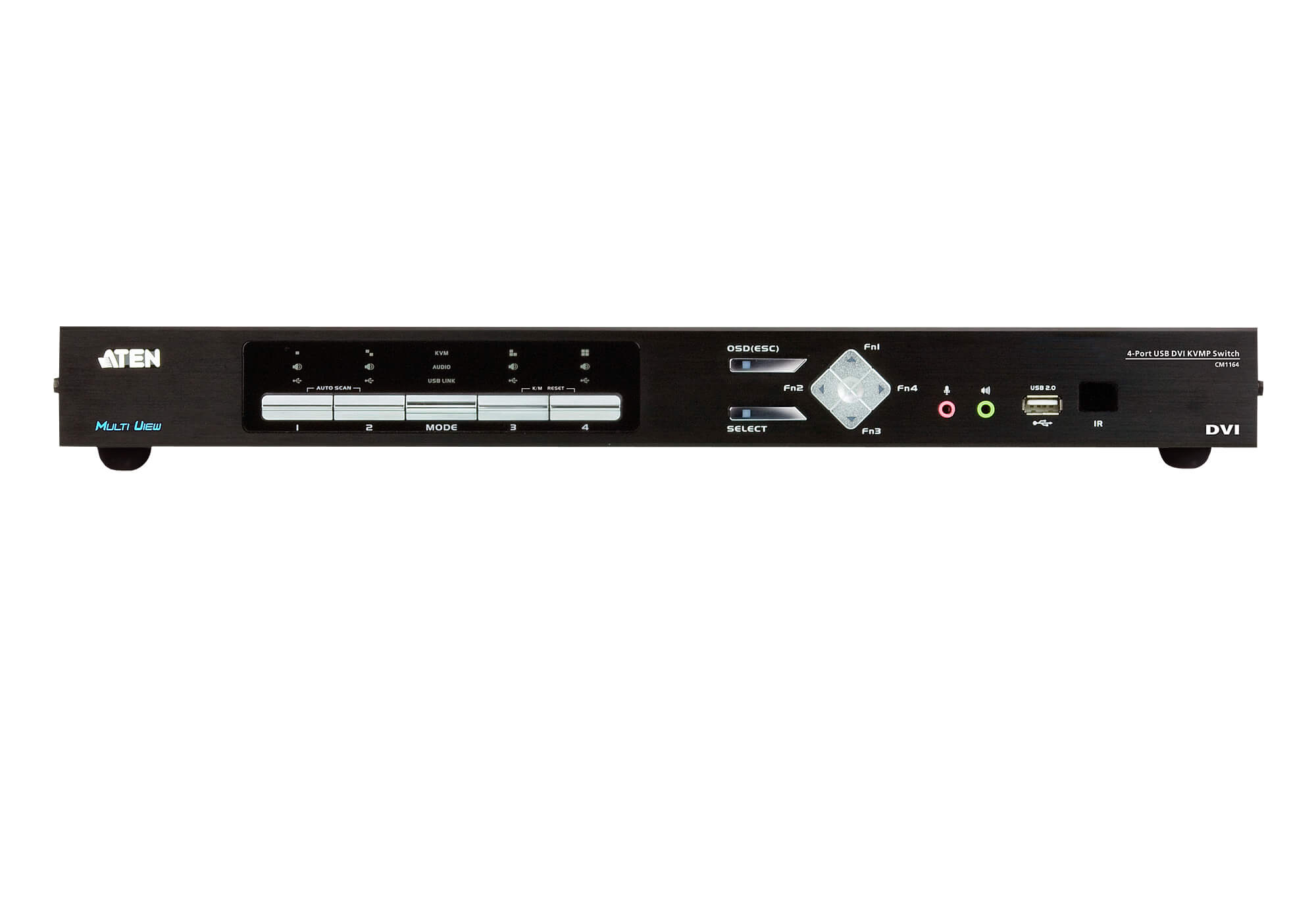

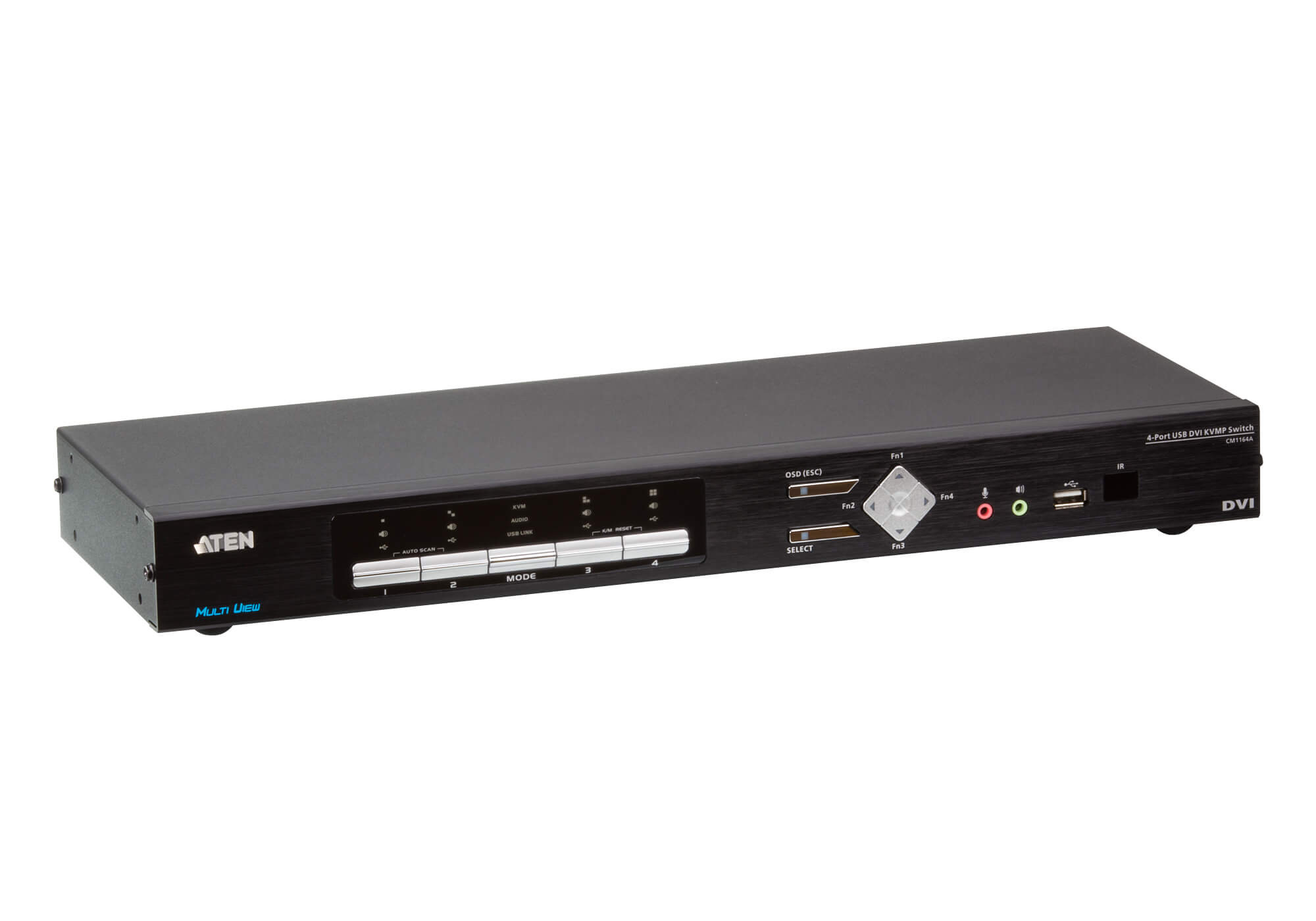

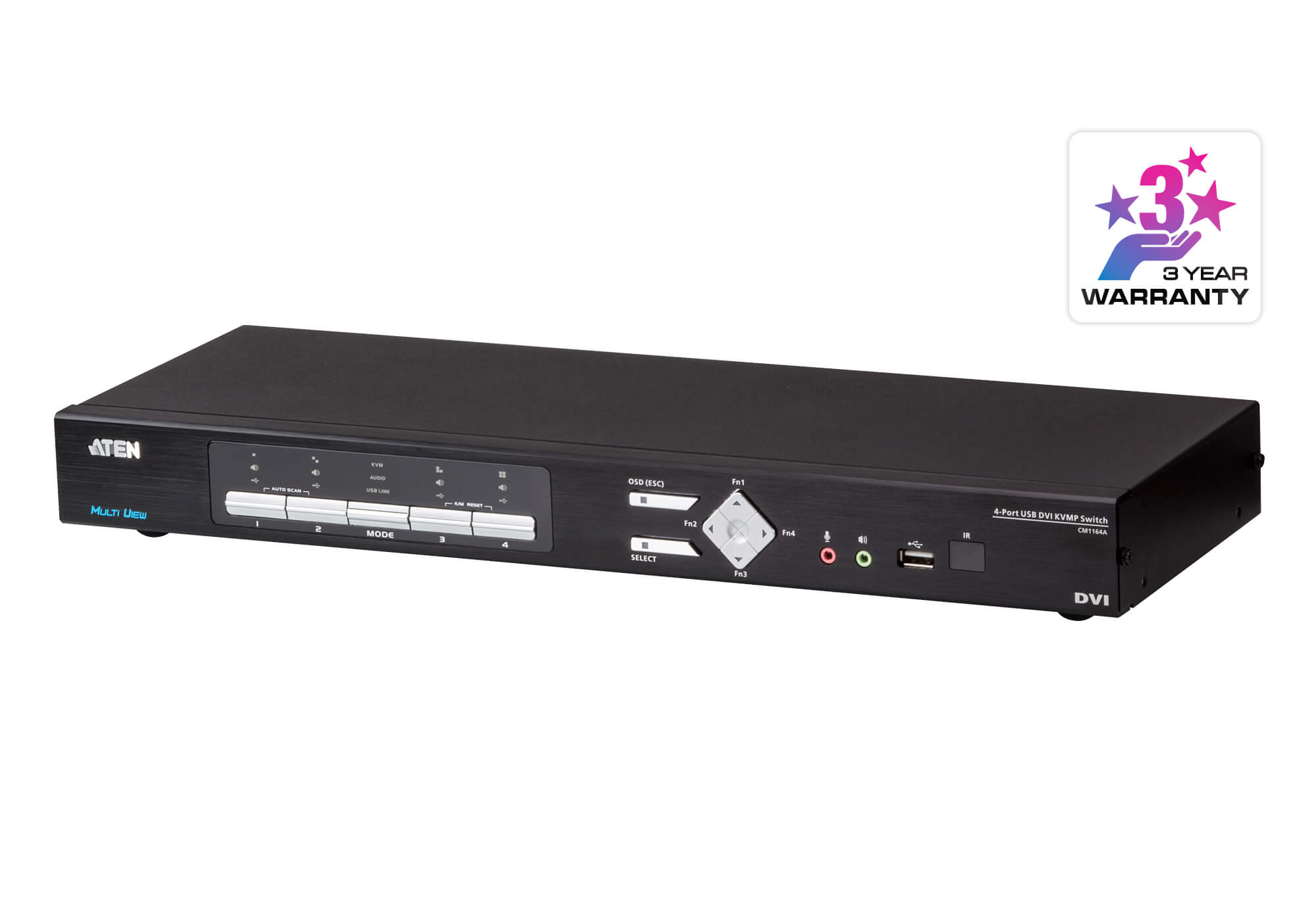

CM1164A Aten 4-port USB DVI Multi-View KVMP Switch

£1,495.00 inc VAT

Aten CM1164A 4-port USB DVI-D KVMP Control Center combines a 4-port DVI-D switch with a 2-port USB hub, and provides the following display modes: Quad View mode, which simultaneously displays four digital computers/video sources on a single screen; as well as Picture in Picture mode(Dual, Triple or Quad) and Full Screen mode. It features Video DynaSync™ – exclusive ATEN technology eliminates boot-up display problems and optimizes resolution when switching between ports and DCC (Daisy Chain Control) port enables users to connect up to four CM1164A units, and use one console keyboard/mouse to manage computers or another CM1164A. Other features include:

  • Multiplatform support – Windows, Linux, Mac and Sun
  • Keyboard and Mouse support emulation and bypass
  • Superior video quality – up to 1920 x 1200 resolution

Data Sheet

Manual



SKU: CM1164A Categories: , , , , , , , , , , , , , , , , , Tags: , , , , , , , ,

Description

ATEN CM1164A 4-Port USB DVI Multi-View KVMPTM Switch improves the operational efficiency of intensive monitoring applications. With limited screen, to allow users to manage the data more efficiently, up to 16 video sources can be selected, switched and displayed at the same time with independent keyboard, mouse control. The CM1164A provides users a real-time monitoring functionality by combining a 4-port DVI-D switch with a 2-port USB hub and providing the following display modes: Quad View, Picture in Picture (PiP), Picture by Picture (PbP), Picture on Picture (PoP), and Full Screen mode.

Featuring Boundless Switching, the CM1164A allows users to simply move the mouse cursor across windows to switch to other video sources. This makes it easier to instantly access and control the target computer.

Incorporating Daisy Chain Control (DCC) capability, users are allowed to control up to 3 additional CM1164A units via a single console. In addition, CM1164A can be cascaded up to 2 levels to reach the maximum of 16 video sources simultaneously displayed on a display.

Engineered to meet the ever-increasing demand for multi-view functionality, the CM1164A is specifically designed for where real-time monitoring is needed such as aviation industry, financial trading, and medical application.

Features

  • Multi-view console controls up to four video sources on one screen with display modes including Quad View, Picture in Picture (PiP), Picture by Picture (PbP), and Picture on Picture (PoP)
  • System configuration via front panel, OSD, IR Remote – display mode and port selection
  • Easily resize and / or reposition any PiP or PbP to suit users’ viewing needs
  • DCC (Daisy Chain Control) — Controls up to 3 additional CM1164A units from a single console
  • Cascade up to 2 levels — Controls up to 16 computers (with up to 4 x 4 Multi-view mode)
  • Boundless Switching – Simply moves the mouse cursor across windows to switch to other video sources
  • Video DynaSync™ – exclusive ATEN technology eliminates boot-up display problems and optimizes the resolution when switching among different sources
  • HDCP 1.4 compliant
  • Supports RS-232 commands
  • Drop down menu – edit display windows and other functions with the mouse and on-screen control panel
  • Console mouse port emulation / bypass feature that supports most mouse drivers and multifunction mice
  • Console keyboard emulation / bypass feature that support most multimedia keyboards
  • Independent switching for USB peripheral port, audio function and KVM switch focus
  • Auto Scan feature
  • Power on detection
  • Multilingual keyboard mapping – supports English, French, Japanese, and German keyboards
  • Full bass response provides a rich experience for 2.1 channel audio
  • Supports keyboard combinations via emulation (for Sun / Mac)

Specifications

Computer Connections 4
Port Selection Pushbuttons, Hotkeys, IR Remote Control, On-Screen Display (OSD), Mouse, RS-232 Commands
Connectors
Console Ports 2 x USB Type A Female
1 x Single Link DVI-D Female (White)
2 x 3.5mm Audio Jack Female (Green; 1 x front panel,1 x rear panel)
2 x 3.5mm Audio Jack Female (Pink; 1 x front, 1 x rear)
2 x RJ-45

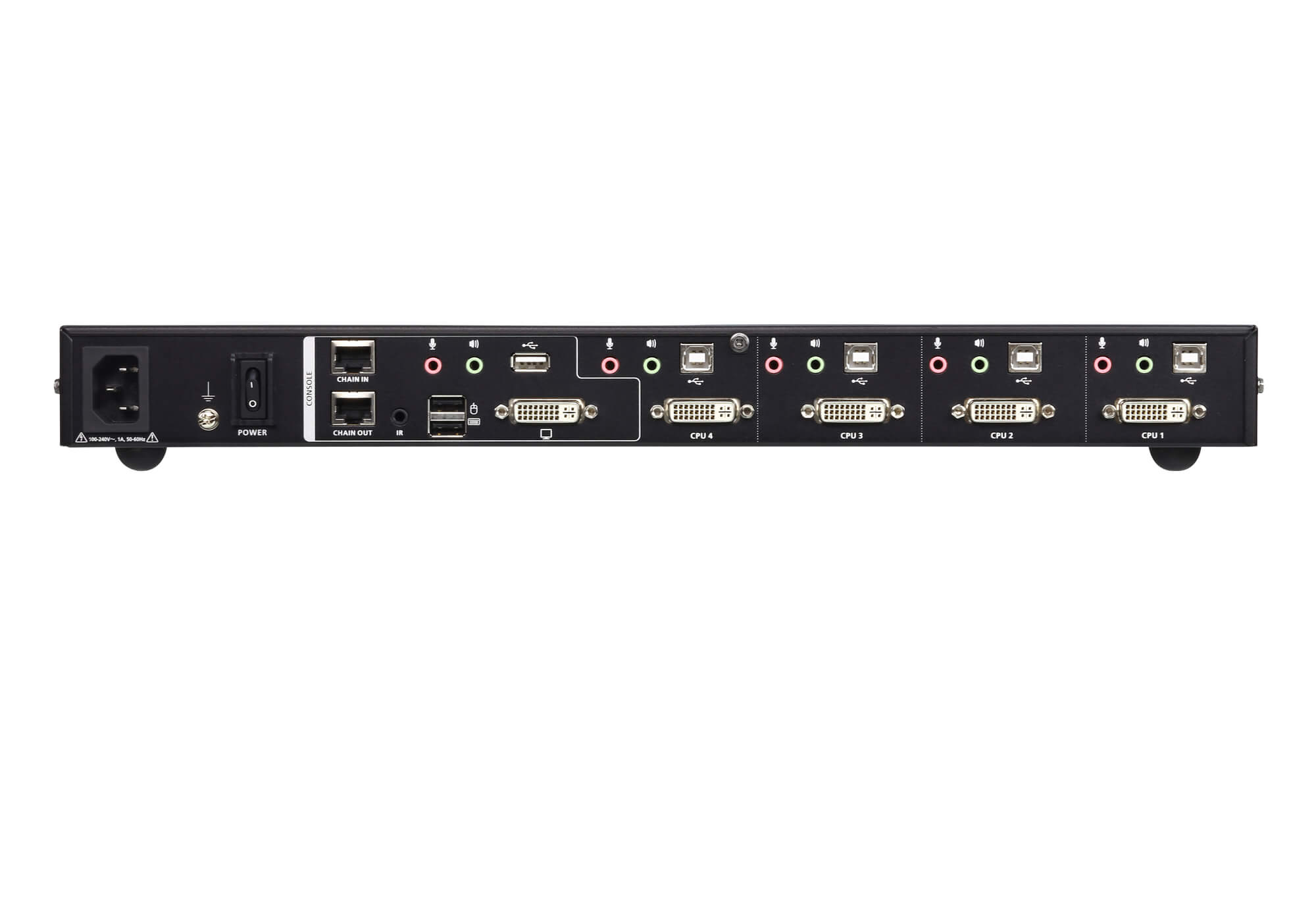

KVM Ports 4 x USB Type B Female
4 x Single Link DVI-D Female (White)
4 x 3.5mm Audio Jack Female (Green)
4 x 3.5mm Audio Jack Female (Pink)
Power 1 x IEC320 Jack
USB Hub 2 x USB 2.0 Type A Female
Switches
Selected 11 x Pushbuttons
LEDs
KVM 4 (Orange)
Audio 4 (Green)
USB 4 (Green)
Emulation
Keyboard / Mouse USB
Video 1920 x 1200 @ 60 Hz (DVI-D)
Scan Interval 5, 10, 15, 30, 60, 90 seconds (default: 5 seconds)
Power Consumption AC110V/9.7W:71BTU
AC220V/9.5W:70BTU
Environmental
Operating Temperature 0-40°C
Storage Temperature -10-60°C
Humidity 0-80% RH, Non-condensing
Physical Properties
Housing Metal
Weight 2.46 kg ( 5.42 lb )
Dimensions (L x W x H) 43.72 x 16.40 x 4.40 cm
(17.21 x 6.46 x 1.73 in.)
Note For some of rack mount products, please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format.

Package Contents

  • 1x CM1164A 4-Port USB DVI Multi-View KVMPTM Switch
  • 4x KVM Cables (DVI-D, USB, Audio)
  • 1x Power Cord
  • 1x IR Remote Control
  • 1x Rack Mount Kit
  • 1x User Instructions
