CL5716 Aten 16-Port Slideaway 17″ LCD KVM Switch

£1,145.38 inc VAT

The Aten CL5716 16 port 17″ Slideaway Combo KVM switch is Dual Interface – supports computers and console with PS/2 or USB keyboards and mice, Multiplatform support – Windows, Linux, Mac, and Sun, and Supports one administrator and four user accounts with separate profiles. The LCD module rotates up to 115 degrees for a more comfortable viewing angle and has Two level password security – only authorized users can view and control computers.

Data Sheet

Manual

SKU: CL5716 Categories: , , , , , , , , , , , , , , , , , Tags: , , , , , ,

Description

The CL5716 Slideaway™ LCD KVM Switch is a control unit that allows access to multiple computers from a single PS/2 or USB KVM (keyboard, video, and mouse) console. A single CL5716 can control up to 16 computers. As many as 31 additional KVM switches can be daisy-chained to the CL5716, so that up to 512 computers can all be controlled from a single KVM console.
The CL5716 offers a space-saving, streamlined approach to KVM switch technology by integrating a keyboard, 17″ or 19″ LED-backlit LCD monitor, and touchpad in a 1U rack-mountable sliding housing.
For information about Easy Rack Mounting click here

CL5716 features include:

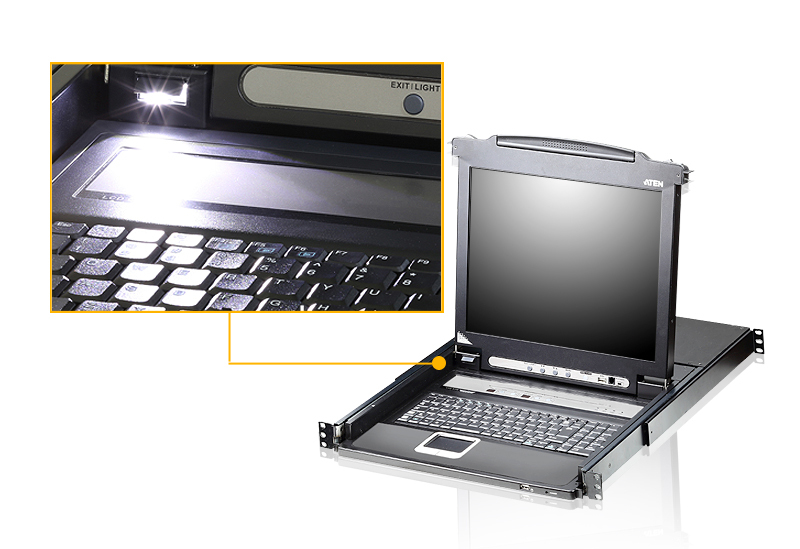

  • Exclusive LED illumination light – designed by ATEN to illuminate the keyboard and touchpad to allow visibility in low-light conditions
  • Integrated KVM console with 17″ or 19″ LED-backlit LCD monitor in a Slideaway™ housing
  • Available with or without Fingerprint Identification Reader**
  • Space saving technology – up to two consoles (one bus) control up to 16 computers
  • Daisy-chain up to 31 additional units – control up to 512 computers from a single console (With compatible KVM Swithces: ACS1208A, ACS1216A, CS1708A,CS1716A)
  • Dual Interface – supports computers and console with PS/2 or USB keyboards and mice
  • LCD module USB port allows each computer to access USB peripherals*
  • LCD module rotates up to 115 degrees for a more comfortable viewing angle
  • Multiplatform support – Windows, Linux, Mac, and Sun
  • Supports multimedia USB keyboards for PC, Mac and Sun
  • Auto PS/2 and USB interface detection
  • Keyboard and mouse emulation (PS/2 and USB) for smooth switching and simultaneous booting of multiple computers even when the console focus is elsewhere
  • Supports external USB mouse
  • Superior video quality – supports resolutions up to 1280 x 1024 @ 75 Hz
  • No software required – convenient computer selection via front panel pushbuttons, hotkeys and multilingual on-screen display (OSD) menus
  • Auto-senses station’s position on daisy-chained installations; no need for manual dip switch setting; front panel led indicates station’s position
  • Port names automatically reconfigured when station sequence is changed
  • Two level password security – only authorized users can view and control computers
  • Supports one administrator and four user accounts with separate profiles
  • Auto Scan mode enables continuous monitoring of user-selected computers
  • Broadcast support – commands from the keyboard can be broadcast to all available computers on the installation
  • Hot pluggable – add or remove computers without having to power down the switch
  • Beeper on/off via hotkey and OSD
  • Firmware upgrades to all the chained KVM switches at the same time via the daisy-chain cable
  • Keyboard Language support: English (US), English (UK), French, German, German (Swiss), Greek, Hungarian, Italian, Japanese, Korean, Russian, Spanish, Swedish and Traditional Chinese* The USB peripheral function only works with USB cable set connections. It will not work with PS/2 cable set connections.
Function CL5716M CL5716N
Computer Connections
Direct 16 16
Maximum 512 (via Daisy-chain) 512 (via Daisy-chain)
Port Selection OSD, Hotkey, Pushbutton OSD, Hotkey, Pushbutton

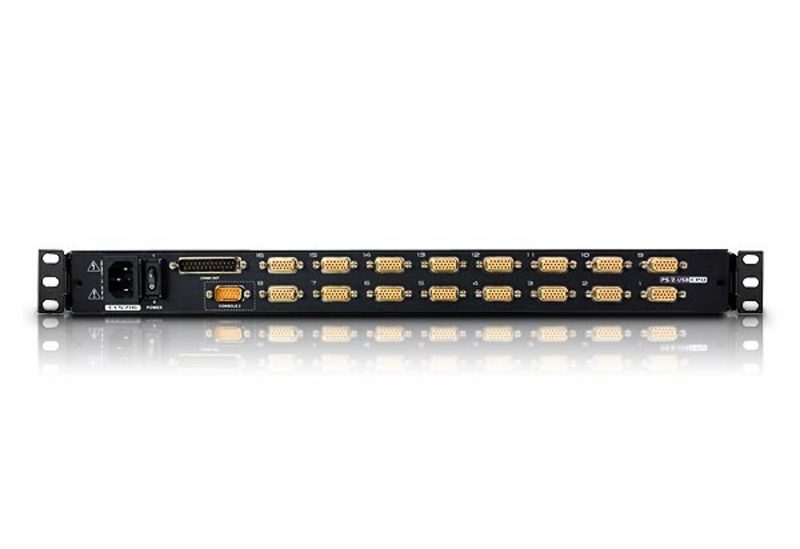

Connectors
External Console Ports 1 x SPHD-18 Male (Yellow) 1 x SPHD-18 Male (Yellow)
External Mouse Port 1 x USB Type-A Female (White) 1 x USB Type-A Female (White)
KVM Ports 16 x SPHD-15/17 Female (Yellow) 16 x SPHD-15/17 Female (Yellow)
Daisy Chain Ports 1 x DB-25 Male (Black) 1 x DB-25 Male (Black)
Firmware Upgrade 1 x RJ-11 Female 1 x RJ-11 Female
Power 1 x 3-prong AC Socket 1 x 3-prong AC Socket
USB Port 1 x USB Type-A Female (White) 1 x USB Type-A Female (White)
Switches
Reset 1 x Semi-recessed Pushbutton 1 x Semi-recessed Pushbutton
Power 1 x Rocker Switch 1 x Rocker Switch
Firmware Upgrade 1 x Switch 1 x Switch
LCD Adjustment 4 x Pushbutton 4 x Pushbutton
LCD On/Off 1 x LED Pushbutton (Orange) 1 x LED Pushbutton (Orange)
Port Selection 2 x Pushbutton 2 x Pushbutton
Station Selection 2 x Pushbutton 2 x Pushbutton
LEDs
Online 16 (Orange) 16 (Orange)
Port ID 2 x 7-segment LED Display (Yellow) 2 x 7-segment LED Display (Yellow)
Station ID 2 x 7-segment LED Display (Yellow) 2 x 7-segment LED Display (Yellow)
Power 1 (Dark Green) 1 (Dark Green)
Lock 1 x Num Lock (Green)
1 x Caps Lock (Green)
1 x Scroll Lock (Green)		 1 x Num Lock (Green)
1 x Caps Lock (Green)
1 x Scroll Lock (Green)
Emulation
Keyboard / Mouse PS/2, USB PS/2, USB
Video 1280 x 1024 @ 75 Hz; DDC2B 1280 x 1024 @ 75 Hz; DDC2B
Scan Interval 1-255 sec. 1-255 sec.
I/P Rating 100-240 V AC, 50/60 Hz, 1 A 100-240 V AC, 50/60 Hz, 1 A
Power
Consumption 120V, 17W/230V, 18W 120V, 26W/230V, 26.8W
Environmental
Operating Temperature 0-40°C 0-40°C
Storage Temperature -20-60°C -20-60°C
Humidity 0-80% RH, Noncondensing 0-80% RH, Noncondensing
Physical Properties
Housing Metal + Plastic Metal + Plastic
Weight 13.59 kg 13.65 kg
Dimensions (L x W x H) 48.00 x 64.27 x 4.40 cm 48.00 x 68.92 x 4.40 cm

  • 1x CL5716 LCD KVM Switch with standard Rack Mount Kit
  • 2x Custom KVM Cable Sets
  • 1x 5-in-1 USB / PS/2 Console Cable
  • 1x Firmware Upgrade Cable
  • 1x Power Cord (AC Power Models)
  • 1x User Instructions
