CL3700NW Aten 1U Ultra Short Depth Single Rail WideScreen LCD Console (USB / HDMI)

£1,795.00 inc VAT

Aten CL3700NW bUSB and HDMI LCD Console is a short depth single rail KVM Console featuring an 18.5″ LED-backlit widescreen LCD monitor with an integrated keyboard and touchpad. The Console supports HDMI video input, the 18.5″ LCD screen supports Full HD resolution of 1920 x 1080 @ 60Hz (CL3700NW); 18.5″ LCD screen supports resolution of 1366 x 768 @ 60Hz (CL3700NX). External console supports input video resolutions up to 1920 x 1200 @ 60Hz, supports an external console with USB / HDMI connectors, additional hot-pluggable USB mouse port on front panel (also functions as a USB peripheral port) and console selection via hotkey.





Data Sheet

Manual

SKU: CL3700NW Categories: , , , , , , , , , , Tags: , , , , ,

Description

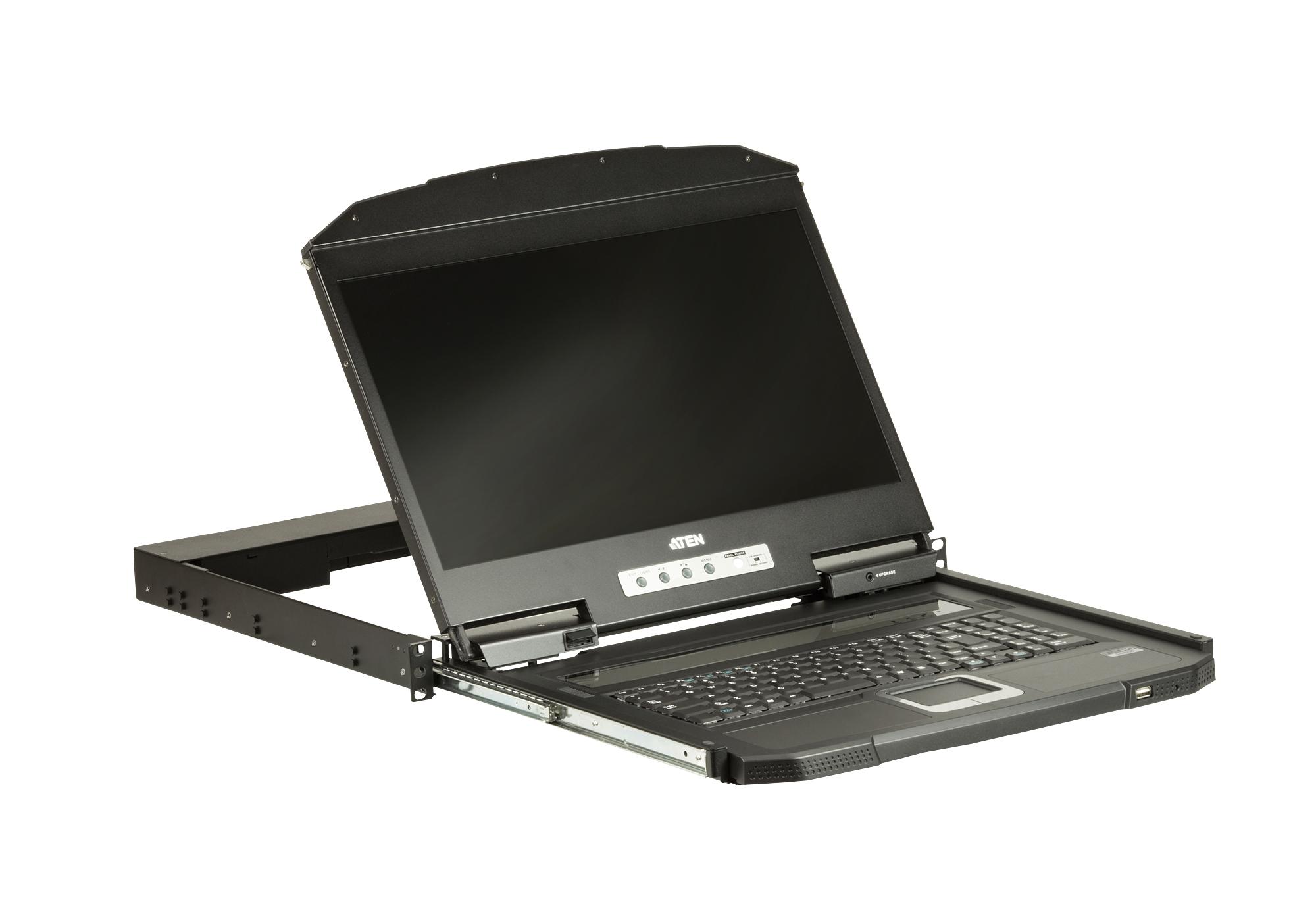

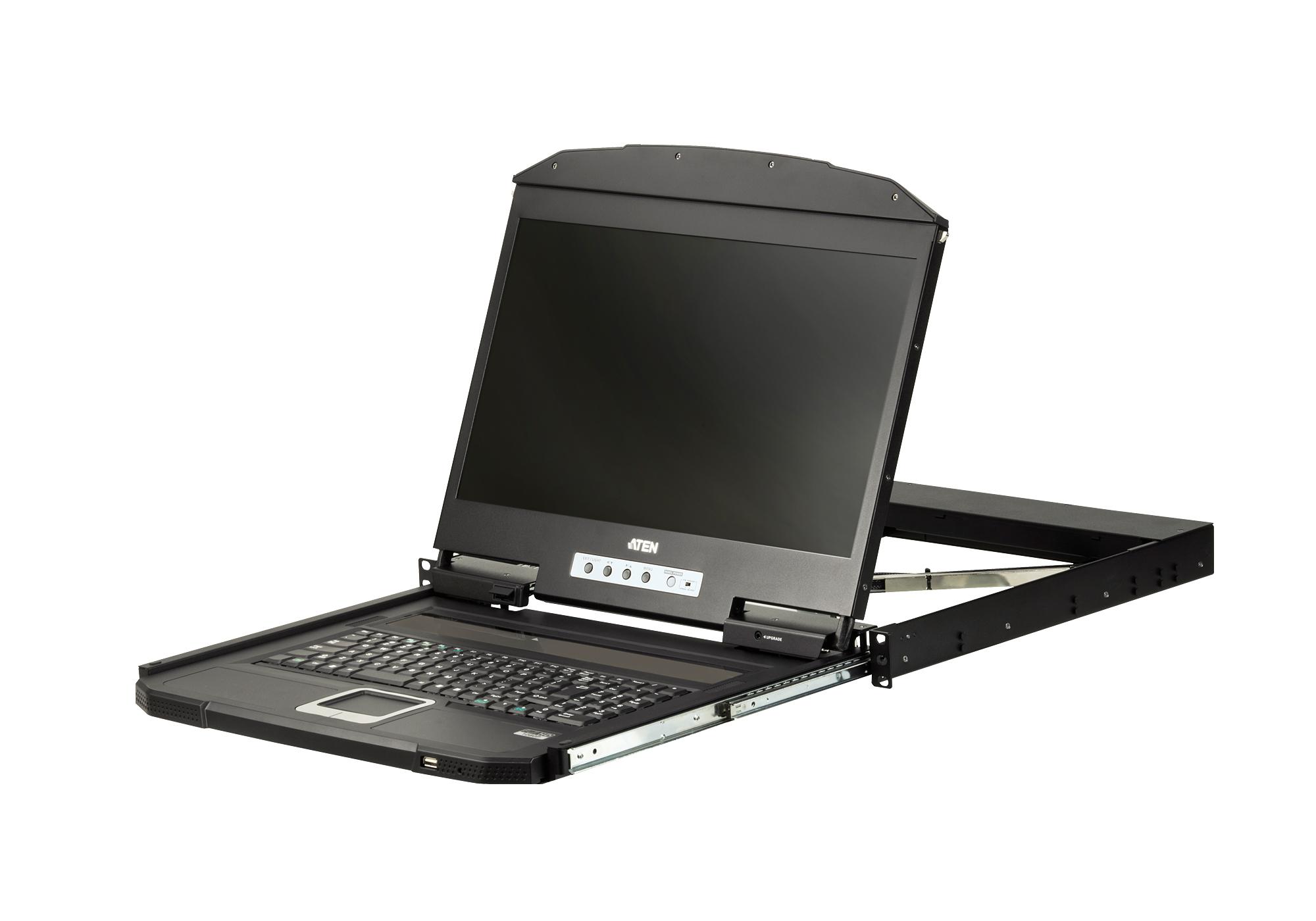

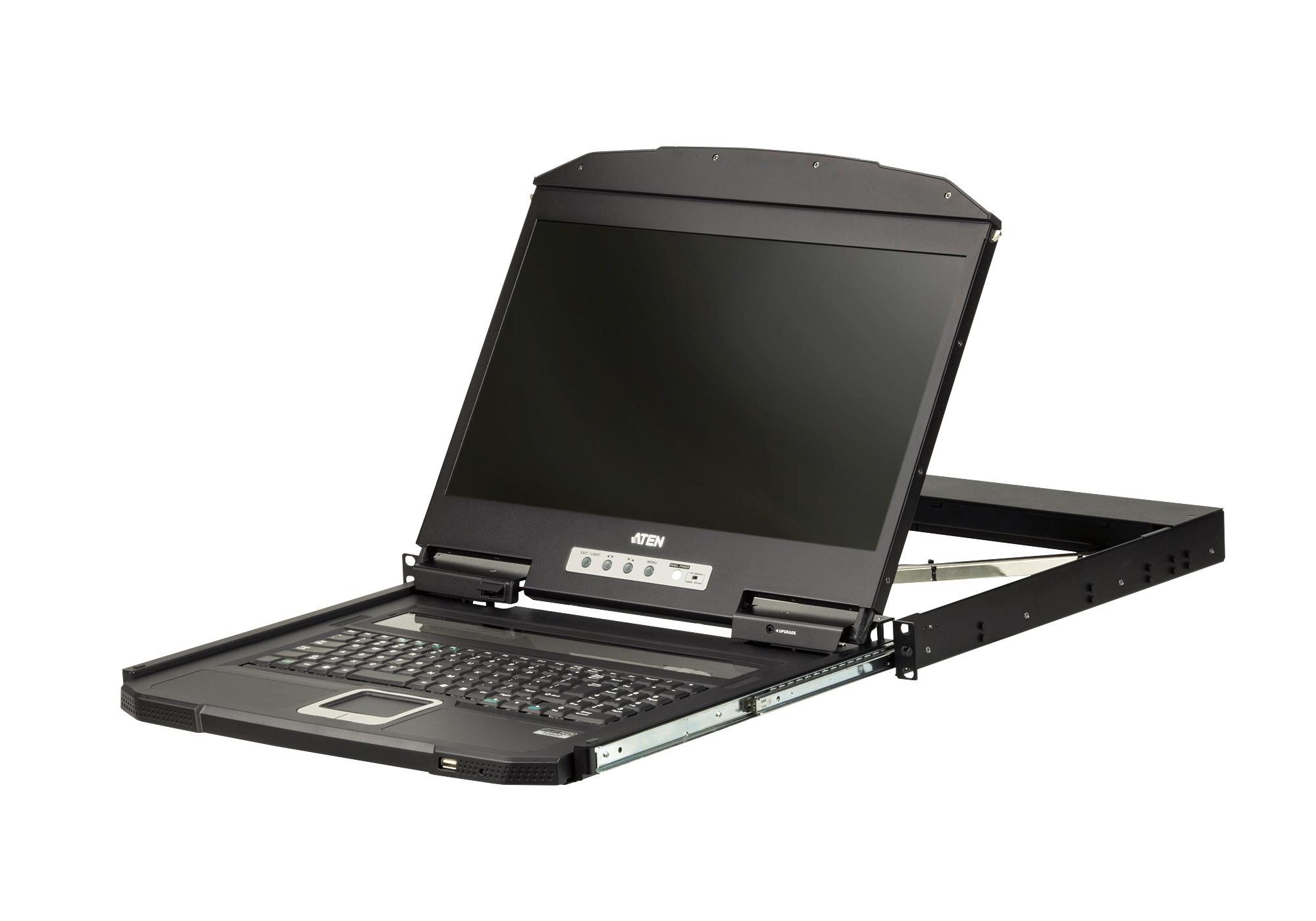

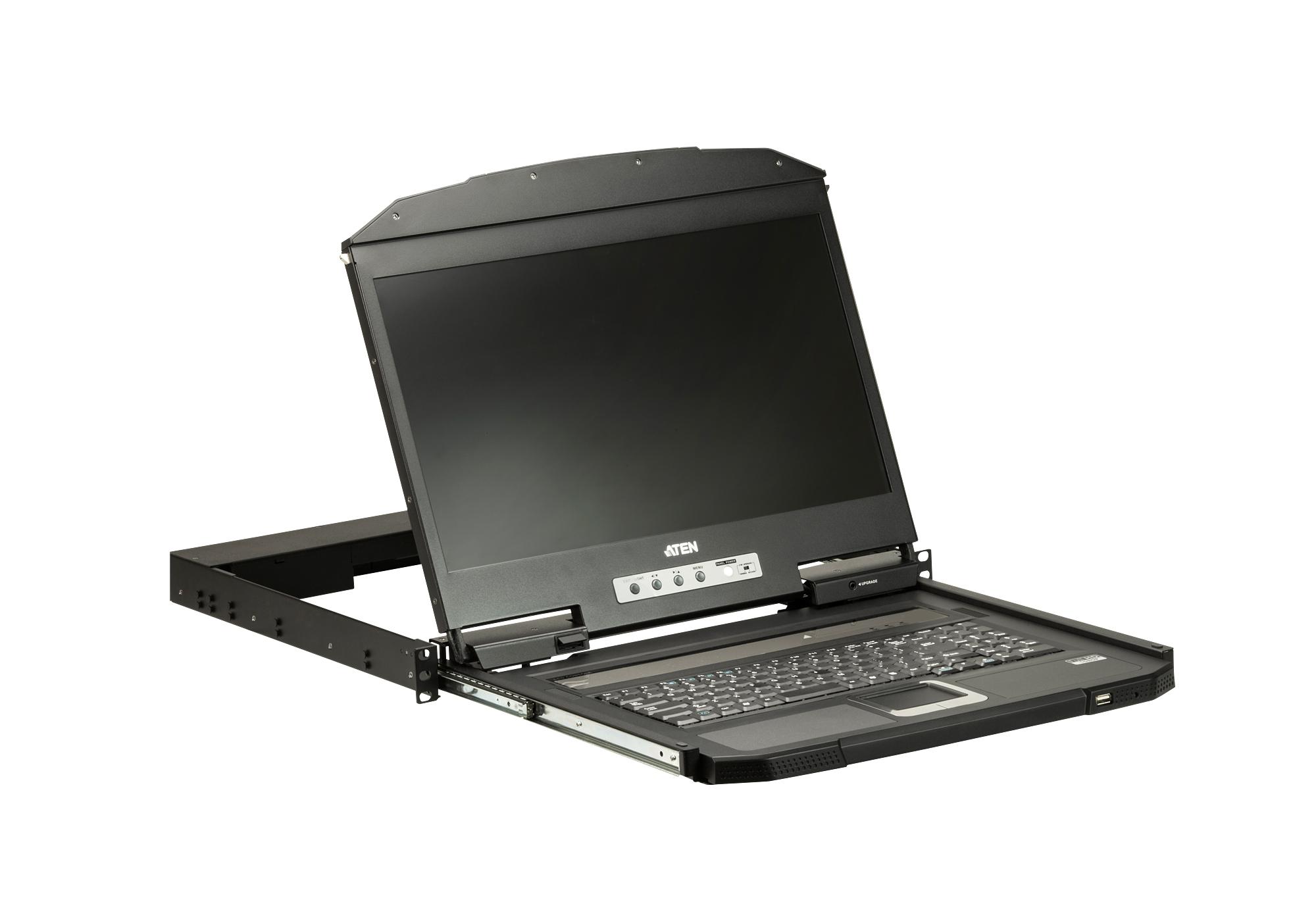

The CL3700 USB HDMI LCD Console is a short depth single rail LCD KVM console featuring an 18.5″ LED-backlit widescreen LCD monitor with an integrated keyboard and touchpad. The short-depth design fits all 19″ equipment cabinets, and is especially suitable for shallow racks. The CL3700 provides an ideal space-saving solution for special environments such as outside broadcast vans (OB vans) and compact control rooms.

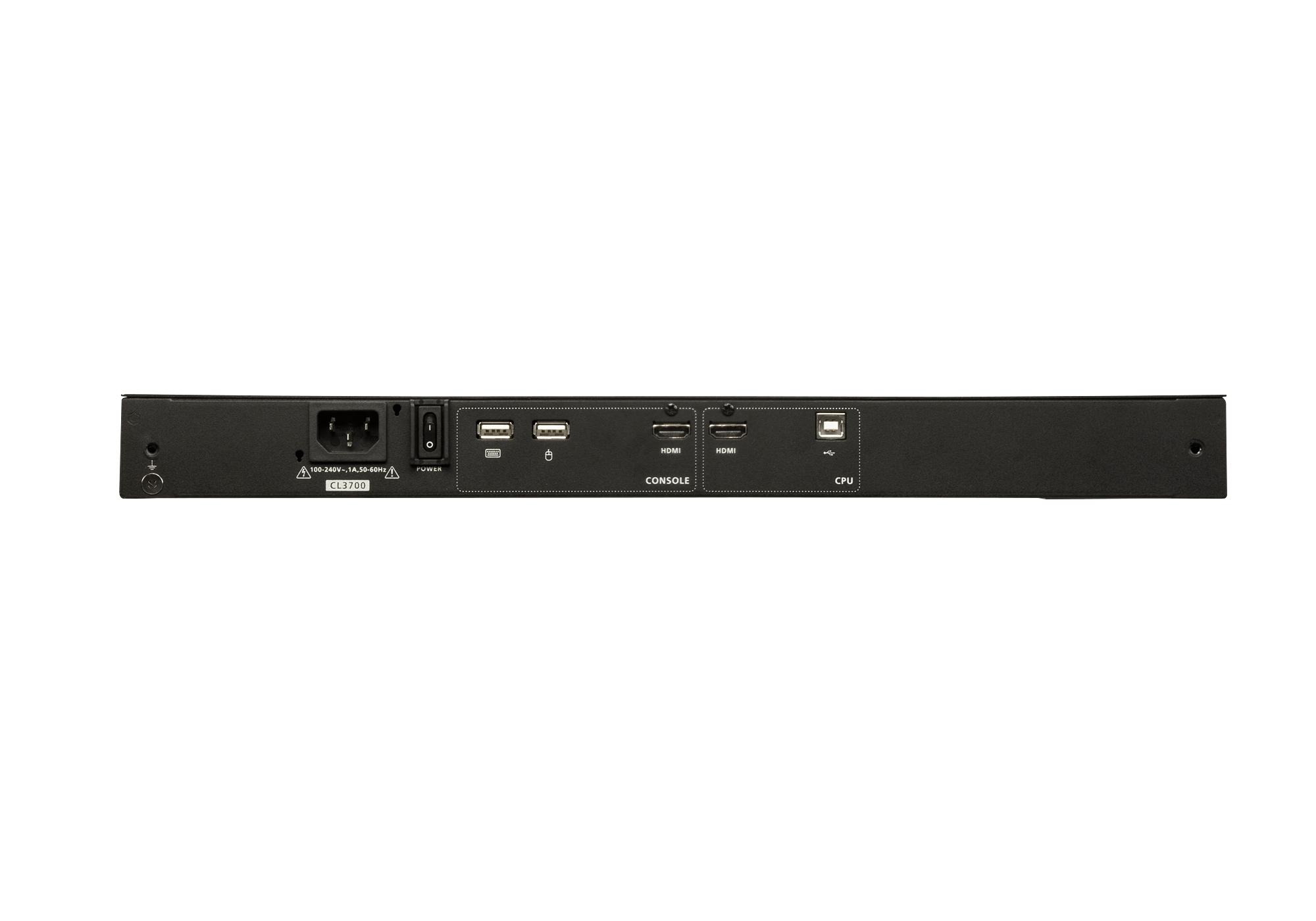

The CL3700 is a dedicated front end sliding console for compatible HDMI KVM switches. The CL3700NW’s full HD widescreen LCD monitor ensures excellent video quality and provides ample viewing area. For added convenience, users can choose to manage the computer from an external console. The CL3700 features a port for an external USB mouse on the unit’s front panel, while ports for the second KVM console (USB keyboard/mouse and HDMI monitor) are provided on the rear panel.

With a rich feature set, the CL3700 is designed to exceed the requirements for space utility optimization, superior video quality, adaptive deployment, and operational versatility, and is ideal for applications such as mobile live streaming in the broadcasting sector or control rooms with limited space in any industry.

CL3700NW: 18.5″ LCD screen with Full HD resolution of 1920 x 1080

  • Space Utility Optimization
    • Exclusive LED illumination light – designed by ATEN to illuminate the keyboard and touchpad to allow visibility in low-light conditions
    • Integrated LCD KVM console with an 18.5” LED-backlit widescreen LCD monitor in a single rail housing with top and bottom clearance for smooth operation in a 1U high system rack
    • Short-depth design allows you to work with your rack-mounting equipment in narrow spaces
    • Console lock – enables the console drawer to remain securely locked away in position when not in use



  • Remarkable Video Experience
    • Supports HDMI video input
    • 18.5″ LCD screen supports Full HD resolution of 1920 x 1080 @ 60Hz (CL3700NW); 18.5″ LCD screen supports resolution of 1366 x 768 @ 60Hz (CL3700NX)
    • External console supports input video resolutions up to 1920 x 1200 @ 60Hz



  • Installation Flexibility
    • Standard rack mount kit included
    • Optional Easy Installation Rack Mounting Kit available*
    • No software required
    • Firmware upgradable
    • Supports hot-plugging



  • Reliability and Operational Versatility
    • Supports an external console with USB / HDMI connectors
    • Additional hot-pluggable USB mouse port on front panel (also functions as a USB peripheral port)
    • Console selection via hotkey
    • Standard 105-key keyboard
    • Keyboard Language support: English(US), English(UK), French, German, German(Swiss), Greek, Hungarian, Italian, Japanese, Korean, Russian, Spanish, Swedish, Traditional Chinese, and Turkish
    • The design complies to the UL 60950-1 and CAN/CSA standards* The Easy Installation Rack Mounting Kit is sold separately. Contact your ATEN dealer for product information.
Function CL3700NW CL3700NX
Computer Connections
Direct 1 1
Console Selection Hotkey Hotkey
Connectors
External Console Ports 1 x HDMI Female
2 x USB Type A Female		 1 x HDMI Female
2 x USB Type A Female
KVM Ports 1 x HDMI Female
1 x USB Type B Female		 1 x HDMI Female
1 x USB Type B Female
USB Port 1 x USB Type A Female 1 x USB Type A Female
Firmware Upgrade 1 x 3.5mm Audio Jack Female (Black) 1 x 3.5mm Audio Jack Female (Black)
Power 1 x 3-prong AC Socket 1 x 3-prong AC Socket
Switches
Reset 1 x Semi-recessed Pushbutton 1 x Semi-recessed Pushbutton
Firmware Upgrade 1 x Slide Switch 1 x Slide Switch
Power 1 x Rocker Switch 1 x Rocker Switch
LCD Power 1 x Pushbutton 1 x Pushbutton
LCD Adjustment 4 x Pushbutton 4 x Pushbutton
LEDs
Power 1 x KVM Console (Dark Green)
1 x LCD (Orange)		 1 x KVM Console (Dark Green)
1 x LCD (Orange)
Lock 1 x NumLock (Green)
1 x CapsLock (Green)
1 x ScrollLock (Green)		 1 x NumLock (Green)
1 x CapsLock (Green)
1 x ScrollLock (Green)
Emulation
Keyboard / Mouse USB USB
Video
Input Video Resolution 1920 x 1200 @ 60 Hz 1920 x 1200 @ 60 Hz
Panel Spec
LCD Module 18.5″ TFT-LCD 18.5″ TFT-LCD
Resolution 1920 x 1080 @ 60Hz 1366 x 768 @ 60Hz
Pixel Pitch 0.213 mm x 0.213 mm 0.3 mm x 0.3 mm
Response time 20 ms 5 ms
Viewing Angle 178° (H), 178° (V) 170° (H), 160° (V)
Contrast Ratio 1000 : 1 1000 : 1
Support Color 16.7M colors 16.7M colors
Luminance 350 cd/m² 250 cd/m²
Maximum Input Power Rating 100–240 V AC, 50/60 Hz, 1 A 100–240 V AC, 50/60 Hz, 1 A
Power Consumption AC110V:23.3W:124BTU
AC220V:23.9W:127BTU		 AC110V:13.6W:79BTU
AC220V:13.5W:78BTU
Environmental
Operating Temperature 0–40°C 0–40°C
Storage Temperature -20–60°C -20–60°C
Humidity 0–80% RH, Non-condensing 0–80% RH, Non-condensing
Physical Properties
Housing Metal + Plastic Metal + Plastic
Weight 9.01 kg ( 19.85 lb ) 9.03 kg ( 19.89 lb )
Dimensions (L x W x H) 48.06 x 47.70 x 4.28 cm
(18.92 x 18.78 x 1.69 in.)		 48.06 x 47.70 x 4.28 cm
(18.92 x 18.78 x 1.69 in.)
Body Dimensions(L x W x H) 44.92 x 43.00 x 4.28 cm 44.92 x 43.00 x 4.28 cm
Note Body Dimensions exclude I/O ports, handles, and mounting brackets. Body Dimensions exclude I/O ports, handles, and mounting brackets.
Note For some of rack mount products, please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format.
  • 1x CL3700 LCD KVM Console with Standard Rack Mount Kit
  • 1x USB HDMI KVM Cable (HDMI, USB, Audio; 1.8 m/6 ft)
  • 1x Firmware Upgrade Cable
  • 1x Power Cord
  • 1x User Instructions
