CL3000N Aten Lightweight 19″ PS/2-USB and VGA Console

£1,299.00 inc VAT

Aten CL3000N 19″ Combo PS/2 & USB LED Console features lightweight design for easier installation and superior video quality – up to 1280 x 1024 @ 75 Hz; DDC2B. It has Extra console port – manage computers from an external console (monitor, USB or PS/2 keyboard and mouse) and adjustable depth to fit within a rack.

Data Sheet

Manual

Description

The CL3000N Lightweight PS/2-USB LCD Console is a LCD KVM console that serves as the front end console for compatible KVM switches.
Lightweight and with a 19” power-saving LED-backlit LCD, the CL3000N offers a space-saving, streamlined approach to KVM switch technology by integrating a keyboard, LED-backlit LCD monitor, and touchpad in a 1U housing.

In addition, testing is performed utilizing the MIL-STD-810G* (Method 514.6, Procedure 1, Category 4 Common Carrier) procedure for Vibration Certification. MIL-STD-810G testing provides proven reliable operations of the CL3000N in harsh environments, by using advanced testing to emphasize the equipment’s environmental design and limits in real world conditions that it will experience throughout its life; such as operating in a moving vehicle or on a factory floor where high vibrations occur often.

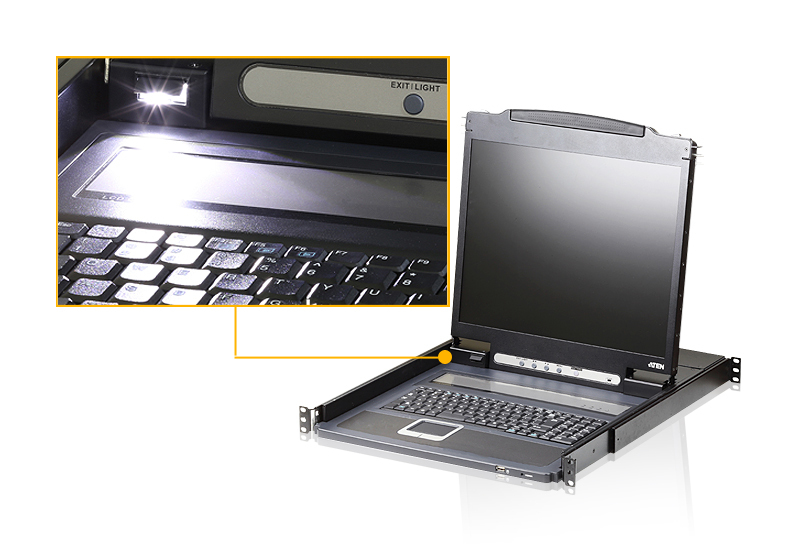

  • Exclusive LED illumination light – designed by ATEN to illuminate the keyboard and touchpad to allow visibility in low-light conditions
  • Integrated KVM console featuring a19″ LCD monitor
  • Green power LED-backlit LCD monitor saves energy
  • Lightweight design for easier installation
  • Advanced Random Vibration Resistance Testing – MIL-STD-810G Certified
  • Dual Interface – supports computers with PS/2 or USB keyboards and mice
  • Additional hot-pluggable USB mouse port on the front panel (also functions as a USB peripheral port)
  • Multiplatform support – Windows, Linux, Mac, and Sun
  • Superior video quality – up to 1280 x 1024 @ 75 Hz; DDC2B
  • Firmware upgradable
  • Extra console port – manage computers from an external console (monitor, USB or PS/2 keyboard and mouse)
  • Console lock – the console remains securely locked away when not in use
  • Slideaway™ housing is slightly less than 1U with top and bottom clearance for smooth operation in 1U of rack space
  • DDC emulation – video settings of each computer are automatically adjusted for optimal output to the monitor
  • Adjustable depth to fit within a rack
  • Standard 105-key keyboard
  • Keyboard Language support: English (US), English (UK), French, German, German (Swiss), Greek, Hungarian, Ialitan, Japanese, Korean, Russian, Spanish, Swedish and Traditional Chinese

For Easy Installation, click here

Computer Connections 1
Console Selection Hotkey

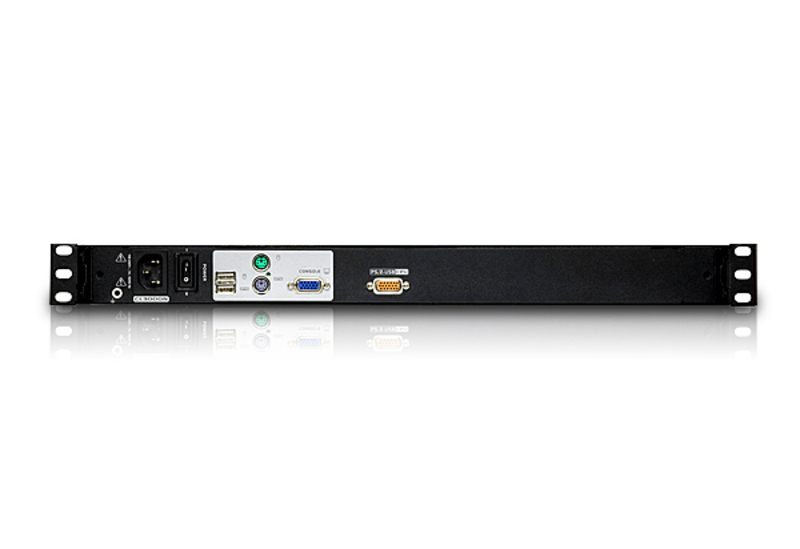

Connectors External
Console
Ports
Keyboard 1 x 6-pin Mini-DIN Female (Purple)
1 x USB Type A Female (Black)
Video 1 x HDB-15 Female (Blue)
Mouse 1 x 6-pin Mini-DIN Female (Green)
1 x USB Type A Female (Black)
KVM Ports 1 x SPHD-18 Male (Yellow)
USB Port 1 x USB Type A Female (Black)
Power 1 x 3-prong AC Socket
Switches Reset 1 x Semi-recessed Pushbutton
Power 1 x Rocker
F/W Upgrade 1 x Slide
LCD Power 1 x Pushbutton
LCD Adjustment 4 x Pushbutton
LEDs Power 1 (Green)
Lock Num 1 (Green)
Caps 1 (Green)
Scroll 1 (Green)
Emulation Keyboard / Mouse PS/2, USB
Video 1280 x 1024@75Hz, DDC2B
Input 100–240VAC; 50–60Hz; 1A
Power Consumption 120V, 21.4W / 230V, 22.7W
Random Vibration Resistant Test MIL-STD-810G Certified Test Conditions:
• Frequency Range: 5-500Hz
• Grams: Value X, Y axis 0.76Grms, Z axis 1.07Grms
• Test Duration: 1 hour/per axis
Environment Operating Temp. 0–40°C
Storage Temp. -20–60°C
Humidity 0–80% RH, Non-condensing
Physical Properties Housing Aluminum
Weight 9.00 kg
Dimensions ( D x W x H ) 48.00 x 58.92 x 4.40 cm
  • 1x CL3000 Lightweight PS/2-USB LCD Console with Standard Rack Mounting Kit
  • 1x Custom KVM Cable
  • 1x Power Cord
  • 1x User Instructions
