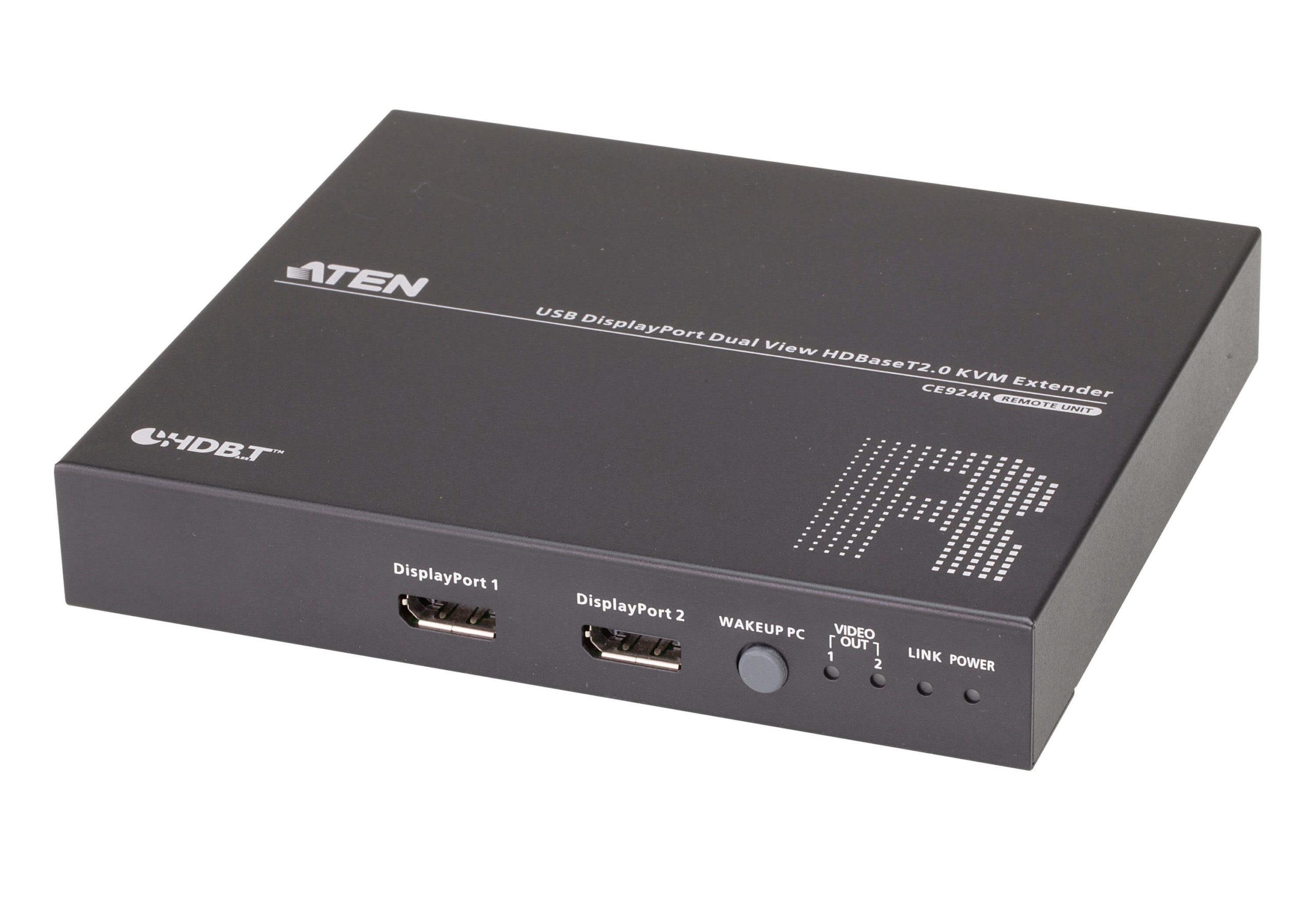

CE924 Aten DisplayPort Dual View HDBaseT 2.0 KVM Extender (4K @ 100m)

£1,449.00 inc VAT

Aten CE924 USB 2.0 DisplayPort Dual View HDBaseT 4K  extender:

  • Allows dual view DisplayPort access to a computer and KVM control from a remote console
  • Extends video, audio, USB, and RS-232 signals via a single Cat6 / 6a / 2L-2910 Cat 6 cable
  • Supports 4 ports USB 2.0 full speed hub on the receiver–allowing to connect up to 4 various USB 2.0 peripheral
  • Long distance with superior video quality
    – HDBaseT™ Standard mode up to 4K @ 100 m (Cat 6 / 6a / 2L-2910); (single view only; dual-view resolution up to 1080P)
    – HDBaseT™ Long-Reach mode up to 1080P @ 150 m (single view only; dual-view resolution up to 720P)

Data Sheet

Manual

SKU: CE924 Categories: , , , , , , , , , , , , , Tags: , , , , , , ,

Description

The ATEN CE924 USB DisplayPort Dual View HDBaseT™ 2.0 KVM Extender integrates the latest HDBaseT™ 2.0 technologies to deliver 4K video, stereo audio, USB, and RS-232 signals. The HDBaseT™ 2.0 guarantees the most reliable transmission on the market as well as it provides long-reach capability that extends Full HD 1080P signals up to 150 meters. In addition, CE924 supports single 4K display or dual 1080p display for DisplayPort video output resolution up to 100m by using a single Cat6 / 2L-2910 Cat 6 cable.

With an easy cable installation supporting various signals, the CE924 is ideal for applications where convenient remote access is required – such as transportation control centers, medical facilities, industrial warehouses, and extended workstations. For Single View DisplayPort Extension, please see CE920

PLEASE ALLOW 2 WEEKS FOR DELIVERY

  • Allows dual view DisplayPort access to a computer and KVM control from a remote console
  • Supports HDBaseT 2.0 technology
    – Extends video, audio, USB, and RS-232 signals via a single Cat6 / 6a / 2L-2910 Cat 6 cable
    – Enhanced bit error detection and correction to resist signal interference during high-quality video transmissions
    – Status detection and LED indication for HDBaseT™ signal transmission on the remote unit
  • EDID Buffer for smooth power-up and the highest quality display
  • Single category cable to transmit AV and control signal
    – HDBaseT Standard mode up to 4K @ 100 m (via Cat 6 / 6a / 2L-2910); (single view only; dual-view resolution up to 1080p)
    – HDBaseT Long-Reach mode up to 1080P @ 150 m (single view only; dual-view resolution up to 720p)
  • Supports 4 ports USB 2.0 full speed hub on the receiver – allowing to connect up to 4 various USB 2.0 peripheral
  • HDCP Compatible
  • Supports individual 2-channel stereo audio for high-quality audio applications
  • Supports PC wakeup function via single pushbutton through RS-232 channel
  • Built-in 8KV / 15KV ESD protection (Contact voltage 8KV; Air voltage 15KV)
Function CE924L CE924R
Connectors

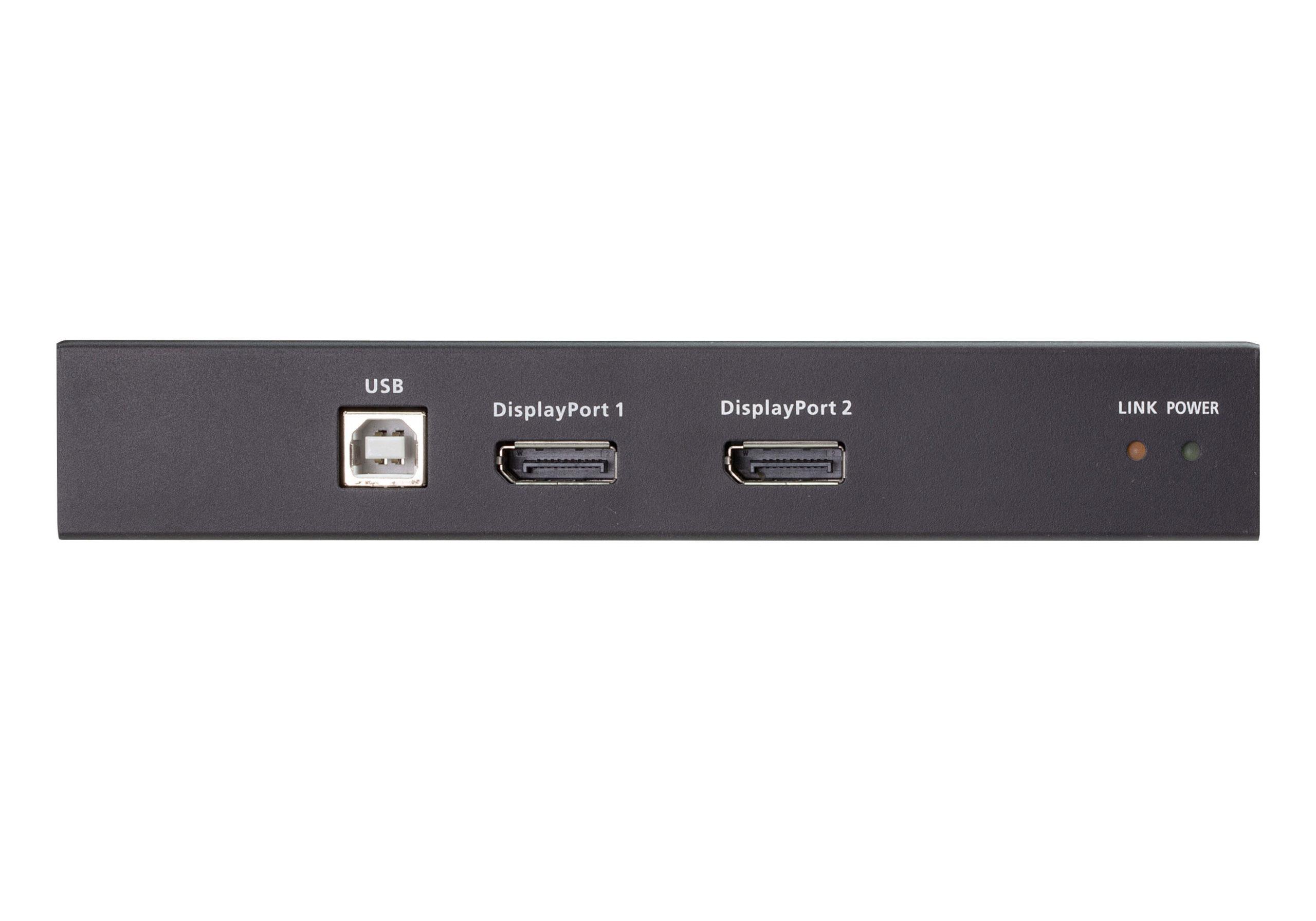

KVM Ports 2 xDisplayPort Female (Black)
1 x USB Type B Female (White)
1 x Mini Stereo Jack Female (Green)
1 x Mini Stereo Jack Female (Pink)		 N/A

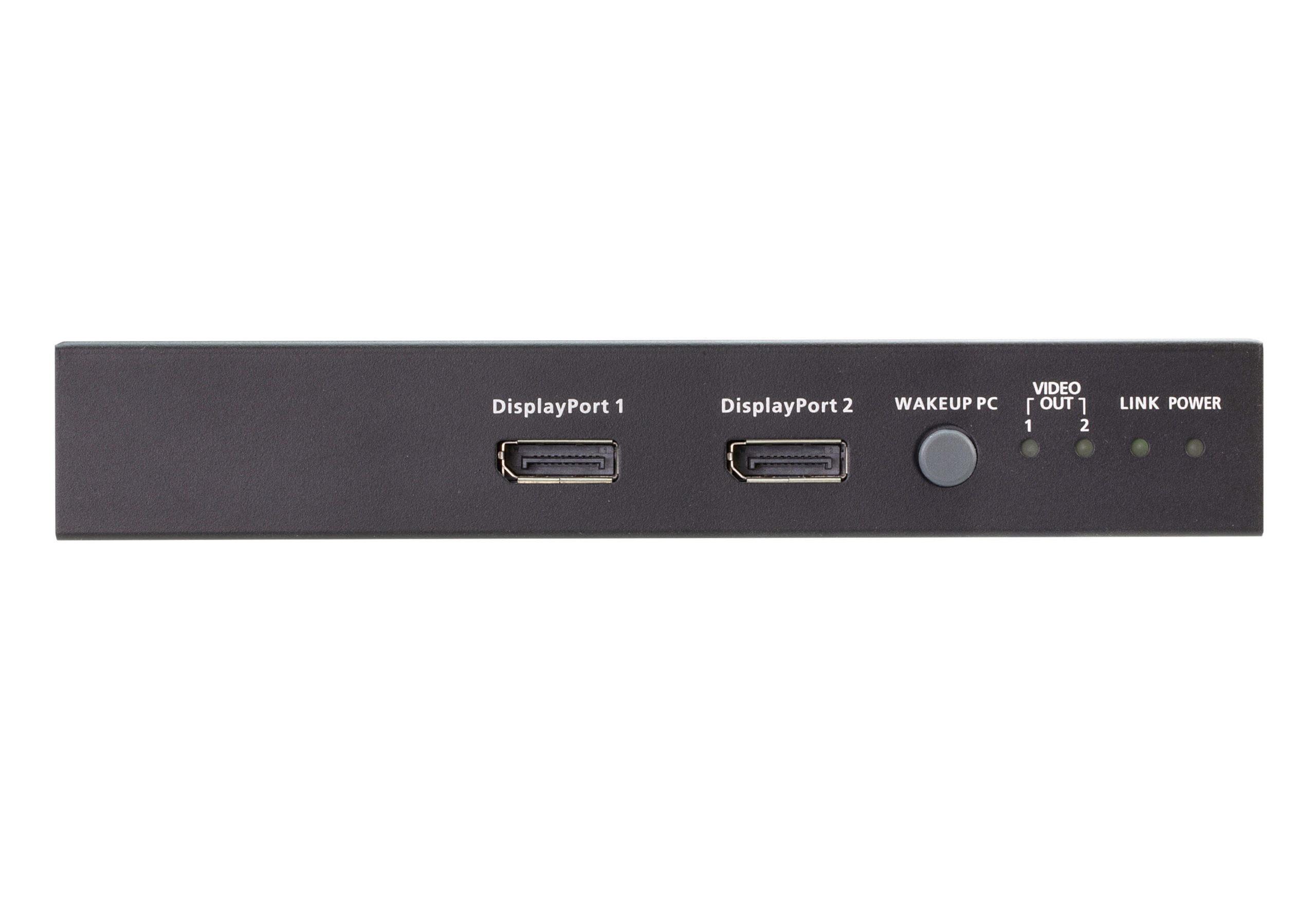

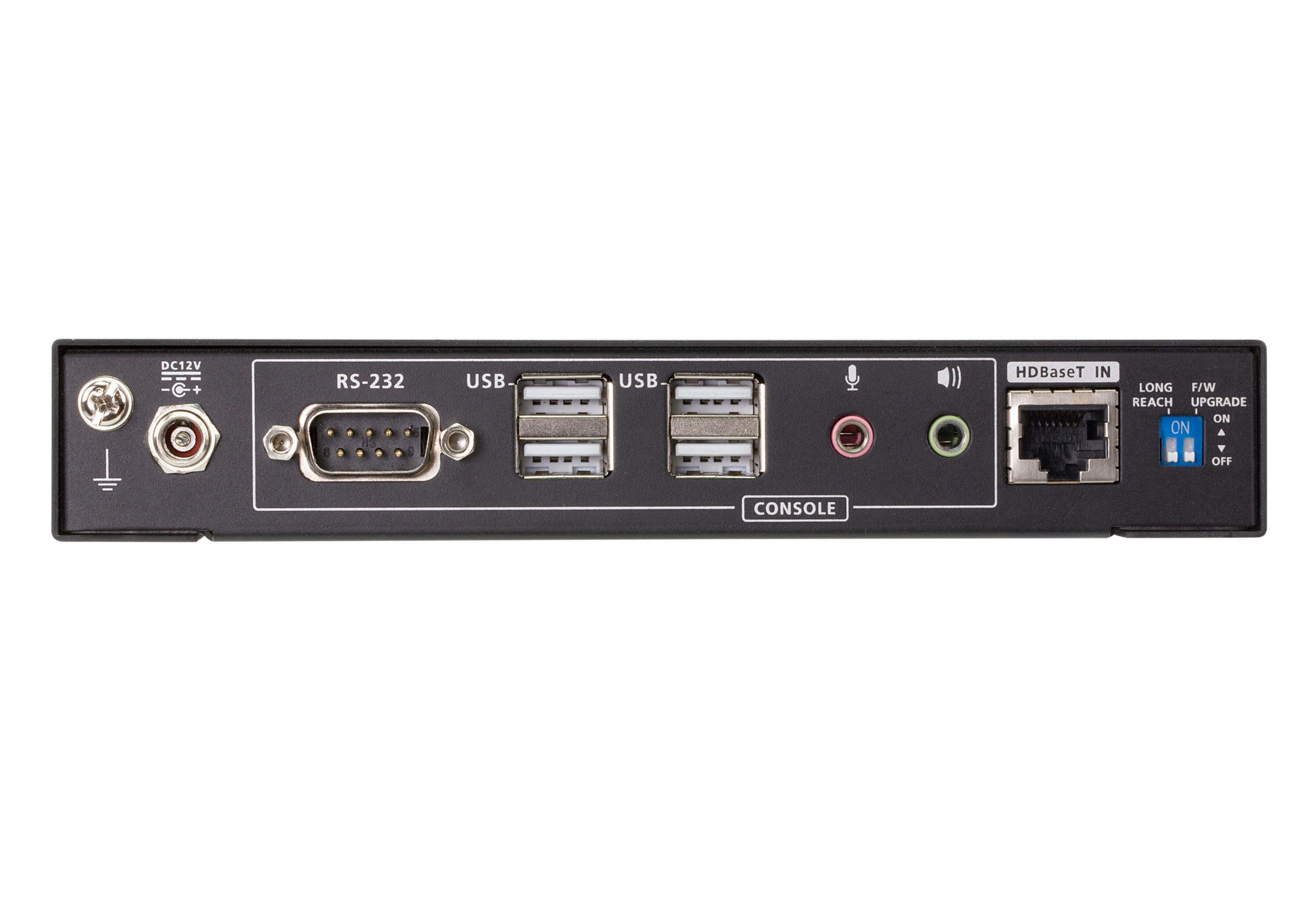

Console Ports N/A 2 x DisplayPort Female (Black)
4 x USB Type A Female (White)
1 x Mini Stereo Jack Female (Green)
1 x Mini Stereo Jack Female (Pink)

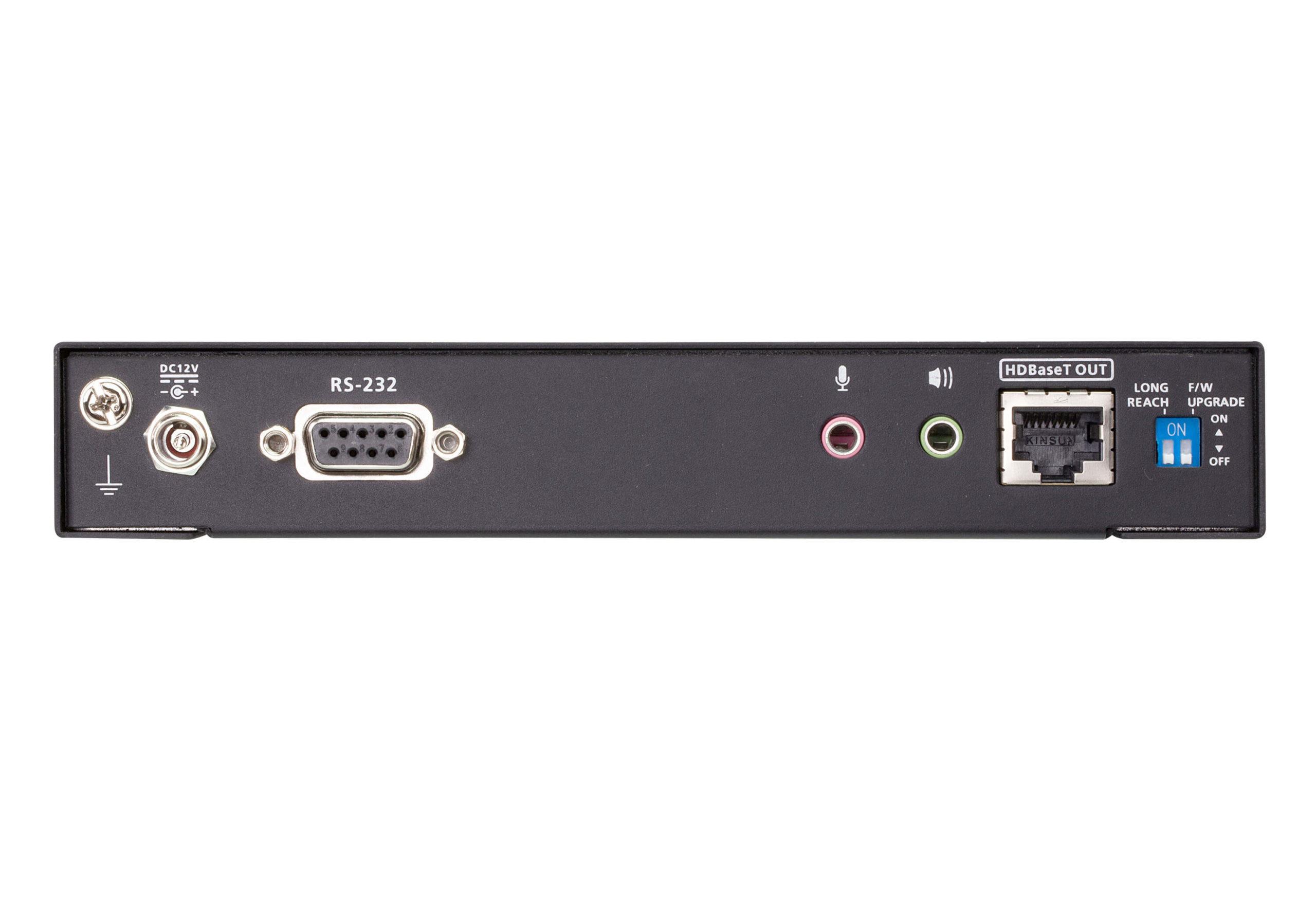

RS-232 1 x DB-9 Female (Black) 1 x DB-9 Male (Black)
Power 1 x DC Jack with locking 1 x DC Jack with locking
Unit To Unit 1 x RJ-45 Female (Black) 1 x RJ-45 Female (Black)
LEDs
Power 1 (Green) 1 (Green)
Link 1 (Orange) 1 (Orange)
Video Output N/A 2 (Orange)
Switches
Long Reach Mode Switch 1 x Slide Switch 1 x Slide Switch
Firmware Upgrade 1 x Slide Switch 1 x Slide Switch
Pushbuttons
Wakeup button N/A 1 x Push button
Video Single view: Up to 4K@90m (Cat 5e) / 100m (Cat 6/6a/ATEN 2L-2910 Cat6)
1080P@100m (Cat 5e/6/6a/ATEN 2L-2910 Cat6)Dual-view: Up to 1080p@100m (Cat 6/6a/ATEN 2L-2910 Cat6)*4K supported:
4096 x 2160 / 3840 x 2160 @ 30Hz (4:4:4)		 Single view: Up to 4K@90m (Cat 5e) / 100m (Cat 6/6a/ATEN 2L-2910 Cat6)
1080P@100m (Cat 5e/6/6a/ATEN 2L-2910 Cat6)Dual-view: Up to 1080p@100m (Cat 6/6a/ATEN 2L-2910 Cat6)*4K supported:
4096 x 2160 / 3840 x 2160 @ 30Hz (4:4:4)
Power Consumption DC12V:7.03W:33BTU DC12V:9.92W:69BTU
Environmental
Operating Temperature 0–40°C 0–40°C
Storage Temperature -20–60°C -20–60°C
Humidity 0–80% RH, Non-condensing 0–80% RH, Non-condensing
Physical Properties
Housing Metal Metal
Weight 0.82 kg ( 1.81 lb ) 0.85 kg ( 1.87 lb )
Dimensions (L x W x H) 17.42 x 15.41 x 2.88 cm
(6.86 x 6.07 x 1.13 in.)		 17.42 x 15.57 x 2.88 cm
(6.86 x 6.13 x 1.13 in.)
Note DisplayPort support up to 4Kx2K @ 30Hz, not supports 4Kx2K @ 60Hz, 4:2:0; also not support MST mode. DisplayPort support up to 4Kx2K @ 30Hz, not supports 4Kx2K @ 60Hz, 4:2:0; also not support MST mode.
Note For some of rack mount products, please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format.

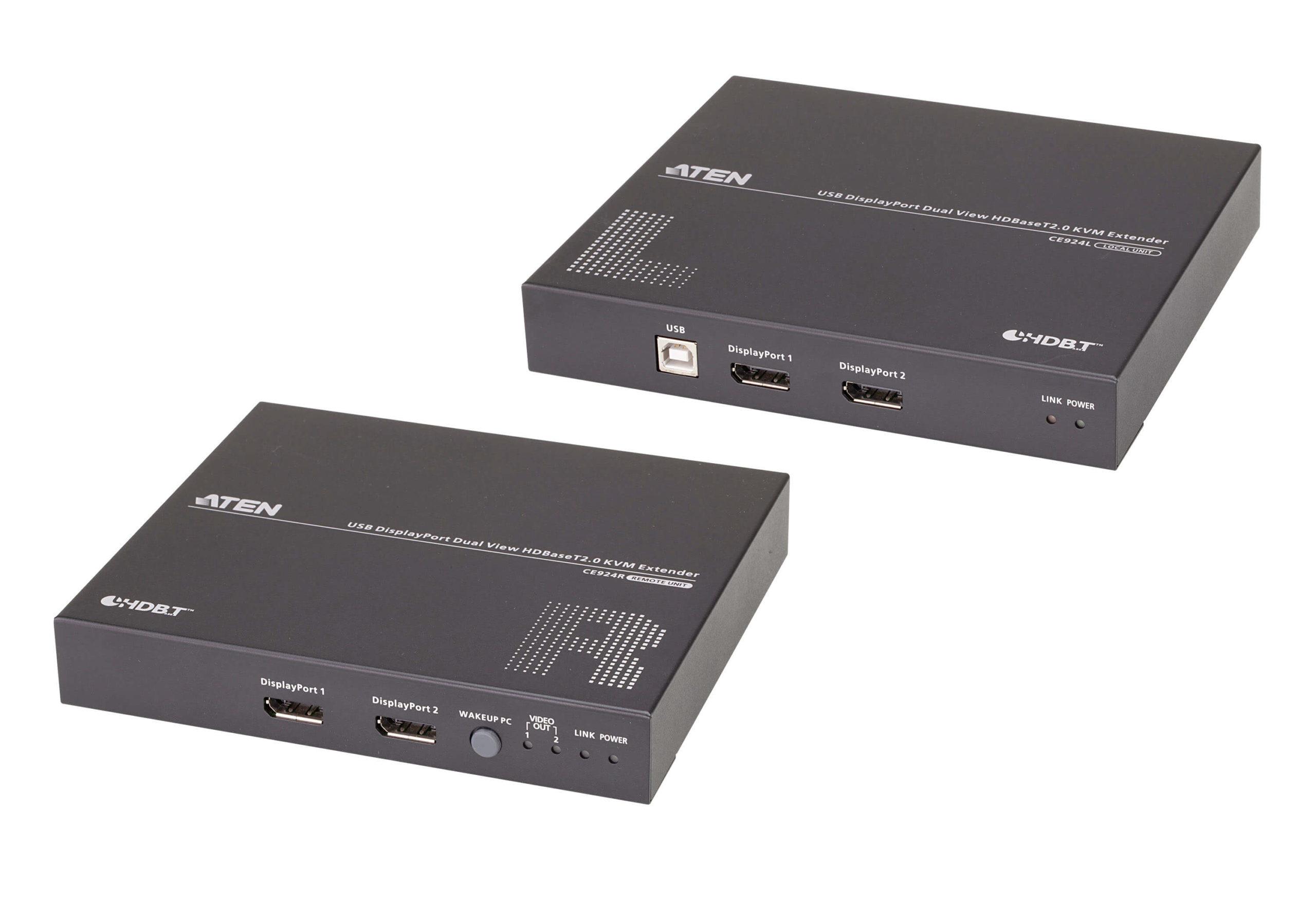

  • 1x CE924L USB DisplayPort Dual View HDBaseT 2.0 KVM Extender (Local Unit)
  • 1x CE924R USB DisplayPort Dual View HDBaseT 2.0 KVM Extender (Remote Unit)
  • 2x DisplayPort cables
  • 1x pink audio jack cable set
  • 1x green audio jack cable set
  • 1x USB type-A to type-B cable
  • 2x power adapters
  • 2x mounting kits
  • 1x user instructions
