£875.00 inc VAT

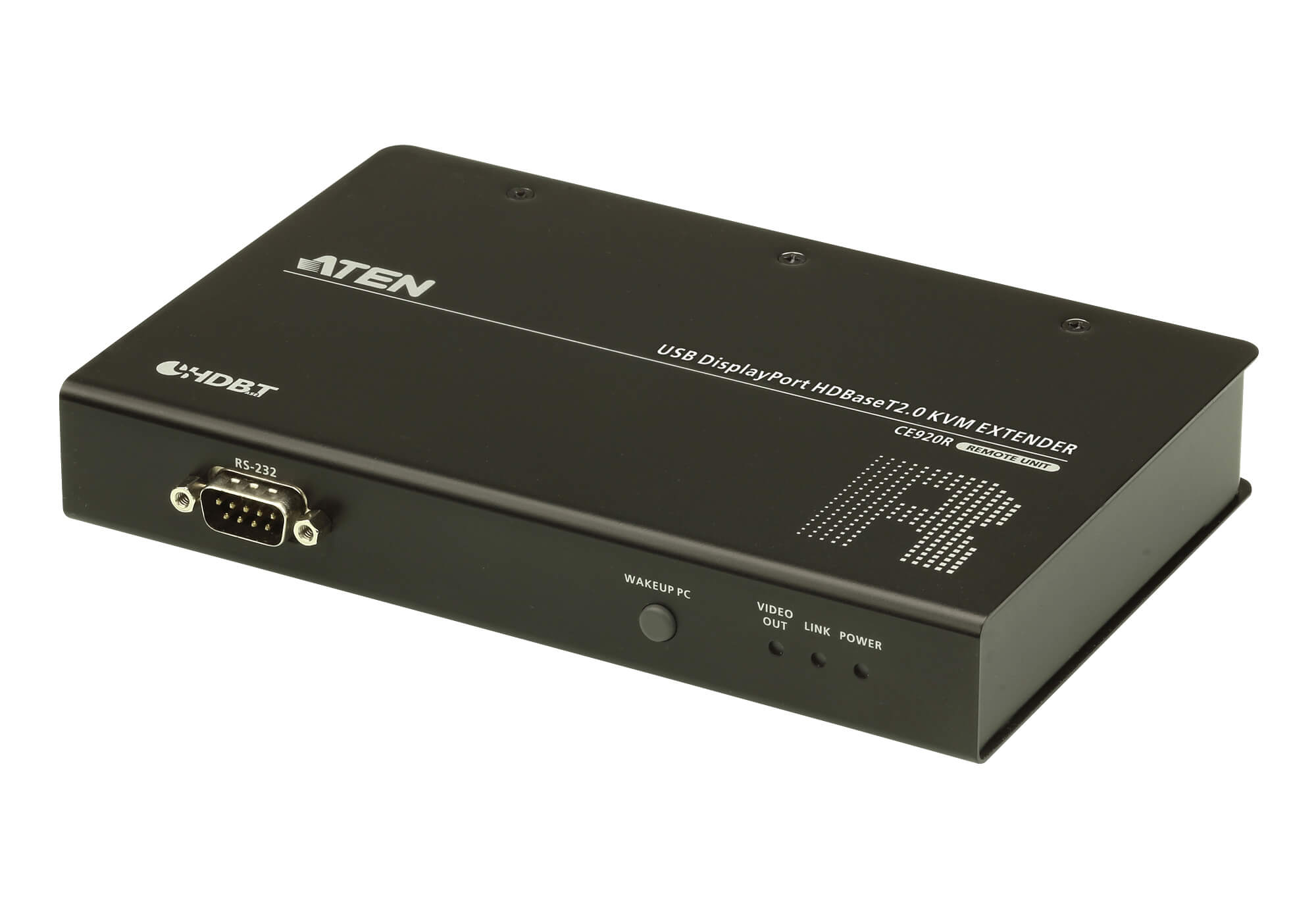

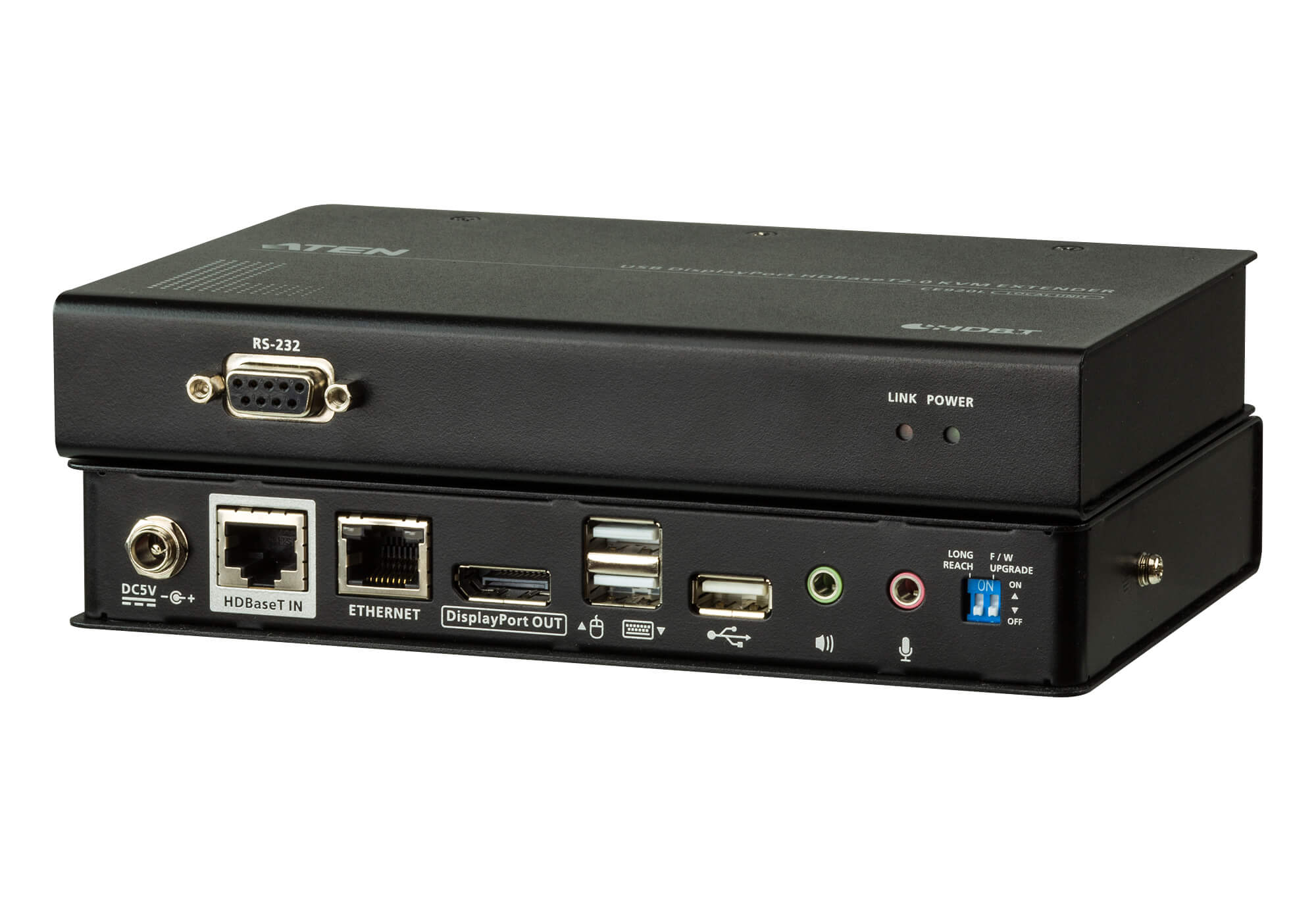

Aten CE920 USB 2.0 DisplayPort HDBaseT 4K extender:

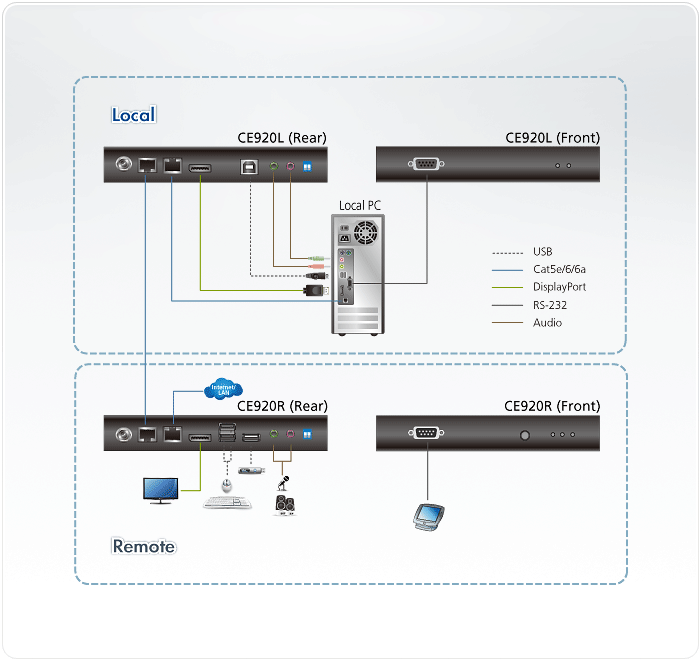

The ATEN CE920 USB DisplayPort HDBaseT™ 2.0 KVM Extender integrates the latest HDBaseT™ 2.0 technologies to deliver 4K video, stereo audio, USB, Ethernet, and RS-232 signals up to 100 meters using a single Cat6 / 2L-2910 Cat 6 cable. The HDBaseT™ 2.0 guarantees the most reliable transmission on the market as well as enables the long-reach capability that extends full HD 1080P signals up to 150 meters. With an easy cable installation supporting various signals, the CE920 is ideal for applications where convenient remote access is required – such as transportation control centers, medical facilities, industrial warehouses, and extended workstations.
| Function | CE920L | CE920R |
| Connectors | ||

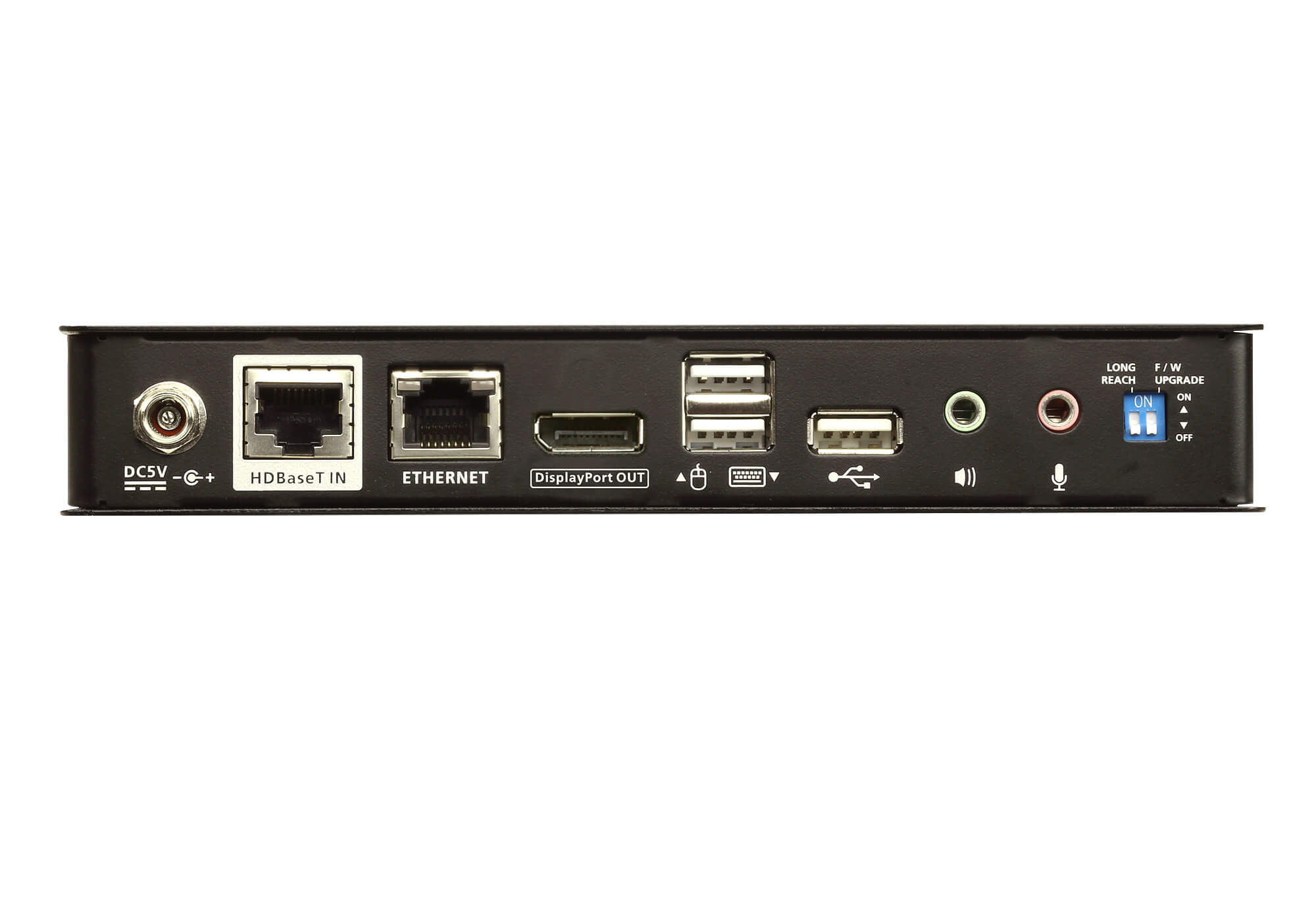

| Console Ports | N/A | 1 x DisplayPort Female (Black) 3 x USB Type A Female 1 x Mini Stereo Jack Female (Green) 1 x Mini Stereo Jack Female (Pink) 1 x RJ-45 Female (Black) |

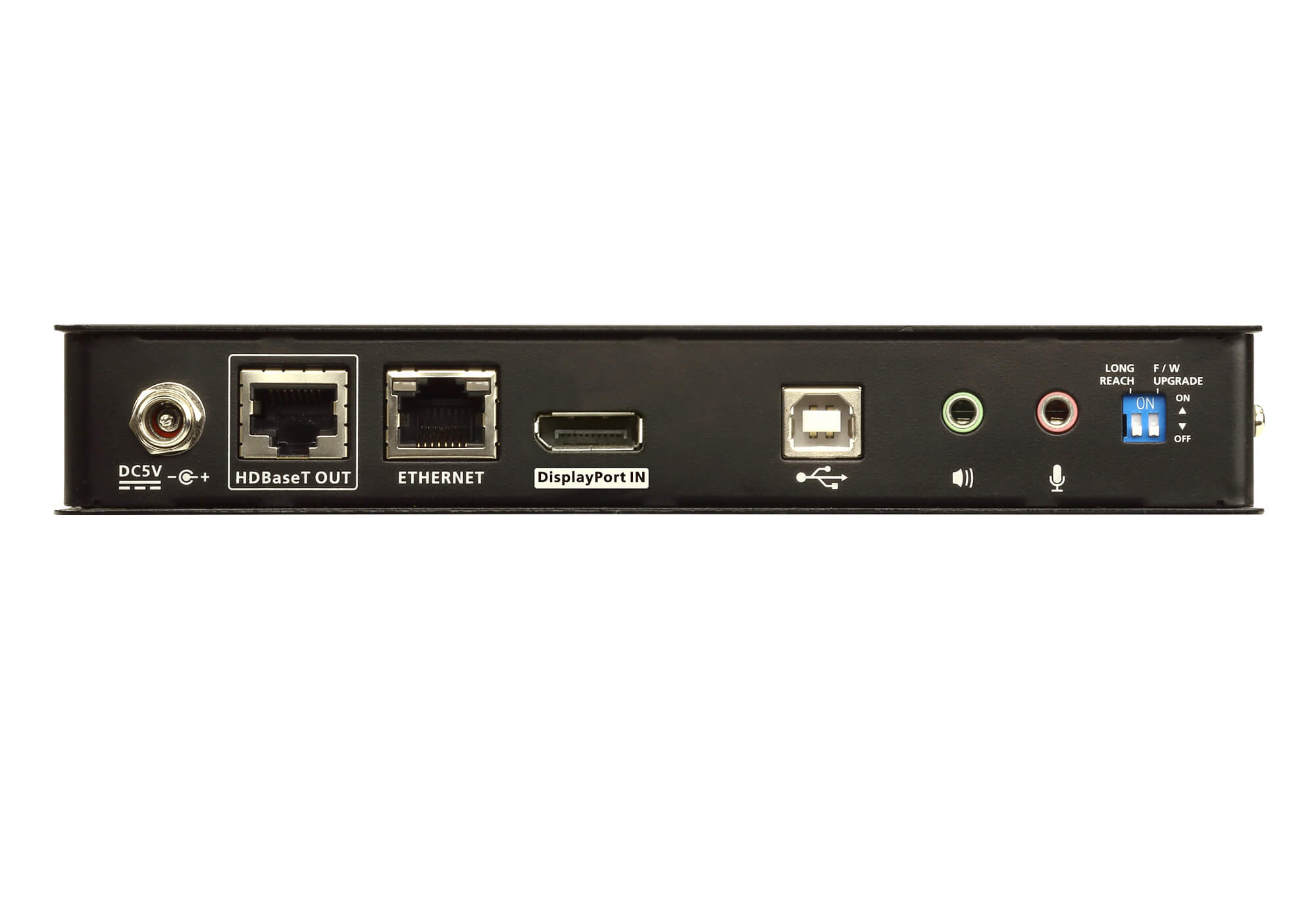

| KVM Ports | 1 x DisplayPort Female (Black) 1 x USB Type B Female (White) 1 x Mini Stereo Jack Female (Green) 1 x Mini Stereo Jack Female (Pink) 1 x RJ-45 Female (Black) |
N/A |

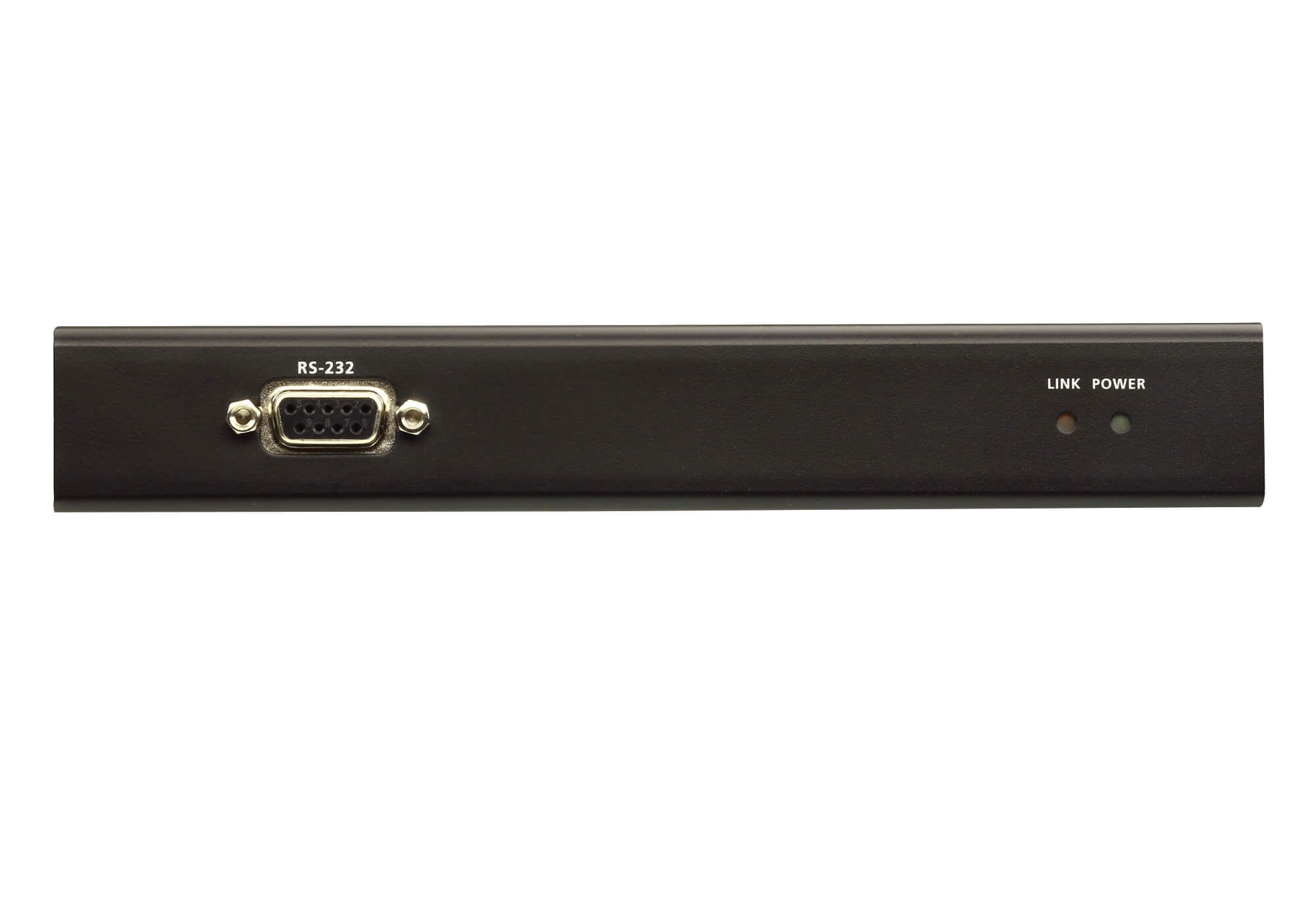

| RS-232 | 1 x DB-9 Female (Black) | 1 x DB-9 Male (Black) |
| Power | 1 x DC Jack with locking | 1 x DC Jack with locking |
| Unit To Unit | 1 x RJ-45 Female (Black) | 1 x RJ-45 Female (Black) |
| LEDs | ||
| Power | 1 (Green) | 1 (Green) |
| Link | 1 (Orange) | 1 (Orange) |
| Video Output | N/A | 1 (Orange) |
| Switches | ||
| Long Reach Mode Switch | 1 x Slide Switch | 1 x Slide Switch |
| Firmware Upgrade | 1 x Slide Switch | 1 x Slide Switch |
| Pushbuttons | ||

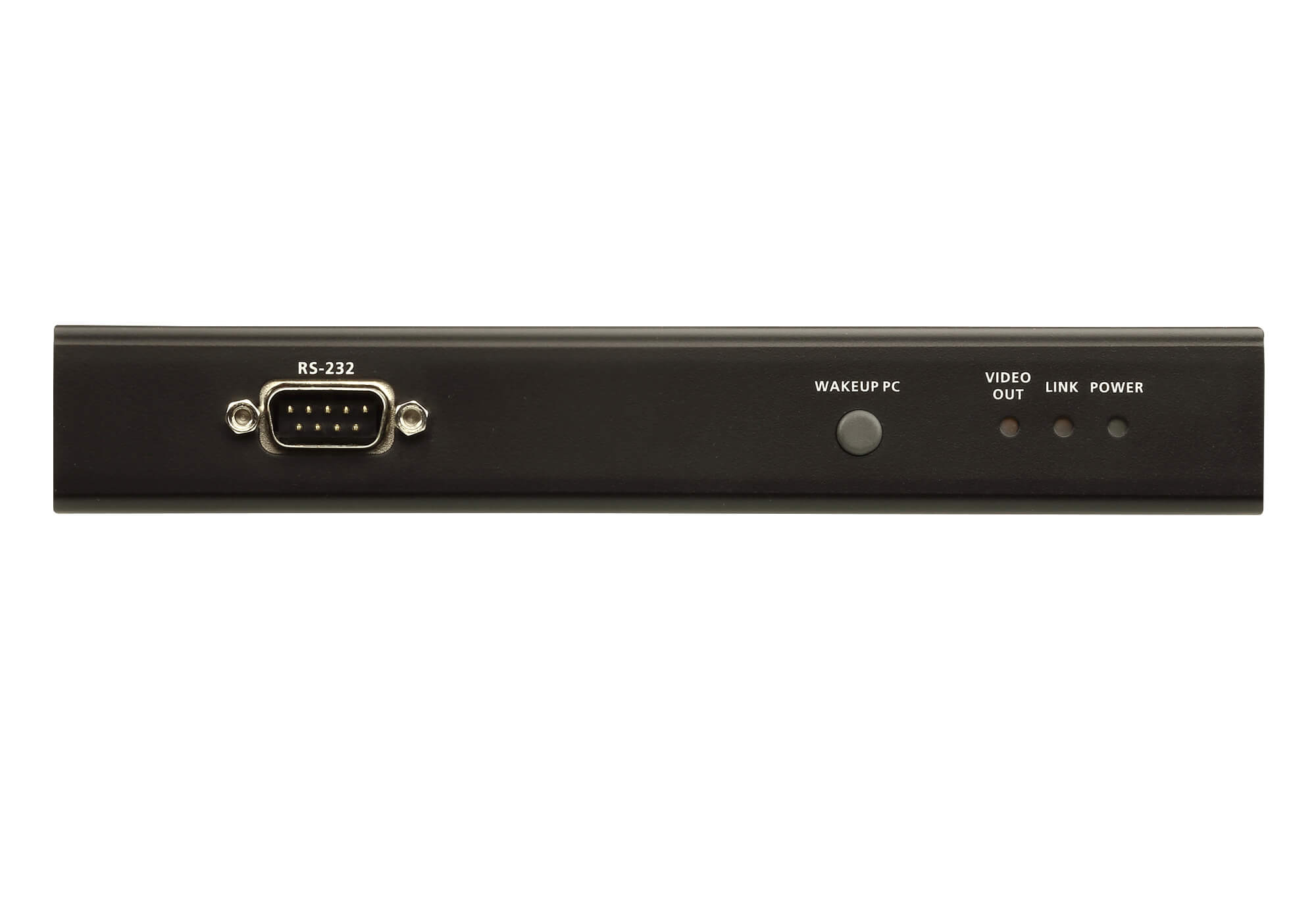

| Wakeup button | N/A | 1 x Push button |
| Video | Up to 4K@90m (Cat 5e) / 100m (Cat 6/6a/ATEN 2L-2910 Cat6) 1080P@100m (Cat 5e/6/6a) *4K supported: 4096 x 2160 / 3840 x 2160 @ 30Hz (4:4:4) |
Up to 4K@90m (Cat 5e) / 100m (Cat 6/6a/ATEN 2L-2910 Cat6) 1080P@100m (Cat 5e/6/6a) *4K supported: 4096 x 2160 / 3840 x 2160 @ 30Hz (4:4:4) |
| Power Consumption | DC5V:3.99W:19BTU | DC5V:6.74W:47BTU |
| Environmental | ||
| Operating Temperature | 0–40°C | 0–40°C |
| Storage Temperature | -20–60°C | -20–60°C |
| Humidity | 0–80% RH, Non-condensing | 0–80% RH, Non-condensing |
| Physical Properties | ||
| Housing | Metal | Metal |
| Weight | 0.63 kg ( 1.39 lb ) | 0.64 kg ( 1.41 lb ) |
| Dimensions (L x W x H) | 18.20 x 12.19 x 2.87 cm (7.17 x 4.8 x 1.13 in.) |
18.20 x 12.19 x 2.87 cm (7.17 x 4.8 x 1.13 in.) |
| Note | DisplayPort v1.1 supports up to 4Kx2K @ 30Hz. | DisplayPort v1.1 supports up to 4Kx2K @ 30Hz. |
| Note | For some of rack mount products, please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format. | |
