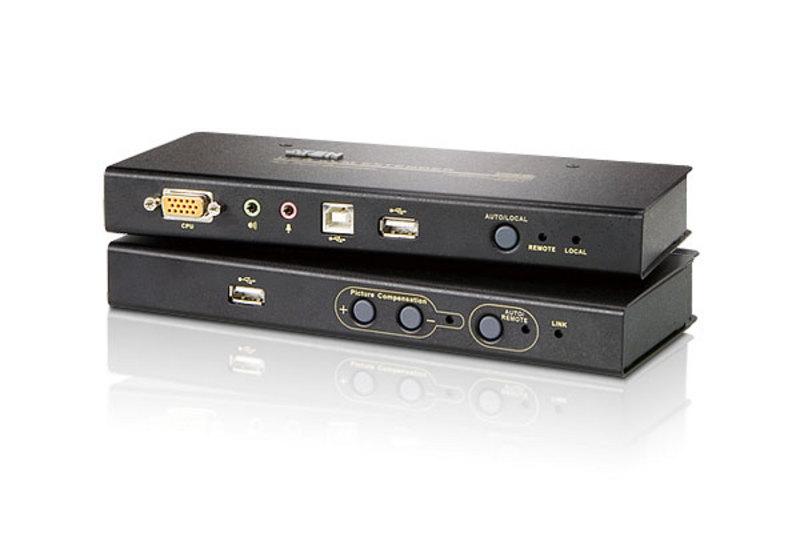

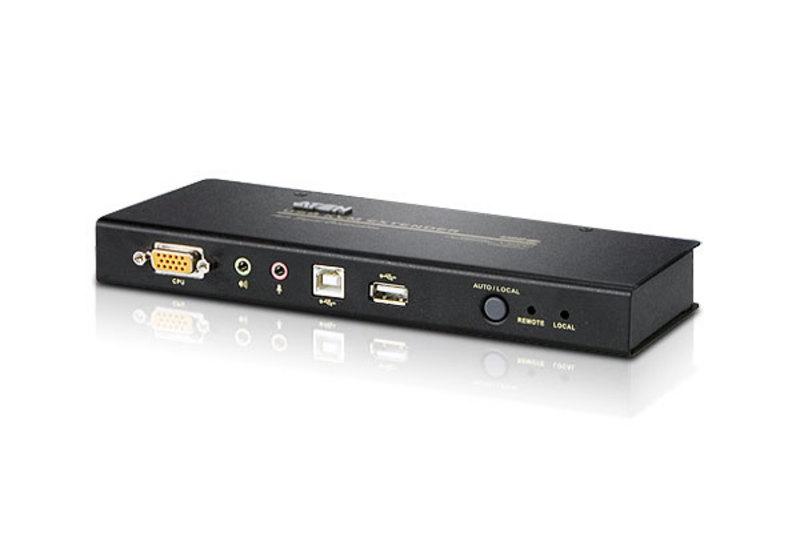

CE800B Aten USB VGA Audio CAT5 KVM Extender with USB Flash Storage

Description

The CE800B USB KVM Extender with on-board audio allows access to a computer system from a remote console (USB keyboard and mouse, monitor, stereo speakers, and microphone). It is perfect for factory and construction sites, or any type of installation where the console needs to be in a conveniently accessible location, but you want the system equipment to reside in a safe place – away from dust, dirt, and harsh environmental influences.

The CE800B has built-in USB ports that support USB Mass Storage compliant flash drives. The addition of a Type B USB port on the local unit means that the flash drive facility is fully supported in both PC-only and KVM switch installation.

Features

Cat 5e cable to connect the Local and Remote Units – up to 250 m (825 ft) apart
Dual console operation – control your system(s) from both the local and remote consoles
Pushbutton selection of the active console
Built-in USB port on both units supports external USB Mass Storage compliant flash drives for easy file sharing
Special security feature requires login when mounting an external USB storage device on the remote unit
Supports Wide Screen formats *
Supports VGA, SVGA, and multisync monitors ?local monitor supports DDC; DDC2; DDC2B
High resolution video – up to 1600 x 1200 @ 60 Hz
Built-in 8KV/15KV ESD protection and 2KV surge protection
Adjustable gain control – automatically and manually adjusts signal strength to compensate for distance
Supports stereo speakers and stereo microphone
Supports Microsoft Intellimouse and the scrolling wheel on most mice
Upgradable firmware
Built-in ASIC for greater reliability and compatibility* The EDID data for a widescreen is sent from the local video output port. For widescreen modes and displays connect the monitor to the local video output port or use an ATEN EDID emulator.

Specifications

Function	CE800BL	CE800BR
Computer Connections	1	N/A
Connectors
Console Ports	2 x USB Type A Female (White) 1 x HDB-15 Female (Blue) 1 x Mini Stereo Jack (Green) 1 x Mini Stereo Jack (Pink)	2 x USB Type A Female (White) 1 x HDB-15 Female (Blue) 1 x Mini Stereo Jack (Green) 1 x Mini Stereo Jack (Pink)
KVM Ports	1 x USB Type A (Female)	1 x SPHD-15 Female (Yellow) 1 x USB Type B (Female) 1 x USB Type A (Female) 1 x Mini Stereo Jack (Green) 1 x Mini Stereo Jack (Pink)
Firmware Upgrade	1 x 4-conductor 3.5 mm Jack	N/A
Power	1 x DC Jack	1 x DC Jack
Unit To Unit	1 x RJ-45	1 x RJ-45
Switches
Operation Mode Selection	1 x Pushbutton	1 x Pushbutton
Picture Compensation	N/A	2 x Pushbutton
LEDs
Local	1 (Green)	N/A
Remote	1 (Green)	1 (Green)
Link	N/A	1 (Green)
Compensation	N/A	1 (Orange)
Video	1920×1200@60Hz at 30m; 1600×1200@60Hz at 150m; 1024×768@60Hz at 250m	1920×1200@60Hz at 30m; 1600×1200@60Hz at 150m; 1024×768@60Hz at 250m
Power Consumption	DC5V, 6W	DC5V, 6W
Environmental
Operating Temperature	0-50˚C	0-50˚C
Storage Temperature	-20-60˚C	-20-60˚C
Humidity	0-80% RH, Non-condensing	0-80% RH, Non-condensing
Physical Properties
Housing	Metal	Metal
Weight	0.51 kg ( 1.12 lb )	0.49 kg ( 1.08 lb )
Dimensions (L x W x H)	20.20 x 8.63 x 2.63 cm (7.95 x 3.4 x 1.04 in.)	20.20 x 8.16 x 2.63 cm (7.95 x 3.21 x 1.04 in.)
