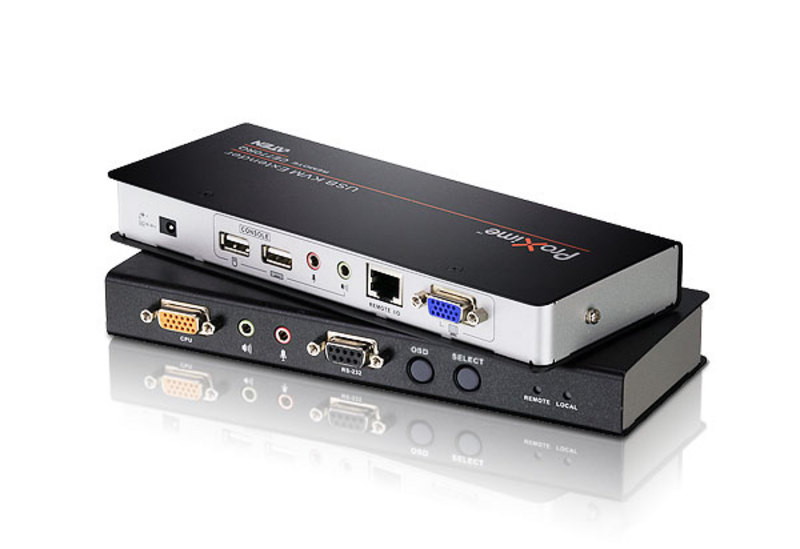

CE790 Aten USB & VGA Digital KVM Extender (Pair)

CE790 USB & VGA is IP based KVM Extender with automatic cable detection (Auto-MDIX) and RS-232 serial functionality that allows access to a computer system from a remote USB console (USB keyboard, monitor, and USB mouse) anywhere on the intranet. It features dual console operation where you can control your system from both the transmitter and receiver USB consoles and high resolution video – up to 1920 x 1080. It can be used point-to-point, point-to-multipoint, and multipoint-to-multipoint. If a multipoint set up is required, extra CE790R and CE790T will be needed.  In multipoint configurations, the IGMP (Internet Group Management Protocol) function of your network switches/hubs should be enabled to avoid deterioration of data throughput.

Data Sheet

Manual

SKU: CE790 Categories: , , , , , , , , , , , , , , , Tags: , , , , , , , , ,

Description

The CE790 is a IP based KVM Extender with automatic cable detection (Auto-MDIX) and RS-232 serial functionality that allows access to a computer system from a remote USB console (USB keyboard, monitor, and USB mouse) anywhere on the intranet.

The CE790 improves on previous designs by: 1) the addition of an intuitive On Screen Display (OSD) on both the transmitter and receiver units for easy setup and operation; 2) working over a standard TCP/IP LAN via inexpensive Cat 5e cable, allowing point-to-point, point-to-multipoint, and multipoint-to-multipoint administration without the need for an additional KVM switch; and 3) the addition of an RS-232 port, on both the transmitter and receiver Units – to connect to a serial terminal for configuration, and serial devices such as touchscreens and barcode scanners.
* The CE790 can be installed in point to point, point to multipoint and multipoint to multipoint configurations. Multipoint configurations require a separate purchase – contact your delear for details.

* In multipoint configurations, the IGMP (Internet Group Management Protocol) function of your network switches/hubs should be enabled to avoid deterioration of data throughput. If you do not know how to enable IGMP, please contact your network administrator.

  • Remotely access computers on your KVM installation via intranet
  • Dual console operation – control your system from both the transmitter and receiver USB consoles
  • OSD (On Screen Display) on both the transmitter and receiver units
  • Supports GUI operation*
  • No software required – an HTTP server is embedded in both units
  • Built-in ASIC for greater reliability and compatibility
  • USB Keyboard and USB Mouse Ports
  • RS-232 serial ports** – allows you to connect to a serial terminal for configuration, or serial devices such as touchscreens and barcode scanners
  • Audio enabled
  • USB overcurrent detection and prevention
  • High resolution video – up to 1920 x 1080
  • Supports widescreen formats
  • Ultra-High quality video mode
  • Hot pluggable
  • Rack mountable
  • Firmware upgradable
  • Auto-MDIX – automatically detects cable typeNote:
    * The CE790 AP and GUI operation instructions can be downloaded from the ATEN website (www.aten.com).
    ** RS-232 serial ports support Tx/Rx signals only.
Function CE790T CE790R

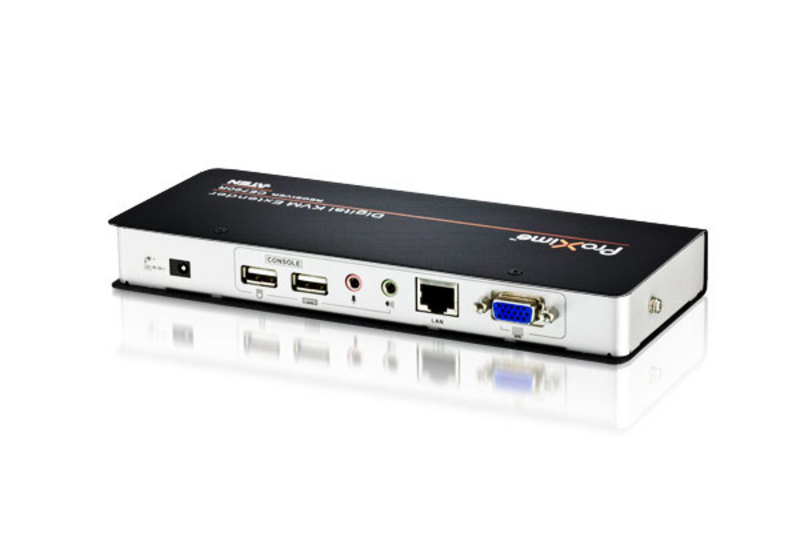

Connectors Console
Ports		 Keyboard 1 x USB Type A Female (White)
Video 1 x HDB-15 Female (Blue)
Mouse 1 x USB Type A Female (White)
Speaker 1 x Mini Stereo Jack Female (Green)
Mic. 1 x Mini Stereo Jack Female (Pink)
KVM
Ports		 Keyboard/ Video / Mouse 1 x SPHD-17 Female(Yellow) N/A
Speaker 1 x Mini Stereo Jack(Green)
Mic. 1 x Mini Stereo Jack (Pink)
RS-232 1 x DB-9
Female (Black)		 1 x DB-9 Male
(Black)
Power 1 x DC Jack (Black)
LAN 1 x RJ-45 Female (Black)

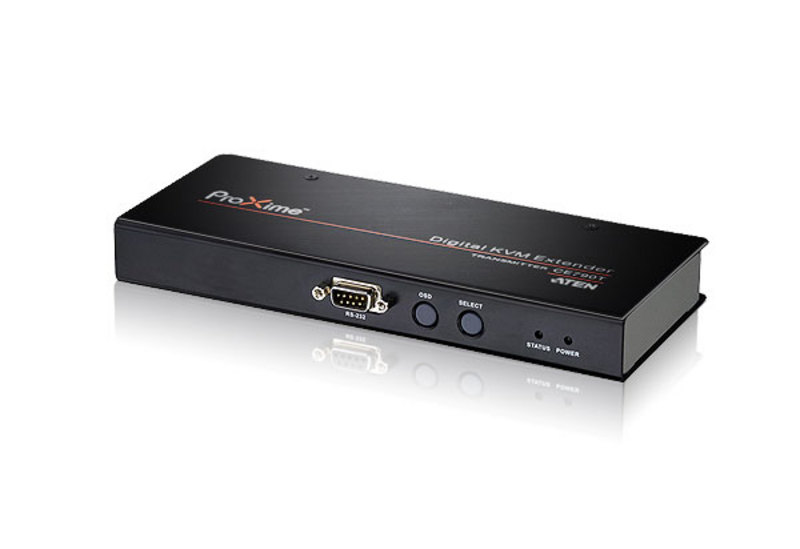

Pushbuttons OSD 1 x Pushbutton
Select 1 x Pushbutton
LEDs Status 1 (Green / Orange)
Power 1 (Green / Red)
Emulation Keyboard / Mouse USB
Power Consumption DC5.3V/6.62W DC5.3V/6.36W
Video Up to 1920 x 1080
Environment Operating Temp. 0 – 50°C
Storage Temp. -20 – 60°C
Humidity 0-80% RH, Non-condensing
Physical Properties Housing Metal
Weight 0.50 kg 0.48 kg
Dimensions
(L x W x H)		 20.20×8.64×2.50cm 20.20×8.64×2.50cm

  • 1x CE790T Digital KVM Extender (Transmitter)
  • 1x CE790R Digital KVM Extender (Receiver)
  • 1x USB KVM Cable (CE790T)
  • 2x Power Adapters
  • 1x Mounting Kit
  • 1x User Instructions
